4 Bed Cabin Home Plan with Two Island Kitchen and Drive Under Garage - 2293 Sq Ft
Heated S.F.
2,293
Beds
3-4
Baths
3
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • This Cabin house plan gives you a 4 beds, 3 baths and 2,293 square feet of heated living area. A 2-car drive under garage that has 683 square feet of parking and 713 square feet of warp around deck providing a fresh-air living space to enjoy for all.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get a version on a crawlspace with house plans 311055RMZ and 311056RMZ.
What's Included

  • General notes
  • Floor plans
  • Roof plan
  • Sections
  • Framing detail
  • Foundation plan

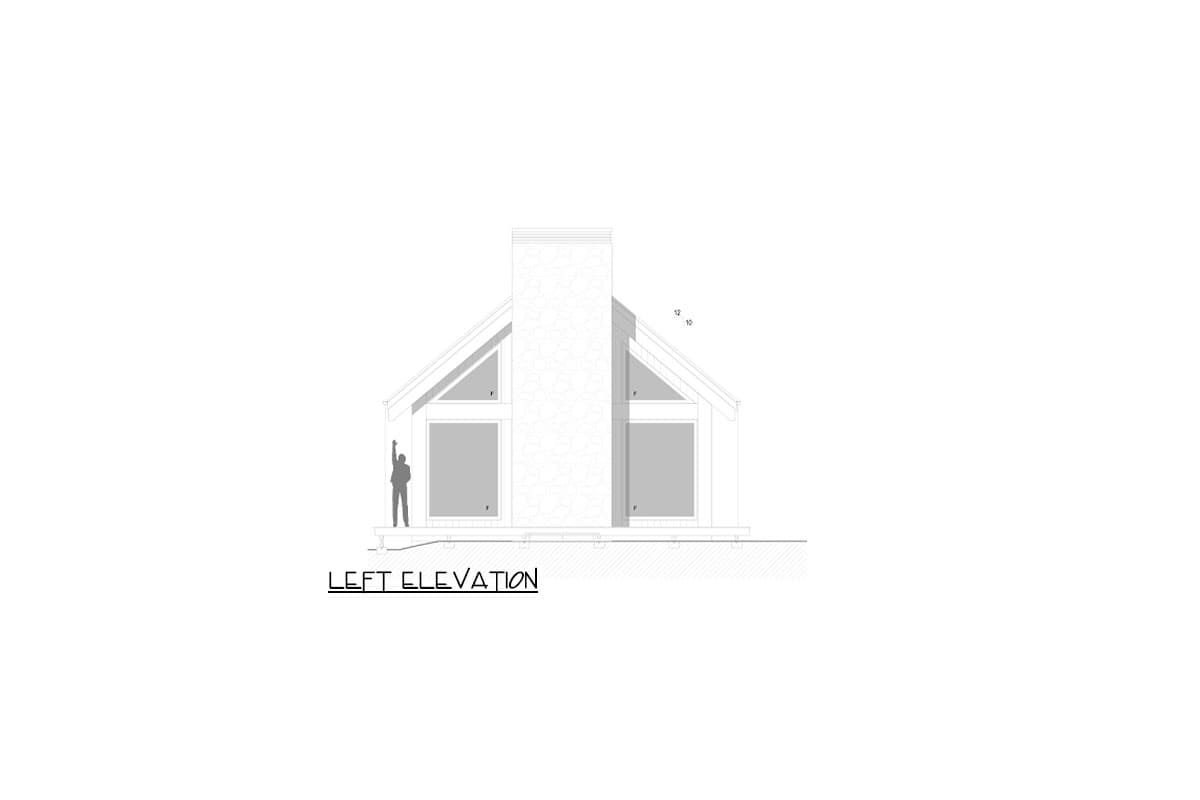

  • Elevations (all four sides)
  • Electrical plans
  • Window and door schedules

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 Bed Cabin Home Plan with Two Island Kitchen and Drive Under Garage - 2293 Sq Ft

  • 2,293

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

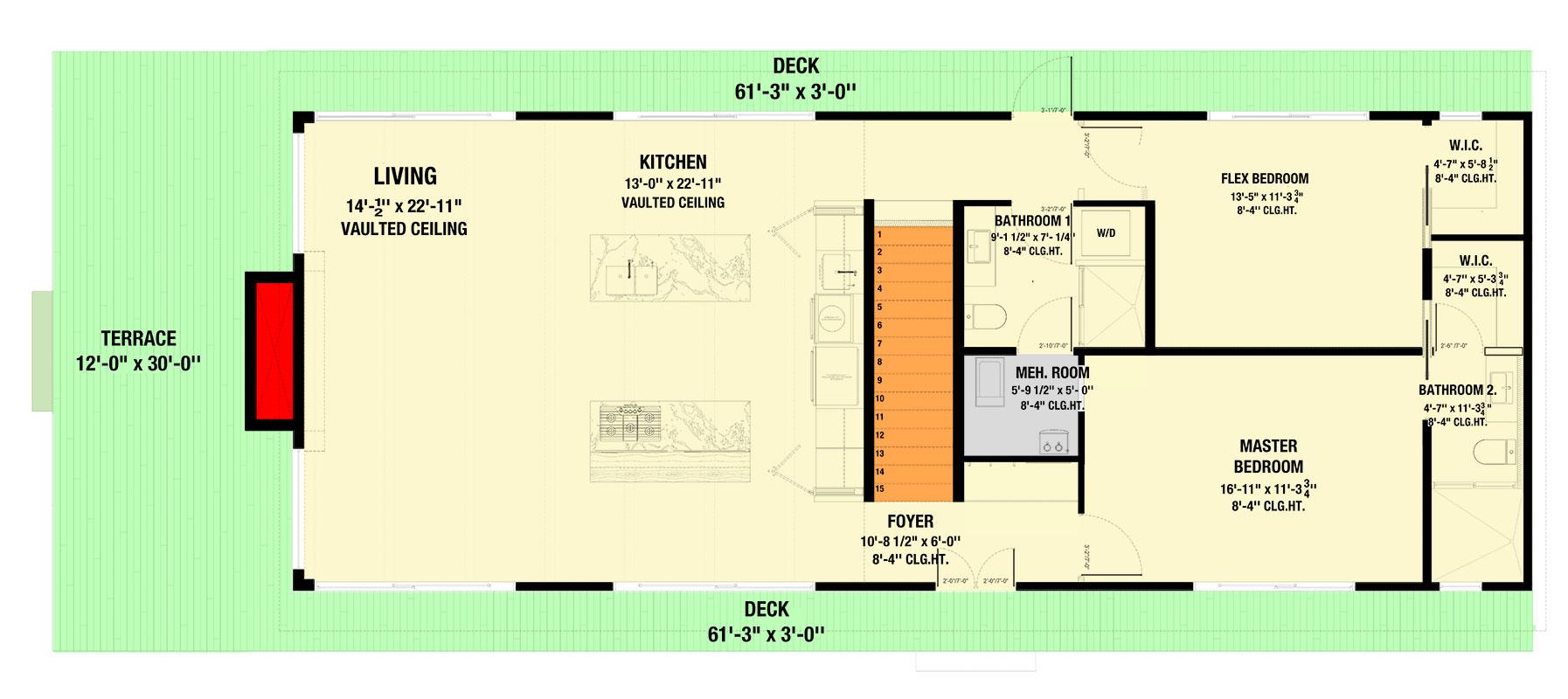

  • Main Level

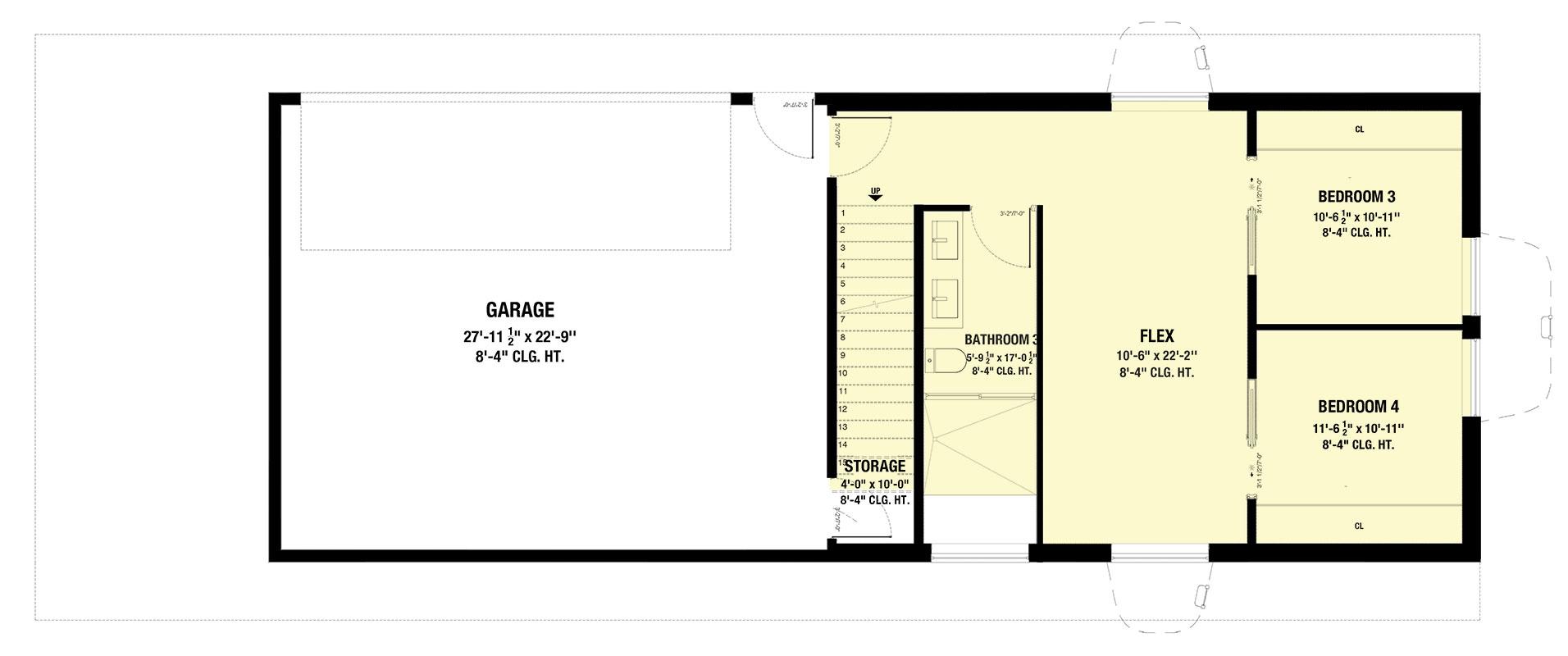

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,293 sq. ft.
  • Lower Level: 805 sq. ft.
  • 1st Floor: 1,488 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 30' 0"
  • Max ridge height: 22' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Drive Under, Attached
  • Area: 683 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 4"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
