Plan 56466SM

4-Bed Classic Southern House Plan with Perfect Exterior Symmetry

Name: Plan 56466SM: 4-Bed Classic Southern House Plan with Perfect Exterior Symmetry
Brand: Architectural Designs
SKU: 56466SM
Price: 1445.0 USD
Availability: InStock

Heated S.F.

3,170

Beds

Baths

Stories

Cars

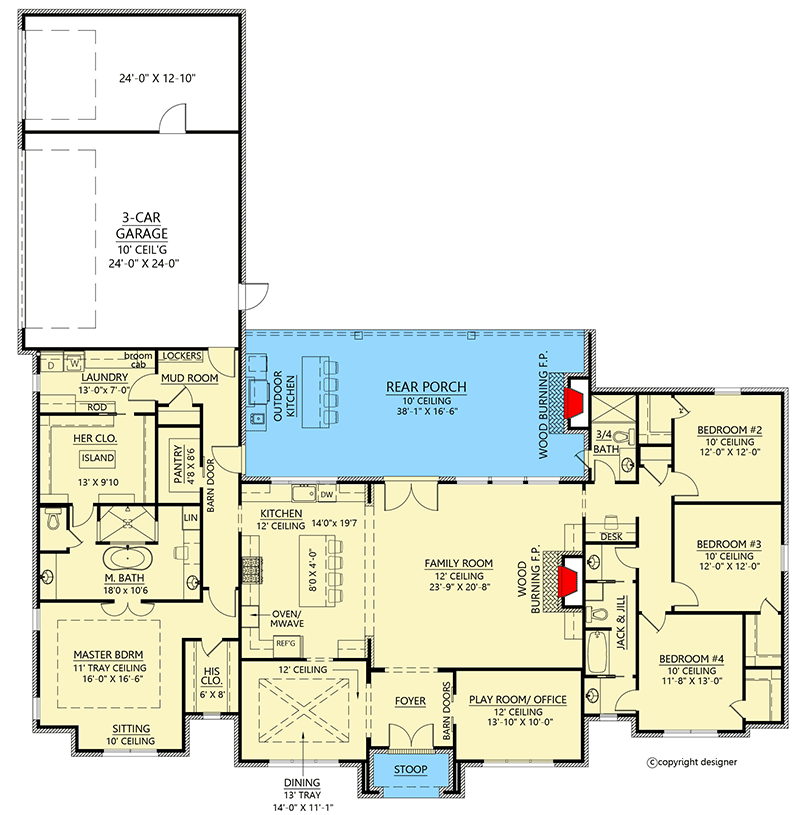

Floor Plan

Main Level

Plan Details

A carefree brick exterior greets you to this classic 4-bed house plan. The home has great visual symmetry from the curb, with the covered entry centered on the home flanked by multi-paned windows on either side, matching raised hip roofs on the ends and three dormers.
French doors open to reveal the open to the foyer with sliding barn doors on the right opening to a flex room that can be used as either a play room or office. On the opposite side, the dining room has a 13' tray ceiling and has access to the kitchen.
An open concept layout lies at the center of the home. Your views are unobstructed from the kitchen to the fireplace in the family room. A pair of French doors directly opposite the front doors takes you to the rear porch. At 16'6" deep, this can serve as an outdoor living room and comes with a wood-burning fireplace and outdoor kitchen.
The master suite occupies the entire left side of the home and has direct laundry access from the walk-in closet. Three bedrooms share two bathrooms - one of them a Jack and Jill bath - across the home.
The garage has room for two cars with one bay segmented from the other two.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

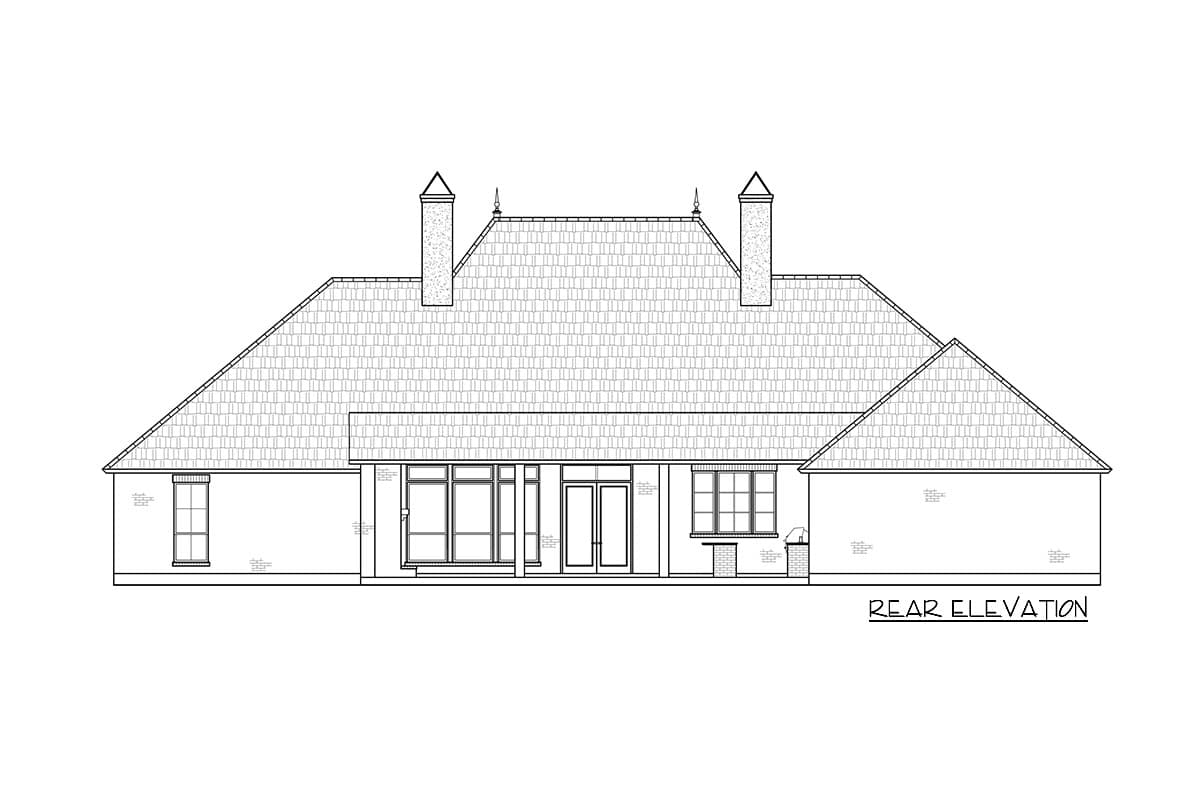

FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
