Plan 86115BW
4 Bed Coastal Contemporary House Plan with 3-Car Garage - 3785 Sq Ft
Heated S.F.
3,785
Beds
4
Baths
4.5
Stories
1
Cars
3
Plan Details
  • This 3785 square foot coastal contemporary house plan gives you 4 bedrooms, 4 bathrooms, 1 powder bath and 3 car garage spaces totaling 954 square feet of parking.
  • Amenities include a great room with coffered ceiling (12'8" to 13'4"), island kitchen (12' ceiling) with walk-in pantry and breakfast nook (12' to 13' coffered ceiling), formal dining room (12' to 13' coffered ceiling), study (12' to 13' coffered ceiling) and a dedicated laundry room (10' ceiling).
  • The owner’s suite has a coffered ceiling (12' to 13') and features 2 walk-in closets, dual sinks, a freestanding tub and a shower.
  • The lanai has a coffered ceiling (12' to 13') and includes an outdoor kitchen and a fireplace.
  • It is designed with a slab foundation, concrete block exterior walls, stucco exterior finish and a flat cement tile roof.
  • NOTE: The 1205 pool deck is not included in the total under roof square footage
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 Bed Coastal Contemporary House Plan with 3-Car Garage - 3785 Sq Ft

  • 3,785

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

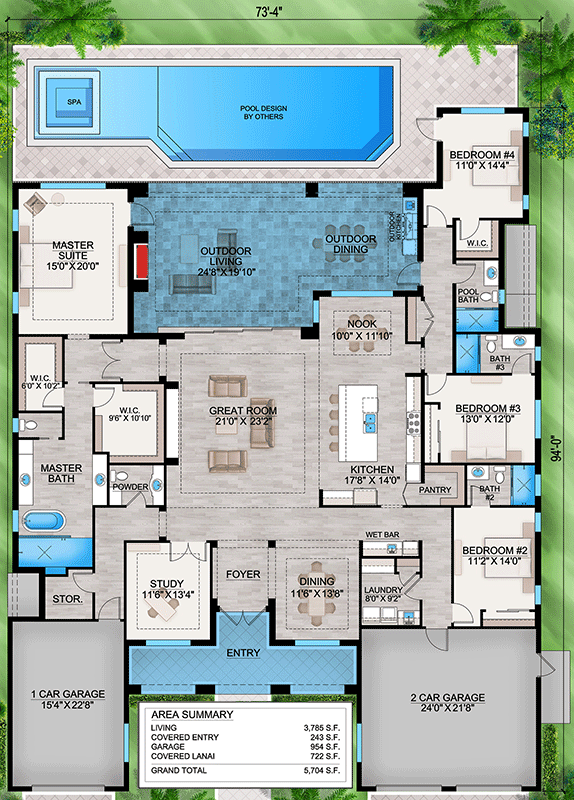

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,785 sq. ft.
  • 1st Floor: 3,785 sq. ft.

Dimensions

  • Width: 73' 4"
  • Depth: 94' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 954 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
