4-Bed Colonial House Plan with Open Floor Plan

Plan 710280BTZ

  • 2,883

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This grand Colonial home plan has board-and-batten shutters, window boxes, a column-lined porch and an oversized brick chimney.
  • The first floor impresses with a completely open floor plan. The vaulted great room, breakfast area and eat-in kitchen are all steps apart making entertaining a dream.
  • A vaulted screened porch and separate deck are reached through a pair of French doors off the breakfast area. Across the home, a bedroom and full bath are ready for guests.
  • Upstairs, the master suite with two walk-in closets and a grand en suite are found. Two additional bedrooms with a shared Jack-and-Jill bath are just down the hall.
  • Related Plans: Get an alternate exterior with house plans 710281BTZ and 710282BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

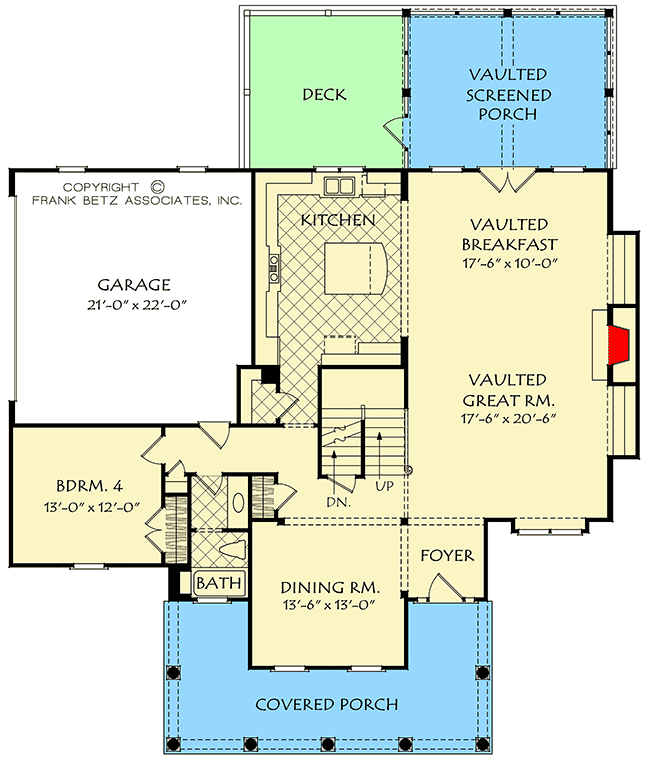

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Colonial House Plan with Open Floor Plan - 710280BTZ floor plan - Main Level

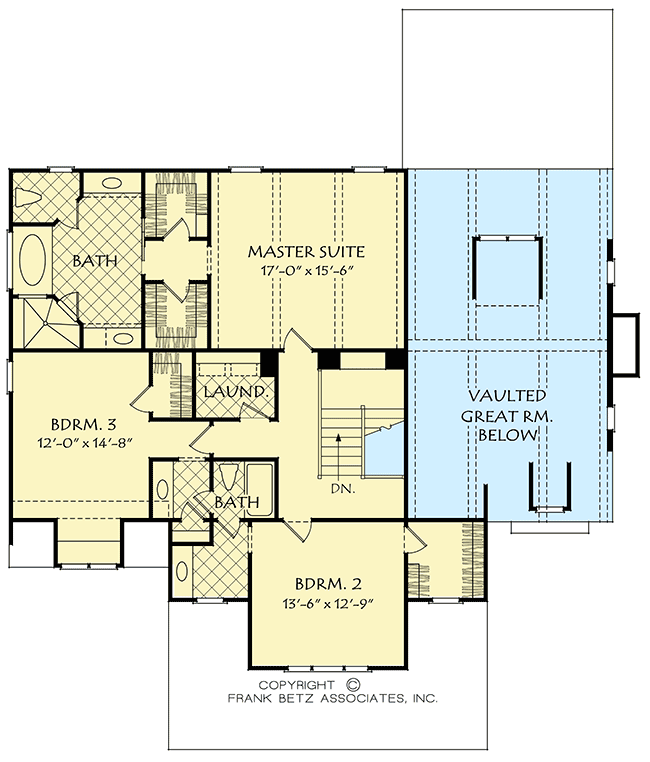

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Colonial House Plan with Open Floor Plan - 710280BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,883 sq. ft.
  • 1st Floor: 1,562 sq. ft.
  • 2nd Floor: 1,321 sq. ft.
  • Basement Unfinished: 1,562 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 4"
  • Depth: 65' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

4-Bed Colonial House Plan with Open Floor Plan

  • 2,883

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,695
  • 5 Sets + PDF $1,975
  • PDF - Unlimited Build $1,995
  • PDF - Unlimited Build + 5-Sets $2,275
  • CAD - Unlimited Build $3,295
  • View all purchase option online

About This Plan

  • This grand Colonial home plan has board-and-batten shutters, window boxes, a column-lined porch and an oversized brick chimney.
  • The first floor impresses with a completely open floor plan. The vaulted great room, breakfast area and eat-in kitchen are all steps apart making entertaining a dream.
  • A vaulted screened porch and separate deck are reached through a pair of French doors off the breakfast area. Across the home, a bedroom and full bath are ready for guests.
  • Upstairs, the master suite with two walk-in closets and a grand en suite are found. Two additional bedrooms with a shared Jack-and-Jill bath are just down the hall.
  • Related Plans: Get an alternate exterior with house plans 710281BTZ and 710282BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,883 sq. ft.
  • 1st Floor: 1,562 sq. ft.
  • 2nd Floor: 1,321 sq. ft.
  • Basement Unfinished: 1,562 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 4"
  • Depth: 65' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
