Plan 710282BTZ

  • 2,904

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Every inch of this traditional home plan is inviting and elegant, from the brick and stonework to the arched entryway.
  • The first floor impresses with a completely open floor plan. The vaulted great room, breakfast area and eat-in kitchen are all steps apart making entertaining a dream.
  • A vaulted screened porch and separate deck are reached through a pair of French doors off the breakfast area. Across the home, a bedroom and full bath are ready for guests.
  • Upstairs, the master suite with two walk-in closets and a grand en suite are found. Two additional bedrooms with a shared Jack-and-Jill bath are just down the hall.
  • Related Plans: Get an alternate exterior with house plans 710280BTZ and 710281BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



4-Bed Traditional Home Plan with Open Floor Plan

  • 2,904

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,490
  • Reproducible Set $1,565
  • CAD - multi-use $2,850
  • View all purchase option online

About This Plan

  • Every inch of this traditional home plan is inviting and elegant, from the brick and stonework to the arched entryway.
  • The first floor impresses with a completely open floor plan. The vaulted great room, breakfast area and eat-in kitchen are all steps apart making entertaining a dream.
  • A vaulted screened porch and separate deck are reached through a pair of French doors off the breakfast area. Across the home, a bedroom and full bath are ready for guests.
  • Upstairs, the master suite with two walk-in closets and a grand en suite are found. Two additional bedrooms with a shared Jack-and-Jill bath are just down the hall.
  • Related Plans: Get an alternate exterior with house plans 710280BTZ and 710281BTZ.

Floor Plans

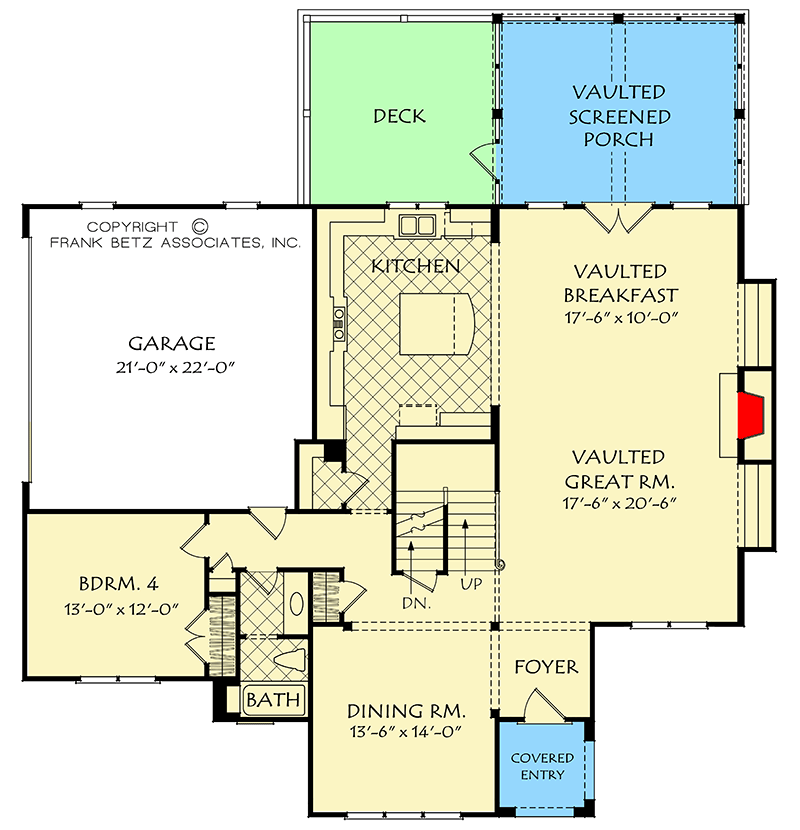

  • Main Level

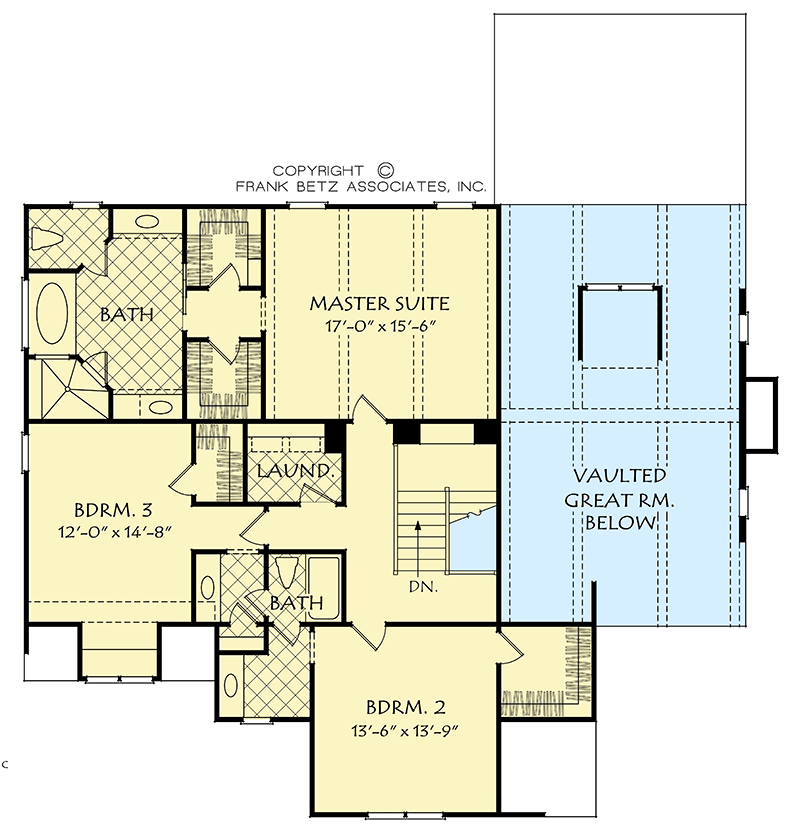

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,904 sq. ft.
  • 1st Floor: 1,569 sq. ft.
  • 2nd Floor: 1,335 sq. ft.
  • Basement Unfinished: 1,569 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 4"
  • Depth: 59' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 417 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
