Plan 530139KTE
4-Bed Country Ranch House Plan with Split Bedroom Layout - 2140 Sq Ft
Heated S.F.
2,140
Beds
4
Baths
3
Stories
1
Floor Plan

Plan 530139KTE

Main Level
slide image 0

Plan 530139KTE

1-800-854-7852

1-262-521-4596

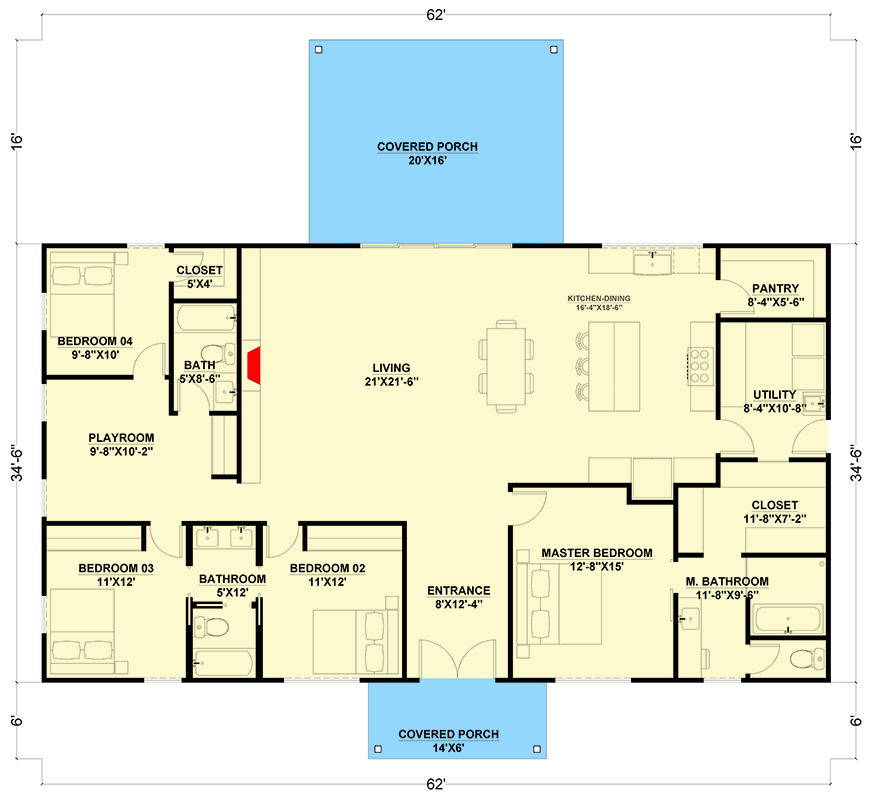

Main Level
floor plan image Main Level
Plan Details
  • This simple 4-bed country ranch house plan offers 2,140 square feet of heated living space on one level with 4-bedrooms, 3 full baths and front and rear covered porches.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

The Quentin – A Cost-Effective Traditional Barndominium with Country Flair

The Quentin is a thoughtfully designed traditional barndominium that combines country charm with cost-effective living. Featuring 2,140 square feet of living space, this home offers 4 bedrooms, 3 bathrooms, and 429 square feet of covered porch area, making it the perfect balance of style, practicality, and affordability.

Spacious and Functional Living Areas
The open-concept living, kitchen, and dining area provides ample space for family gatherings and entertaining. The kitchen includes a large island and a walk-in pantry, ideal for meal preparation and storage. A cozy fireplace in the living room creates a warm and inviting atmosphere, making this the heart of the home.

Private Primary Suite
The primary bedroom features a walk-in closet and a luxurious wet room with a separate shower and tub, offering a spa-like experience in the comfort of your home.

Play/Game Room and Additional Bedrooms
On the opposite side of the home, you'll find a play/game room, perfect for family entertainment. The three additional bedrooms are thoughtfully separated to offer privacy, with two bedrooms sharing a Jack and Jill bath. A third full bath is conveniently located off the playroom, serving the needs of the entire family.

Practical Features
A large mud/laundry room provides space for laundry, storage, and everyday organization, adding convenience and functionality to the home’s layout.

With its cost-effective design, the Quentin offers a spacious and well-planned living space that’s ideal for families seeking both practicality and charm. Whether you're hosting gatherings or enjoying quiet family time, this home has everything you need to create lasting memories. Contact us today to learn more about how the Quentin can be the perfect fit for your family.
What's Included
  • Cover Sheet
  • Roof Plan
  • Floor Plan
  • Exterior Elevations
  • Internal Sections
  • Internal Dimensions
  • Electrical Plan
  • Foundation Plan & Details
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,140 sq. ft.

1st Floor

2,140 sq. ft.

Porch, Combined

429 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

34' 6"

Max Ridge Height

17' 7"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Square Footage Breakdown

Total Heated Area

2,140 sq. ft.

1st Floor

2,140 sq. ft.

Porch, Combined

429 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 0"

Depth

34' 6"

Max Ridge Height

17' 7"

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style
