4 Bed Craftsman Beauty With Exterior Options

Plan 500002VV

  • 3,554

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4 bed Craftsman house plan has a great exterior and comes in an alternate version with another great exterior.
  • The open layout inside is ideal for families who want to spend time together.
  • And when you want some alone time, the study makes a wonderful retreat.
  • Pocket doors close off the dining room when you are entertaining.
  • The mud room and big walk-in pantry add efficiency.
  • All the bedrooms are upstairs along with a cozy playroom for the kids.
  • The home comes with a walk-in storage closet and second floor laundry room.
  • The master suite gets its own private balcony and a giant walk-in closet divided into his and her sections.
  • Related Plan: Get an alternate exterior with house plan 500001VV.
  • NOTE: Plans restricted from construction in the Richmond, Virginia area.

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

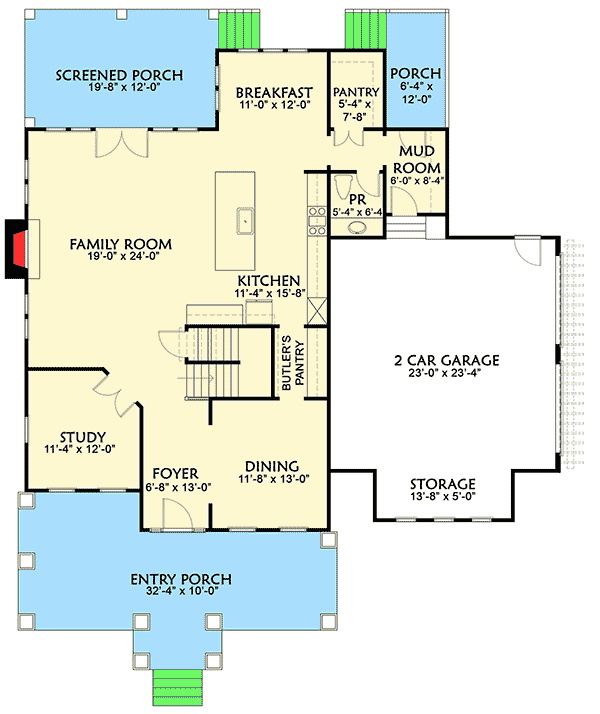

4 Bed Craftsman Beauty With Exterior Options - 500002VV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

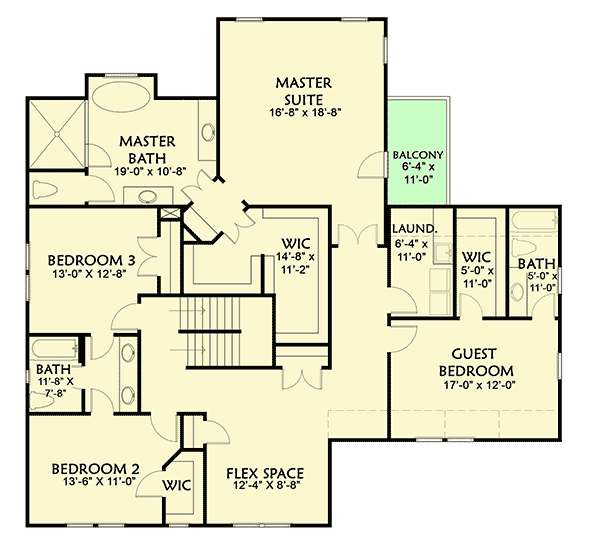

4 Bed Craftsman Beauty With Exterior Options - 500002VV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,554 sq. ft.
  • 1st Floor: 1,485 sq. ft.
  • 2nd Floor: 2,069 sq. ft.
  • Attic: 420 sq. ft.
  • Balcony / Veranda: 70 sq. ft.
  • Porch, Rear: 234 sq. ft.
  • Porch, Front: 391 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 4"
  • Depth: 67' 0"
  • Max ridge height: 39' 5"

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0" Attic 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style
