4-Bed Craftsman Home Plan with Beds and Laundry Upstairs

Plan 500038VV

  • 2,991

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • With it's eye-catching shingled and clapboard exterior and beefy gabled front porch, this Craftsman house plan has great curb appeal.
  • The open layout inside is ideal for families who want to spend time together. And when you want some alone time, the study makes a wonderful retreat.
  • Pocket doors close off the study for added privacy.
  • The mud room and walk-in pantry add efficiency.
  • All the bedrooms are upstairs along with a cozy playroom for the kids. The second floor laundry room is a real convenience.
  • The master suite has a giant walk-in closet divided into his and her sections.
  • Related Plans: Get a 3-car garage with house plan 500035VV (2,885 sq. ft.). Get an extra bathroom with house plan 500045VV (2,991 sq. ft.). Get more room with house plan 500001VV (3,532 sq. ft.).

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

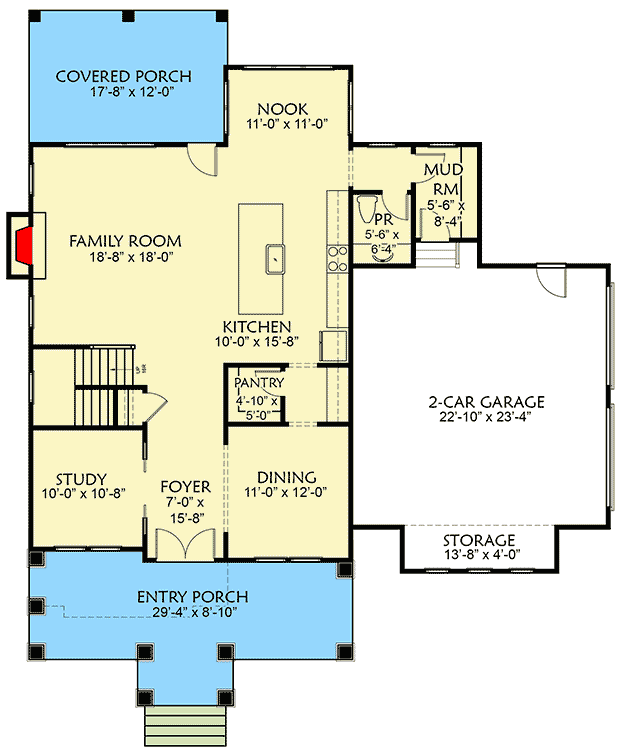

4-Bed Craftsman Home Plan with Beds and Laundry Upstairs - 500038VV floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

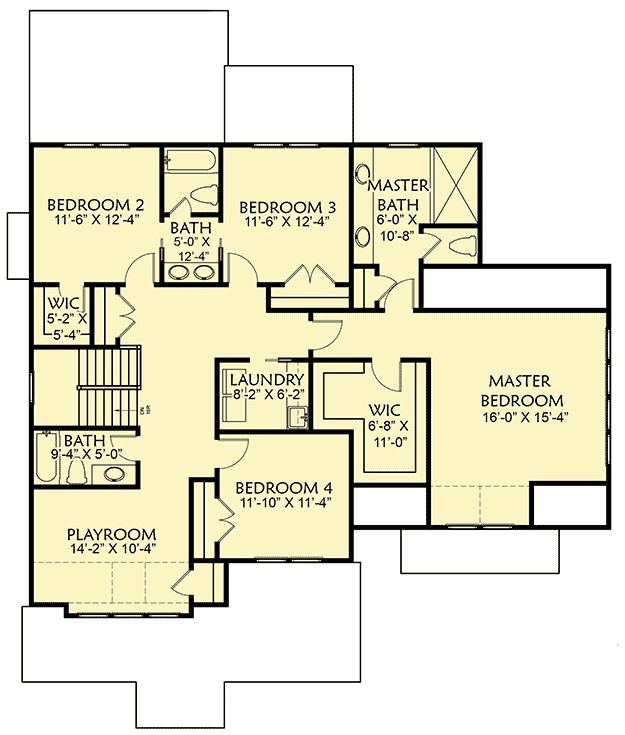

4-Bed Craftsman Home Plan with Beds and Laundry Upstairs - 500038VV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,991 sq. ft.
  • 1st Floor: 1,304 sq. ft.
  • 2nd Floor: 1,687 sq. ft.
  • Entry: 306 sq. ft.
  • Porch, Rear: 214 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 8"
  • Depth: 63' 0"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 627 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

4-Bed Craftsman Home Plan with Beds and Laundry Upstairs

  • 2,991

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD - Single-Build $2,595
  • CAD - Unlimited Build $3,095
  • View all purchase option online

About This Plan

  • With it's eye-catching shingled and clapboard exterior and beefy gabled front porch, this Craftsman house plan has great curb appeal.
  • The open layout inside is ideal for families who want to spend time together. And when you want some alone time, the study makes a wonderful retreat.
  • Pocket doors close off the study for added privacy.
  • The mud room and walk-in pantry add efficiency.
  • All the bedrooms are upstairs along with a cozy playroom for the kids. The second floor laundry room is a real convenience.
  • The master suite has a giant walk-in closet divided into his and her sections.
  • Related Plans: Get a 3-car garage with house plan 500035VV (2,885 sq. ft.). Get an extra bathroom with house plan 500045VV (2,991 sq. ft.). Get more room with house plan 500001VV (3,532 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,991 sq. ft.
  • 1st Floor: 1,304 sq. ft.
  • 2nd Floor: 1,687 sq. ft.
  • Entry: 306 sq. ft.
  • Porch, Rear: 214 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 8"
  • Depth: 63' 0"
  • Max ridge height: 33' 6"

Garage

  • Type: Attached
  • Area: 627 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
