4-Bed Craftsman House Plan with Beds and Laundry Upstairs

Plan 500045VV

2,997
Heated s.f.
4
Beds
2.5
Baths
2
Stories
2
Cars

With it's eye-catching shingled and clapboard exterior and beefy gabled front porch, this Craftsman house plan has great curb appeal.
The open layout inside is ideal for families who want to spend time together. And when you want some alone time, the study makes a wonderful retreat.
Pocket doors close off the study for added privacy.
The mud room and walk-in pantry add efficiency.
All the bedrooms are upstairs along with a cozy playroom for the kids. The second floor laundry room is a real convenience.
The master suite has a giant walk-in closet divided into his and her sections.
Related Plans: Get full and one half bath with house plan 500038VV (2,997 sq. ft.). Get more room with house plan 500001VV (3,532 sq. ft.).

This house plan includes the following:

Cover sheet with notes
Foundation
Floor plans
Elevations
Sections
Framing plans
Electrical plans

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

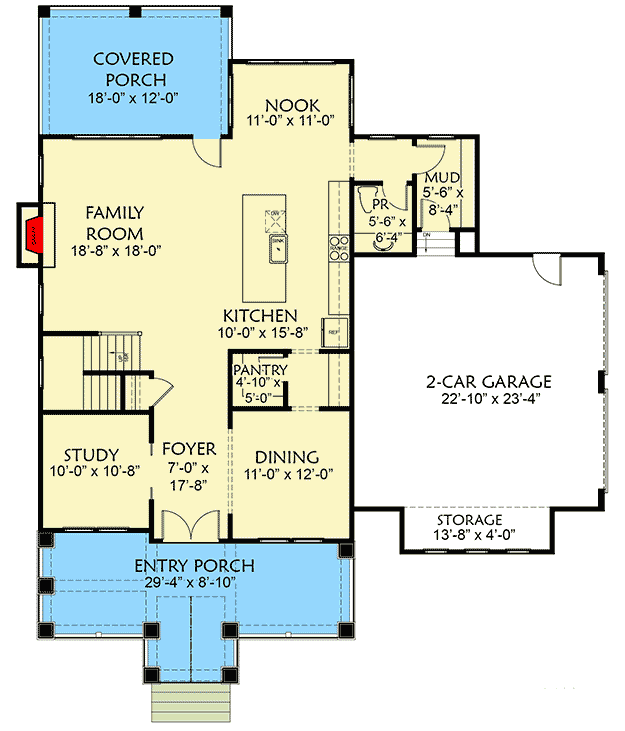

4-Bed Craftsman House Plan with Beds and Laundry Upstairs - 500045VV floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

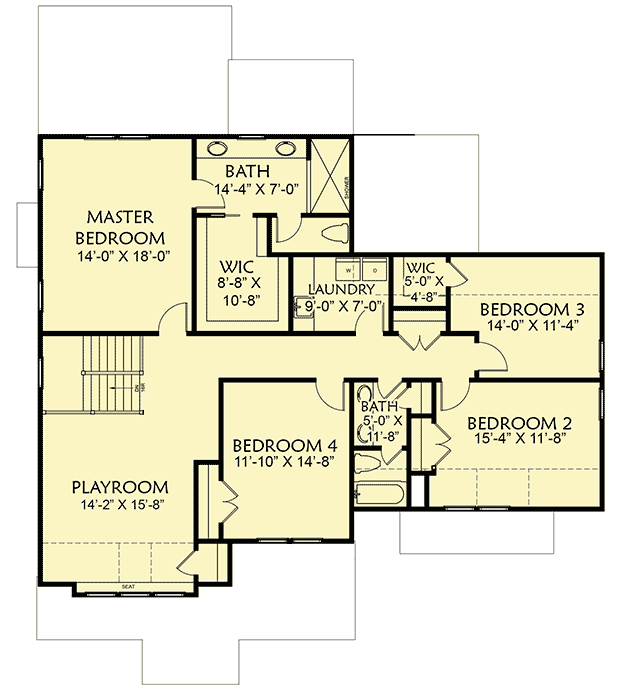

4-Bed Craftsman House Plan with Beds and Laundry Upstairs - 500045VV floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,997 sq. ft.
1st Floor: 1,305 sq. ft.
2nd Floor: 1,692 sq. ft.

Porch, Rear: 214 sq. ft.
Porch, Front: 306 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Basement, Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 54' 8"
Depth: 63' 0"
Max ridge height: 33' 2"

Garage

Type: Attached
Area: 627 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 3 on 12

Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections
