Plan 890117AH 4-Bed Craftsman Ranch Home Plan for a Rear-Sloping Lot

3,583 4 3 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed Craftsman Ranch Home Plan for a Rear-Sloping Lot

Plan 890117AH

  • 3,583

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

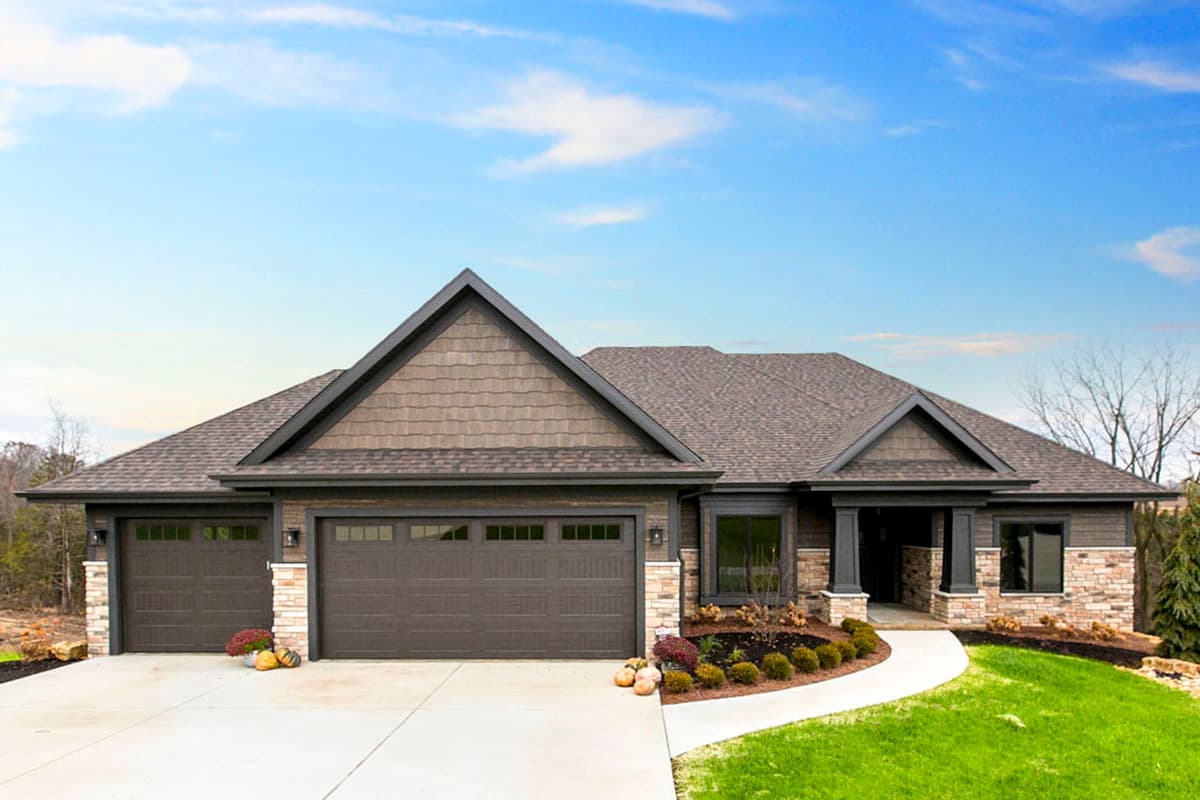

  • This 4-bedroom ranch embraces Craftsman details blending traditional design with modern flair and is ideally suited for a rear-sloping lot.

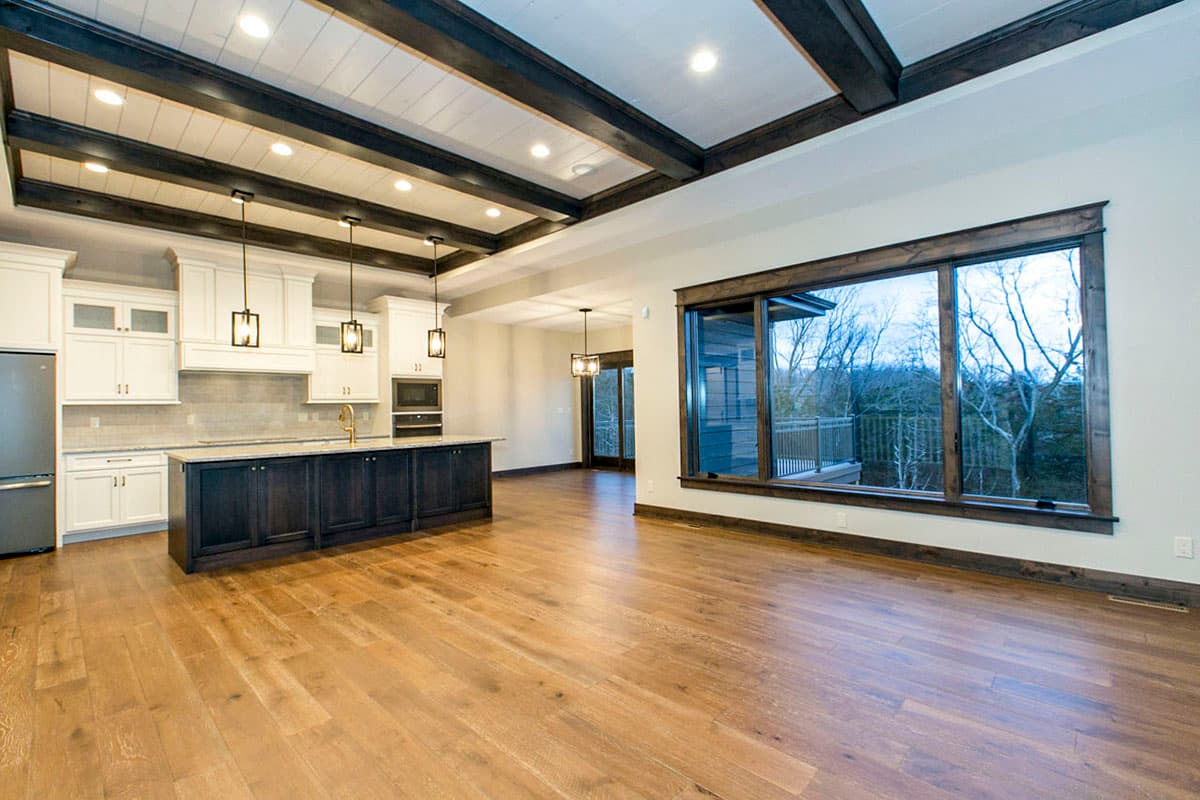

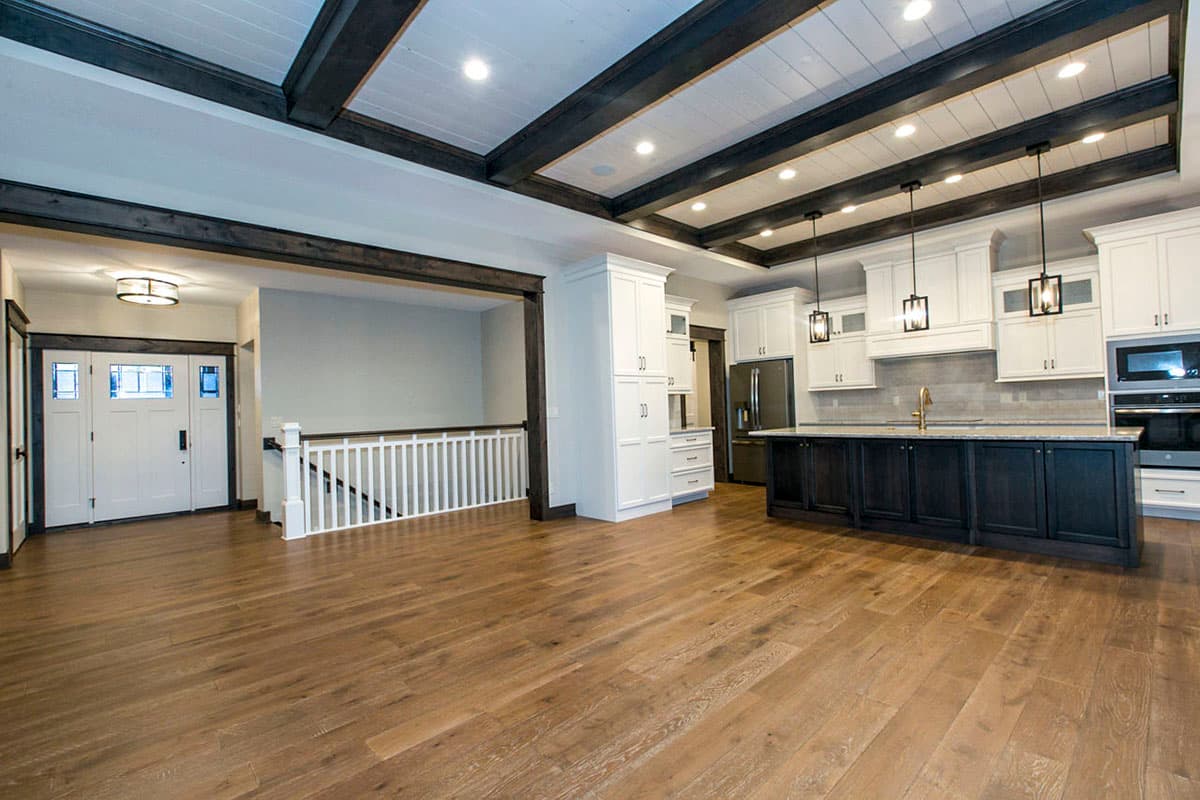

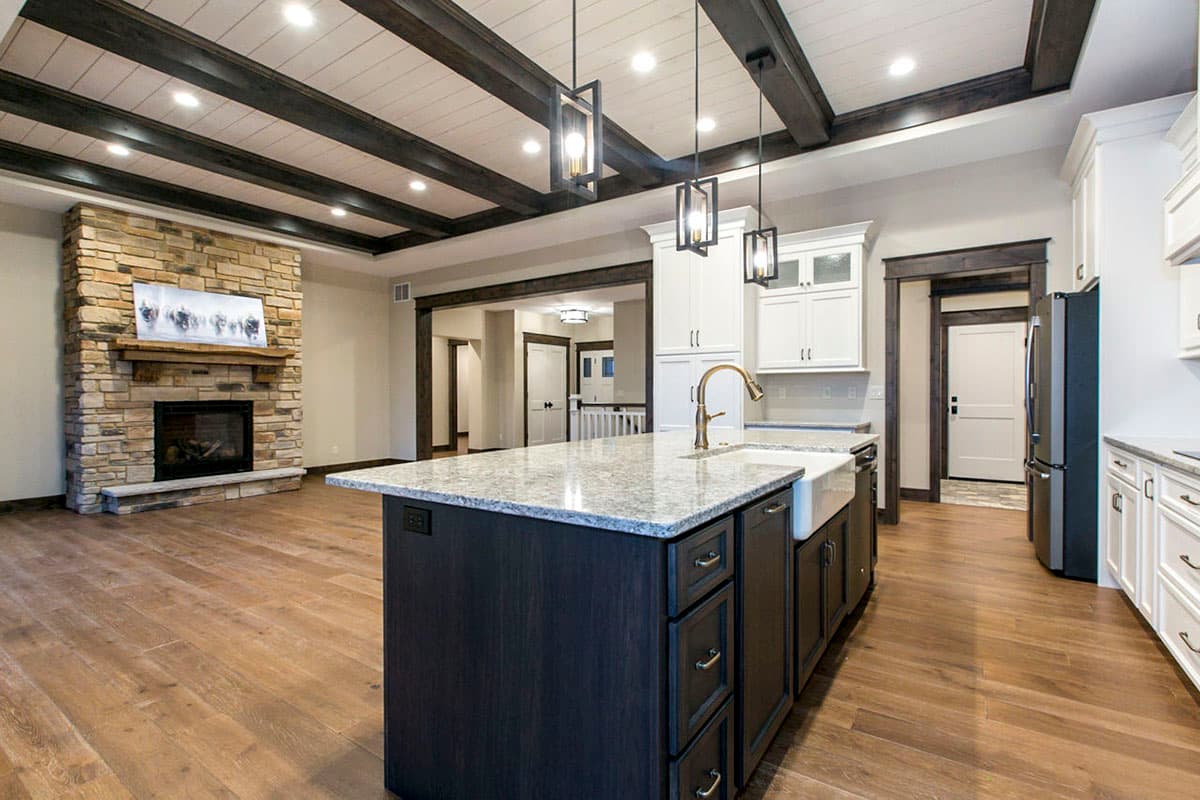

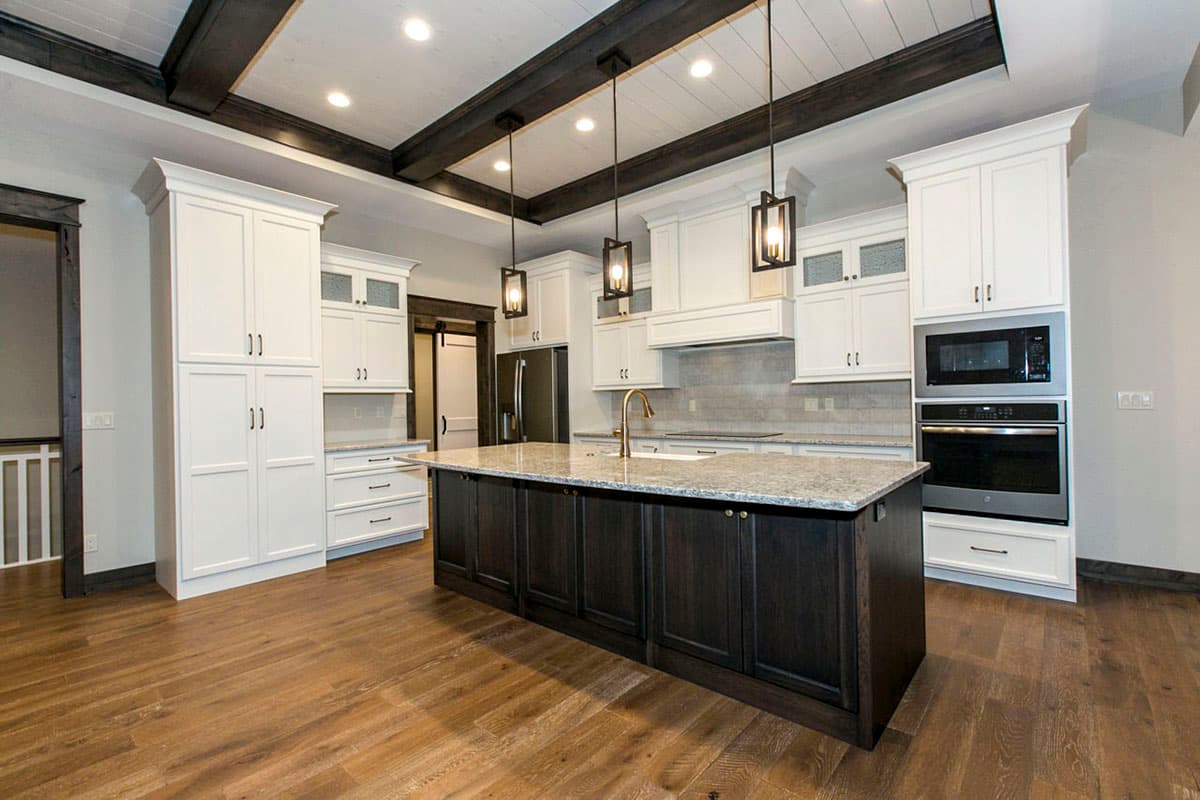

  • An open floor plan features a spacious kitchen that overlooks the great room so mom can keep an eye on the kids while preparing dinner.

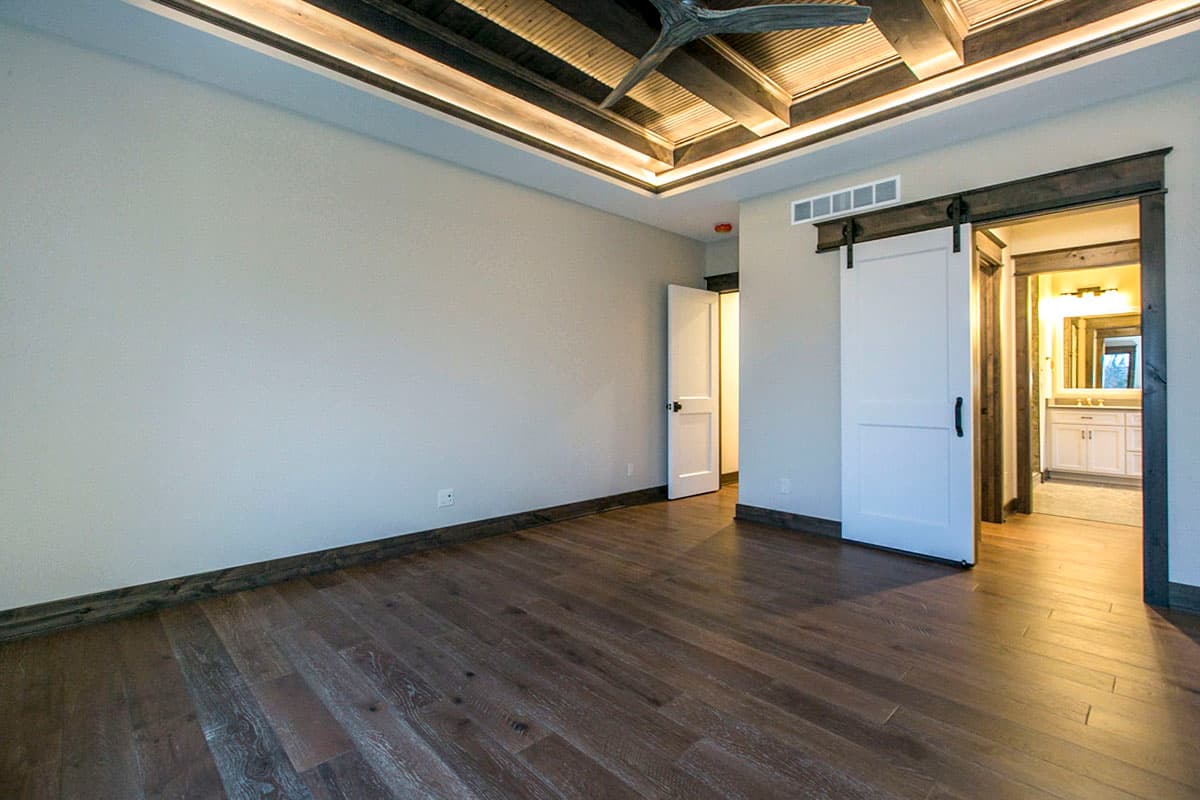

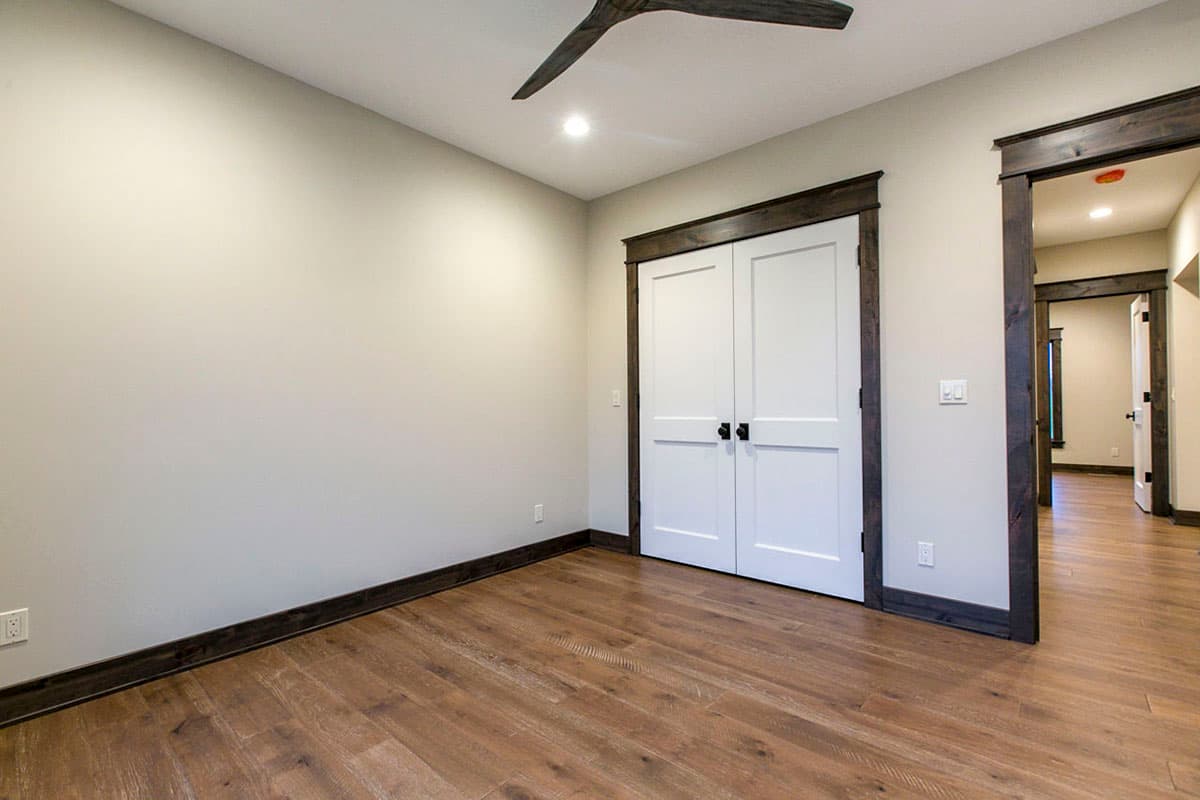

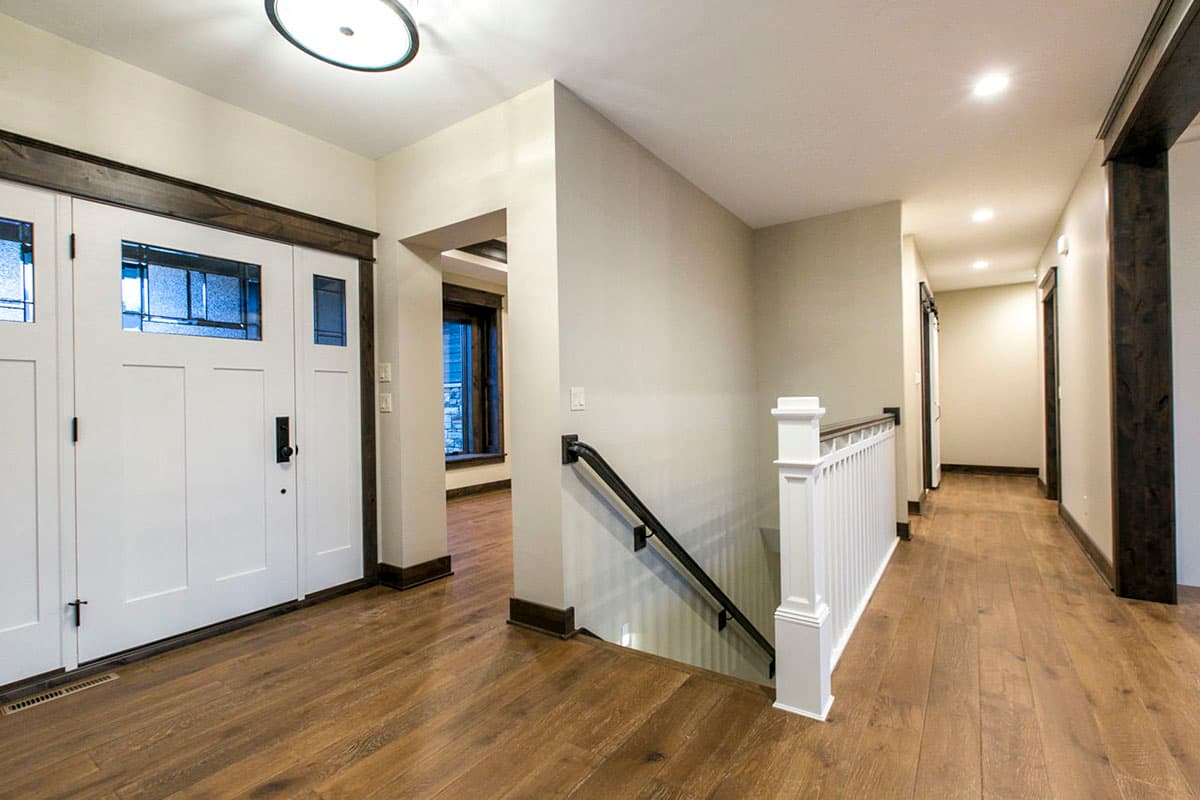

  • The master suite lies behind the kitchen and garage away from the other bedrooms for maximum privacy and it includes his and hers closets, dual sinks and a tray ceiling. Two more bedrooms are located off the entry to the left with a shared full bathroom off the hallway.

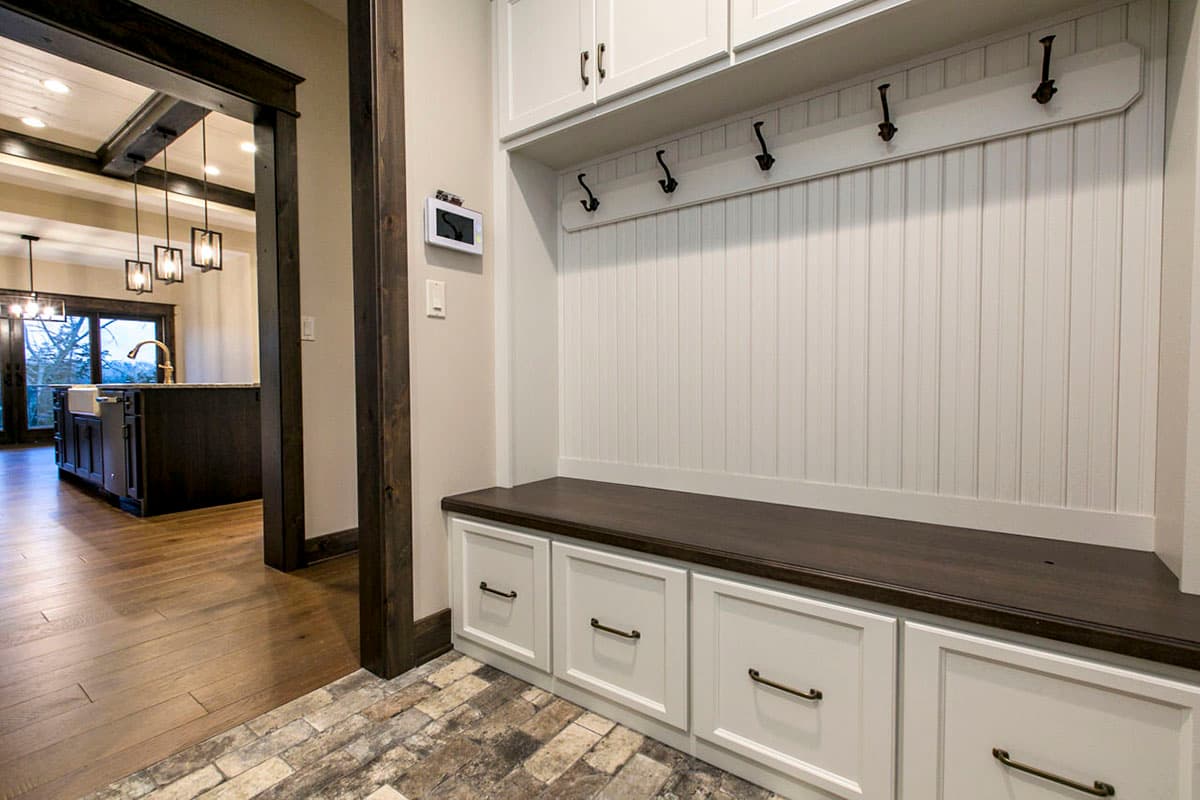

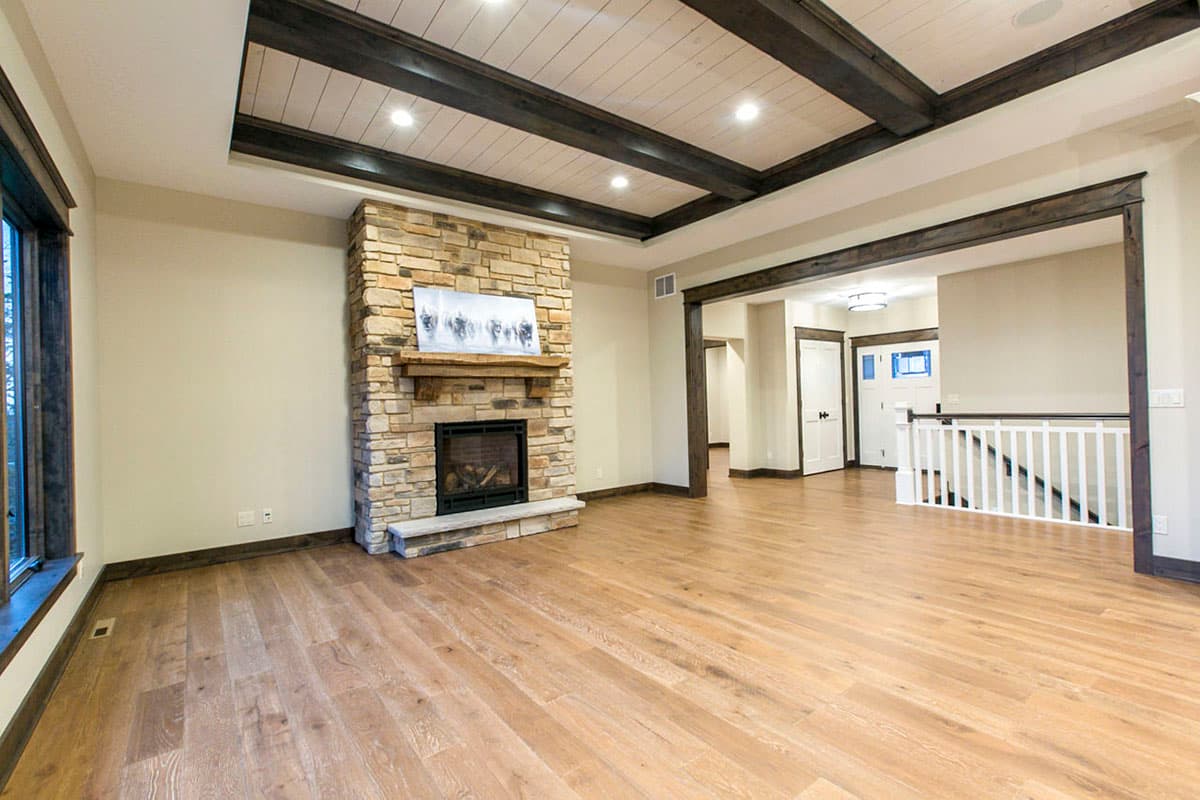

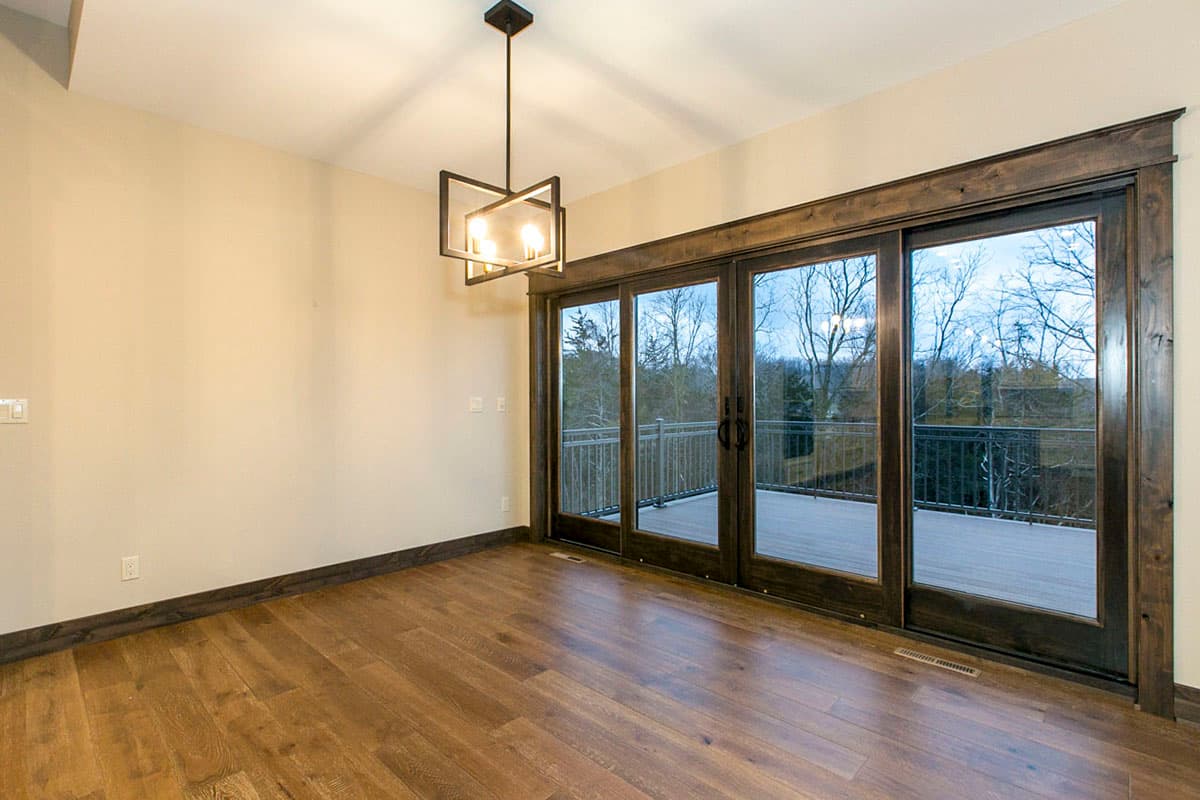

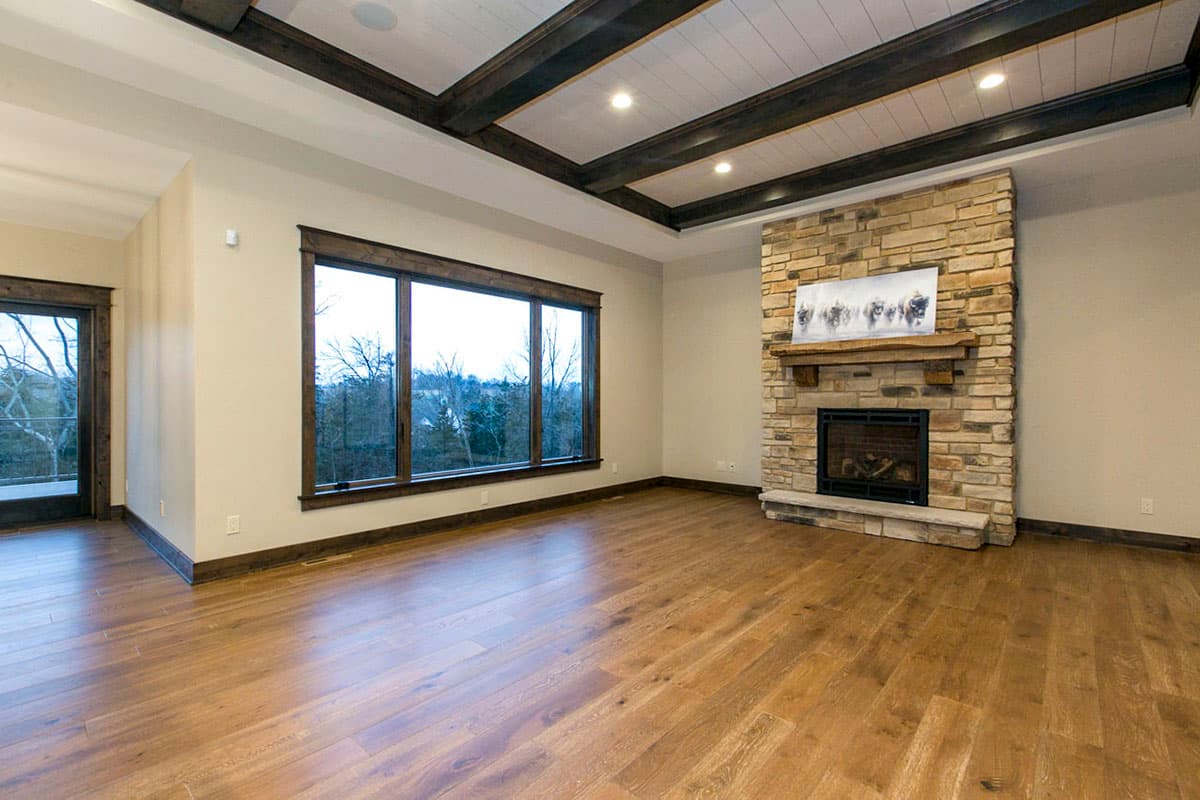

  • Other amenities include a bench with lockers off the back door, a gas fireplace in the great room, a formal dining room and a casual dinette area.

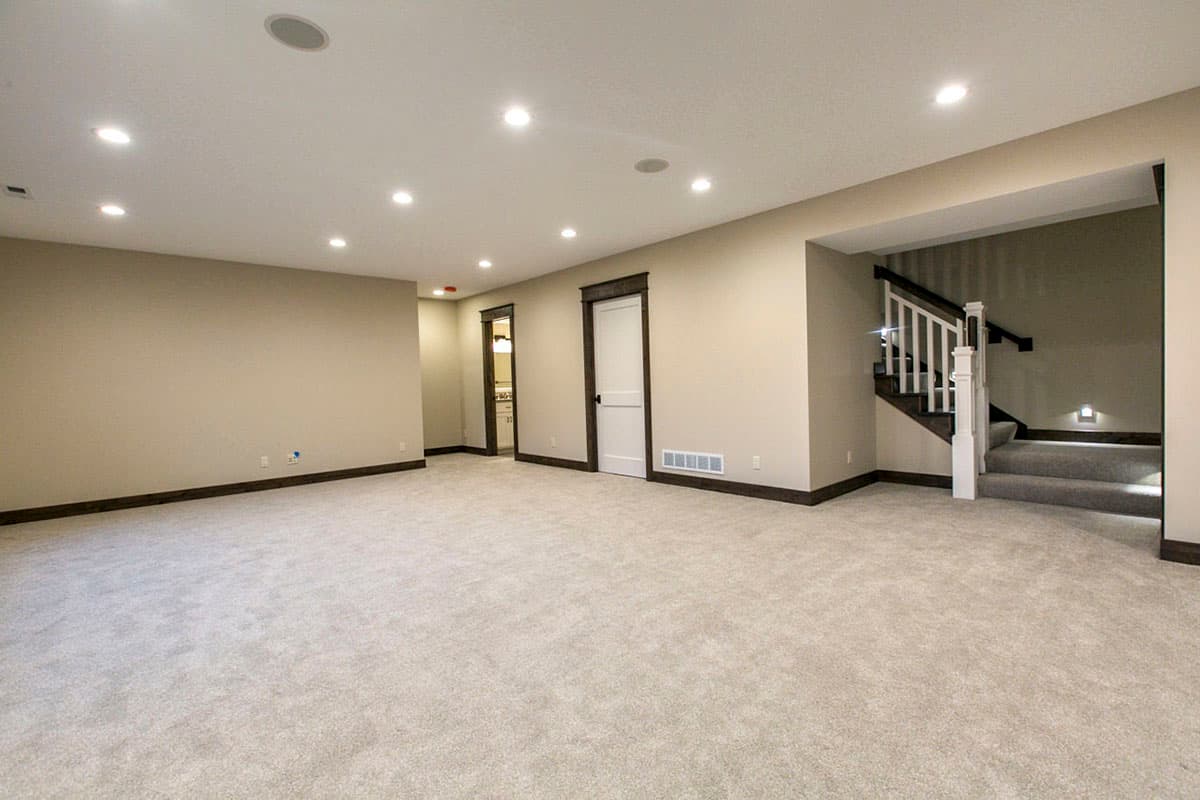

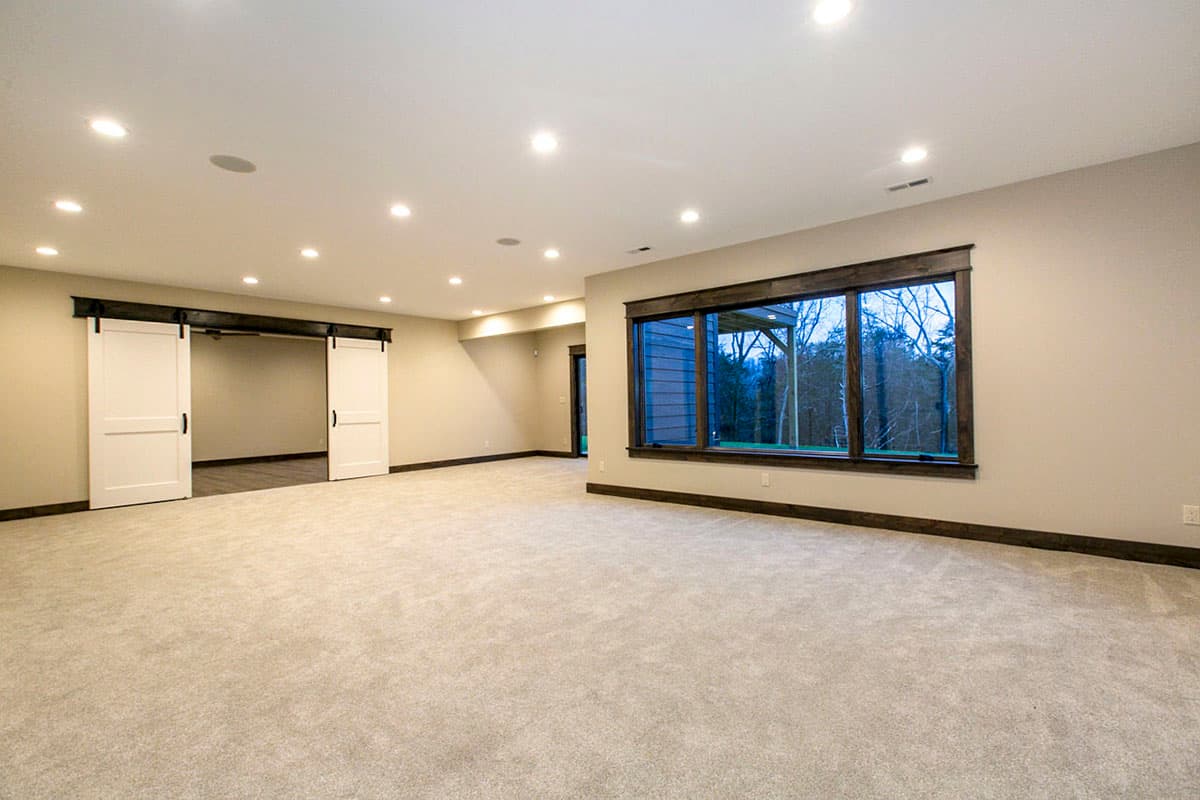

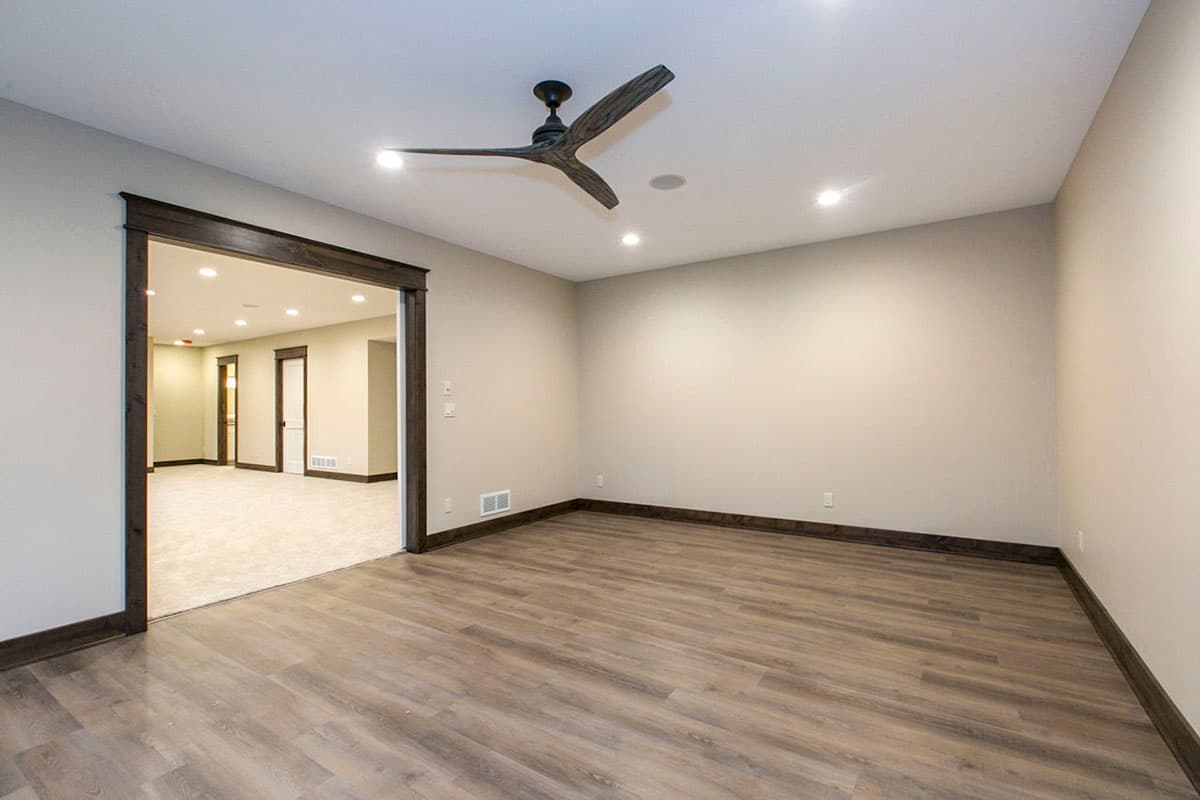

  • Stairs take you to the large family room with game room nook with sliding doors accessing the outside. Barn doors slide open to reveal a home theater. Across the home, your fourth bedroom with full bath await. There is also lots of storage and room for mechanicals.
  • Related Plan: Eliminate the finished lower level with house plan 89782AH.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

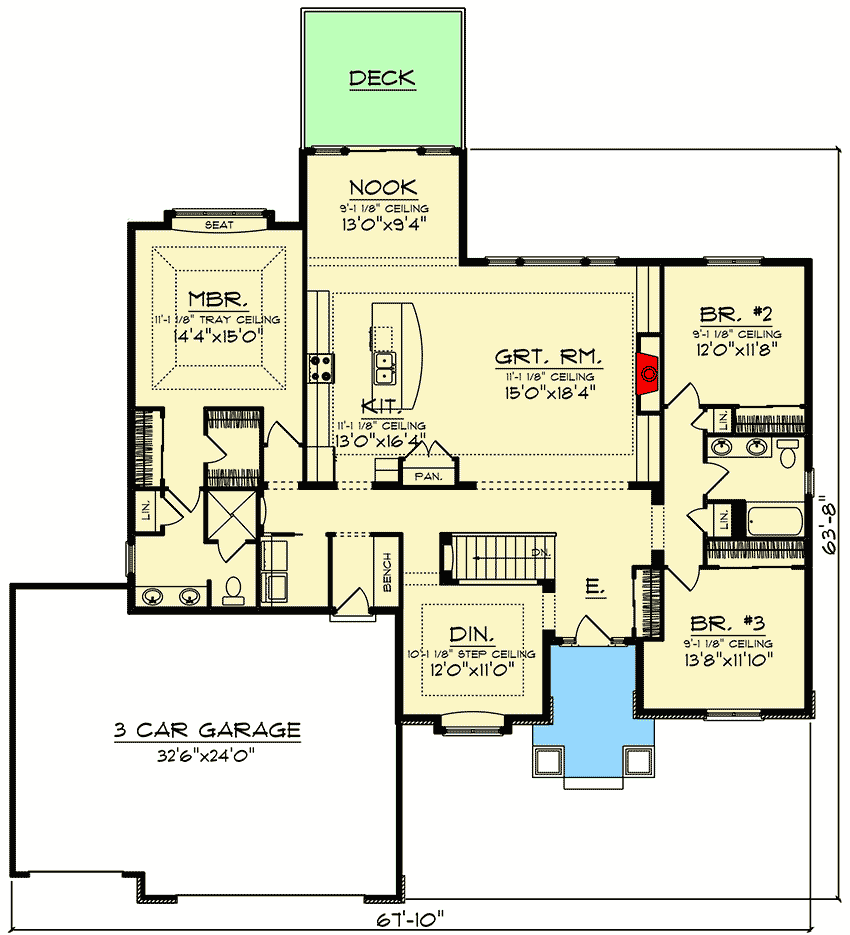

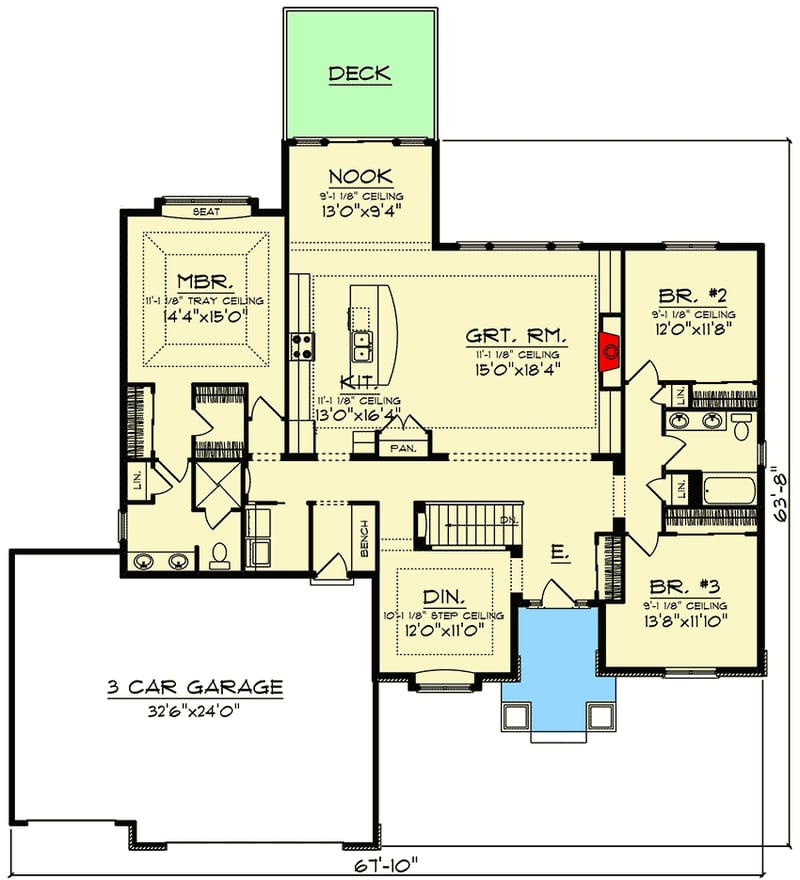

4-Bed Craftsman Ranch Home Plan for a Rear-Sloping Lot - 890117AH floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

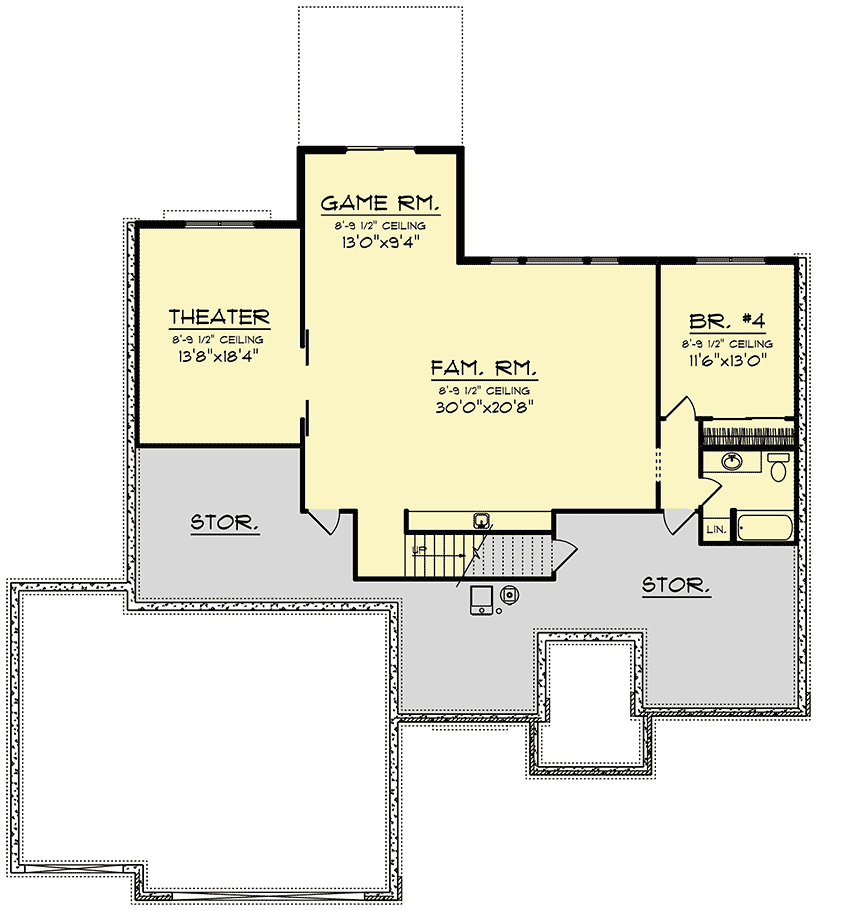

4-Bed Craftsman Ranch Home Plan for a Rear-Sloping Lot - 890117AH floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,583 sq. ft.
  • Lower Level: 1,392 sq. ft.
  • 1st Floor: 2,191 sq. ft.
  • Porch, Combined: 100 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 10"
  • Depth: 63' 8"
  • Max ridge height: 24' 7"

Garage

  • Type: Attached
  • Area: 802 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

4-Bed Craftsman Ranch Home Plan for a Rear-Sloping Lot

  • 3,583

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,583 sq. ft.
  • Lower Level: 1,392 sq. ft.
  • 1st Floor: 2,191 sq. ft.

Dimensions

  • Width: 67' 10"
  • Depth: 63' 8"
  • Max ridge height: 24' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 802 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
