Plan 770517JME

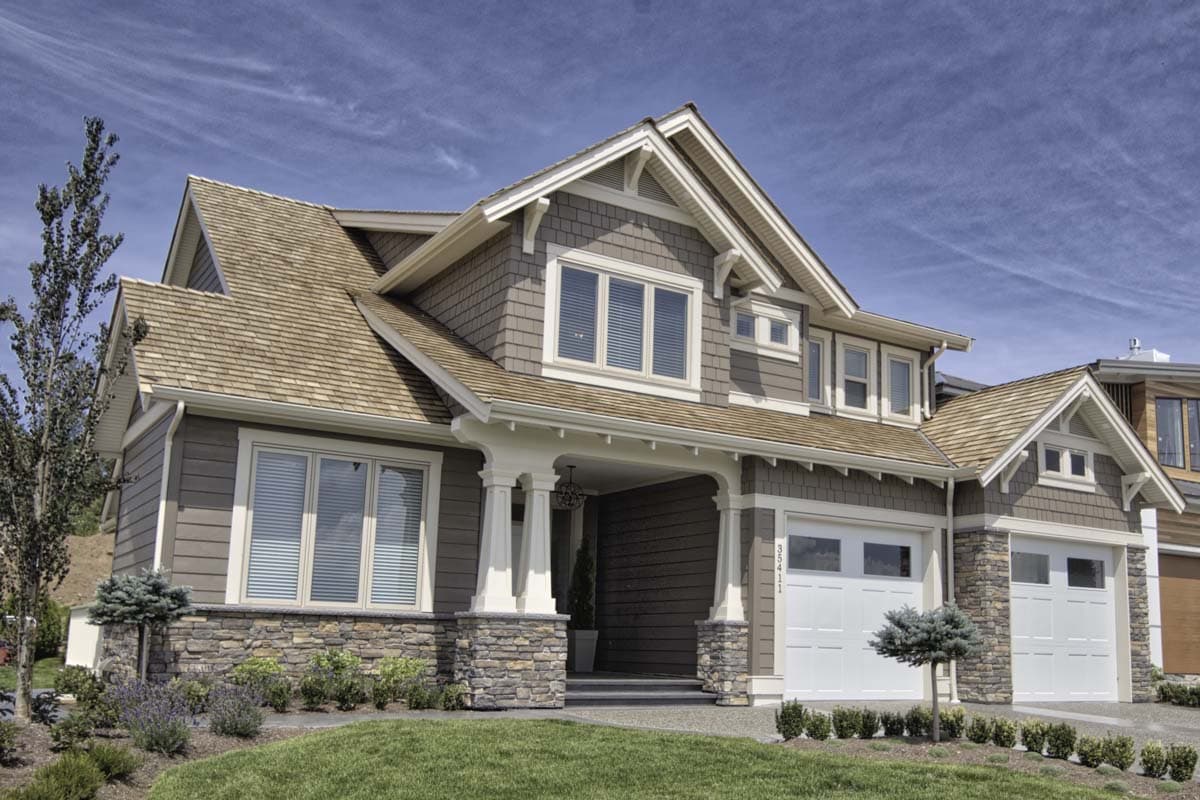

4 Bed Craftsman with Optional Lower Level Apartment - 2524 Sq Ft
Heated S.F.
2,524
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

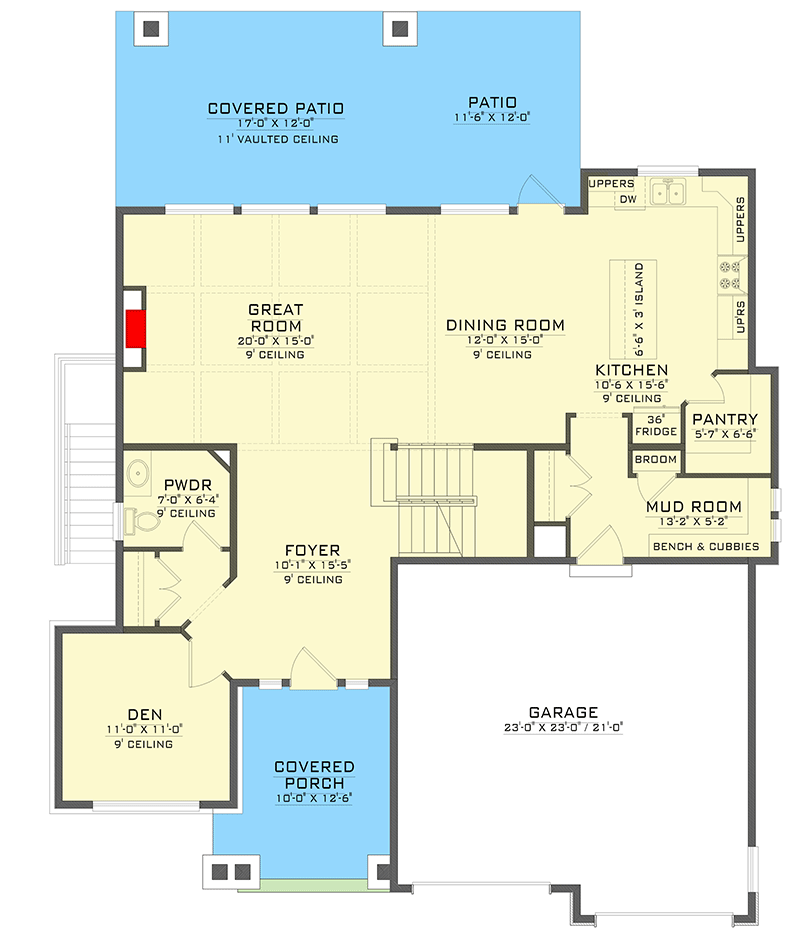

Main Level
Reverse Floor Plan
4 Bed Craftsman with Optional Lower Level Apartment - 2524 Sq Ft - 770517JME floor plan - Main Level

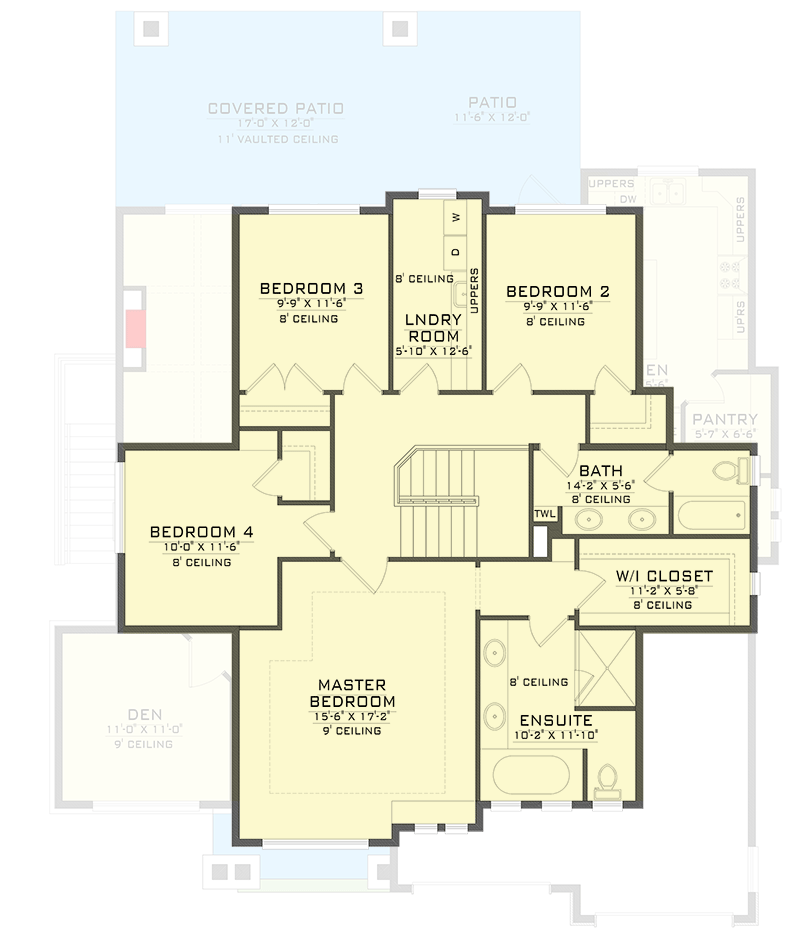

2nd Floor
Reverse Floor Plan
4 Bed Craftsman with Optional Lower Level Apartment - 2524 Sq Ft - 770517JME floor plan - 2nd Floor

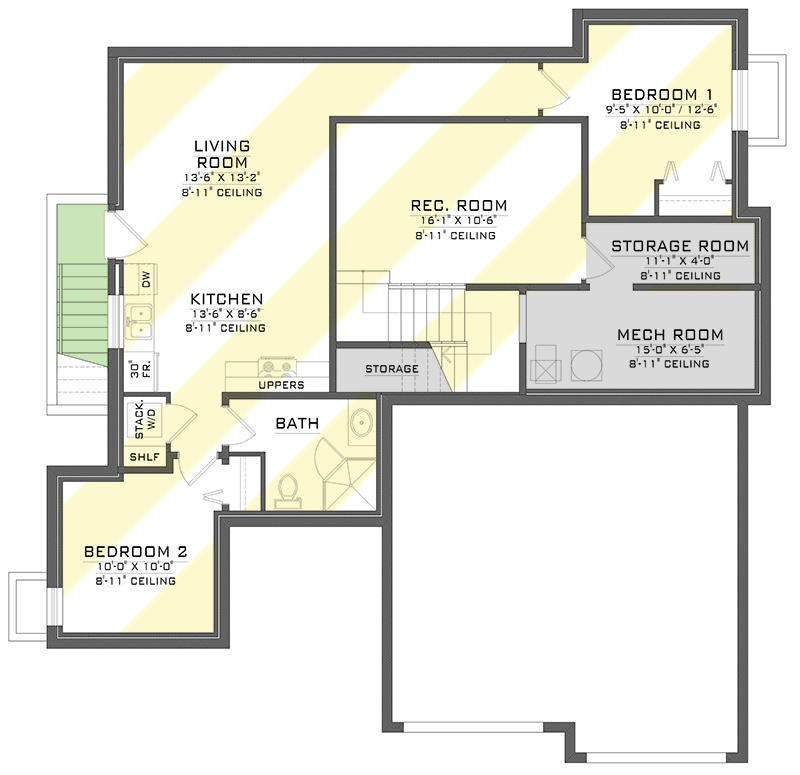

Optional Lower Level
Reverse Floor Plan
4 Bed Craftsman with Optional Lower Level Apartment - 2524 Sq Ft - 770517JME floor plan - Optional Lower Level
Plan Details
  • This 4 bed, 2.5 bath Craftsman house plan gives you 2,524 square feet of heated living and has a lower level apartment that adds 1,297 square feet when finished.

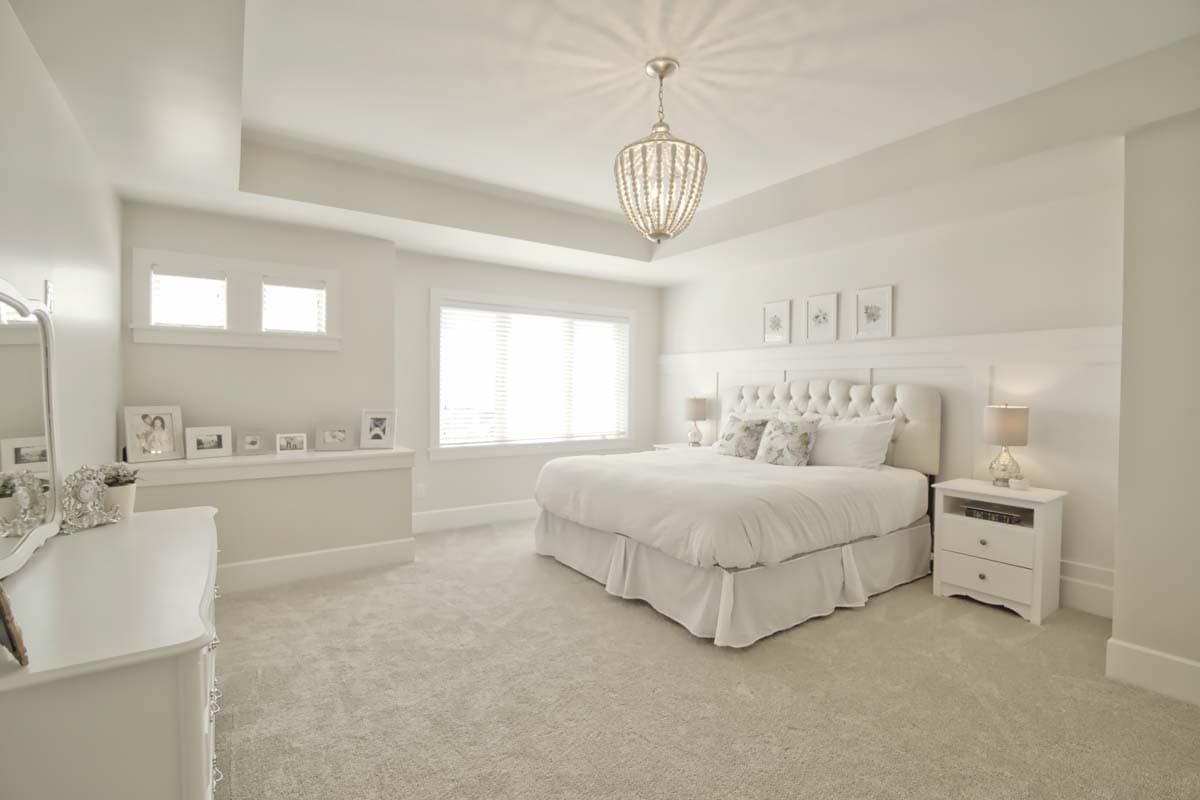

  • All four bedrooms are located on the second floor, as is laundry for your convenience.

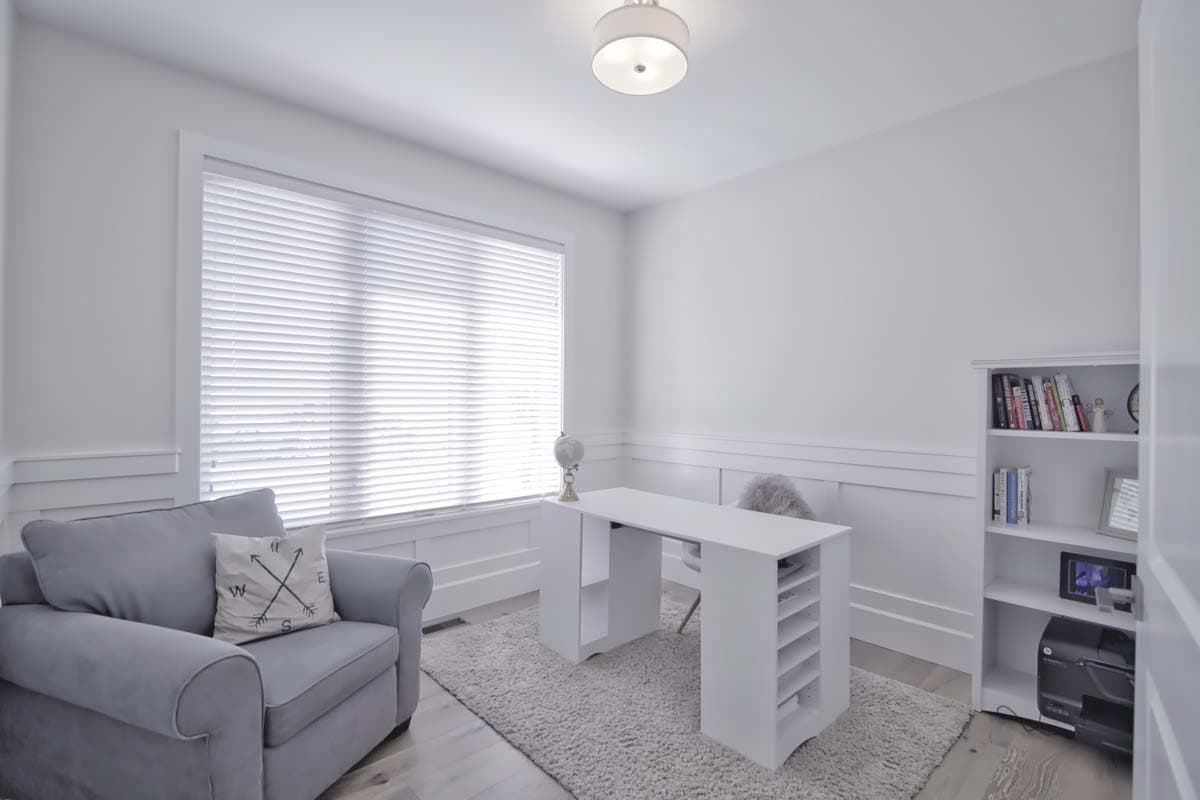

  • On the main floor, a den off the foyer makes a great home office.

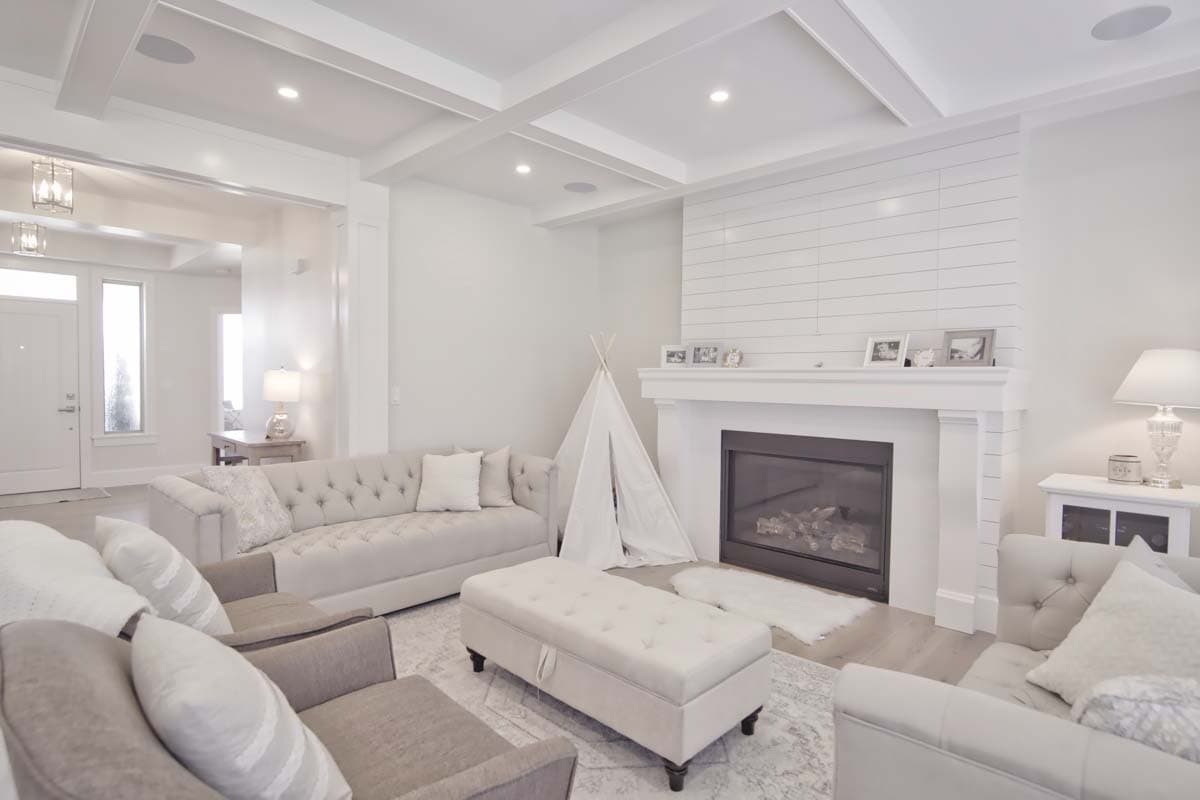

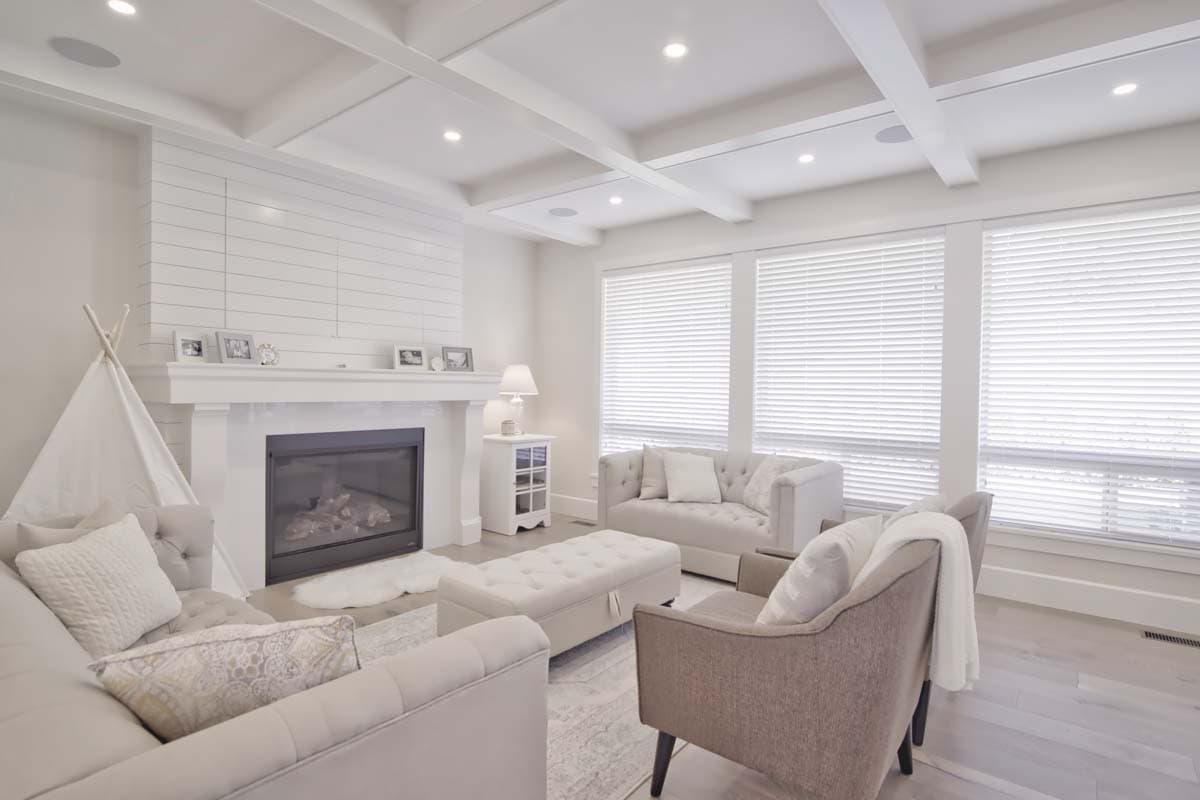

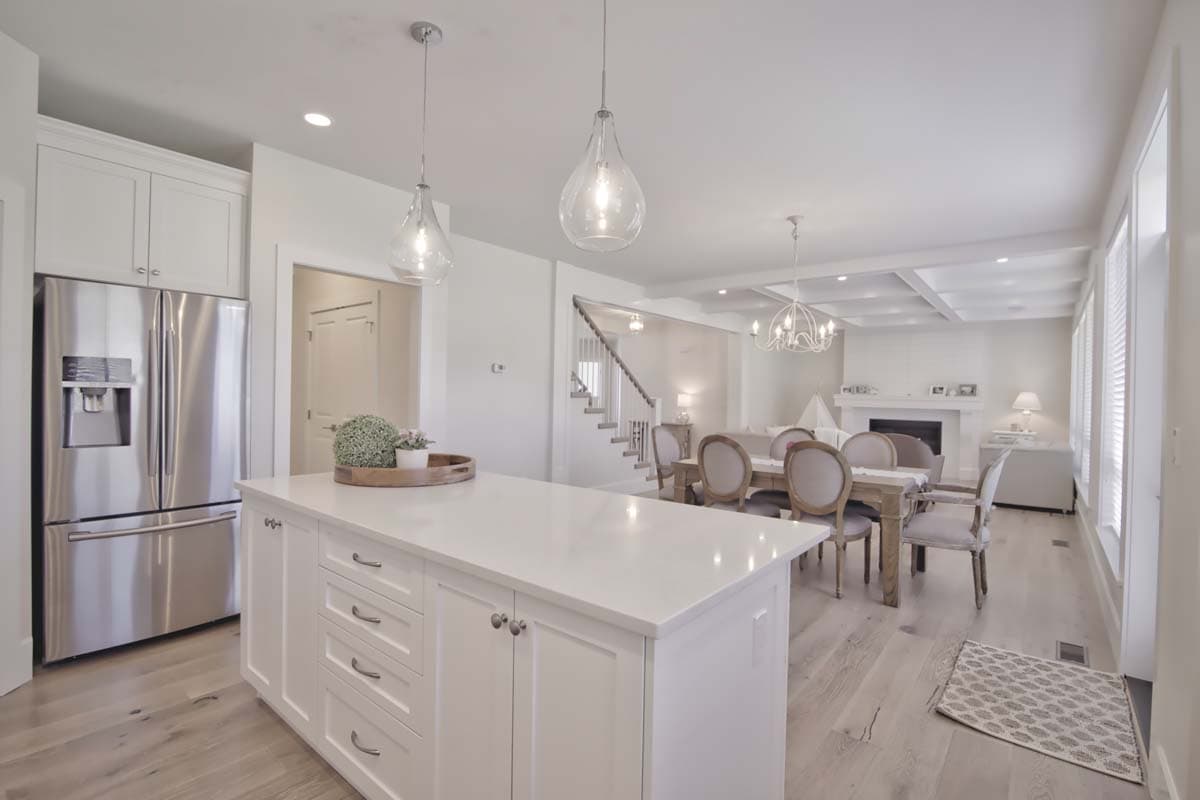

  • The back of the home is open left to right with a fireplaced great room with coffered ceiling open to the dining area with outdoor access and that to the kitchen.

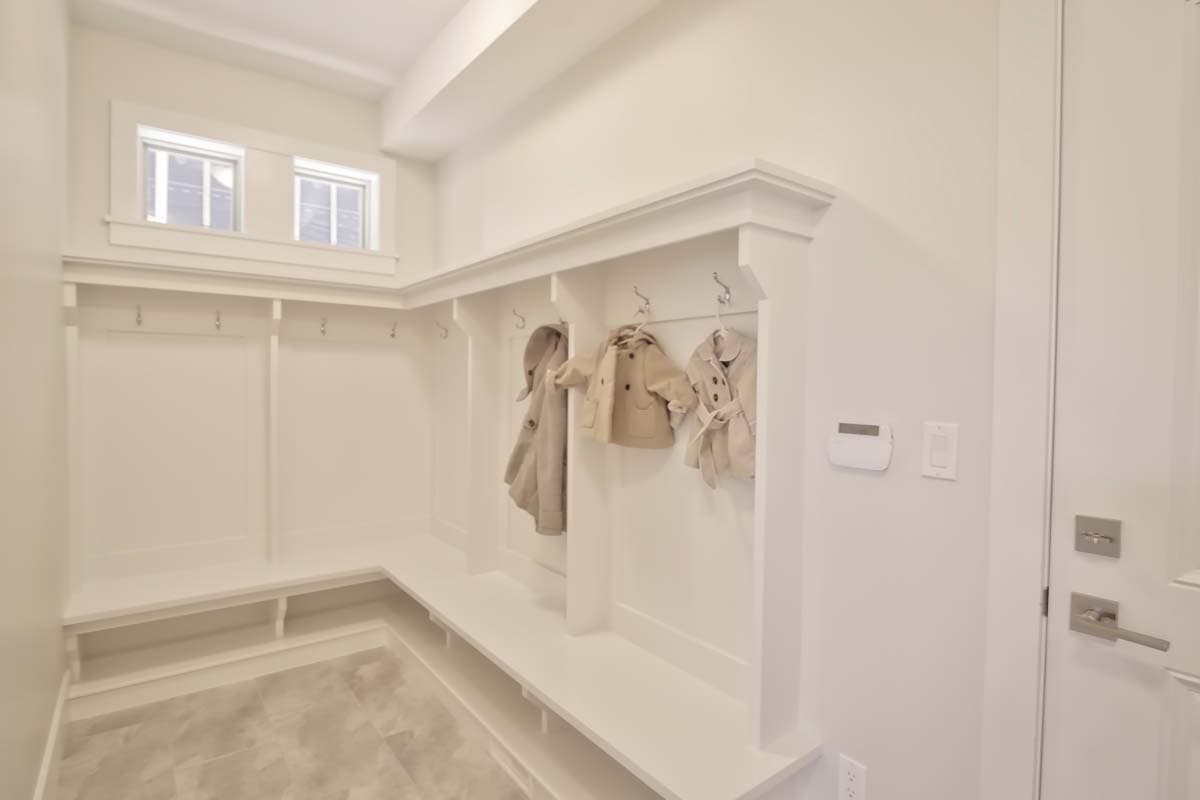

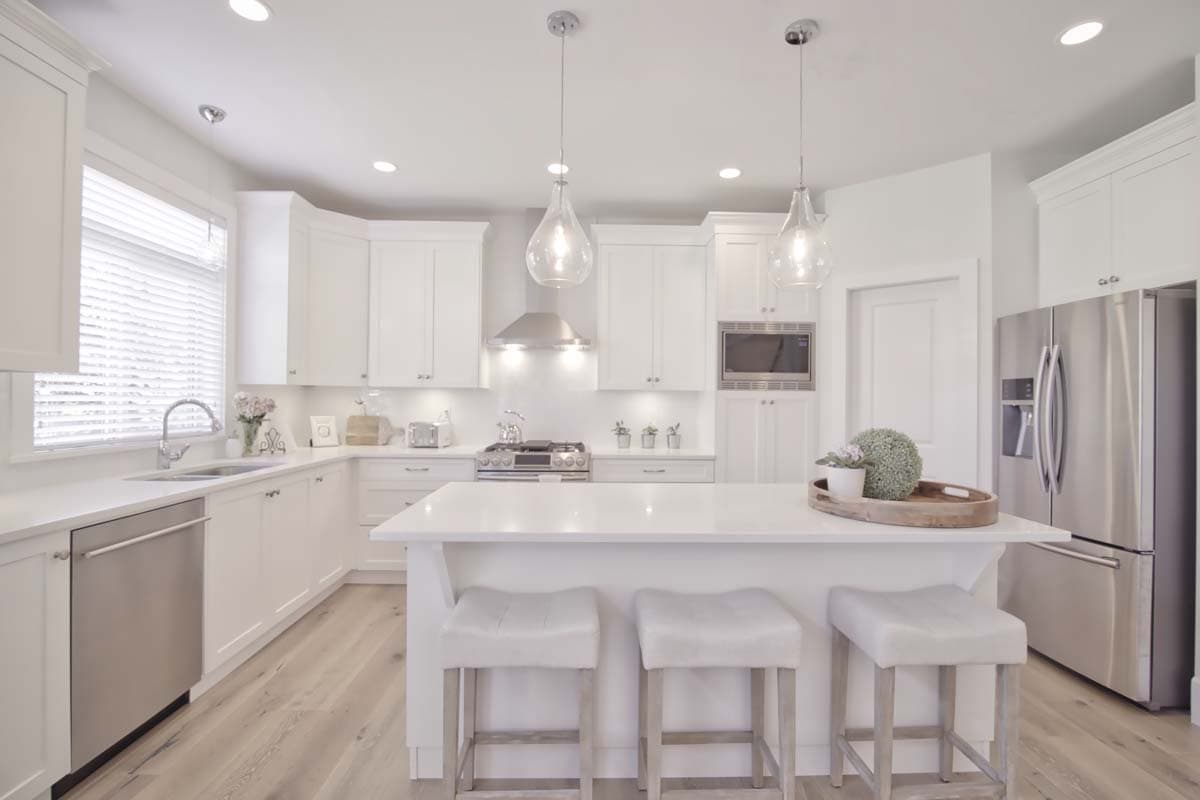

  • The kitchen has a large corner pantry and an island (6'6" by 3') and is located near the mud room by the 2-car garage.
  • The lower level apartment is accessible from outside stairs and gives you two bedrooms, a shared bath and a kitchen-living room combination.
What's Included
  • Cover sheet
  • Foundation plan
  • Floor plans
  • Floor joist layout
  • Roof truss layout
  • Sections

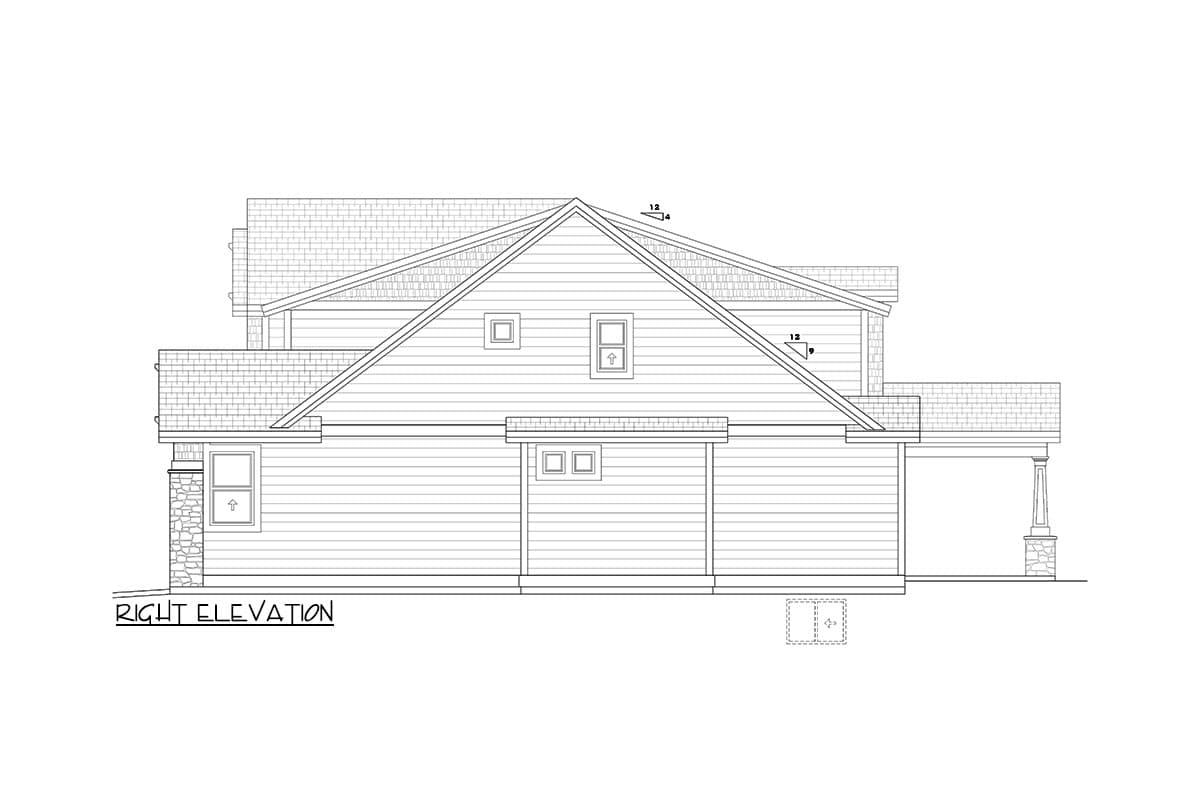

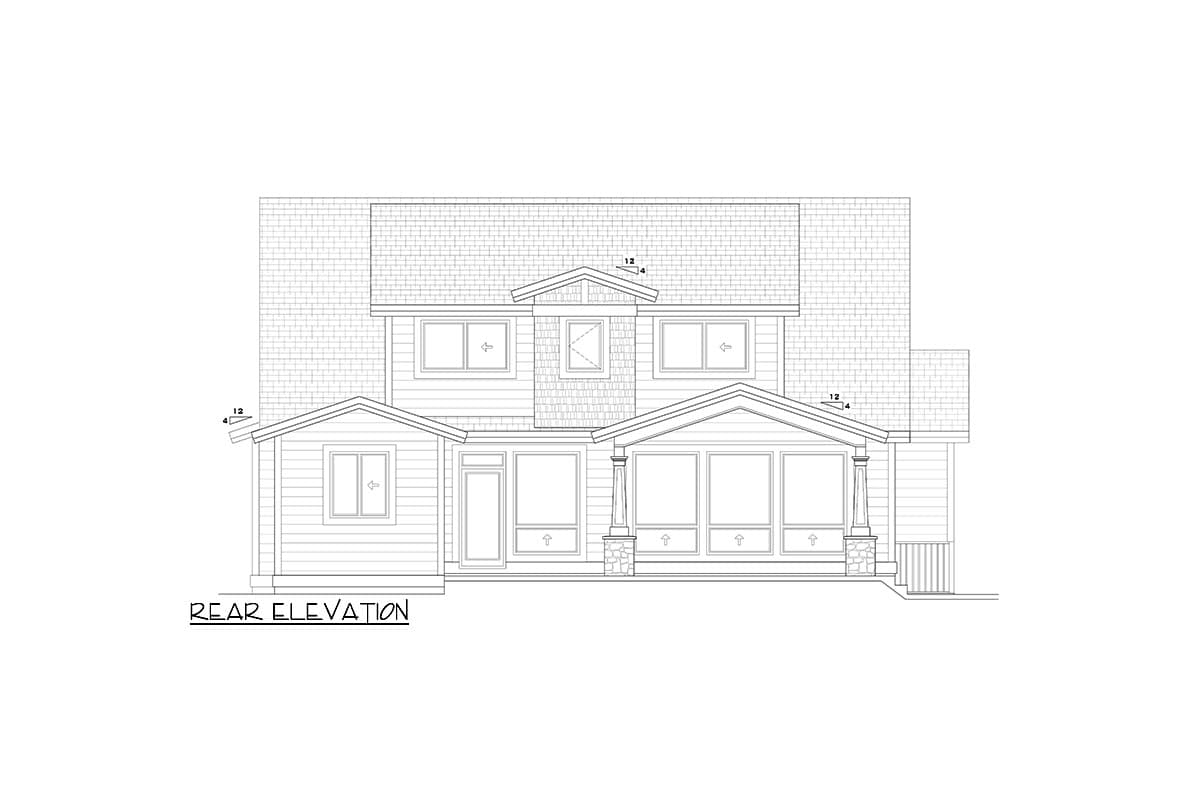

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 Bed Craftsman with Optional Lower Level Apartment - 2524 Sq Ft

  • 2,524

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,524 sq. ft.
  • 1st Floor: 1,279 sq. ft.
  • 2nd Floor: 1,245 sq. ft.

Dimensions

  • Width: 47' 6"
  • Depth: 59' 0"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 11" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
