Plan 490035NAH

4-bed Farmhouse-style House Plan with Home Office and Split Bed Layout

Name: Plan 490035NAH: 4-bed Farmhouse-style House Plan with Home Office and Split Bed Layout
Brand: Architectural Designs
SKU: 490035NAH
Price: 1517.25 USD
Availability: InStock

Heated S.F.

3,411

Beds

3 - 7

Baths

3.5 - 6.5

Stories

Cars

2- 3

Floor Plan

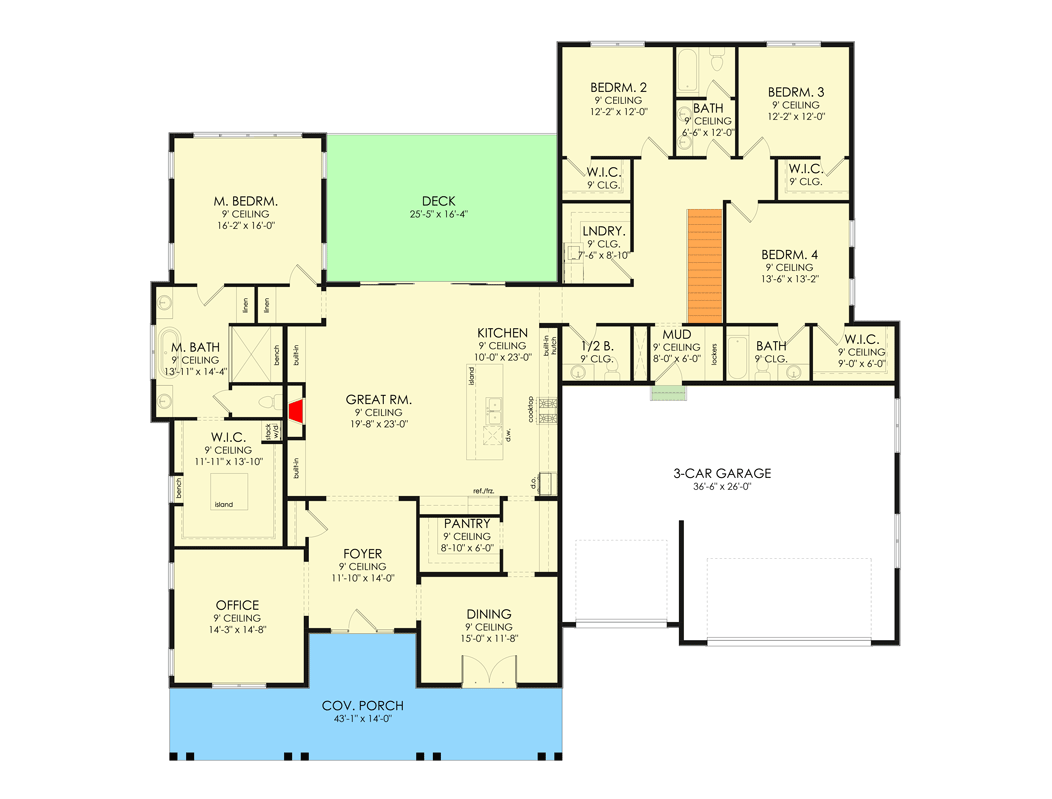

Main Level

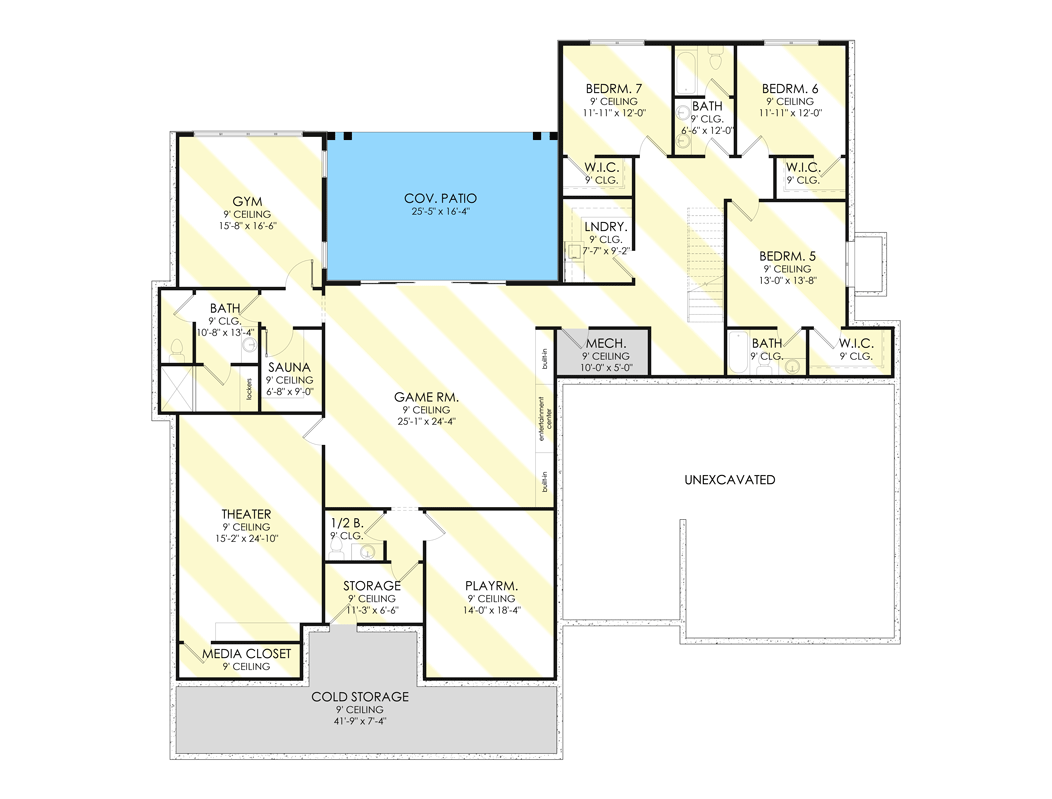

Optional Walkout Foundation

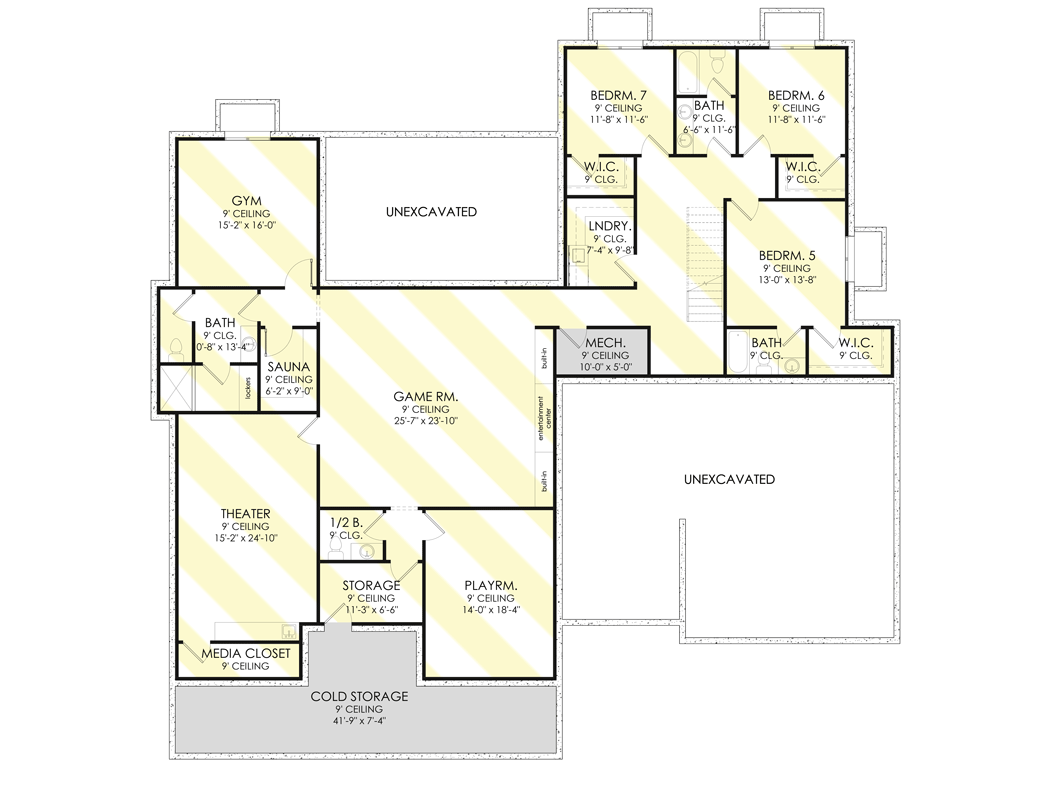

Optionally Finished Basement Foundation (+ $395)

Plan Details

This farmhouse style-house plan offers a covered porch in the front and a patio in the rear. The exterior has an attractive board and batten siding with wood beams surrounding the covered porch and wood work in the gables.
Upon entering, you'll be welcomed to the foyer that leads to the great room, dining room and office. The great room has a fireplace and a large set of sliding doors looking out to the backyard. An open-floor layout, the kitchen offers unobstructed view to the great room and the backyard.
Further into the home, you'll find the master bedroom, with it's accompanying bathroom and walk-in closet, with standing shower, tub, and separate vanities.
This home offers basement expansion (when finished as shown, you get an additional 2,999 square feet of heated living area) with a game room, play room, gym with sauna, theater, 3 more bedrooms with walk-in closets, laundry, and plenty of storage. Another bedroom is added along with the expansion on the main level.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Building Section(s)
Typical Wall Details and Section(s)
Typical Stair Detail and Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
