Plan 135035GRA
4-Bed Home Plan with Cathedral Ceiling and Bonus Room above Garage
Heated S.F.
1,992
Beds
4
Baths
2.5
Stories
1-2
Cars
3
Flyer
What's Included
Plan Details

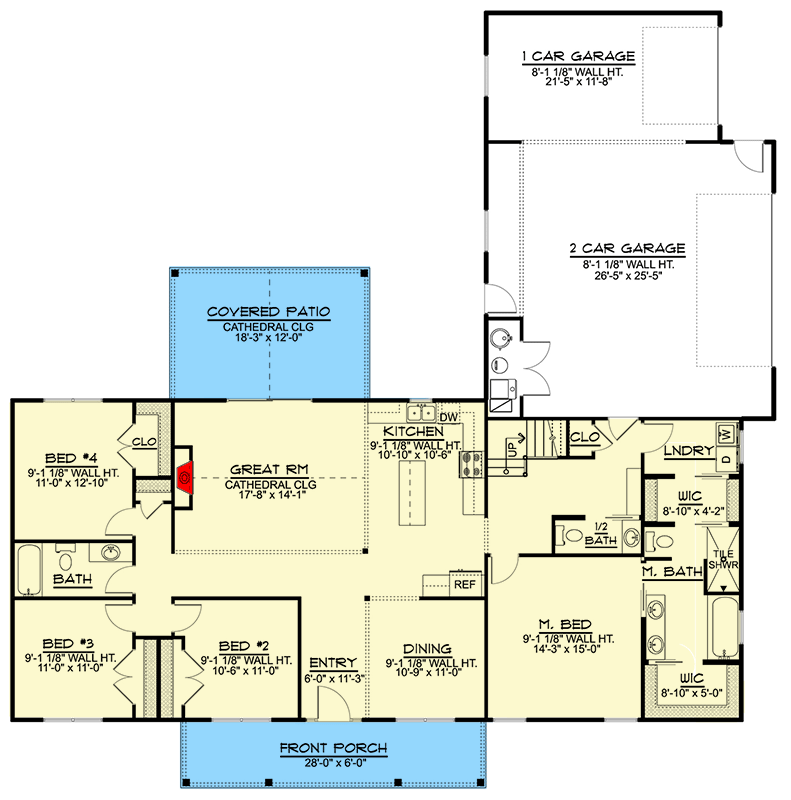

  • Board and batten siding draws your gaze upward to the cross-gable rooflines on the exterior of this 4-bedroom home plan. Once inside, an elegant cathedral ceiling and open floor plan makes the great room feel even bigger.
  • A fireplace anchors the left wall of the great room, and sliding doors lead to a rear covered patio. The spacious kitchen design creates a comfortable space to cook and a formal dining room is located near the entry.
  • The master bedroom is privately situated near the 2-car garage, and features a 5-fixture ensuite bordered by walk-in closets; one of the closets offers access to the laundry room as an added convenience.
  • Three similarly-sized bedrooms line the left side of the home, and share a full bath.

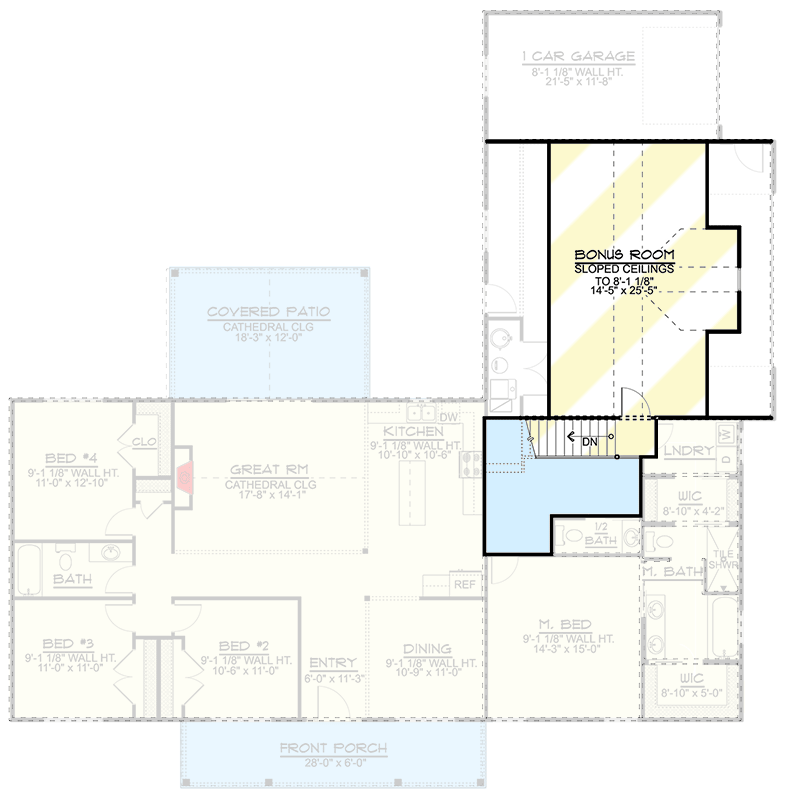

  • Enjoy the flexibility of the bonus room above the garage, totaling 434 square feet of living space.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed Home Plan with Cathedral Ceiling and Bonus Room above Garage

  • 1,992

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,992 sq. ft.
  • 1st Floor: 1,992 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 72' 0"
  • Max ridge height: 20' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 966 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 7 on 12
