Plan 42300DB

4-Bed House Plan Designed For Convenience

4-Bed House Plan Designed For Convenience

Plan 42300DB

  • 2,309

    Heated s.f.

  • 4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Work from home in your convenient home office located right off the foyer of this Northwest house plan.
  • A big fireplace warms the living room where you get views of the dining area and large kitchen.
  • Homeowners will appreciate the walk-in pantry and the handy peninsula eating bar.
  • A utility room lies close by so you can keep the laundry moving while cooking meals.
  • The spacious second floor includes four bedrooms plus loft space.
  • Related Plans: Get alternate exteriors with house plans 40896DB and 40897DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

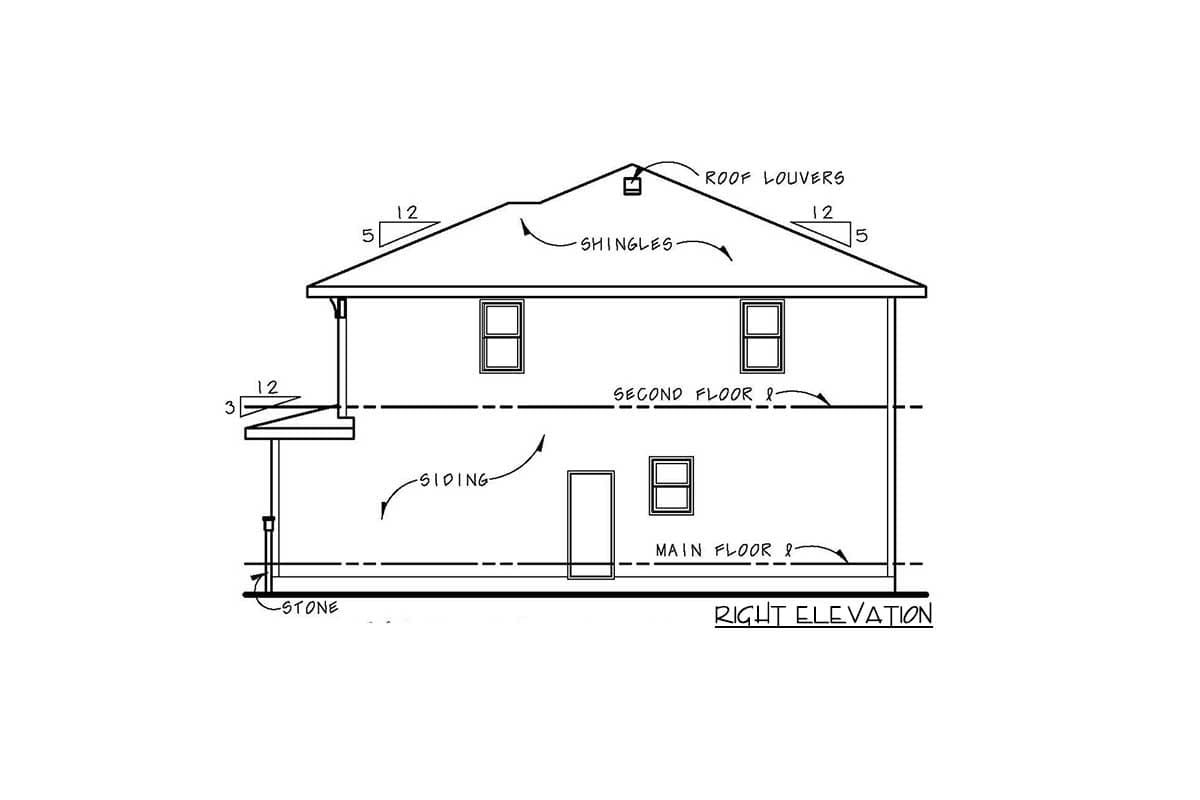

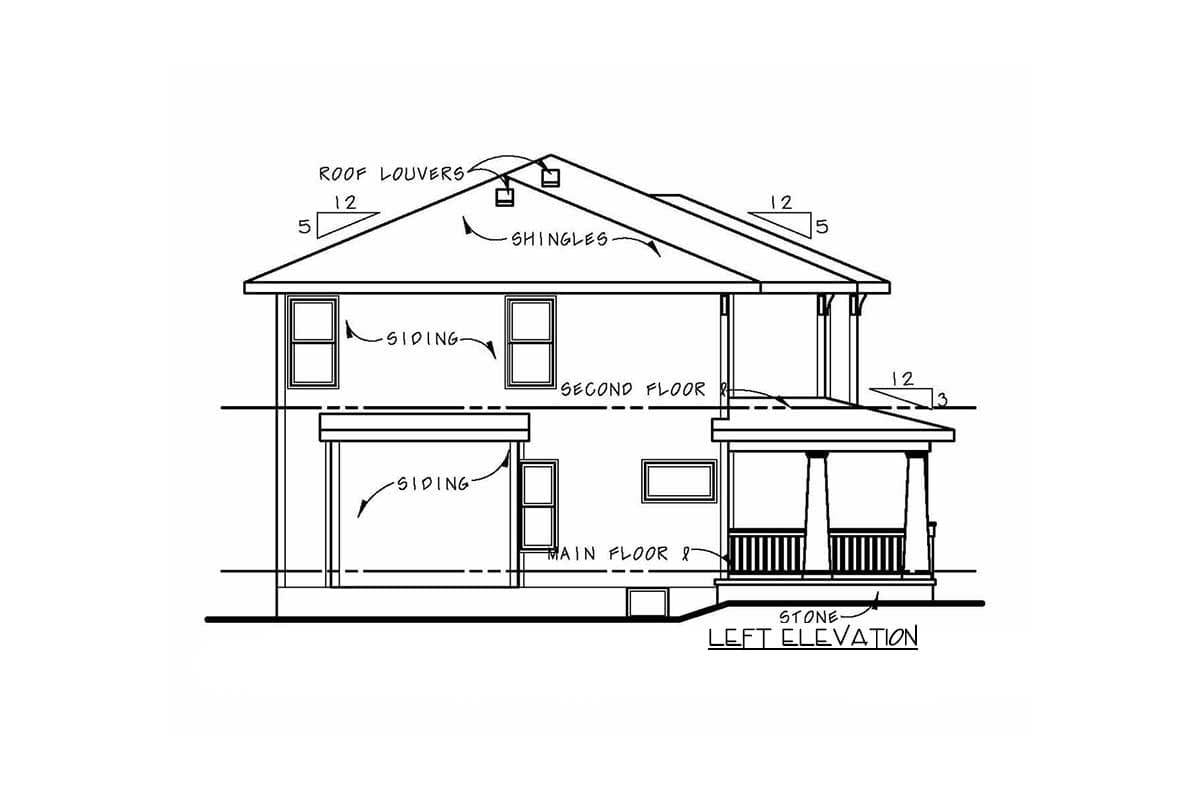

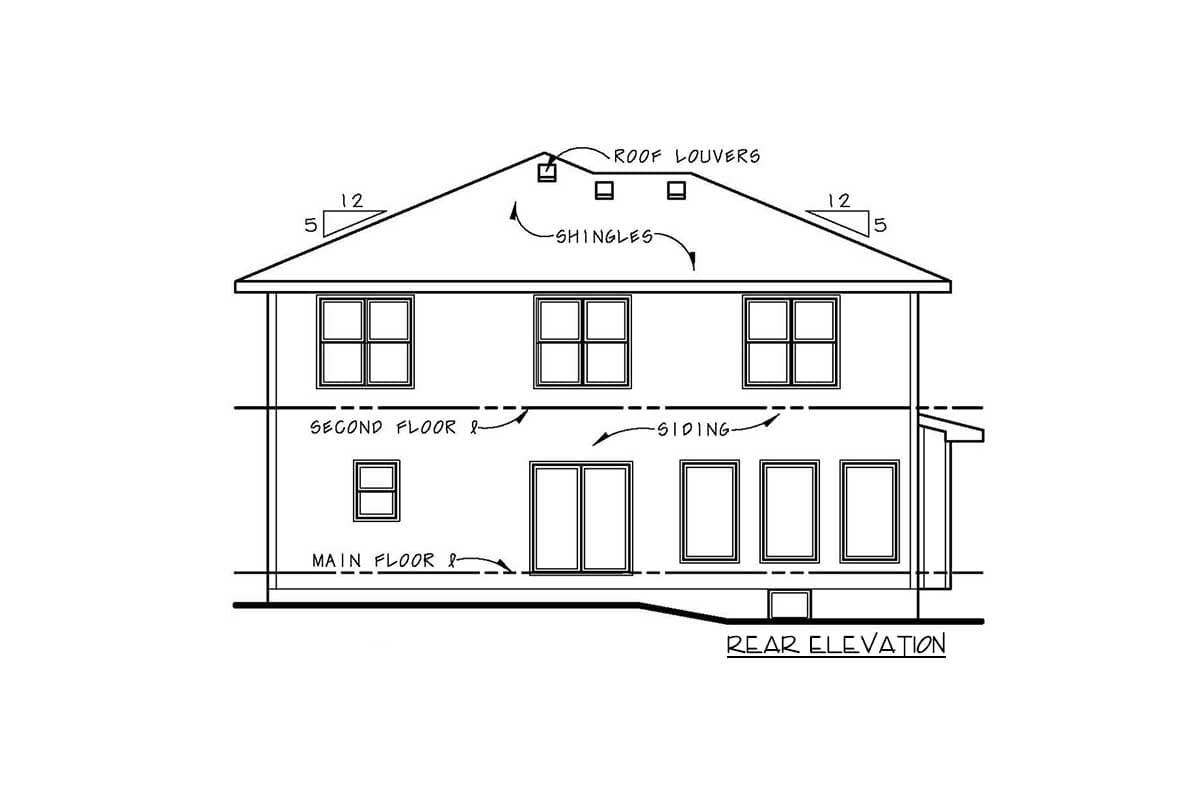

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



4-Bed House Plan Designed For Convenience

  • 2,309

    Heated s.f.

  • 4

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $665
  • PDF - single-use $1,015
  • 5 Sets $1,140
  • 5 Sets PLUS $1,185
  • 8 Sets $1,210
  • PDF - multi-use $1,515
  • CAD $1,776
  • CAD - multi-use $2,276
  • View all purchase option online

About This Plan

  • Work from home in your convenient home office located right off the foyer of this Northwest house plan.
  • A big fireplace warms the living room where you get views of the dining area and large kitchen.
  • Homeowners will appreciate the walk-in pantry and the handy peninsula eating bar.
  • A utility room lies close by so you can keep the laundry moving while cooking meals.
  • The spacious second floor includes four bedrooms plus loft space.
  • Related Plans: Get alternate exteriors with house plans 40896DB and 40897DB.

Floor Plans

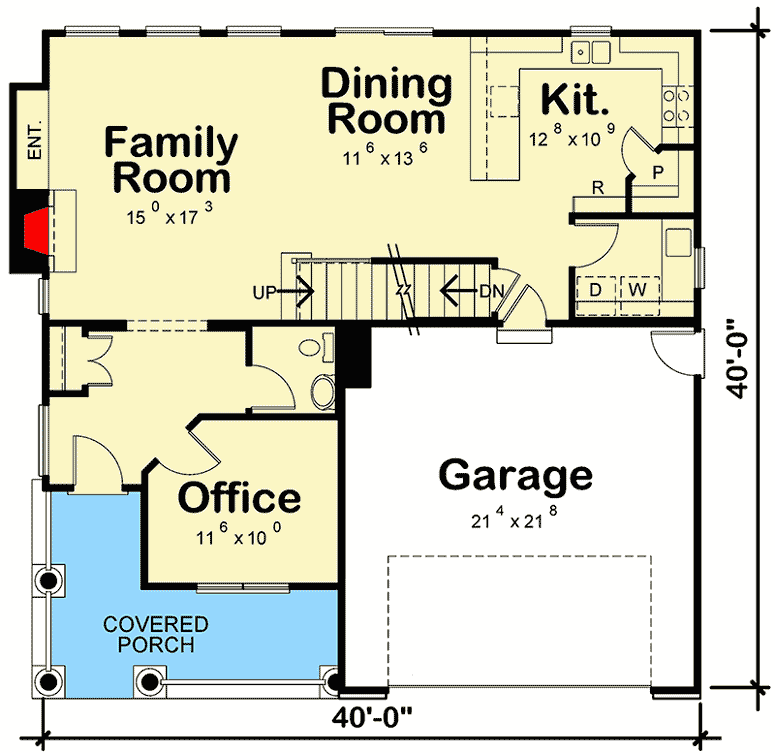

  • Main Level

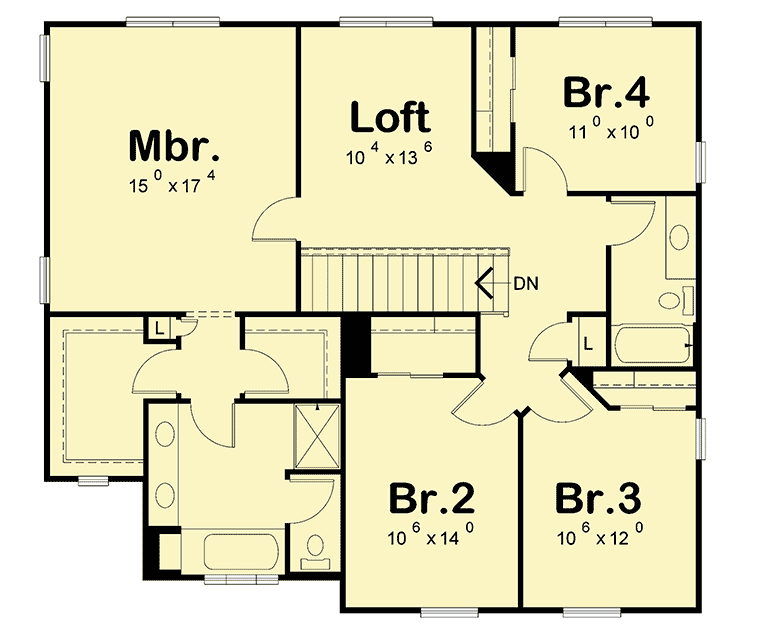

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,309 sq. ft.
  • 1st Floor: 977 sq. ft.
  • 2nd Floor: 1,332 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 40' 0"
  • Max ridge height: 27' 10"

Garage

  • Type: Attached
  • Area: 486 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
