Plan 360004DK
4-Bed House Plan With Angled Garage with Bonus Room Above
Heated S.F.
4,849
Beds
4
Baths
4.5+
Stories
2
Cars
3
What's Included
Plan Details
  • A 3-car garage angles off of the main body of this 4-bed house plan. Stairs just inside the garage entrance go to a large bonus room above giving you 630 square feet of potential.
  • The foyer opens to the dining area on the left and living room on the right. The butler's pantry connects the dining room to the kitchen and the living room opens to the study.
  • The great room has a corner fireplace and is open to the kitchen and family dining area.
  • A large covered porch off the back has plenty of room for outdoor furniture.
  • All the bedrooms are located on the upper floor and a dormered loft area just before where the bonus room begins to angle off.
What's Included
  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed House Plan With Angled Garage with Bonus Room Above

  • 4,849

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

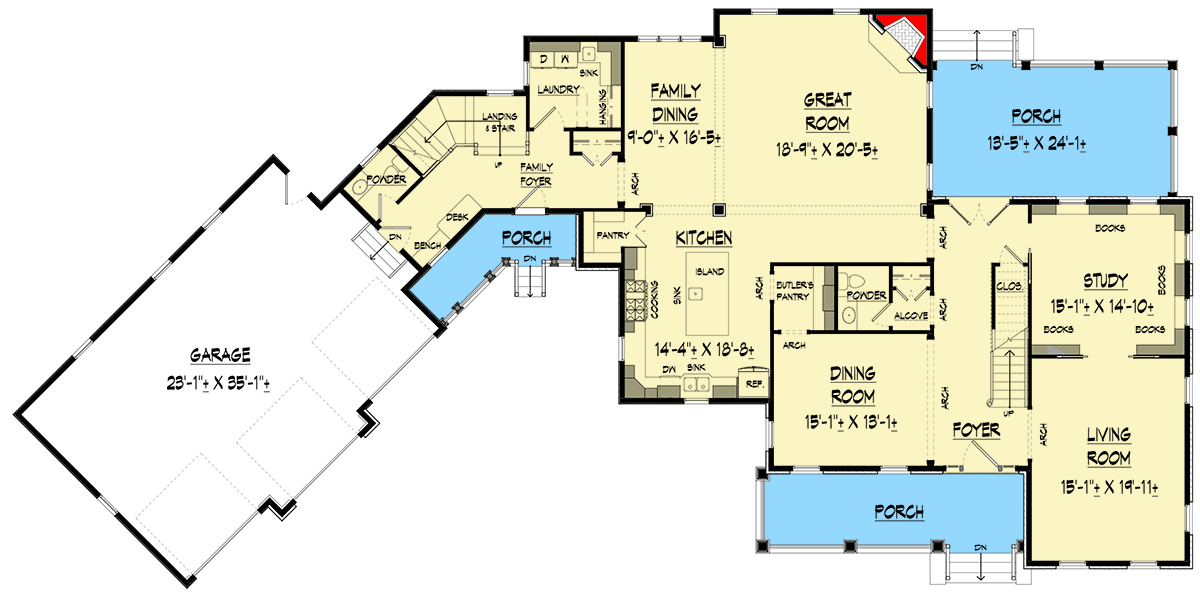

  • Main Level

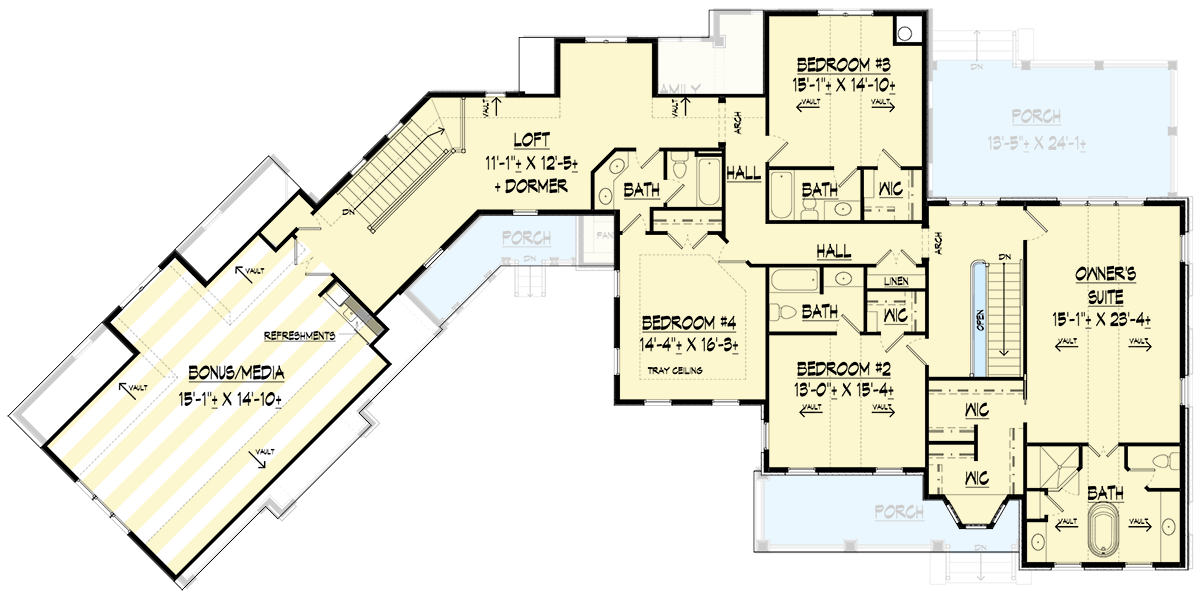

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,849 sq. ft.
  • 1st Floor: 2,486 sq. ft.
  • 2nd Floor: 2,363 sq. ft.

Dimensions

  • Width: 115' 11"
  • Depth: 57' 0"
  • Max ridge height: 31' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 912 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
