Plan 871031JEN 4-Bed Lake House Plan with Elevator and Apartment Above Angled Garage

3,628 4 4.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed Lake House Plan with Elevator and Apartment Above Angled Garage

Plan 871031JEN

  • 3,628

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4 bed, 4.5 bath house plan gives you 3,628 square feet of heated living space and offers all the essentials you need and gives you extensive fresh air spaces, increasing your areas of enjoyment to the outdoors.

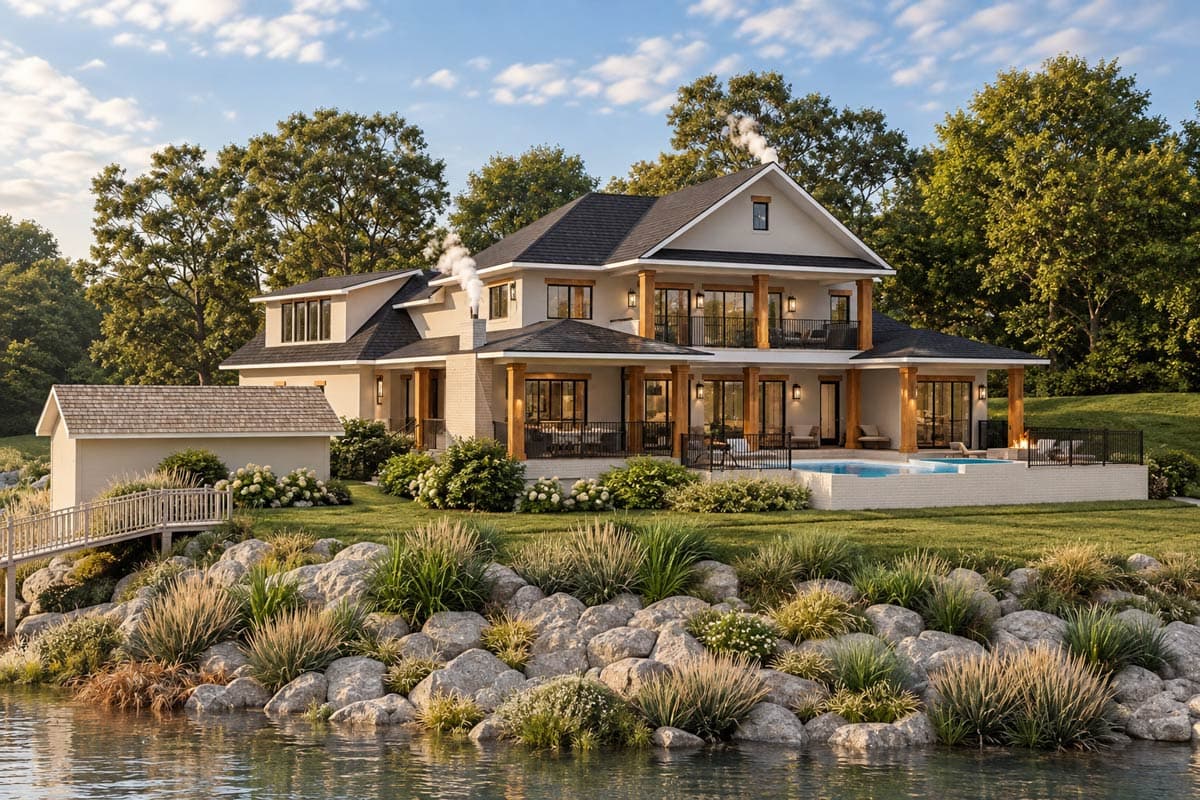

  • The open floorplan and walls of windows enhance a sense of spaciousness on the main level providing views out to the porches, patios, and lake beyond.
  • A pocket office recess with a desk tucked away under the stairwell assures business is still taken care of while the summer fun continues.
  • The left side of the house is dedicated to the master suite. The bedroom has outdoor access and a vaulted ceiling. The master bath has both a shower and soaking tub and access to a laundry room with sink and drip-dry area.
  • An elevator easily transports tired feet from the foyer to an upstairs sitting area and 3 bedrooms.
  • A mini guest cottage above the garage houses those guests able to stay more than a few nights. The apartment adds 488 square feet when finished as shown.

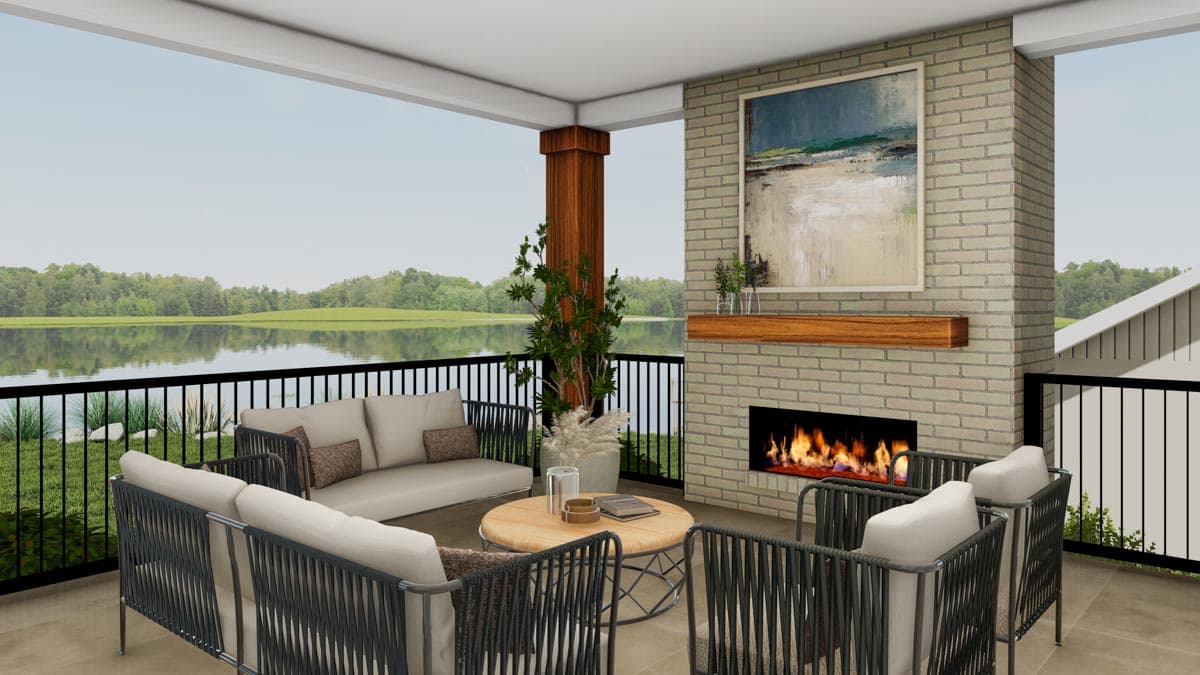

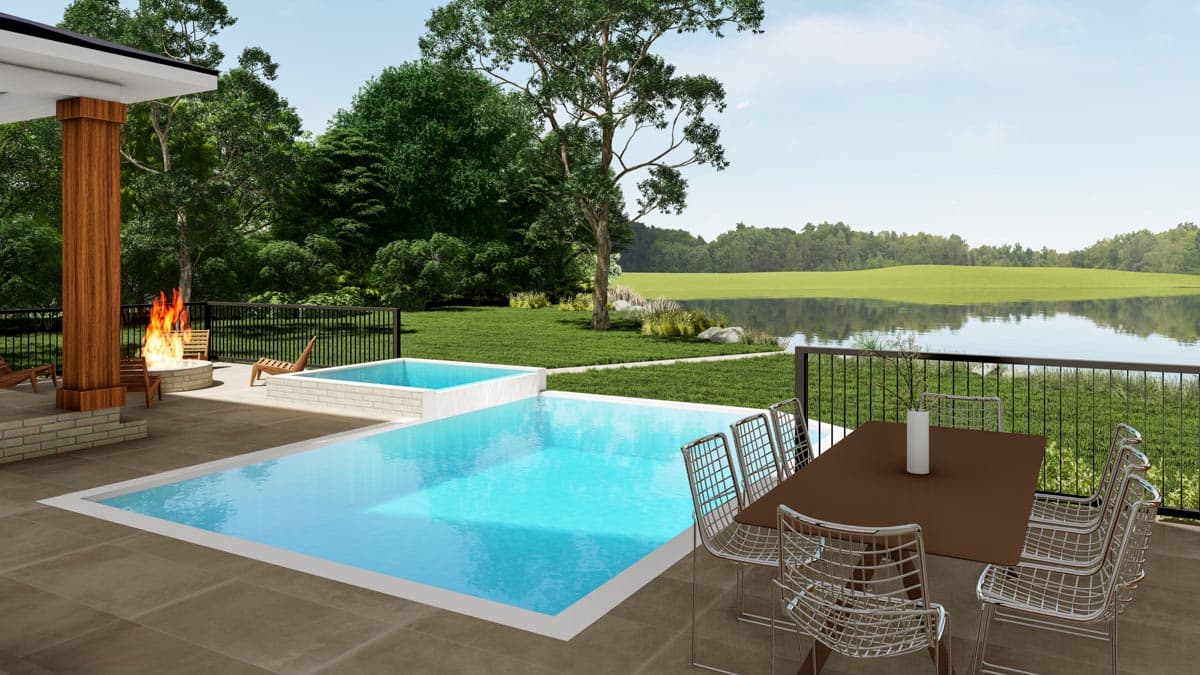

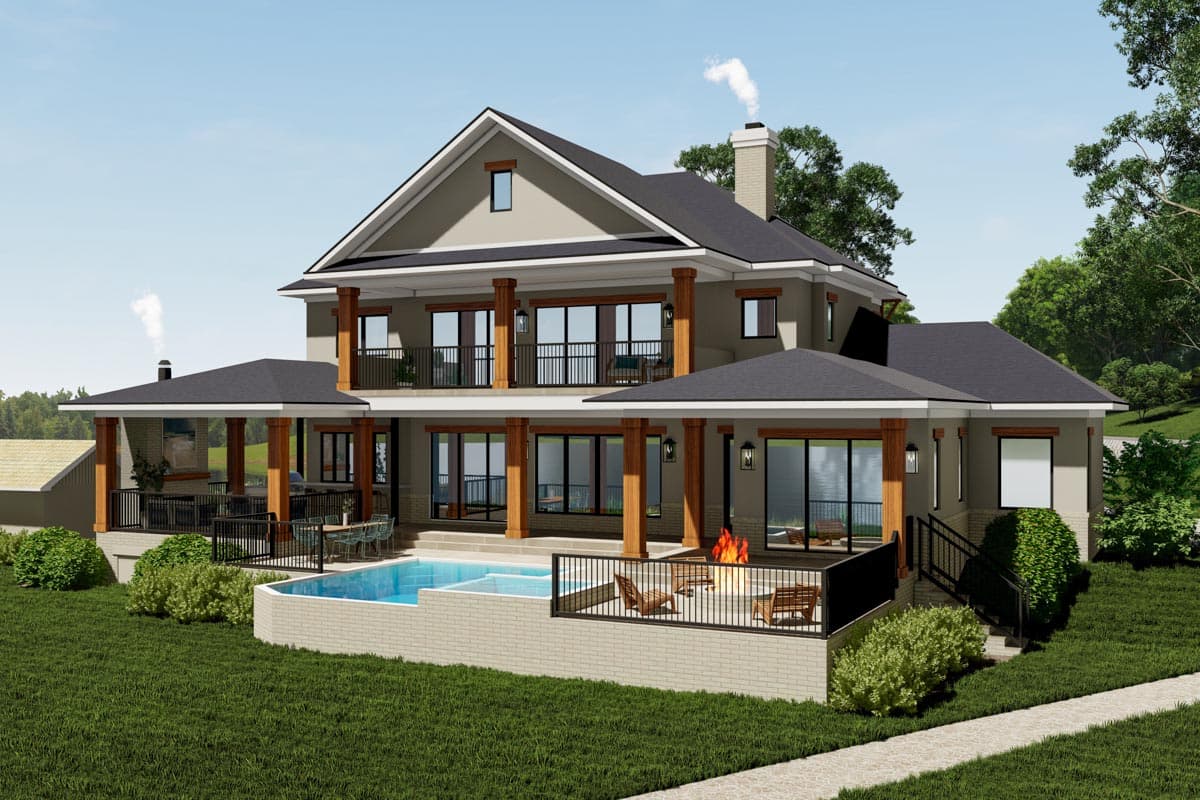

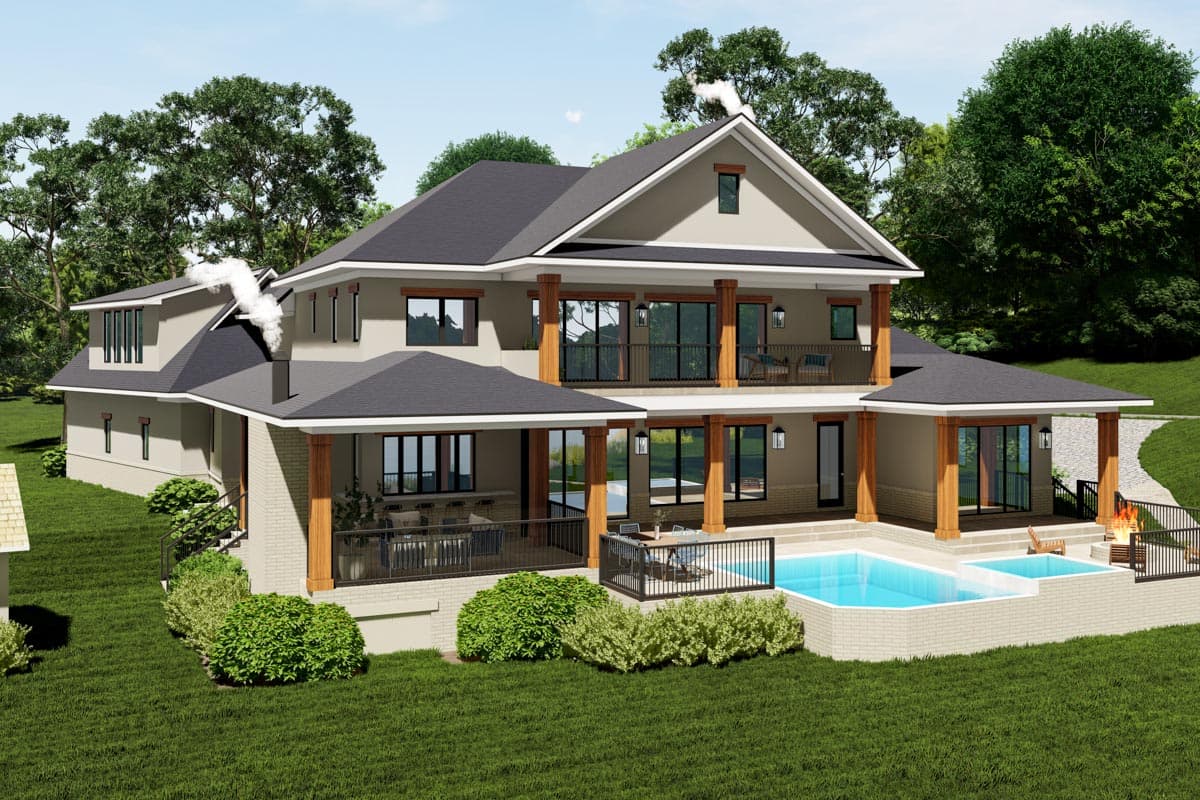

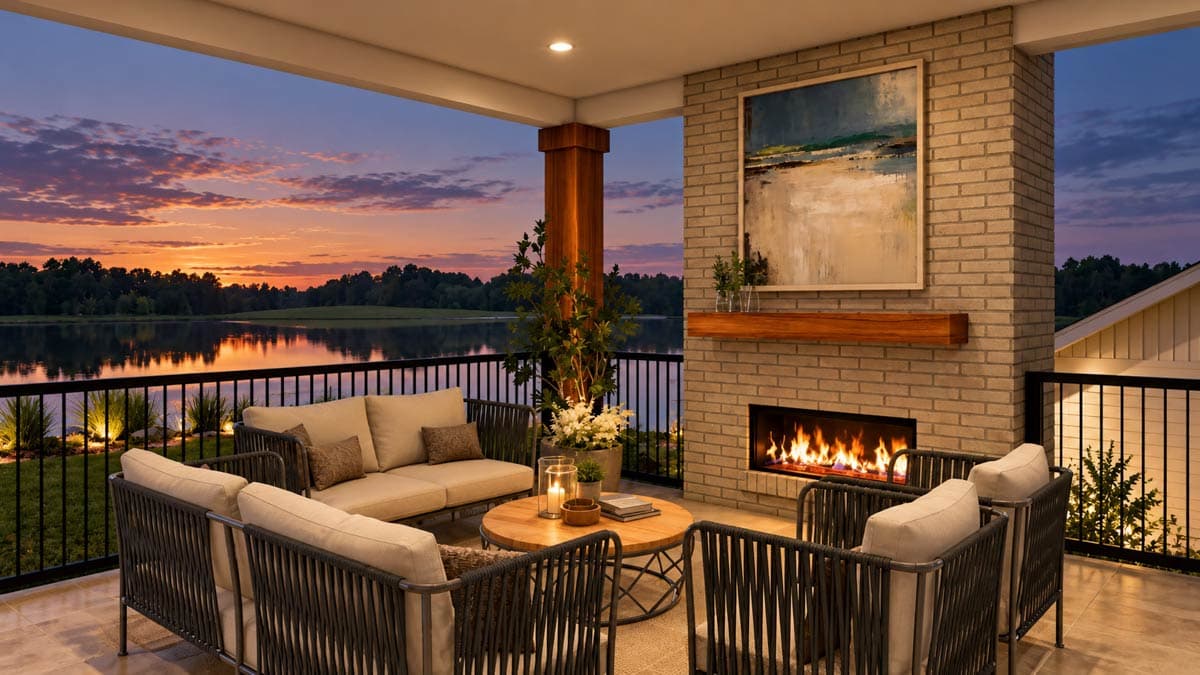

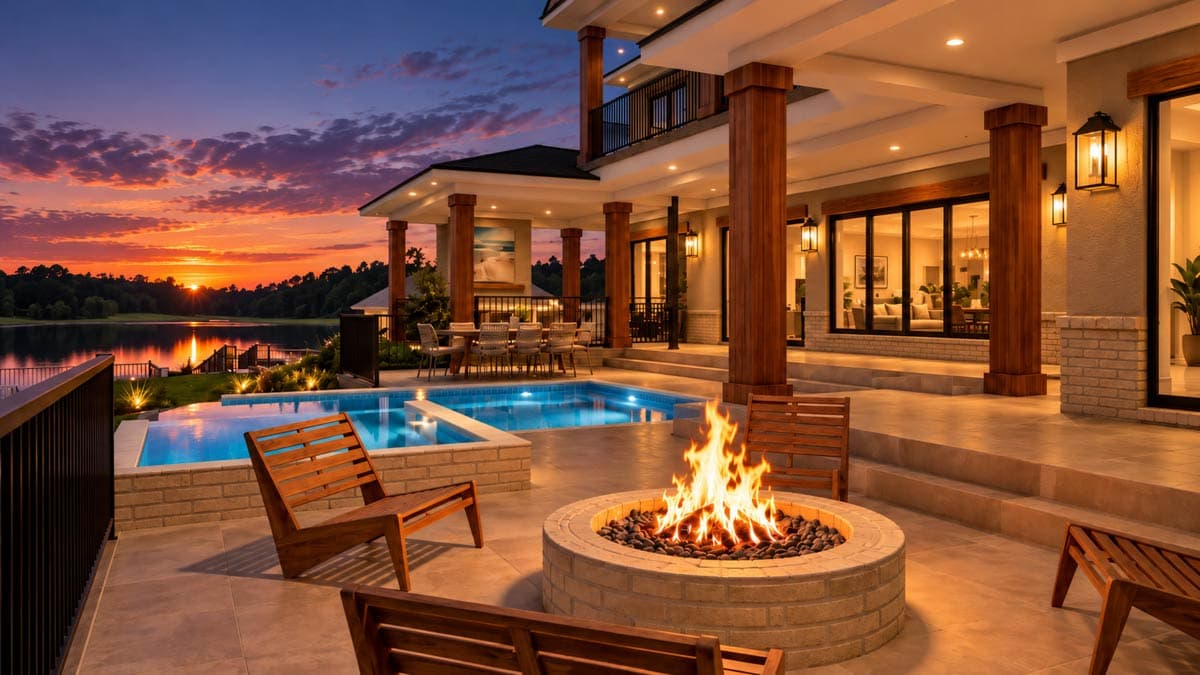

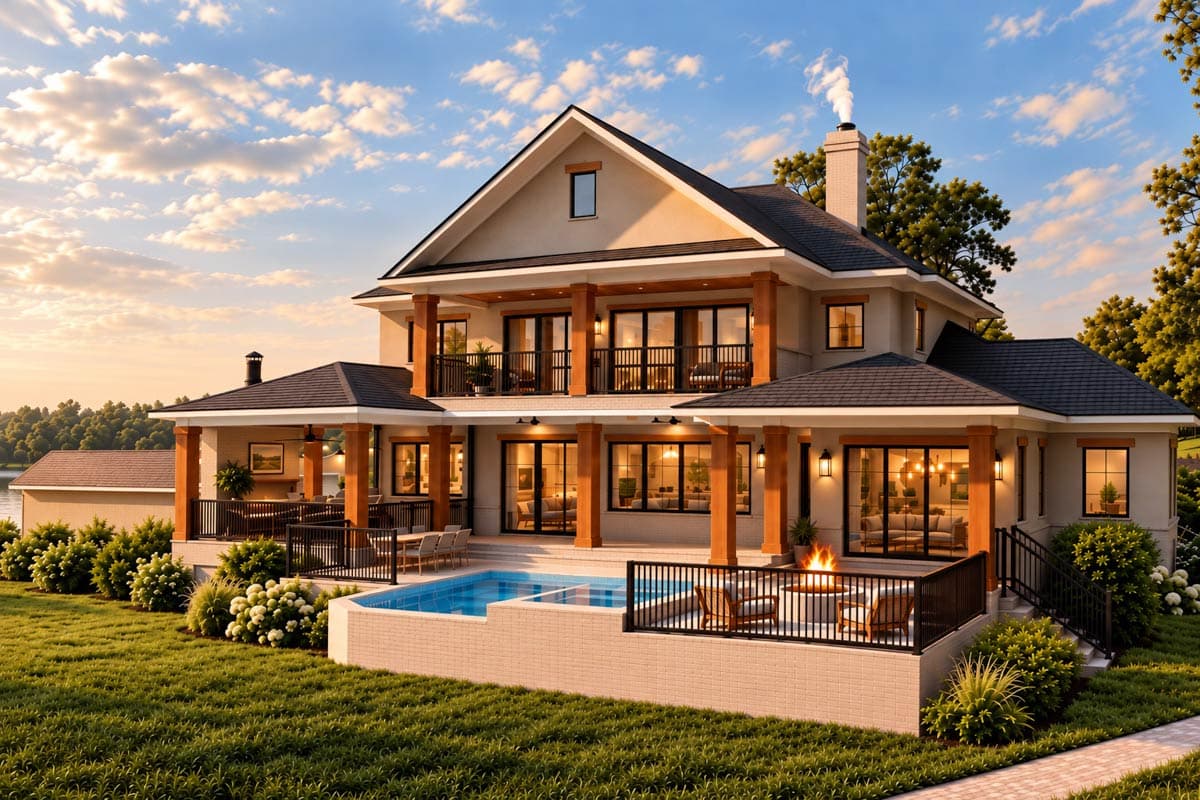

  • The exquisite outdoor living spaces make this home a summer oasis with a pool, hot tub, fire pit and separate fireplace on the screened-in porch.

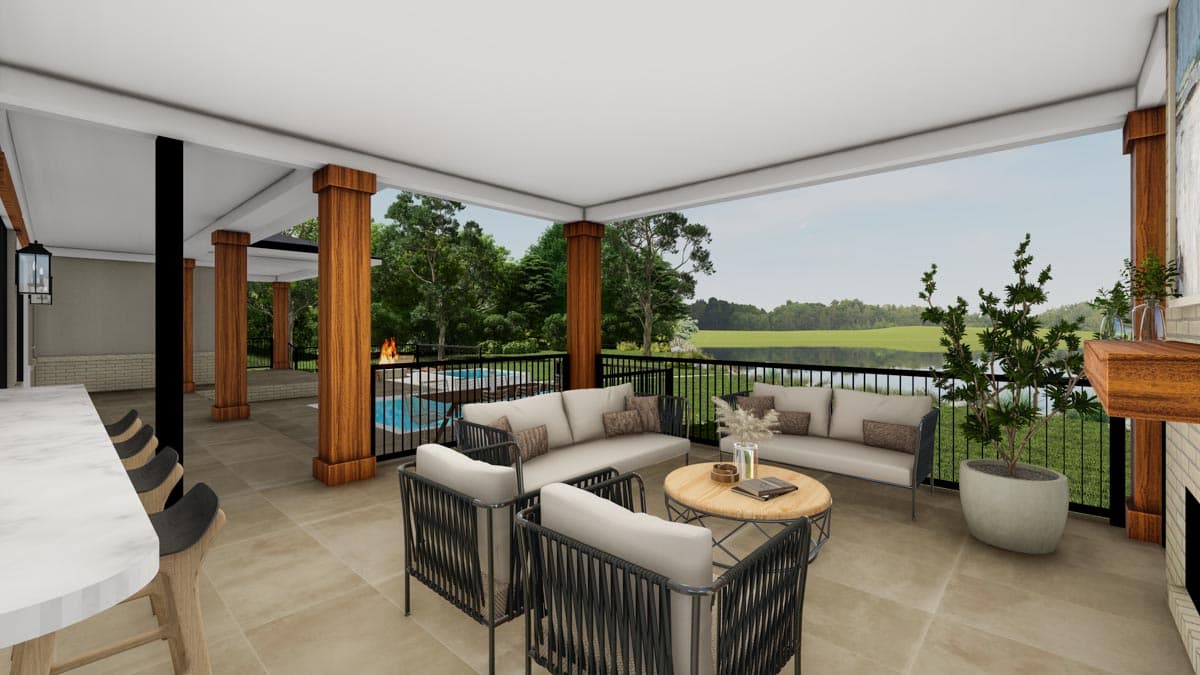

  • The summer kitchen, outdoor dining, and outdoor bar with pass-through window to the indoor kitchen provide indoor/outdoor connectivity and create spaces for connecting with loved ones.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

This house plan set has the following details:


Foundation plan
Detailed floor plans
Roof plan

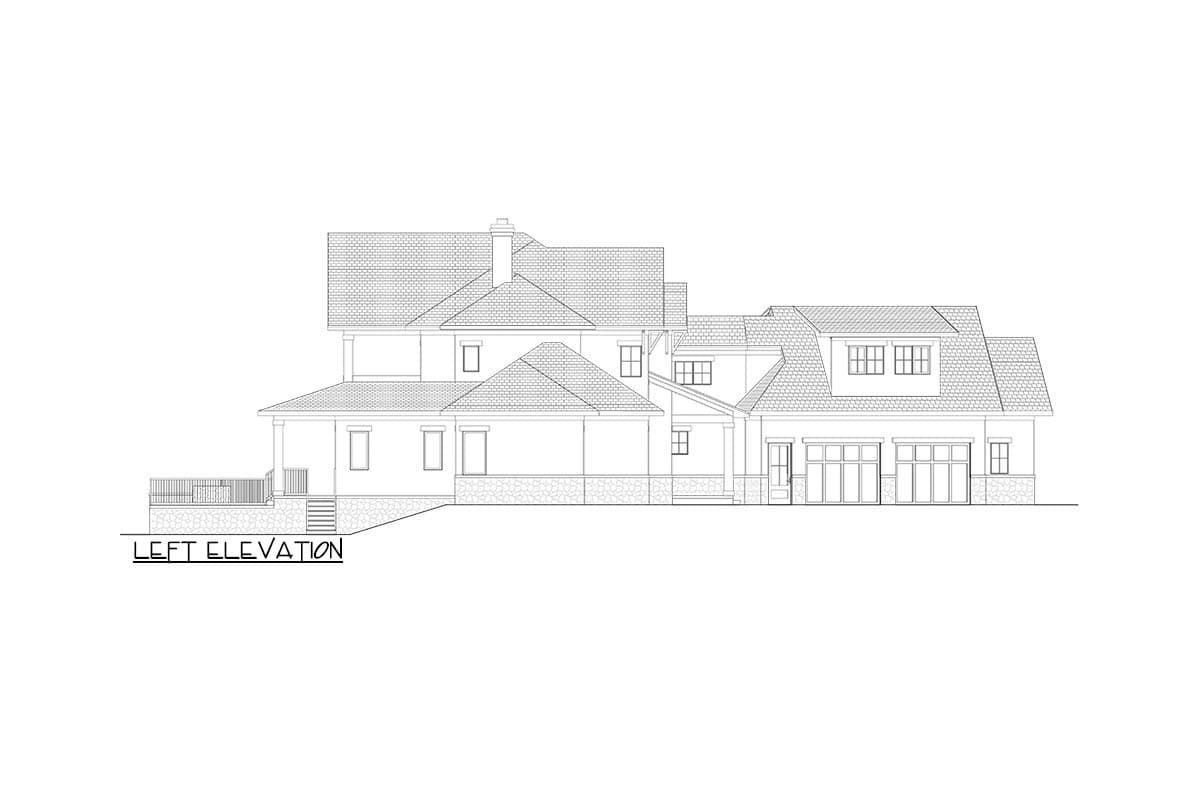

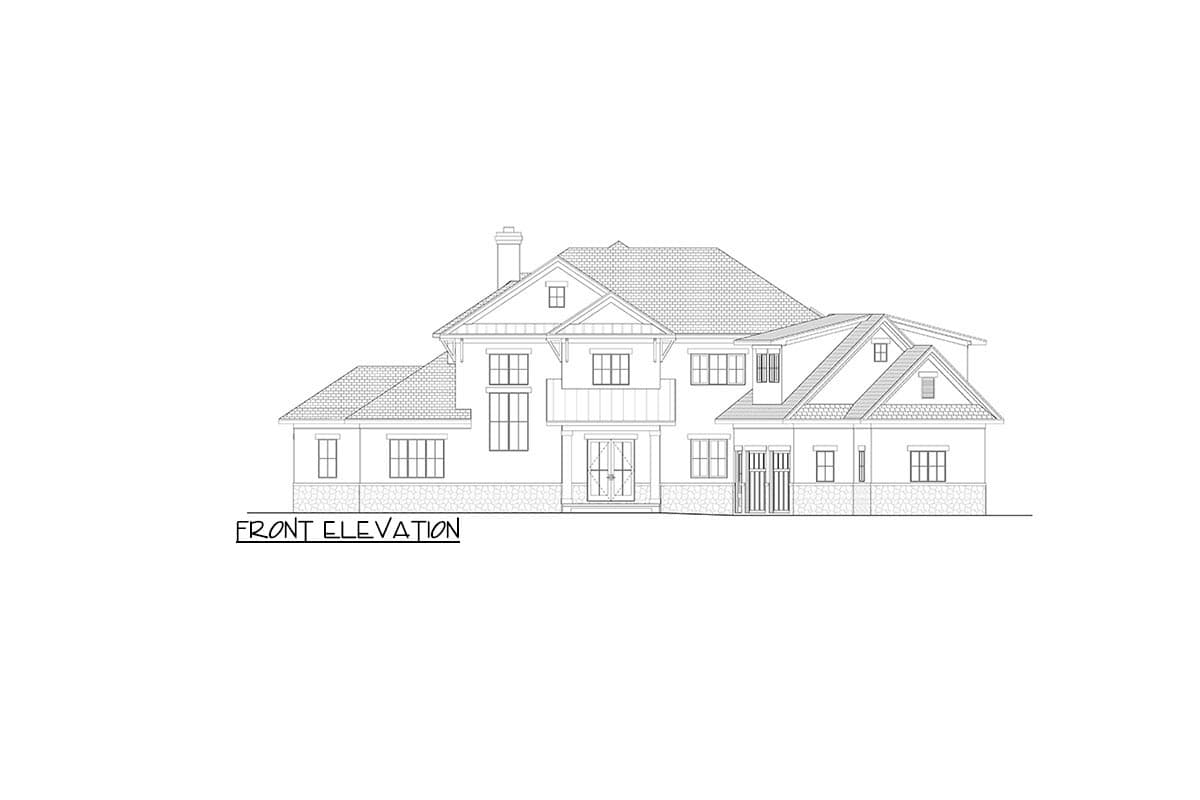

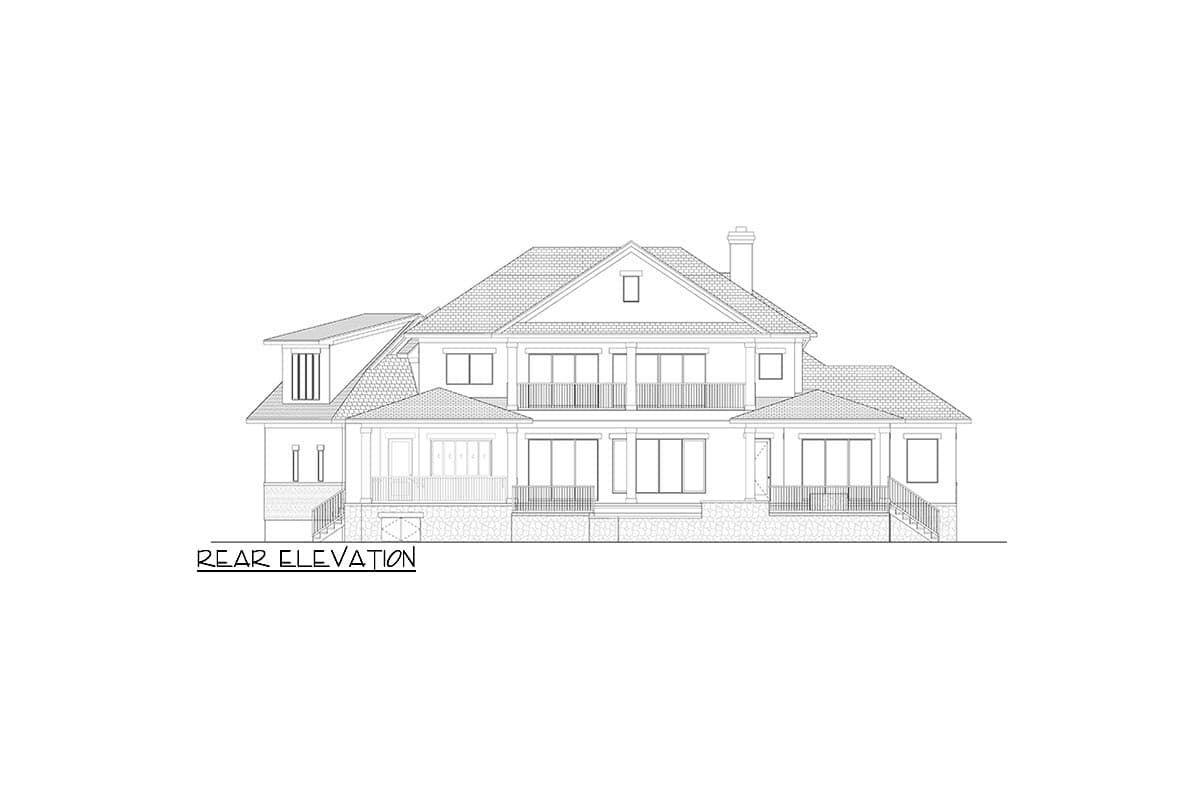

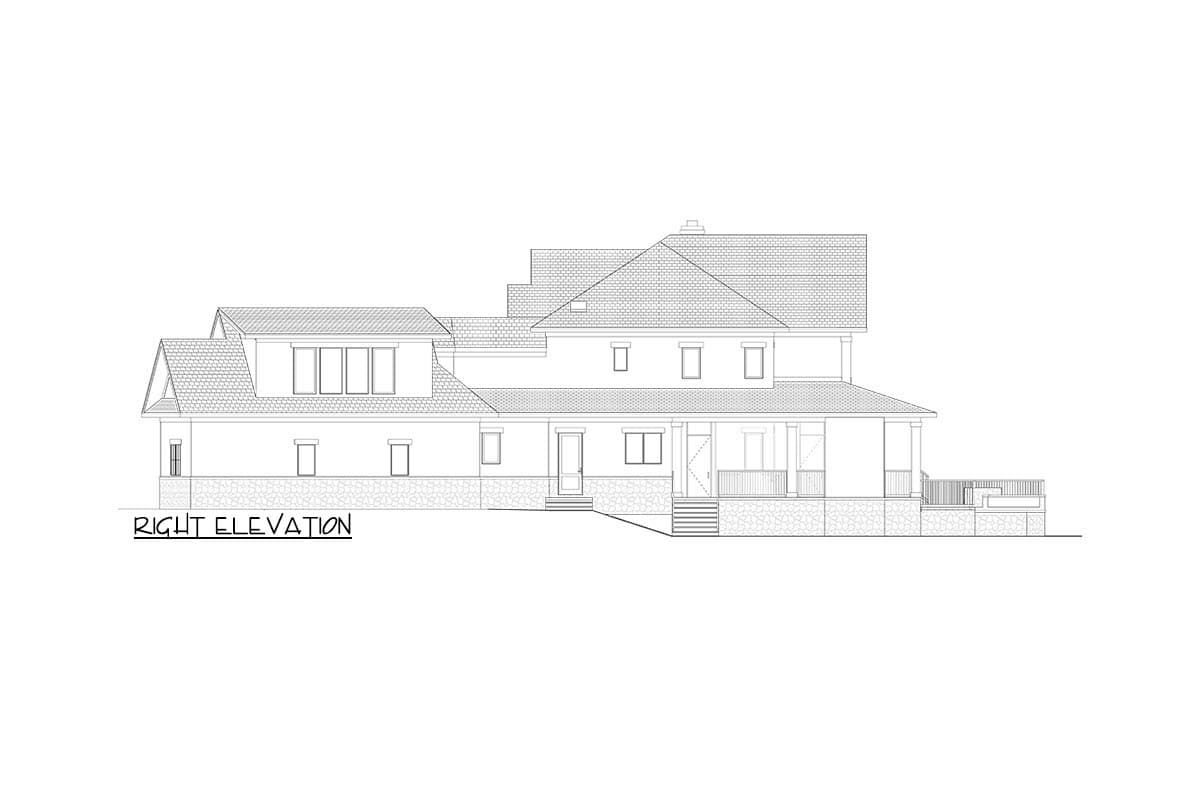

Elevations (all four sides)
Sections
3D model views
Electrical plans
Framing details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

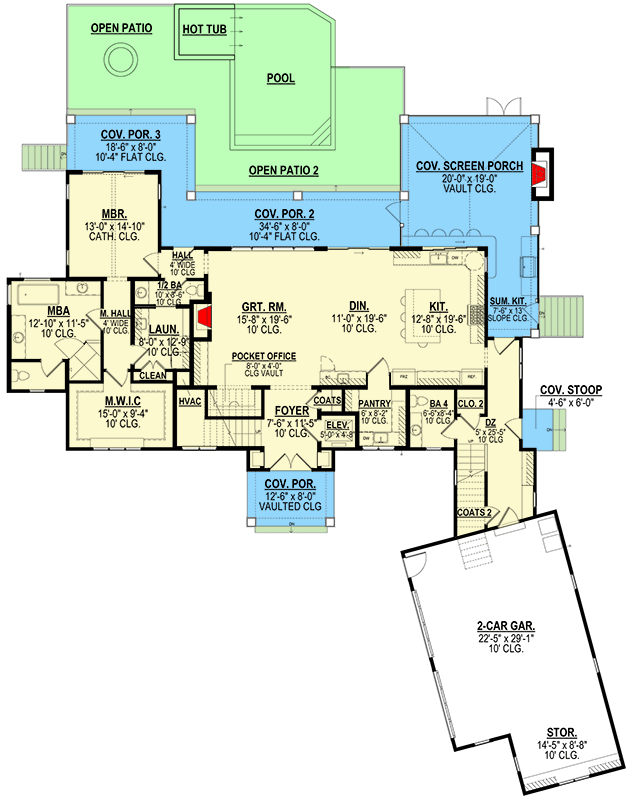

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Lake House Plan with Elevator and Apartment Above Angled Garage - 871031JEN floor plan - Main Level

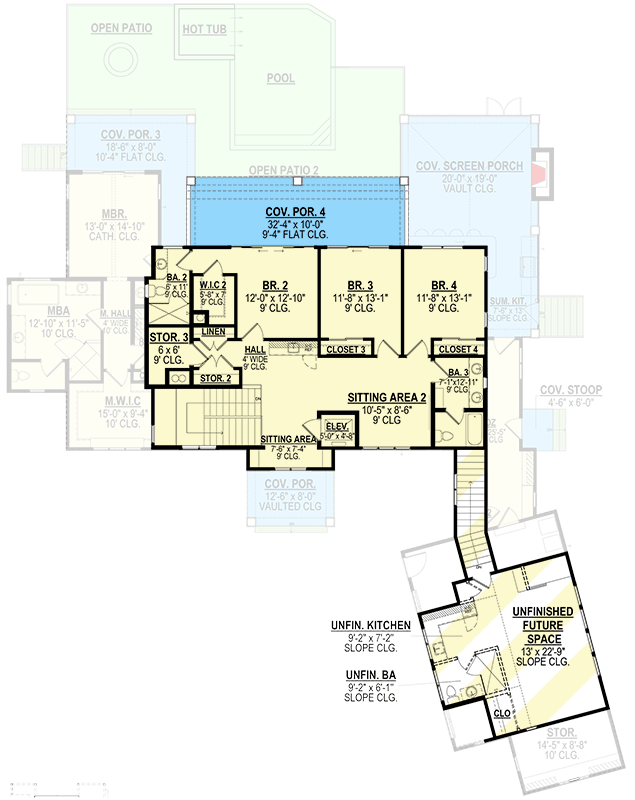

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Bed Lake House Plan with Elevator and Apartment Above Angled Garage - 871031JEN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,628 sq. ft.
  • 1st Floor: 2,329 sq. ft.
  • 2nd Floor: 1,299 sq. ft.
  • Screened Porch: 490 sq. ft.
  • Porch, Combined: 758 sq. ft.
  • Porch, Front: 100 sq. ft.
  • Bonus: 488 sq. ft.
  • Open Patio: 631 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 88' 10"
  • Depth: 113' 10"
  • Max ridge height: 33' 7"

Garage

  • Type: Attached
  • Area: 812 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Master Bedroom Cathedral 13' 0" 14' 10"
Bonus Slope

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

4-Bed Lake House Plan with Elevator and Apartment Above Angled Garage

  • 3,628

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,395
  • 5 Sets + PDF $2,695
  • PDF - Unlimited Build $3,195
  • CAD - Single-Build $3,395
  • View all purchase option online

About This Plan

  • This 4 bed, 4.5 bath house plan gives you 3,628 square feet of heated living space and offers all the essentials you need and gives you extensive fresh air spaces, increasing your areas of enjoyment to the outdoors.
  • The open floorplan and walls of windows enhance a sense of spaciousness on the main level providing views out to the porches, patios, and lake beyond.
  • A pocket office recess with a desk tucked away under the stairwell assures business is still taken care of while the summer fun continues.
  • The left side of the house is dedicated to the master suite. The bedroom has outdoor access and a vaulted ceiling. The master bath has both a shower and soaking tub and access to a laundry room with sink and drip-dry area.
  • An elevator easily transports tired feet from the foyer to an upstairs sitting area and 3 bedrooms.
  • A mini guest cottage above the garage houses those guests able to stay more than a few nights. The apartment adds 488 square feet when finished as shown.
  • The exquisite outdoor living spaces make this home a summer oasis with a pool, hot tub, fire pit and separate fireplace on the screened-in porch.
  • The summer kitchen, outdoor dining, and outdoor bar with pass-through window to the indoor kitchen provide indoor/outdoor connectivity and create spaces for connecting with loved ones.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,628 sq. ft.
  • 1st Floor: 2,329 sq. ft.
  • 2nd Floor: 1,299 sq. ft.
  • Screened Porch: 490 sq. ft.
  • Porch, Combined: 758 sq. ft.
  • Porch, Front: 100 sq. ft.
  • Bonus: 488 sq. ft.
  • Open Patio: 631 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4 and 2x6

Dimensions

  • Width: 88' 10"
  • Depth: 113' 10"
  • Max ridge height: 33' 7"

Garage

  • Type: Attached
  • Area: 812 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
