4 Bed Modern House Plan with Master Deck

Plan 80828PM

  • 2,740

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Those who love Modern house plans will especially enjoy the clean straight lines of this Modern home.
  • The appealing mix of exterior materials heightens the curb appeal.
  • In the large entry foyer, you have a big walk-in coat closet that gives you excellent storage.
  • Wide open spaces are immediately apparent in the main living area, where you can see the living room fireplace all the way from the kitchen island.
  • Another big walk-in coat closet lies off the garage entry near the laundry room.
  • Upstairs, there are four bedrooms and a cozy lounge where you can hang out and read or watch TV.
  • A key design element is the private deck off the master bedroom where you have two sliding glass doors to take you outside.
  • The large master bathroom has a soaking tub with a backyard view and double sinks.

Plan sets include the following:

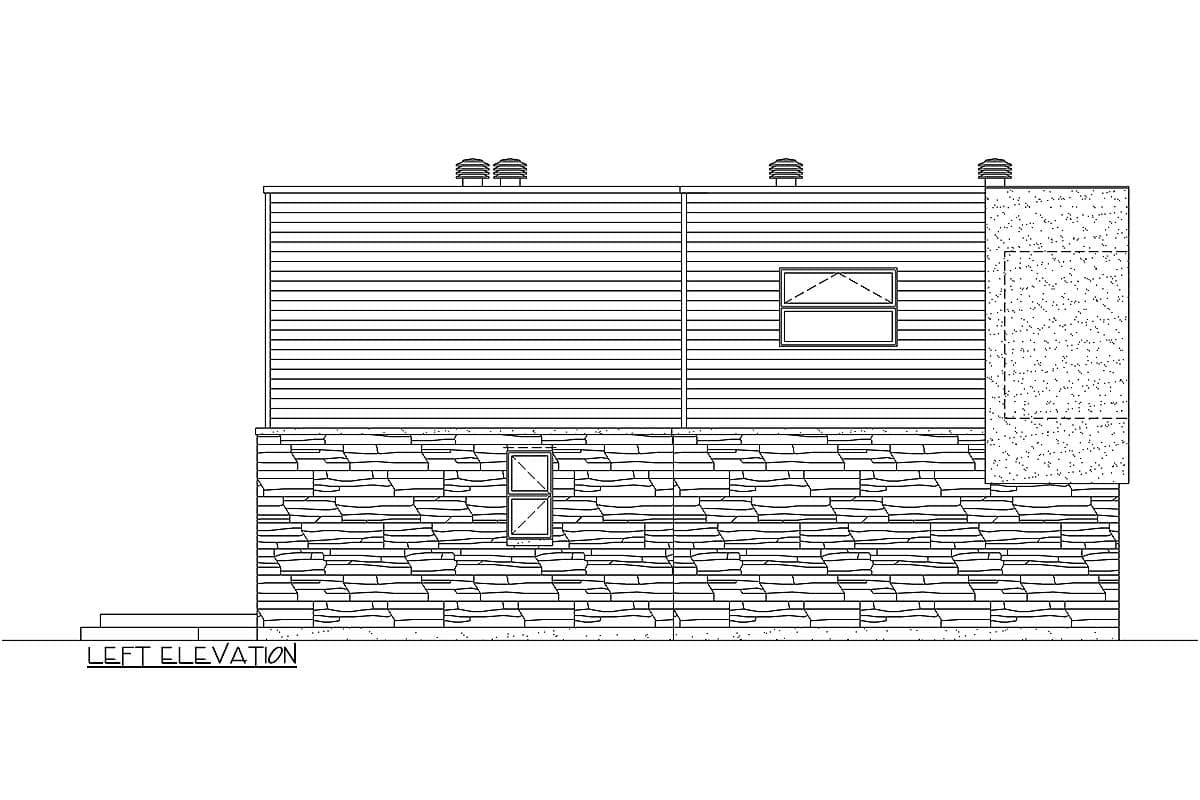

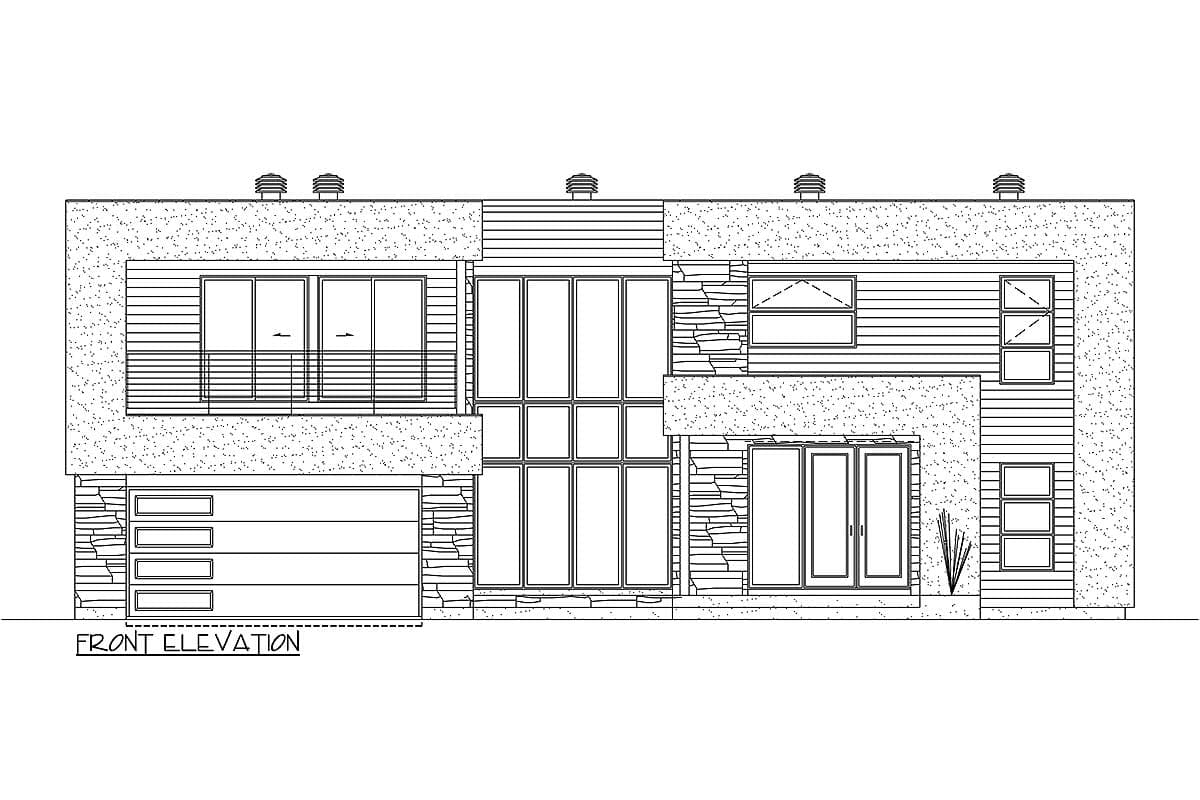

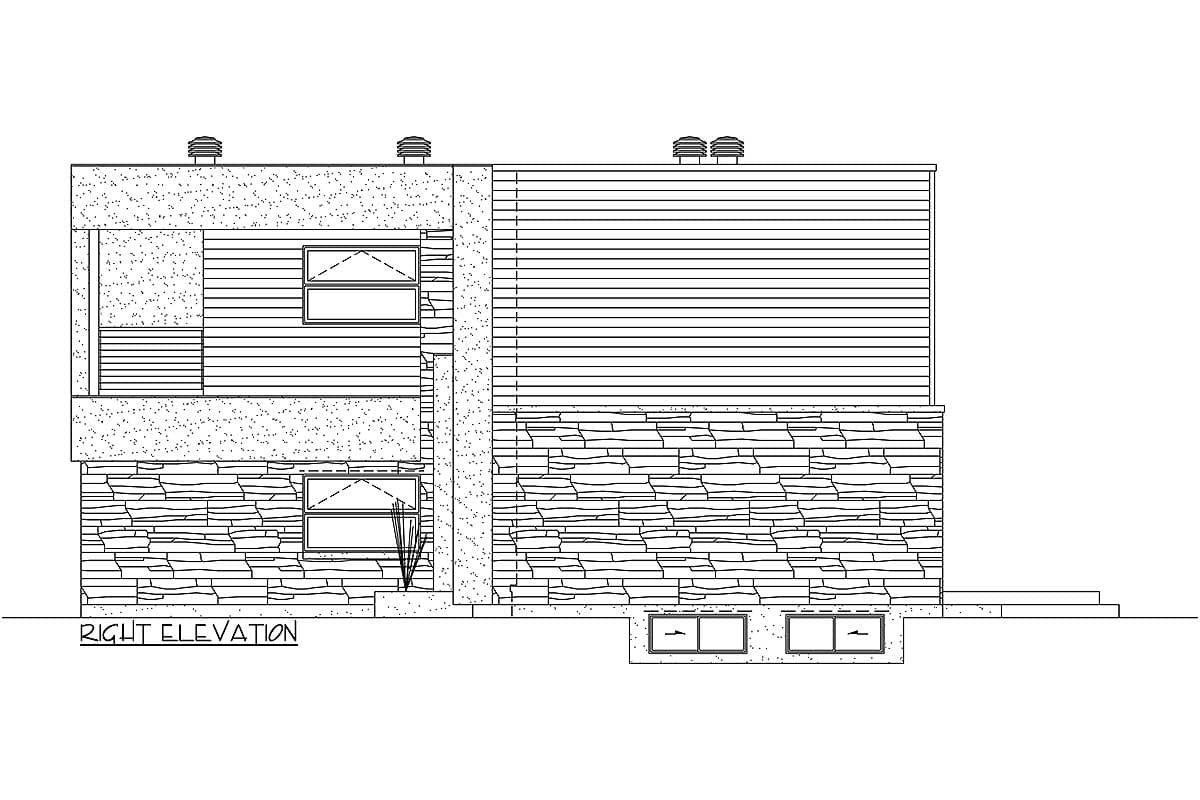

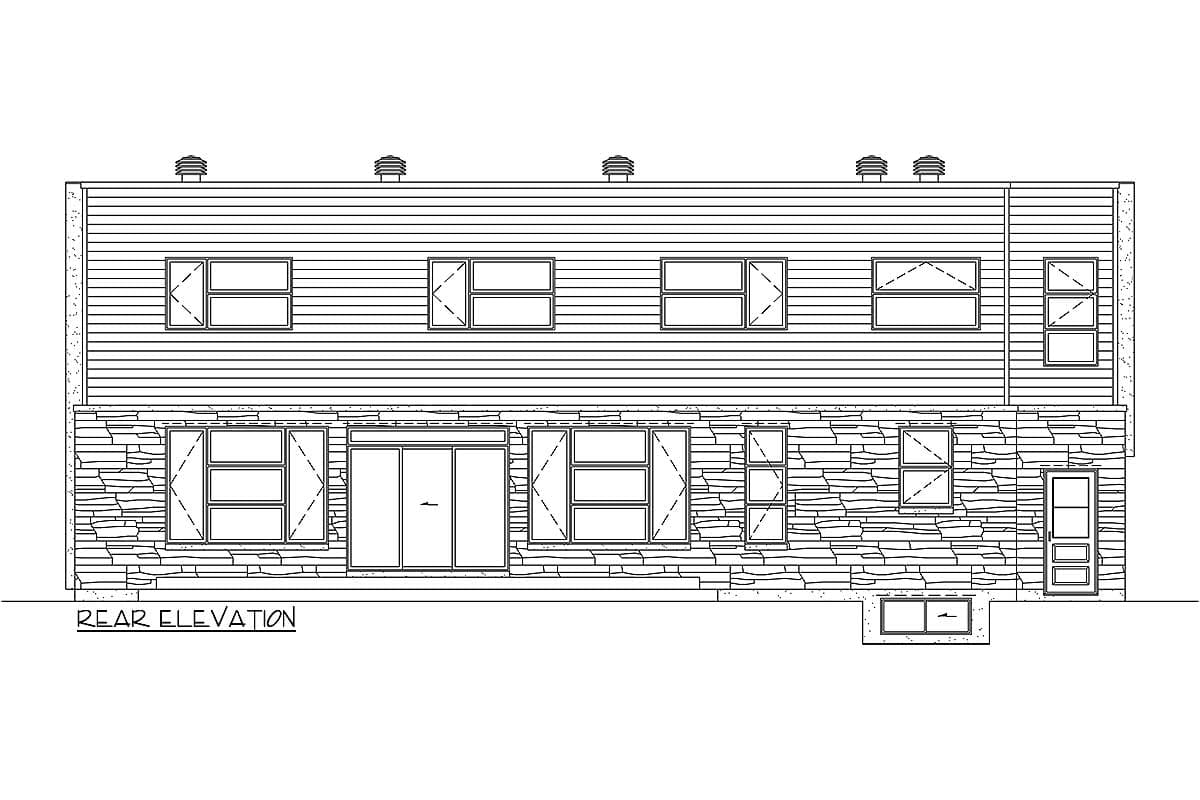

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

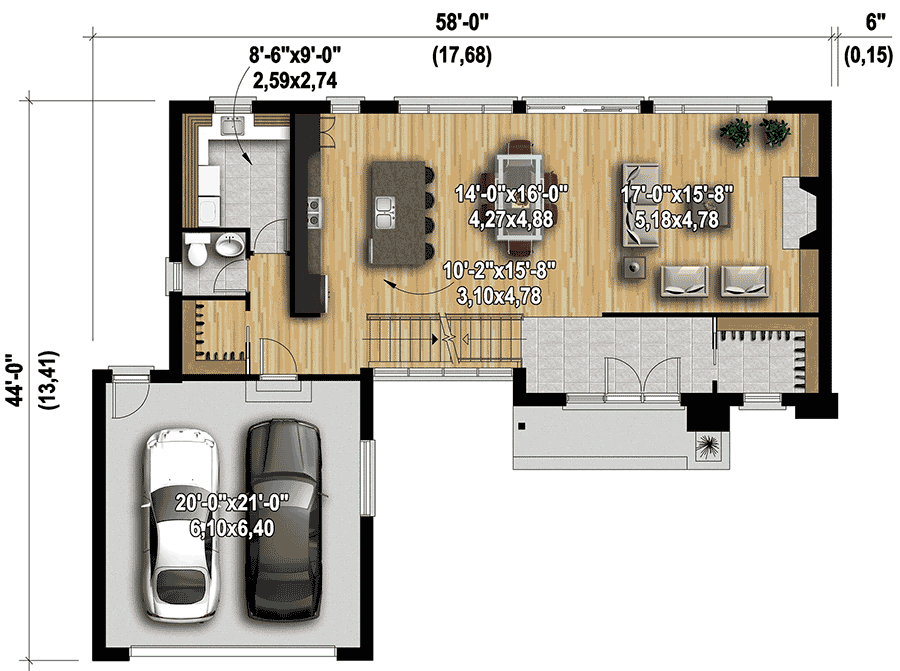

4 Bed Modern House Plan with Master Deck - 80828PM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

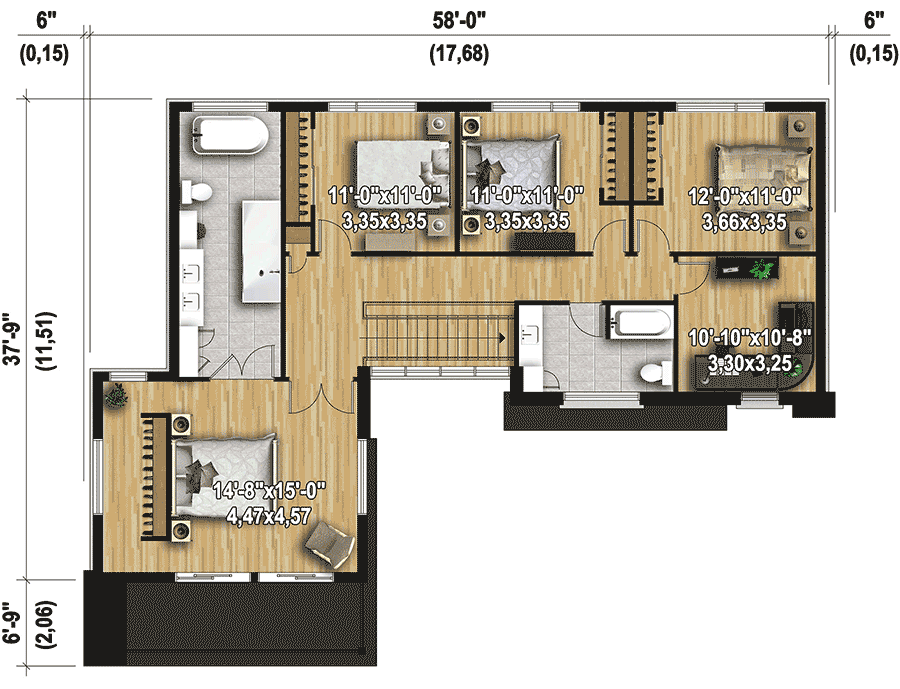

4 Bed Modern House Plan with Master Deck - 80828PM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,740 sq. ft.
  • 1st Floor: 1,194 sq. ft.
  • 2nd Floor: 1,546 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 44' 0"
  • Max ridge height: 23' 2"

Garage

  • Type: Attached
  • Area: 489 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Framing Type: Truss

Architectural Style
