Plan 623093DJ 4-Bed Modern-style Cottage with Laundry on Both Floors

4-Bed Modern-style Cottage with Laundry on Both Floors

Plan 623093DJ

  • 3,422

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 2-story modern cottage-style house plan has great curb appeal with an exterior combining stucco, brick, and metal accents. Tall windows, three gables and a 3-car side-entry garage add to the street appeal.
  • Immediately inside the front doors you'll find yourself in the 2-story entry. Dual sets of French doors also lead you into the large great room with a high 2-story ceiling and a fireplace with built-in bookshelves to the right. The room opens up to the rear covered porch through a large quad sliding glass door.
  • The dining room and kitchen are open concept. The kitchen includes tons of counter space, a walk-in pantry, a large island, and an oversized refrigerator.
  • On the left side of the home you'll find the amazing master suite. The master bedroom lies under a soaring 15' trayed ceiling and has its own door to the rear covered patio. The impressive master bathroom includes an enclosed toilet area, his/her vanities, a wet room with a soaking tub, and a large walk-in closet.
  • Upstairs, the landing leads into a cozy library with built-in bookshelves. The floor features 3 additional bedrooms and a loft. Each bedroom has its own walk-in closet. Bedroom 2 has access to its own bathroom while bedrooms 3 and 4 share a Jack-and-Jill bath.
  • Back on the main level, a large side load 3-car garage with a potting shed. The garage enters the home through a convenient mudroom with a bench and a coat closet.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

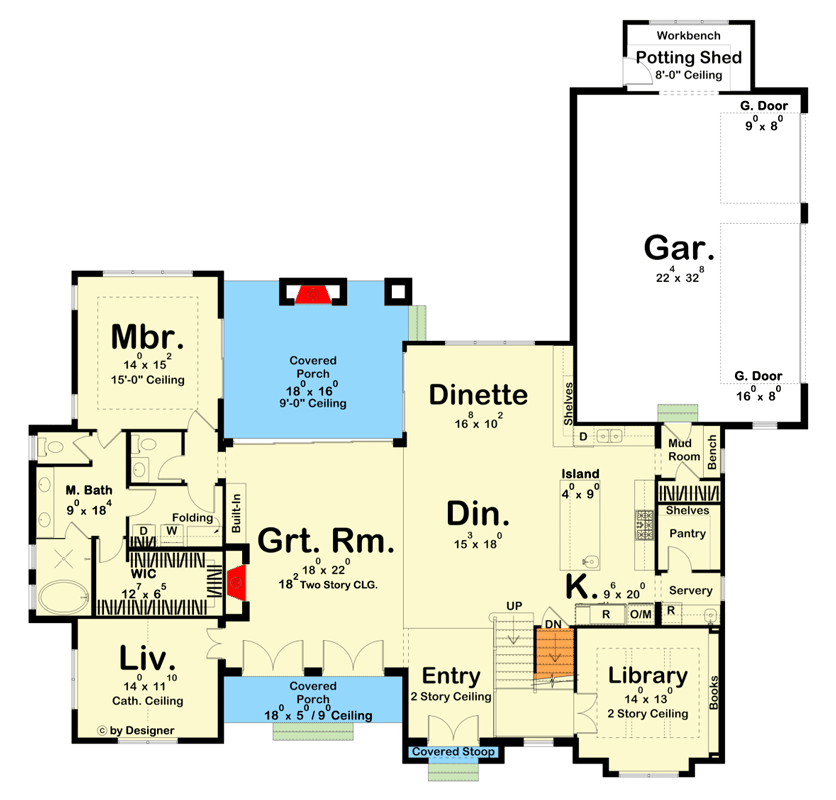

4-Bed Modern-style Cottage with Laundry on Both Floors - 623093DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

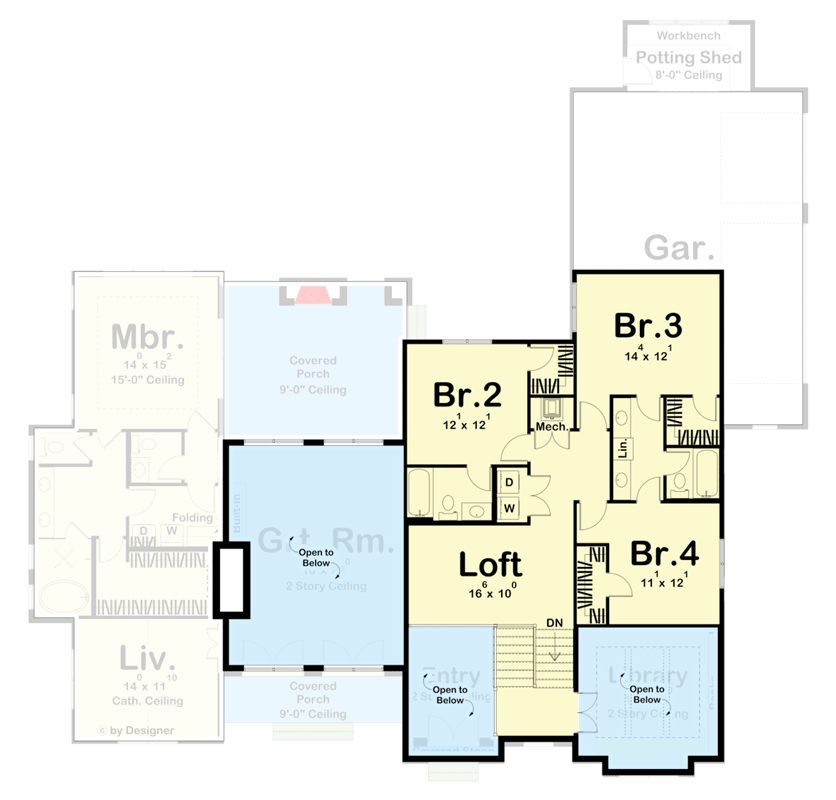

4-Bed Modern-style Cottage with Laundry on Both Floors - 623093DJ floor plan - 2nd Floor

Plan details

4-Bed Modern-style Cottage with Laundry on Both Floors

  • 3,422

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • PDF - Unlimited Build $2,200
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • This 2-story modern cottage-style house plan has great curb appeal with an exterior combining stucco, brick, and metal accents. Tall windows, three gables and a 3-car side-entry garage add to the street appeal.
  • Immediately inside the front doors you'll find yourself in the 2-story entry. Dual sets of French doors also lead you into the large great room with a high 2-story ceiling and a fireplace with built-in bookshelves to the right. The room opens up to the rear covered porch through a large quad sliding glass door.
  • The dining room and kitchen are open concept. The kitchen includes tons of counter space, a walk-in pantry, a large island, and an oversized refrigerator.
  • On the left side of the home you'll find the amazing master suite. The master bedroom lies under a soaring 15' trayed ceiling and has its own door to the rear covered patio. The impressive master bathroom includes an enclosed toilet area, his/her vanities, a wet room with a soaking tub, and a large walk-in closet.
  • Upstairs, the landing leads into a cozy library with built-in bookshelves. The floor features 3 additional bedrooms and a loft. Each bedroom has its own walk-in closet. Bedroom 2 has access to its own bathroom while bedrooms 3 and 4 share a Jack-and-Jill bath.
  • Back on the main level, a large side load 3-car garage with a potting shed. The garage enters the home through a convenient mudroom with a bench and a coat closet.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,422 sq. ft.
  • 1st Floor: 2,400 sq. ft.
  • 2nd Floor: 1,022 sq. ft.
  • Porch, Combined: 397 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 75' 4"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 858 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
