4-Bed New American Ranch Plan with Private Primary Bedroom - 2933 Sq Ft

Heated S.F.
2,933
Beds
4
Baths
3.5
Stories
1
Cars
2

Floor Plan

Plan 330007WLE

Main Level
Main Level

Plan 330007WLE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

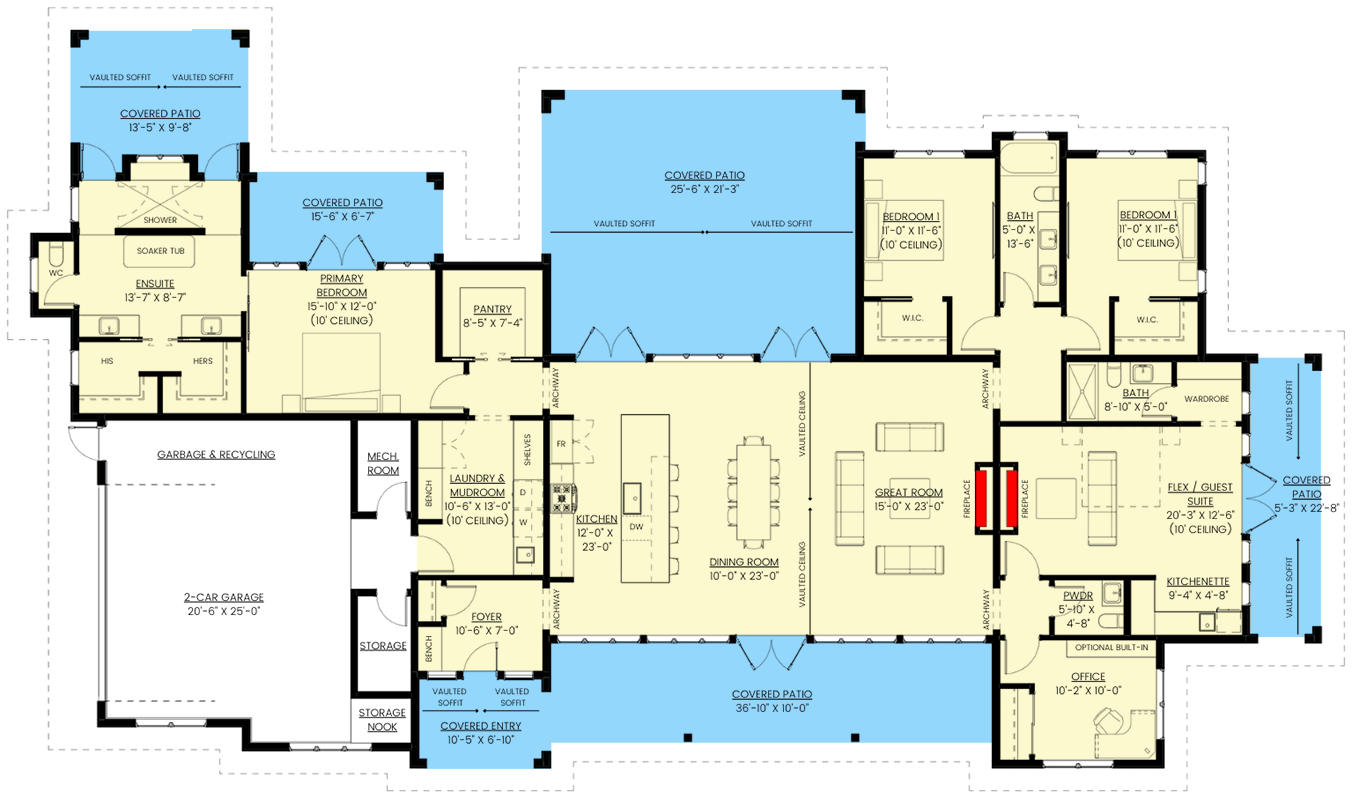

Plan 330007WLE: 4-Bed New American Ranch Plan with Private Primary Bedroom - 2933 Sq Ft - Floor Plan - Main Level - Country, Modern Farmhouse, New American, Ranch, Transitional

Plan Details

  • The expansive communal space is centrally located with three sets of french doors leading to the front and rear porches. The heart of the home delights in a sizable island with seating for quick meals and pocket doors in the adjacent hall reveal a walk-in pantry.
  • Secluded for the utmost privacy, discover the primary bedroom tucked behind the double garage and featuring a covered patio off the bedroom and ensuite.
  • Lining the right side of the home, two more bedrooms share a 4-fixture bath and a flex room / guest suite includes a kitchenette, fireplace, and full bath.
  • A home office keeps the possibility of working from home an option, and the spacious laundry / mudroom helps you remain organized.
  • Related Plans: Get an alternate version with house plan 330012WLE (2,933 sq. ft.), a 4-car garage with house plan 330023WLE (2,933 sq. ft.) and a larger version with house plan 330022WLE (3,153 sq. ft.).

What's Included

  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

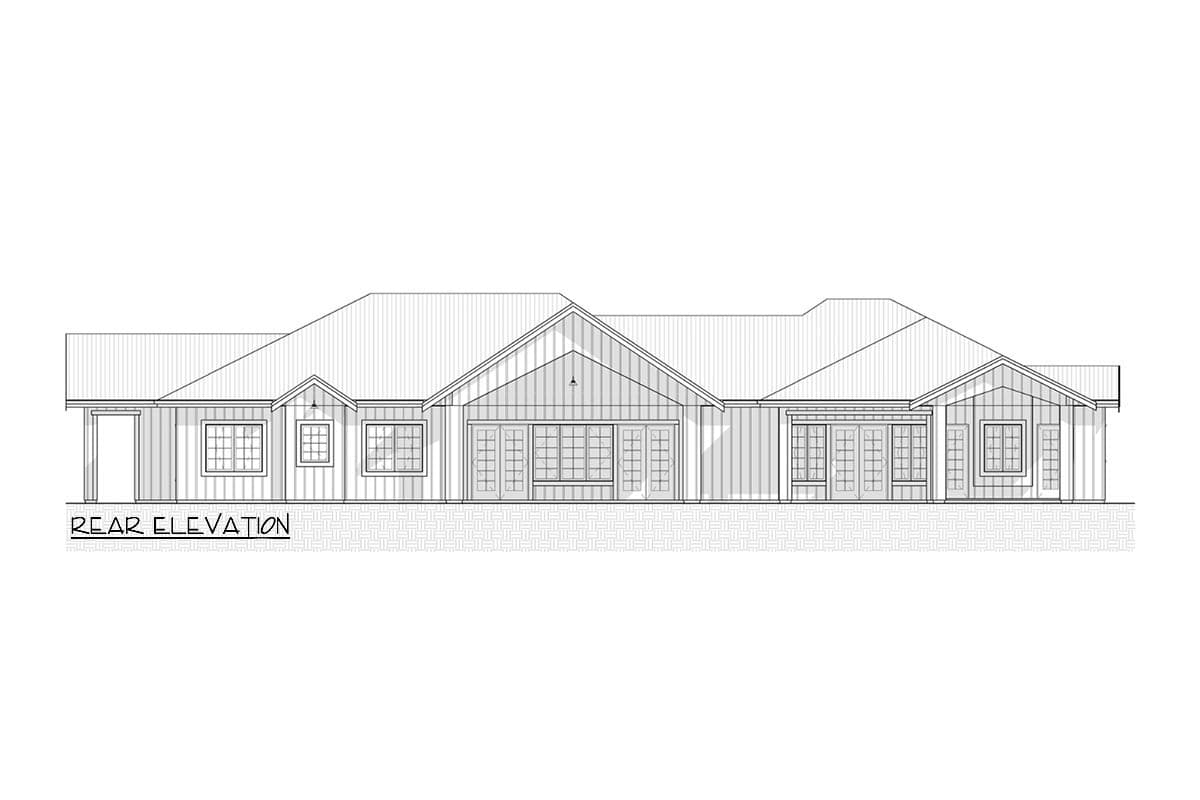

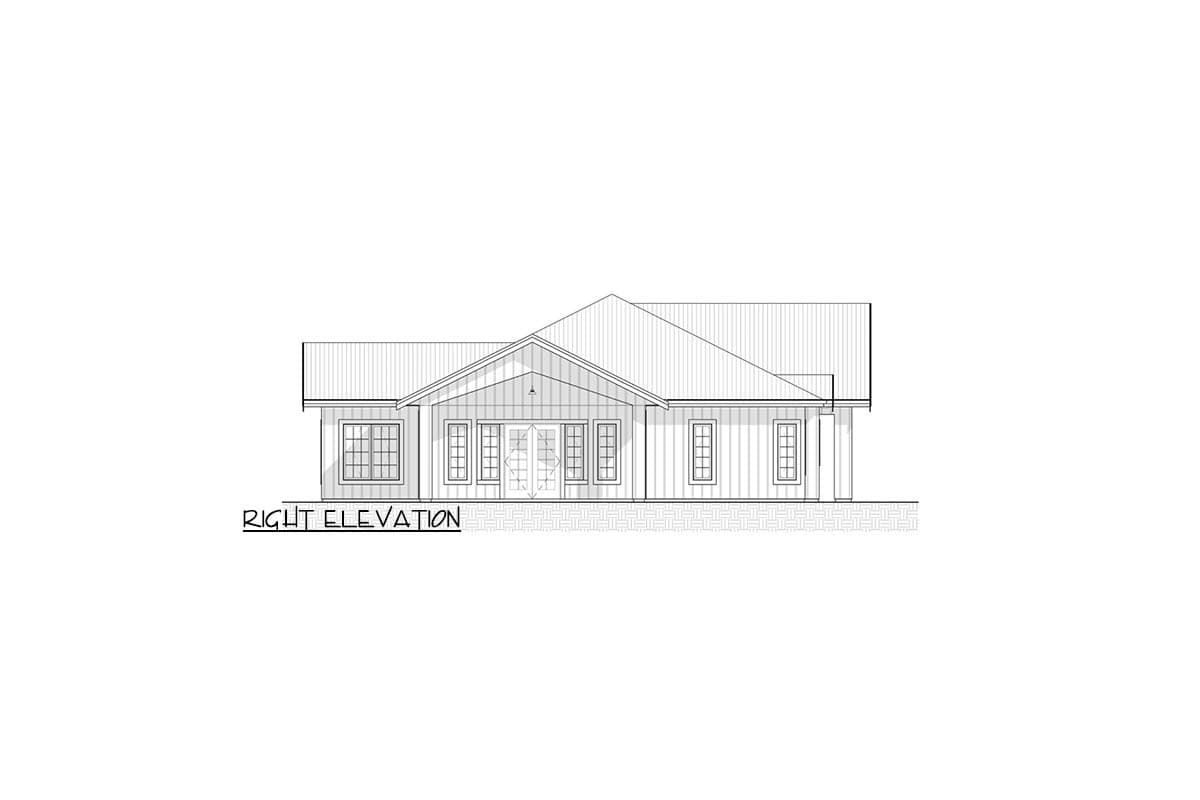

  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Plumbing Drawings
  • Framing and roof framing layouts with beam sizes and locations
  • Footing sizing, depths and rebar calculations
  • Material lists
  • Energy calculations - handled locally when required
