4 Bed Southern Craftsman with Side-Load Garage - 2676 Sq Ft

Plan 70530MK

  • 2,676

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 4 bed Southern Craftsman house plan has a mixed-material exterior blending brick, stone, and shake siding giving it great curb appeal.
  • Double-entry doors lead you into the foyer with 10' ceilings. Beyond, you are greeted by an open concept kitchen and great room design featuring a large fireplace, high bar, and exposed beams on the ceiling.
  • The master suite is privately located on the left side of the home and features a spacious bath and walk-in closet. Three more bedrooms are located on the right side of the home and two additional baths.
  •  Completing this plan are a large outdoor living area in back with a fireplace and a spacious 2-car side load garage.
  • Related Plans: Add a bathroom with house plan 70719MK. Get a third garage and build in reverse with house plans 60699ND and 60631ND.

Each plan set includes the following:

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

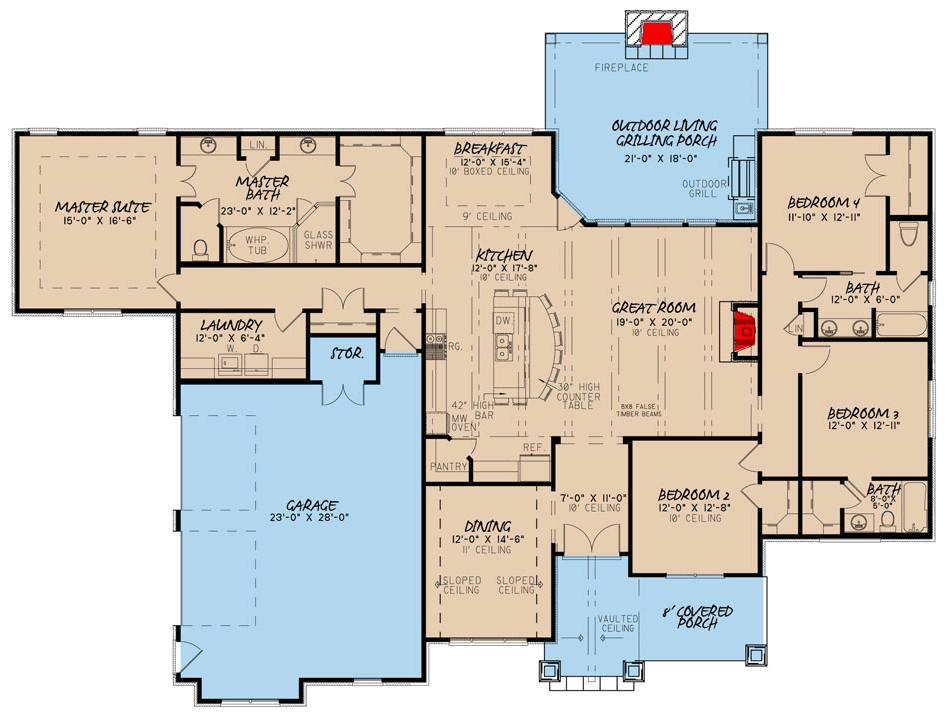

4 Bed Southern Craftsman with Side-Load Garage - 2676 Sq Ft - 70530MK floor plan - Main Level

Basement Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

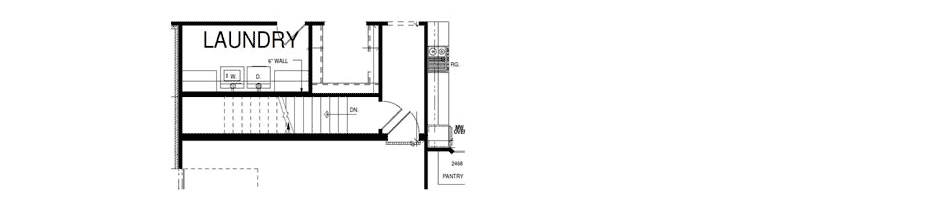

4 Bed Southern Craftsman with Side-Load Garage - 2676 Sq Ft - 70530MK floor plan - Basement Stairs
