4 Bed Southwest House Plan Under 3000 Sq Ft
Heated S.F.
2,987
Beds
4
Baths
3.5
Stories
1
Cars
2
Tour
Videos
What's Included
Plan Details
  • This one-story Southwest-inspired house plan gives you 2,987 square feet of heated living with 4 beds and 3.5 baths. The exterior has graceful wood accents and stucco-clad walls giving it great curb appeal.
  • An open-concept design seamlessly unites the kitchen, great room, and the adjacent dinette with outdoor access. The kitchen has ample counter space and a large central island with casual seating and a double sink. A formal dining area has a beamed ceiling and is served by the wet bar servery nearby.
  • The master suite has a beamed ceiling and direct access to the back porch. A spacious walk-in closet with direct laundry access and a five fixture bath with two vanities completes the suite. Bedrooms two and three share a Jack and Jill bathroom. Bedroom four has its own private bathroom.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 Bed Southwest House Plan Under 3000 Sq Ft

  • 2,987

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

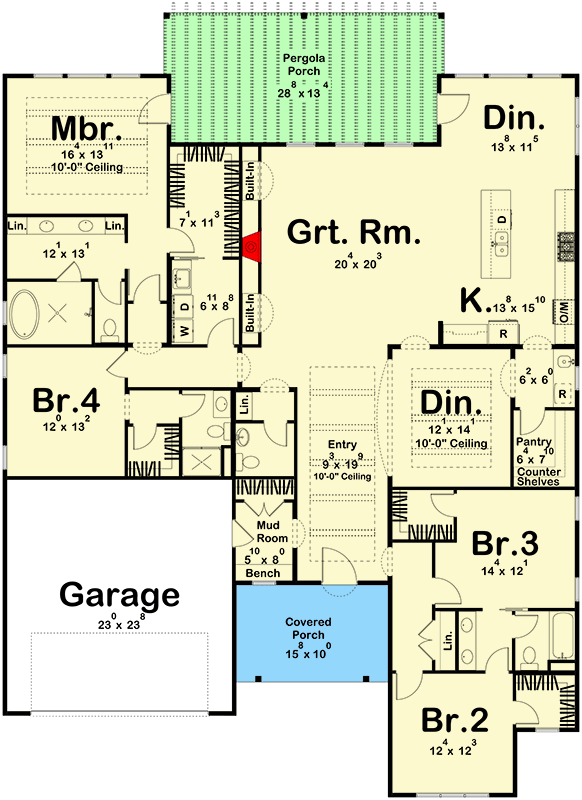

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,987 sq. ft.
  • 1st Floor: 2,987 sq. ft.

Dimensions

  • Width: 58' 8"
  • Depth: 80' 0"
  • Max ridge height: 15' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 564 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
