4-Bed Split Bedroom Modern Farmhouse Plan with Vaulted Open Concept Interior

Plan 56496SM

  • 2,534

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • An 8'-deep front porch with exposed rafter tails and three shed dormers positioned above it combine with the board and batten siding to give this 4-bed modern farmhouse plan great curb appeal.
  • Step into the airy foyer with 18'6" ceiling above through a pair of French doors and an open floor plan reveals itself. The vaulted great room has a timber ridge beam going down the middle, left to right and French doors on the back wall take you to the 12'-deep back porch with outdoor kitchen.
  • No walls separate the great room from the kitchen with a large 4' by 8'6" island that comfortably sits four and gives the cook great prep space. A roomy walk-in pantry is conveniently located to where you cook and a farm sink looks out across the back porch.
  • The master suite has a vaulted ceiling and a barn door that tastefully closes off the master bath. A welcome convenience is your access to the laundry room from your walk-in closet. Across the home, two bedrooms share a Jack and Jill bath and a third has access to the hall bath.
  • A 2-car side-entry garage has a storage room to stow away your gear while leaving you room for your vehicles.
  • Related Plan: Get an alternate exterior with 3 bedrooms with house plan 56465SM.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

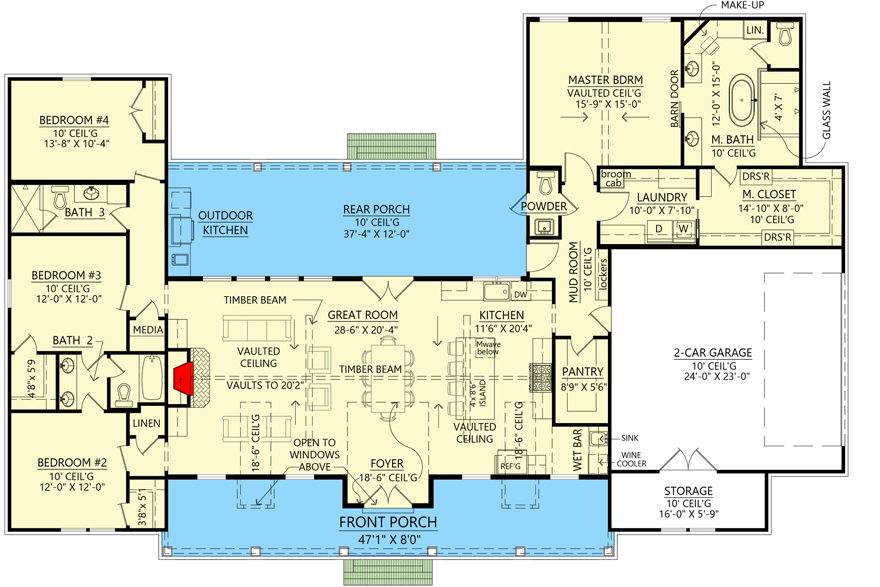

4-Bed Split Bedroom Modern Farmhouse Plan with Vaulted Open Concept Interior - 56496SM floor plan - Main Level

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

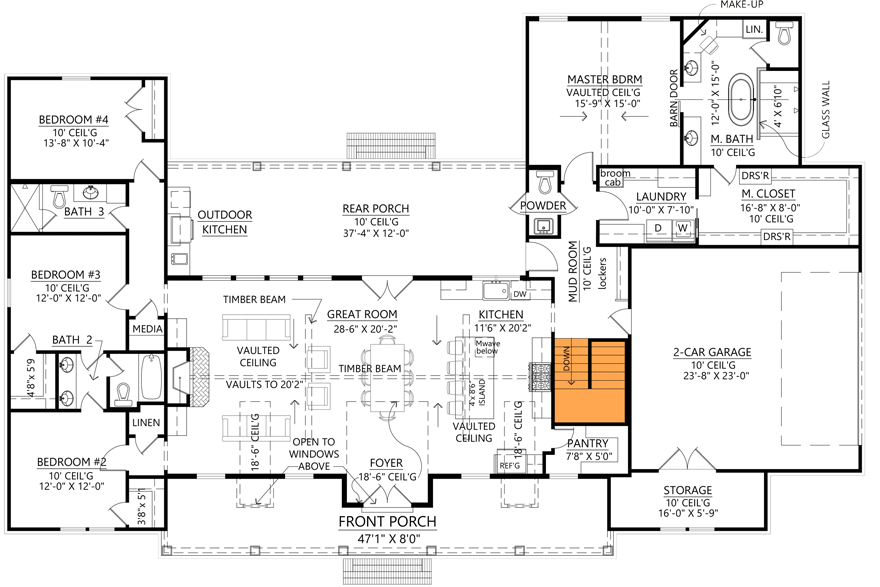

4-Bed Split Bedroom Modern Farmhouse Plan with Vaulted Open Concept Interior - 56496SM floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,534 sq. ft.
  • 1st Floor: 2,534 sq. ft.
  • Storage: 101 sq. ft.
  • Porch, Combined: 784 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Stem Wall
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 87' 2"
  • Depth: 56' 2"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 584 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

4-Bed Split Bedroom Modern Farmhouse Plan with Vaulted Open Concept Interior

  • 2,534

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,245
  • 5 Sets $1,345
  • 5 Sets + PDF $1,545
  • PDF - Unlimited Build $1,945
  • CAD Unlimited + PDF $2,745
  • View all purchase option online

About This Plan

  • An 8'-deep front porch with exposed rafter tails and three shed dormers positioned above it combine with the board and batten siding to give this 4-bed modern farmhouse plan great curb appeal.
  • Step into the airy foyer with 18'6" ceiling above through a pair of French doors and an open floor plan reveals itself. The vaulted great room has a timber ridge beam going down the middle, left to right and French doors on the back wall take you to the 12'-deep back porch with outdoor kitchen.
  • No walls separate the great room from the kitchen with a large 4' by 8'6" island that comfortably sits four and gives the cook great prep space. A roomy walk-in pantry is conveniently located to where you cook and a farm sink looks out across the back porch.
  • The master suite has a vaulted ceiling and a barn door that tastefully closes off the master bath. A welcome convenience is your access to the laundry room from your walk-in closet. Across the home, two bedrooms share a Jack and Jill bath and a third has access to the hall bath.
  • A 2-car side-entry garage has a storage room to stow away your gear while leaving you room for your vehicles.
  • Related Plan: Get an alternate exterior with 3 bedrooms with house plan 56465SM.

Floor Plans

  • Main Level

  • Main Level - Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,534 sq. ft.
  • 1st Floor: 2,534 sq. ft.
  • Storage: 101 sq. ft.
  • Porch, Combined: 784 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Stem Wall
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 87' 2"
  • Depth: 56' 2"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 584 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
Plan 56496SM
