4-Bed Transitional House Plan with 2-Story Great Room

Plan 62369DJ

  • 3,696

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This house plan has amazing modern cottage curb appeal. The exterior combines stucco, contrasting colors, and large windows to create an exciting façade. Just inside the home, you'll be greeted by a wide open floor plan. The 2-story great room is warmed by a fireplace and flows seamlessly with the dining and kitchen. The kitchen features a large island and a walk-in pantry (5'9" by 9').
  • Tucked behind the kitchen, you'll find the master suite conveniently located on the main floor. The master suite is warmed by its own fireplace and features a bathroom that includes his/her vanities, a soaking tub, and an enclosed toilet. The amazing walk-in closet - 12' by 10'+) has access to the main floor laundry room.
  • On the second level, a loft overlooks the great room. Three additional bedrooms can be found on the second level. Bedroom 2 has access to its own bathroom while bedrooms 3 and 4 share a jack and jill bathroom.
  • Back on the main floor, the home's massive 3 car side load garage accesses the home through a convenient mudroom.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

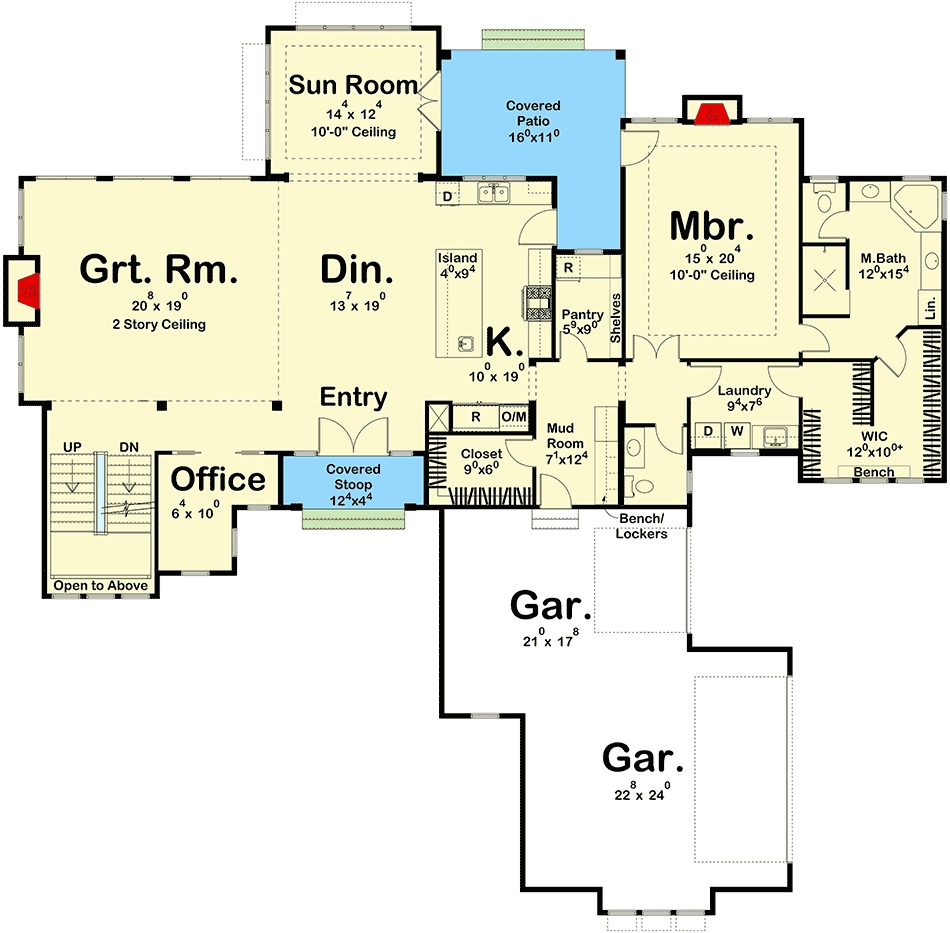

4-Bed Transitional House Plan with 2-Story Great Room - 62369DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

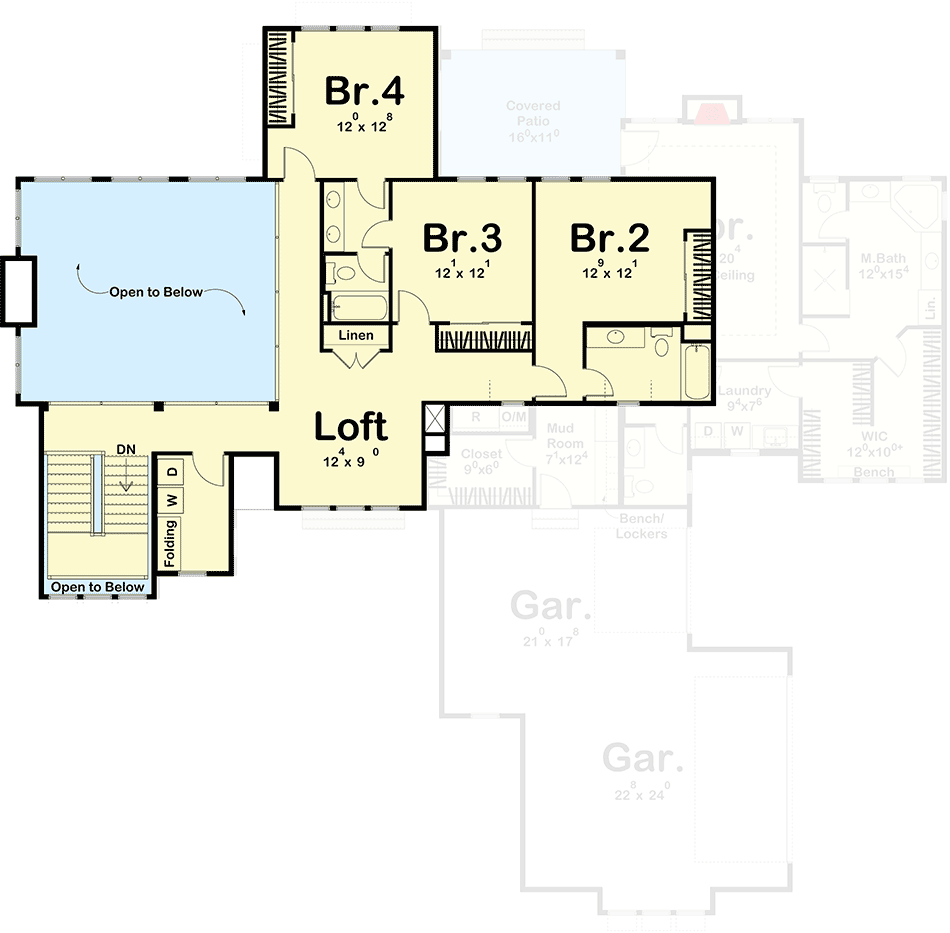

4-Bed Transitional House Plan with 2-Story Great Room - 62369DJ floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

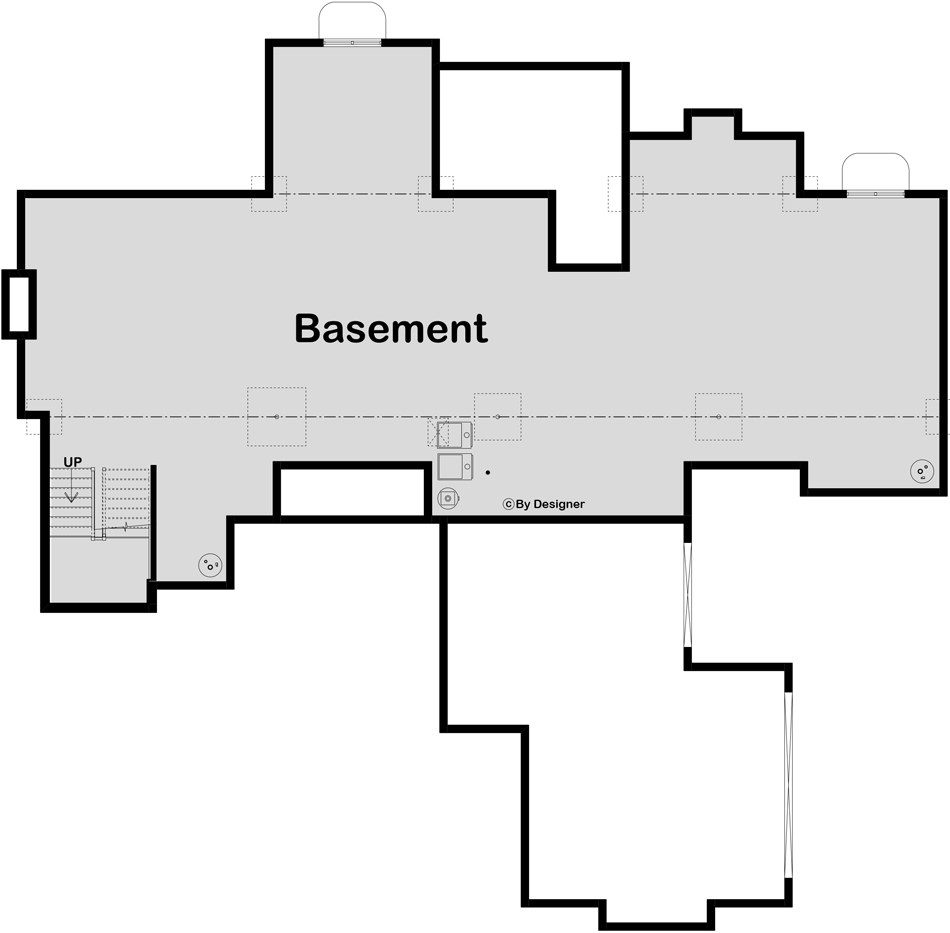

4-Bed Transitional House Plan with 2-Story Great Room - 62369DJ floor plan - Lower Level

4-Bed Transitional House Plan with 2-Story Great Room

  • 3,696

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,696 sq. ft.
  • 1st Floor: 2,477 sq. ft.
  • 2nd Floor: 1,219 sq. ft.

Dimensions

  • Width: 82' 0"
  • Depth: 77' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 812 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
