Plan 340103STR

4-Bed Transitional House Plan with 3-Car Garage and Cabana

Heated S.F.

4,215

Beds

4

Baths

4

Stories

1

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

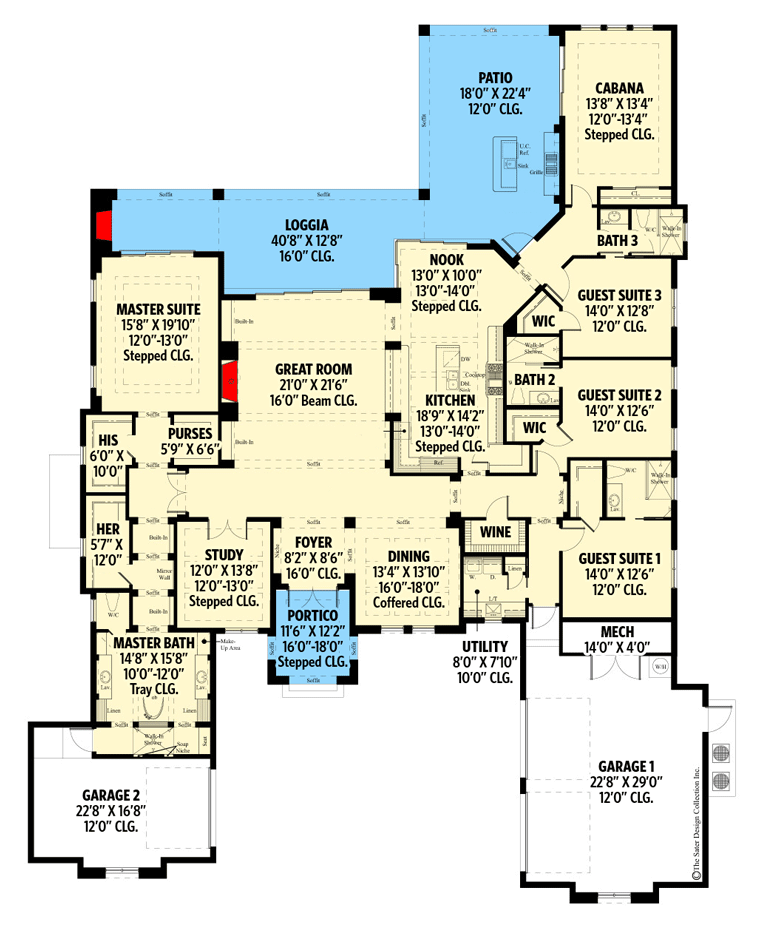

4-Bed Transitional House Plan with 3-Car Garage and Cabana - 340103STR floor plan - Main Level

Plan Details

This one-story modern transitional home plan is largely influenced by house plan 340040STR. Its contemporary lines are highlighted by standing seam metal hipped rooflines, broad overhangs, bracketed details and stone quoin wall accents.
The portico features an impressive 16’ to 18’-high ceiling, as does the foyer beyond. This all leads to the great room with its 16’-high beamed ceiling. The great room contains a linear fireplace/TV wall and flanking built-ins. Pocketing glass doors overlook the loggia beyond.
The kitchen and nook look out onto the great room. The central island makes for easy entertaining and buffet settings and features a pass-thru and a walk in pantry as well. The nook has a corner-less sliding glass wall system. The formal dining room to the right and front is open to the great room and features a walk in wine cellar immediately to the left.
Off of the nook is a gallery leading to the home’s cabana, guest bath and the first of three guest suites. The cabana has views to the rear of home and the patio area.
To the left of the home is the study/home office which looks out onto the great room. Beyond that is the master foyer with double doors. The master suite features sliding glass doors that lead out onto the loggia. The master bath is entered through a beamed gallery, past two walk-in closets as well as a purse/shoe closet. The master bath has a free standing island whirlpool tub, dual vanities, private water closet, large walk in shower, linen and private access to a 1-car garage.
To the right of the home, accessed by a gallery leading to the main garage, are the other two guest suites with private baths and walk in closets, as well as a spacious utility room. The main two car garage has a large walk in storage closet for those larger items.
Related Plan: Get an alternate version with house plan 340040STR.
BUILDING RESTRICTION: This plan may not be built in Lee County, Florida.

What's Included

Cover Sheet, Index
Wall Sections & Notes
Typical Detail & Notes
Foundation Plan
Floor Plans
Reflected Ceiling Plan showing ceiling heights and treatments
Floor Framing Plan (basement, crawlspace or 2-story homes only)
Birds Eye Roof Plan
All Elevations
Building Section & Details
Interior Elevations (Details may vary based on the design)
Suggested Electrical Layout

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

4,215 sq. ft.

1st Floor:

4,215 sq. ft.

Covered Patio:

934 sq. ft.

Entry:

128 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

4

Foundation Type

Standard Foundations:

Stem Wall

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

Block / CMU (main floor)

Dimensions

Width:

87' 0"

Depth:

112' 4"

Max Ridge Height:

29' 7"

Garage

Type:

Attached

Area:

1194 sq. ft.

Count:

3 Cars

Entry Location:

Courtyard

Roof Details

Primary Pitch:

6 on 12

Architectural Style

Coastal Contemporary

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen
