Plan 56530SM 4-Bed Transitional Ranch House Plan with a Balanced Exterior and Expansive Outdoor Living

3,229 4 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed Transitional Ranch House Plan with a Balanced Exterior and Expansive Outdoor Living

Plan 56530SM

  • 3,229

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

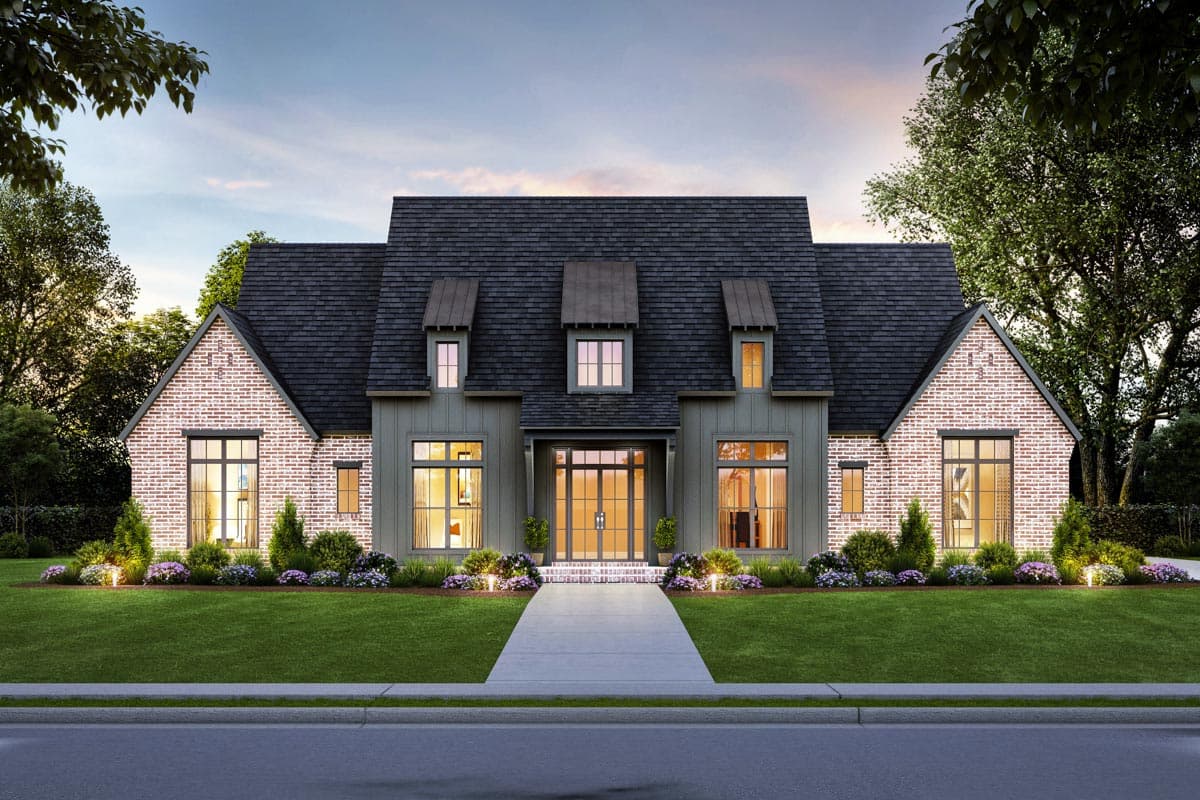

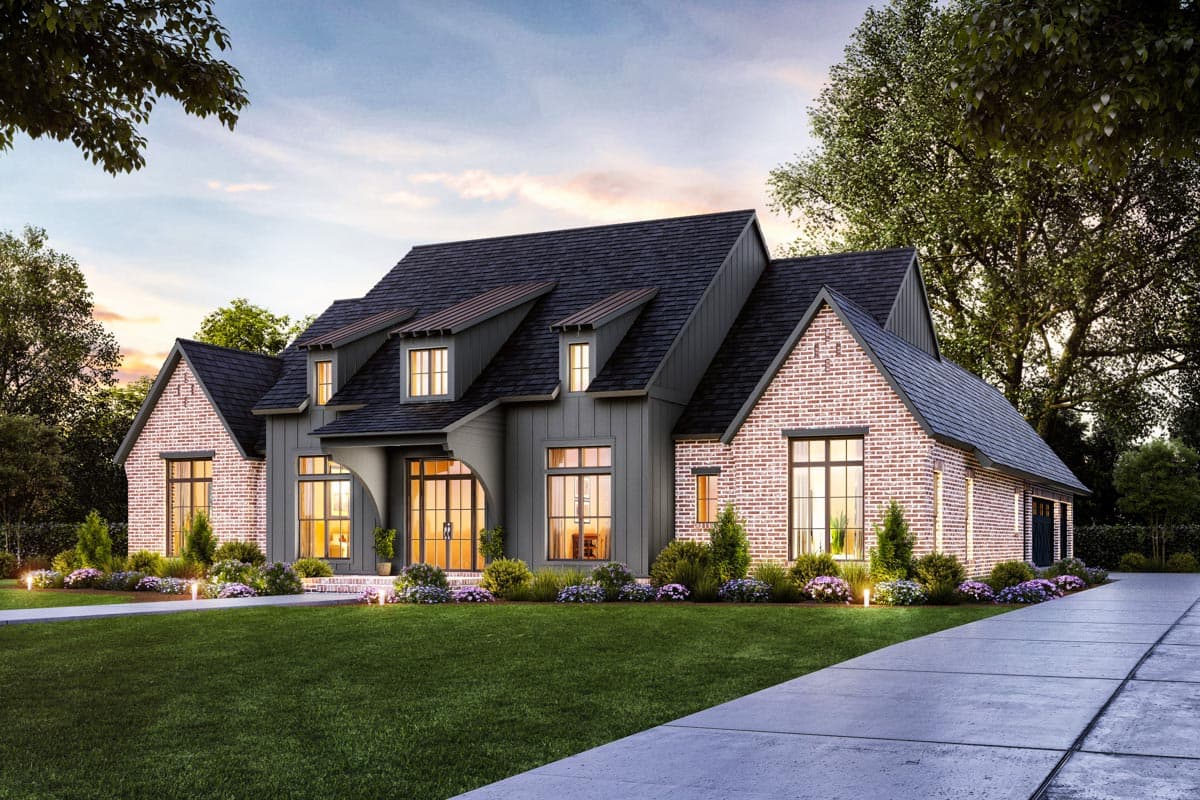

  • This 3,229 square foot Transitional Ranch Home Plan delivers a soothing and balanced exterior, as well as a well-appointed outdoor kitchen on vaulted back porch.
  • The vaulted great room hosts a fireplace and oversized sliders that lead to the porch, while a wood beam delineates between the great room and eat-in kitchen.
  • Four seats offer a spot for casual meals at the kitchen island, and cabinet doors in conceal the sizable walk-in pantry.
  • Barn doors off the foyer lead to a home office with a built-in desk, and the deluxe master bedroom boasts a pass-thru closet that connects to the laundry room.
  • Three bedrooms are clustered towards the left side of the home, and the rear side-entry garage features a third bay for storage.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

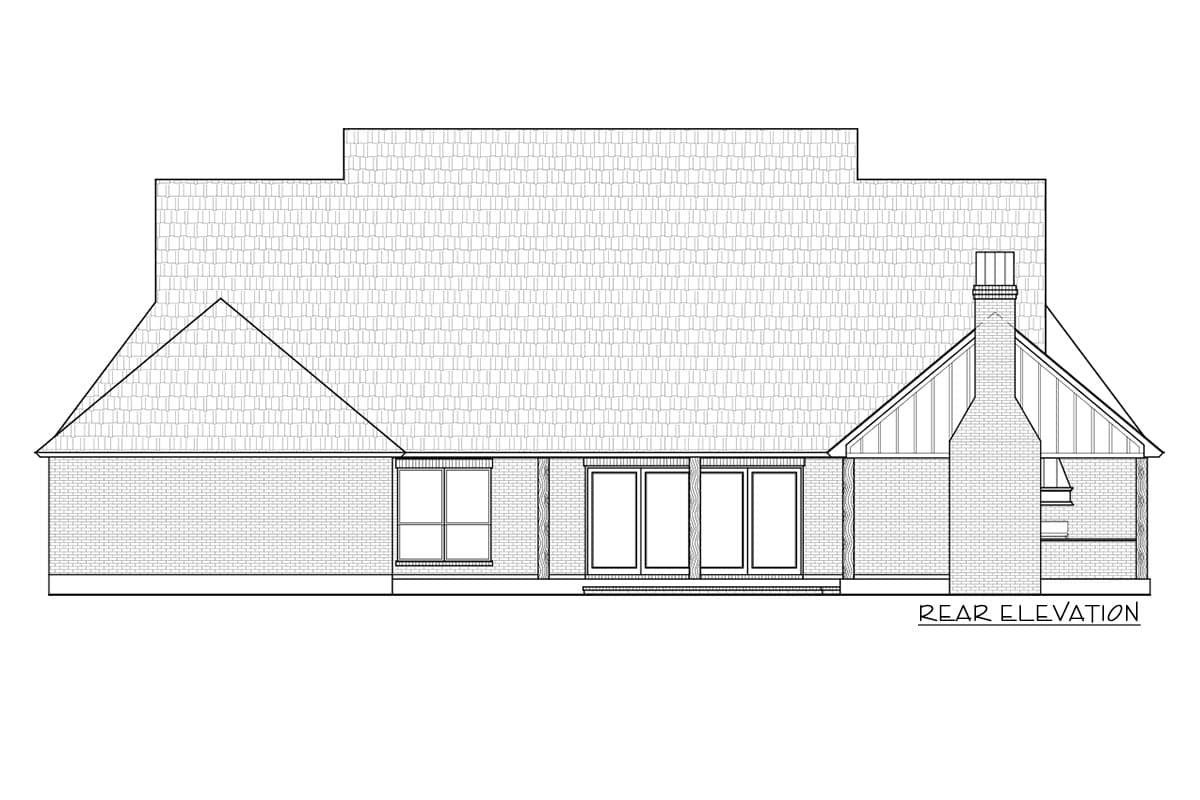

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

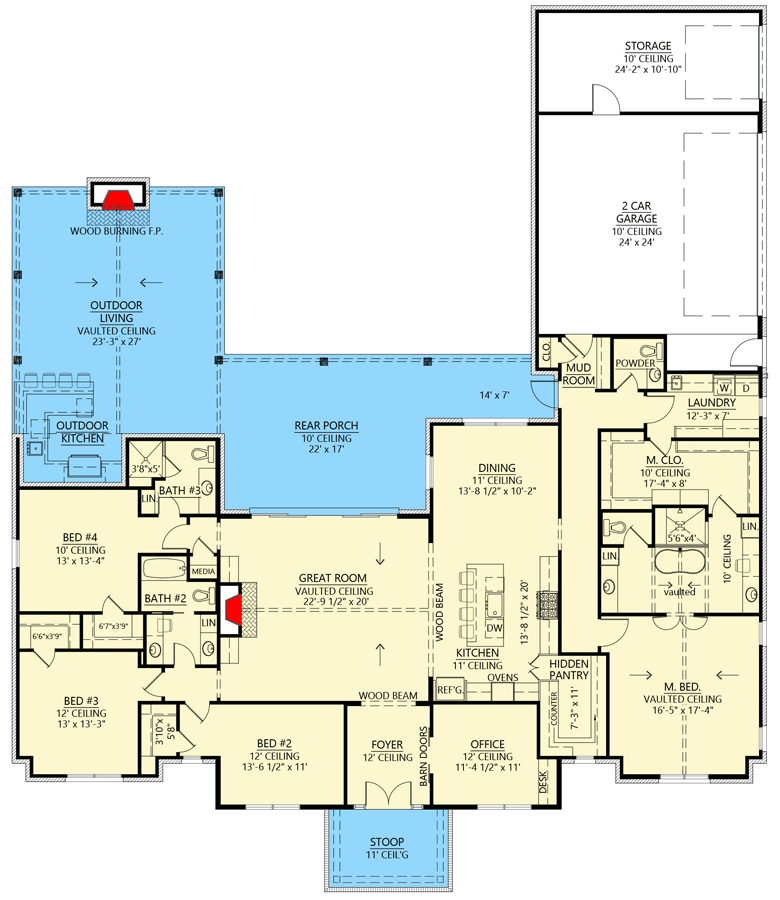

4-Bed Transitional Ranch House Plan with a Balanced Exterior and Expansive Outdoor Living - 56530SM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,229 sq. ft.
  • 1st Floor: 3,229 sq. ft.
  • Porch, Combined: 1,292 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 82' 7"
  • Depth: 97' 0"
  • Max ridge height: 33' 5"

Garage

  • Type: Attached
  • Area: 662 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12

Architectural Style

Special features

4-Bed Transitional Ranch House Plan with a Balanced Exterior and Expansive Outdoor Living

  • 3,229

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets $1,445
  • 5 Sets + PDF $1,645
  • PDF - Unlimited Build $2,045
  • CAD Unlimited + PDF $2,845
  • View all purchase option online

About This Plan

  • This 3,229 square foot Transitional Ranch Home Plan delivers a soothing and balanced exterior, as well as a well-appointed outdoor kitchen on vaulted back porch.
  • The vaulted great room hosts a fireplace and oversized sliders that lead to the porch, while a wood beam delineates between the great room and eat-in kitchen.
  • Four seats offer a spot for casual meals at the kitchen island, and cabinet doors in conceal the sizable walk-in pantry.
  • Barn doors off the foyer lead to a home office with a built-in desk, and the deluxe master bedroom boasts a pass-thru closet that connects to the laundry room.
  • Three bedrooms are clustered towards the left side of the home, and the rear side-entry garage features a third bay for storage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,229 sq. ft.
  • 1st Floor: 3,229 sq. ft.
  • Porch, Combined: 1,292 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 82' 7"
  • Depth: 97' 0"
  • Max ridge height: 33' 5"

Garage

  • Type: Attached
  • Area: 662 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
Plan 56530SM
View this and more for this plan by visiting www.architechtecturaldesigns.com/56530SM
|
