Plan 22557DR

4-Bed Vacation House Plan with Main-Level Master Bedroom - 2255 Sq Ft

Name: Plan 22557DR: 4-Bed Vacation House Plan with Main-Level Master Bedroom - 2255 Sq Ft
Brand: Architectural Designs
SKU: 22557DR
Price: 1257.15 USD
Availability: InStock

Heated S.F.

2,255

Beds

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

Ground Level

Plan Details

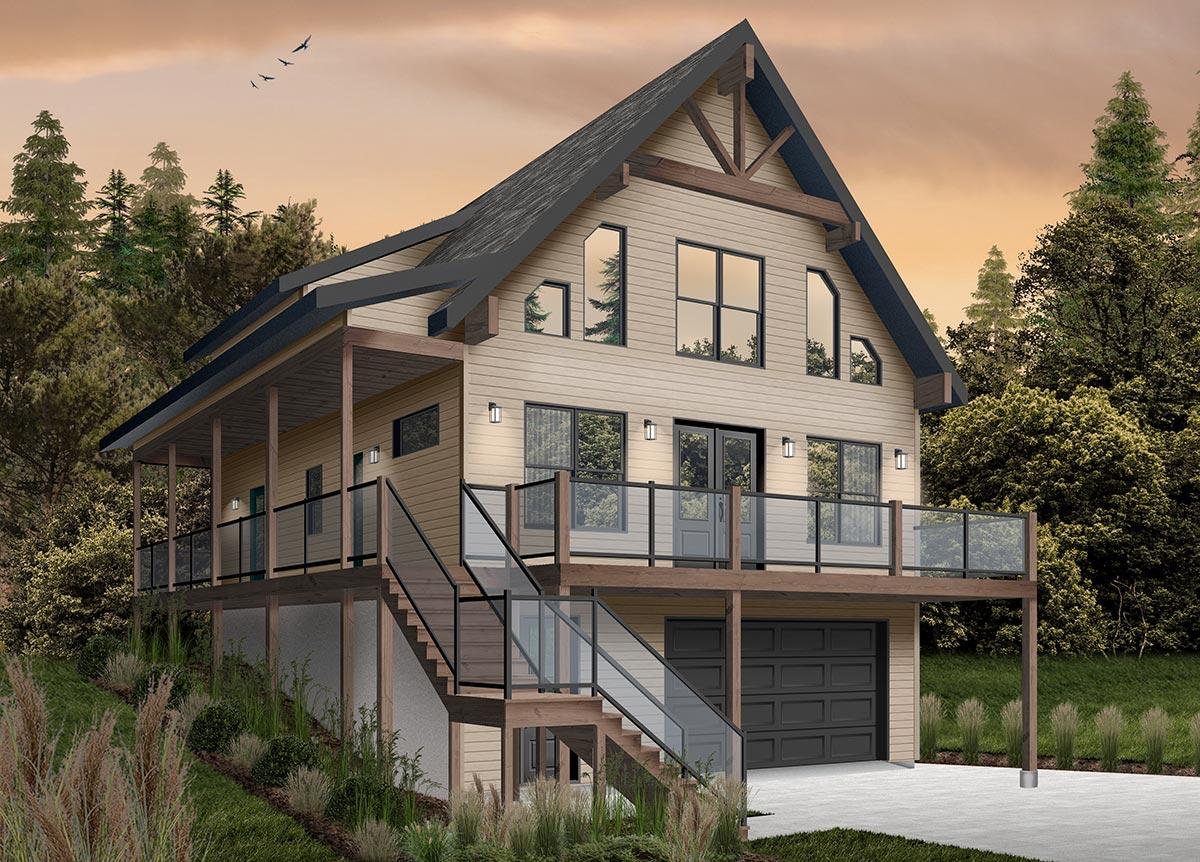

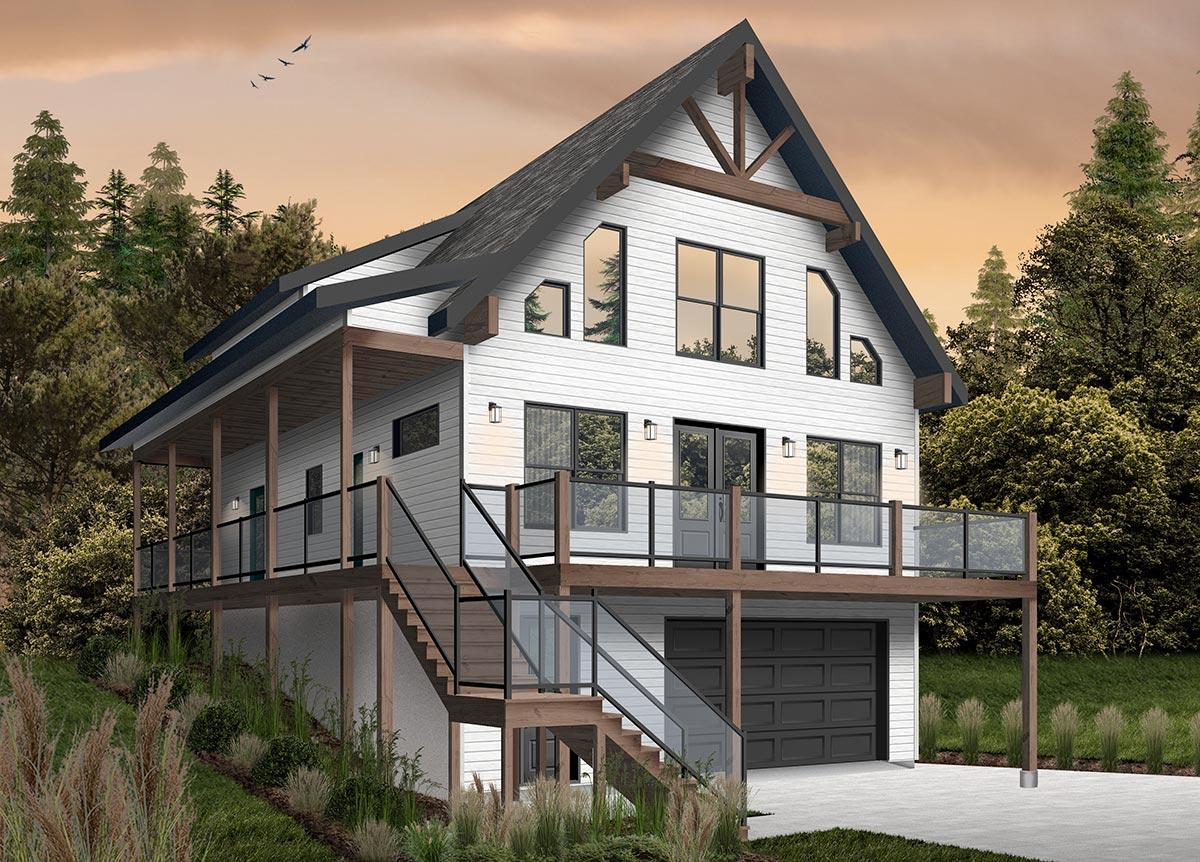

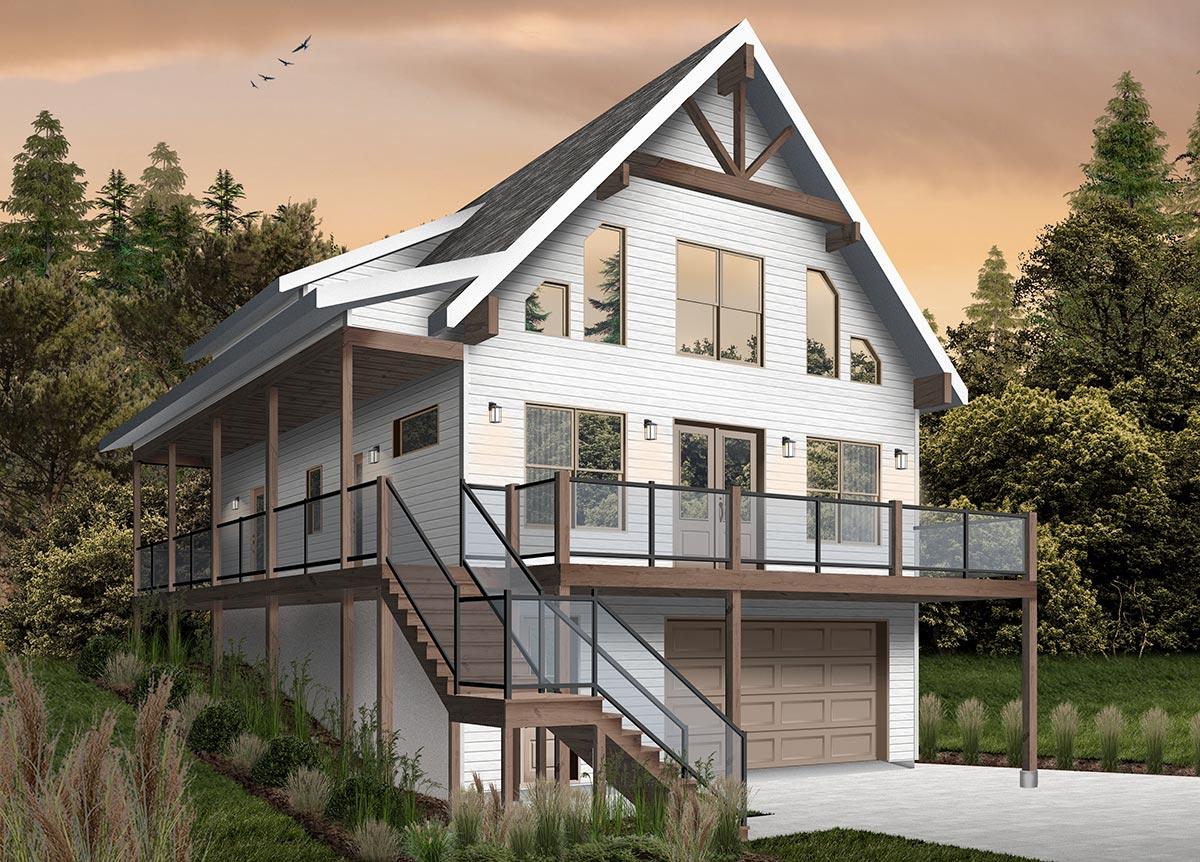

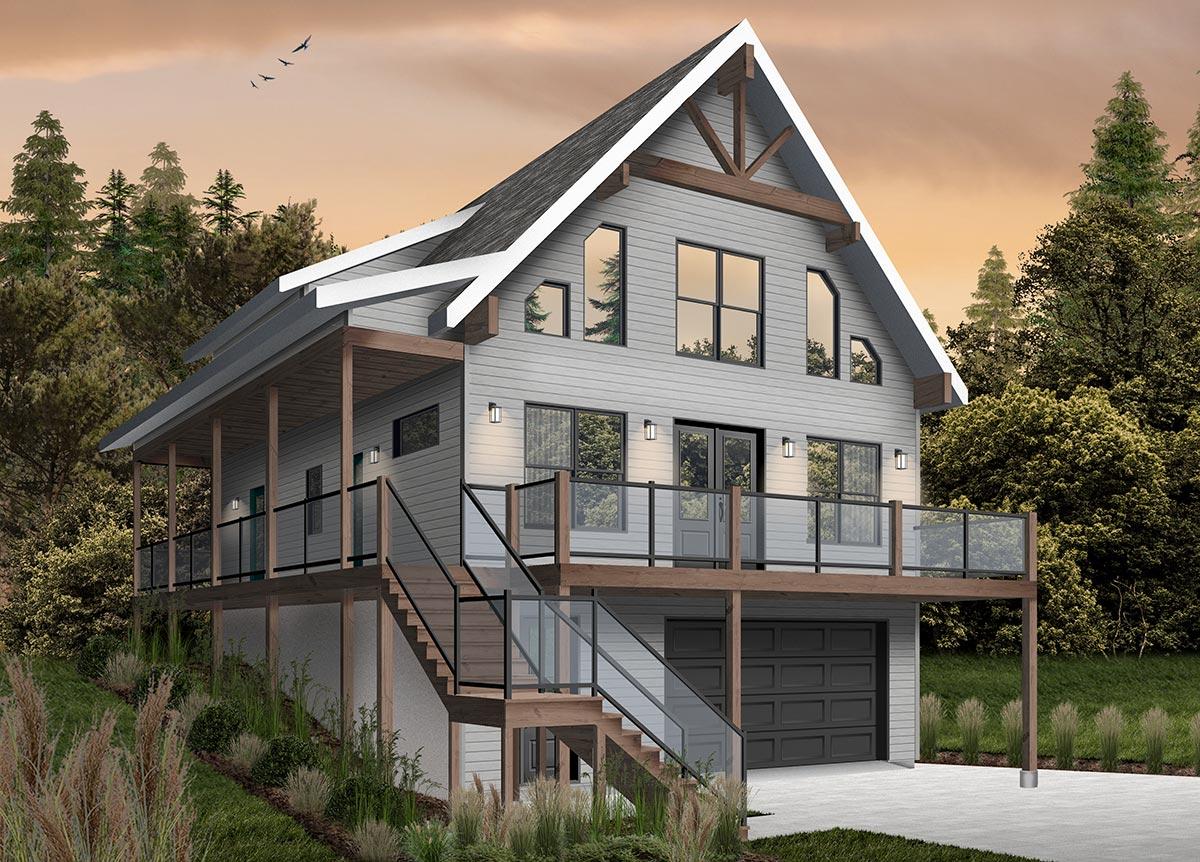

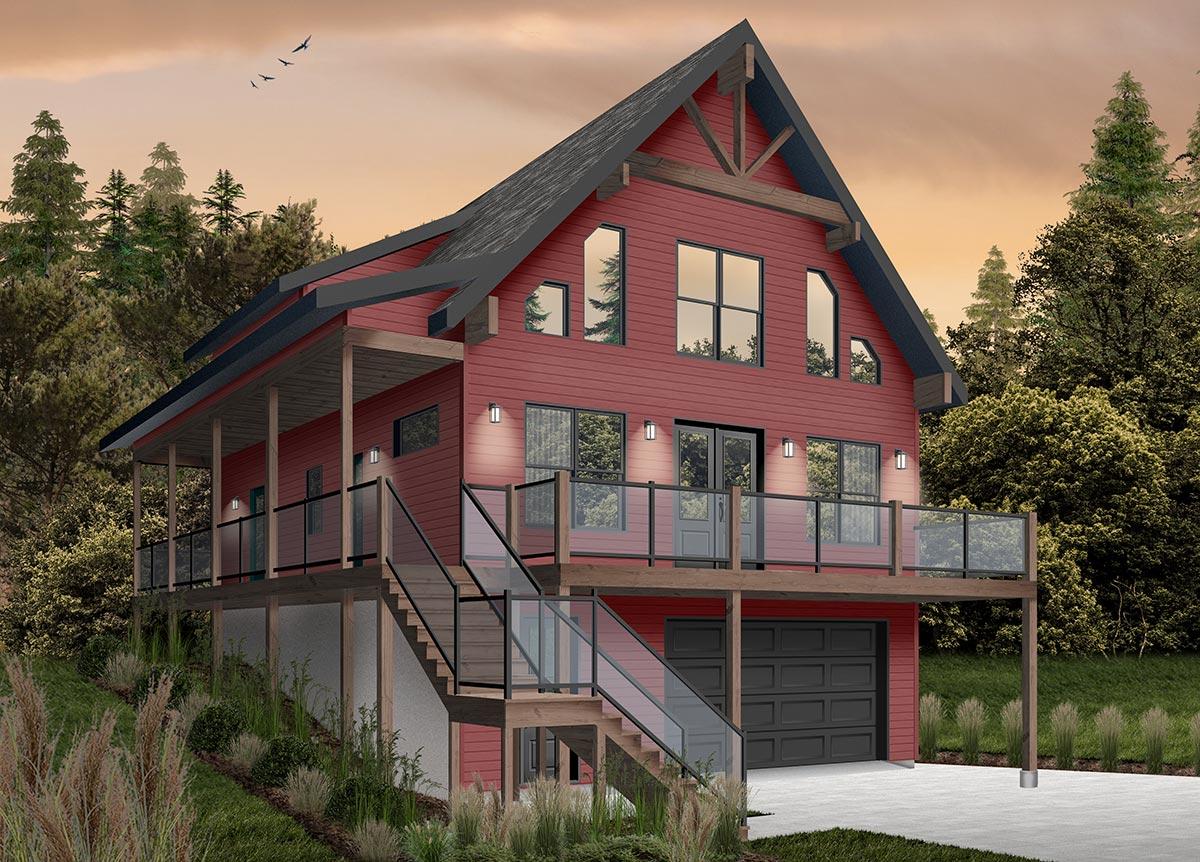

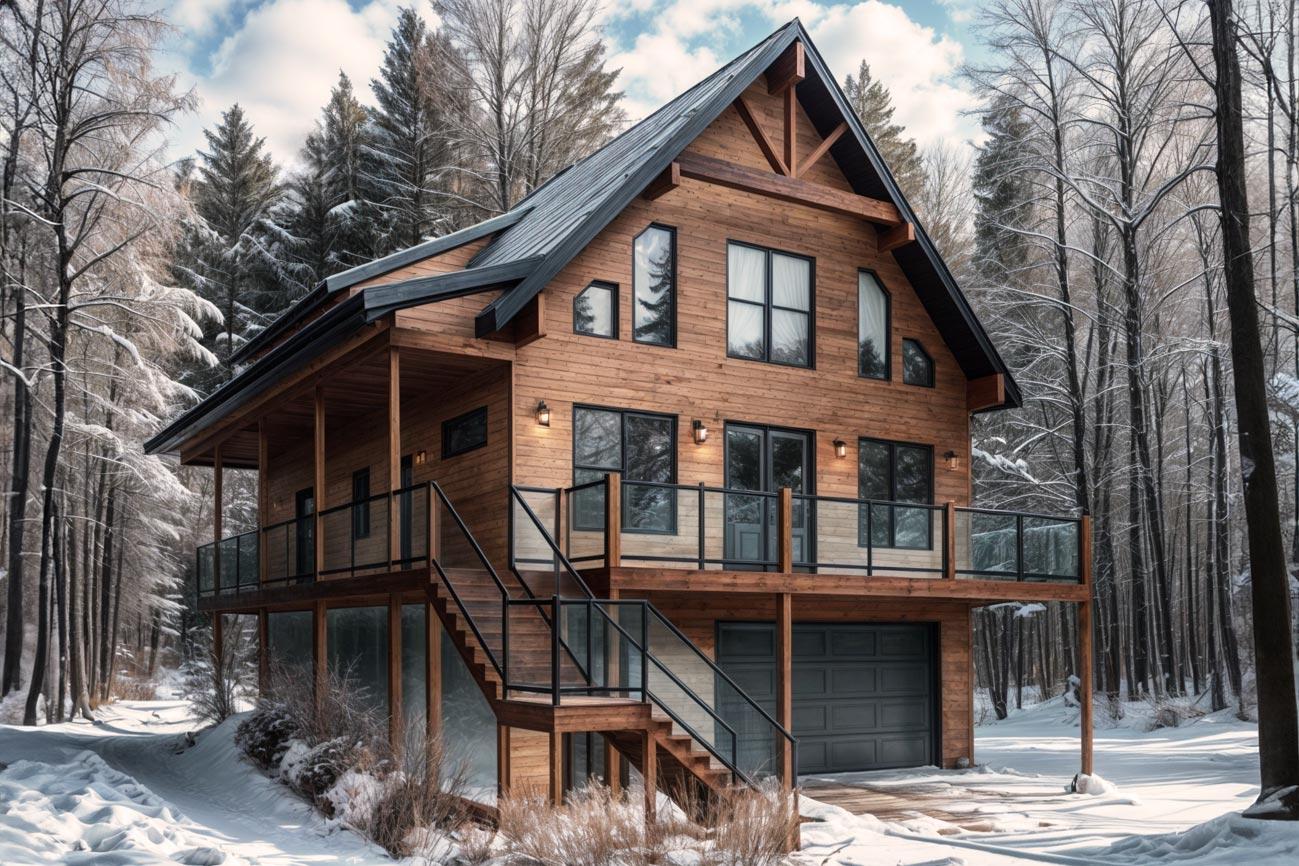

The gable roof, on this vacation house plan, combines with the two-story ceiling in the shared living space to take full advantage of the surrounding views.
A shed-style, covered porch provides some sheltered outdoor space, while a front terrace welcomes guests through french doors into the heart of the home. A cozy, wood stove adds to the ambience inside.

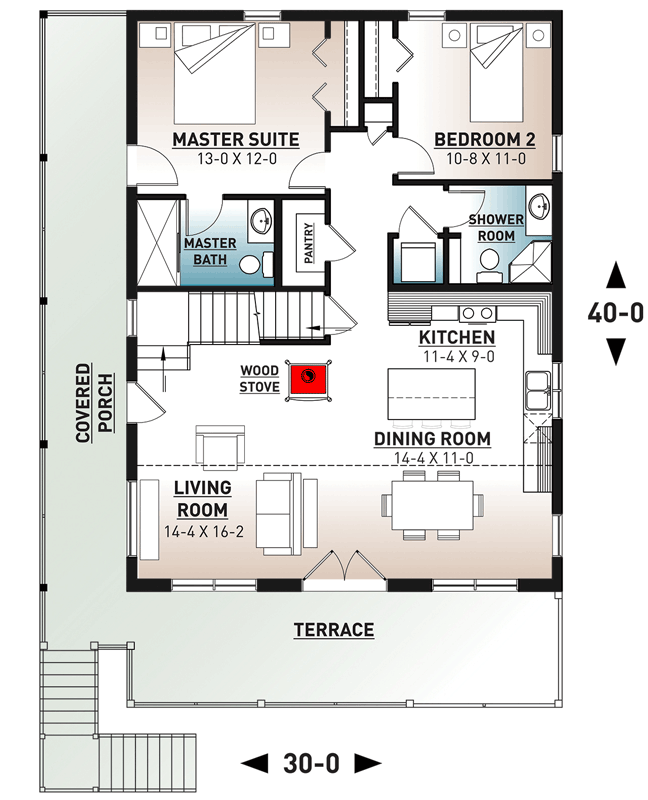

The master suite is located on the main level, and includes a full bath and access to the side, covered porch. A second bedroom resides across the hall, next to a shower bath and laundry closet.

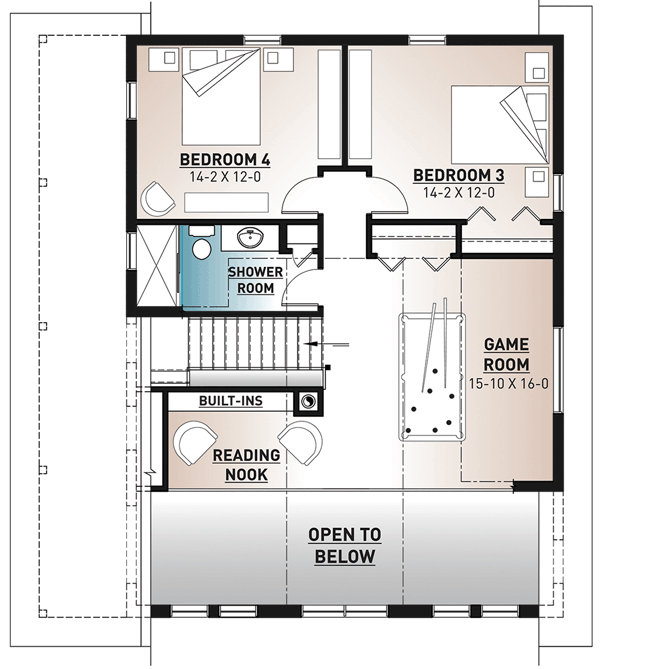

Bedrooms 3 and 4 reside on the second level, along with a game room and reading nook that overlook the living space below.

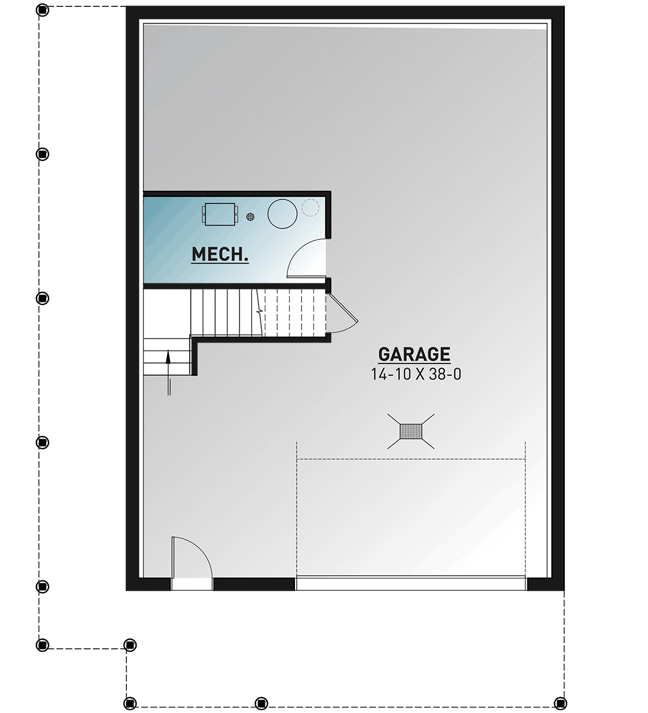

The ground level is where you'll find the garage and mechanical room, with plenty of storage space.

What's Included

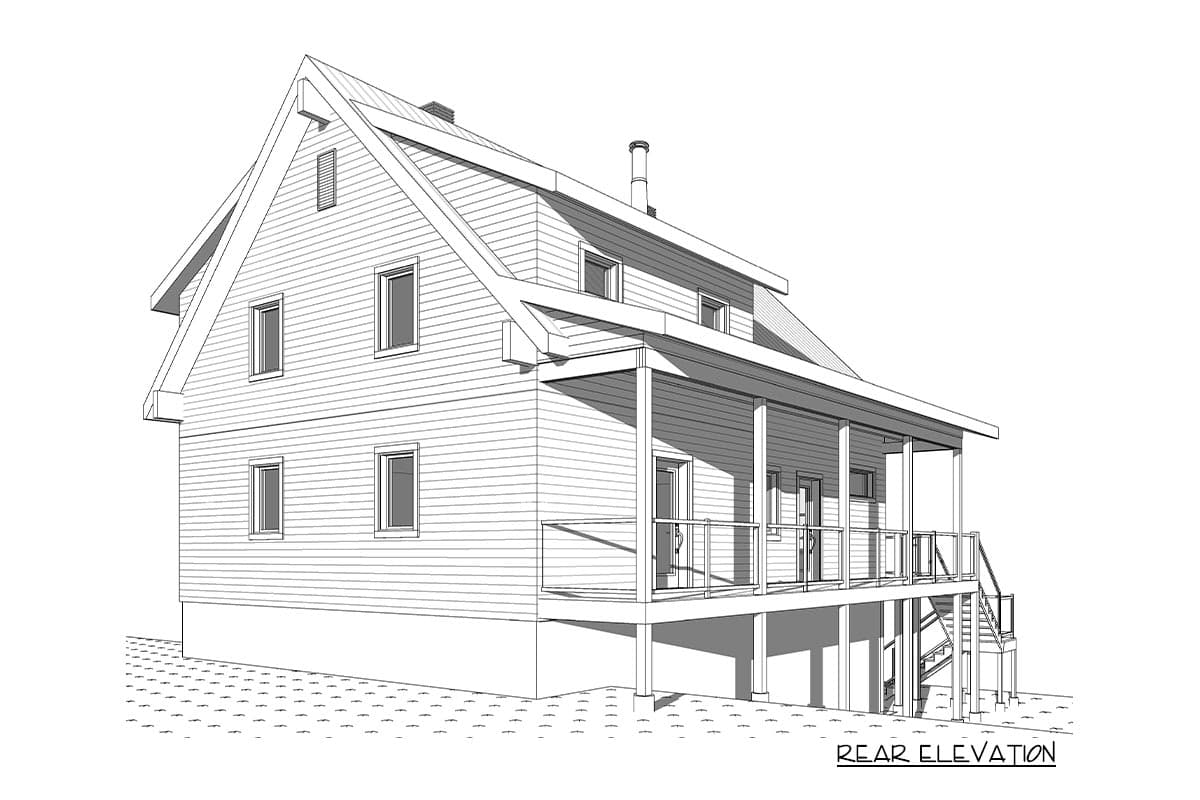

Elevations
Foundation Plan
Main Floor Plan
Upper Floor Plans (if applicable)
Roof Plan
Building Section
Construction Details
Typical Wall Section

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
