4-Bedroom Contemporary House Plan with Attached Apartment and Home Office Outbuilding - 5505 Sq Ft

Heated S.F.
5,505
Beds
4
Baths
5.5
Stories
1
Cars
3

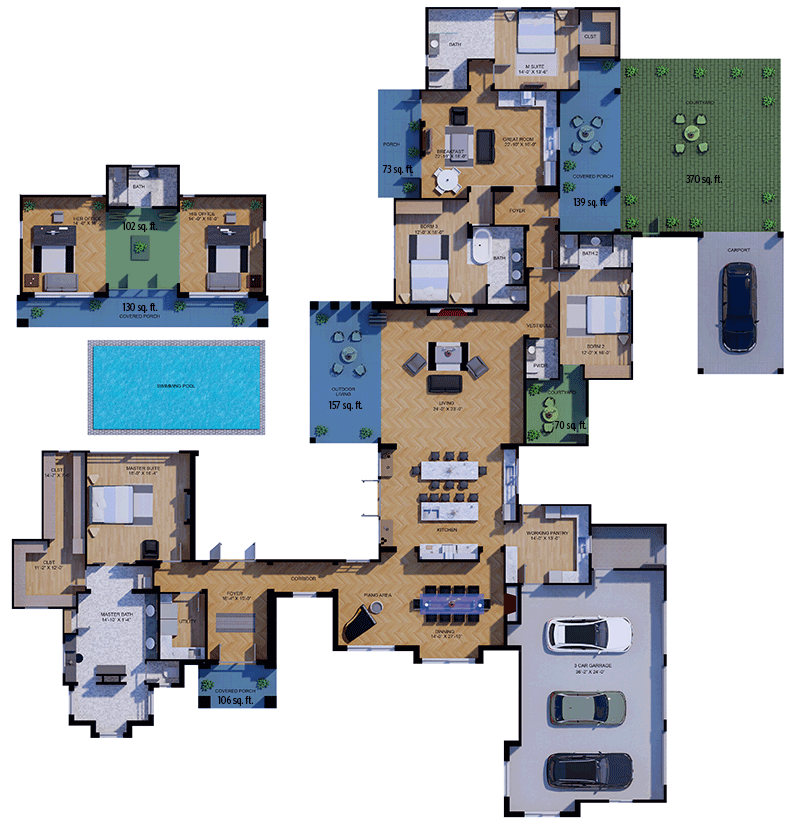

Floor Plan

Plan 430141LY

Main Level
Main Level

Plan 430141LY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 430141LY: 4-Bedroom Contemporary House Plan with Attached Apartment and Home Office Outbuilding - 5505 Sq Ft - Floor Plan - Main Level - Contemporary

Plan Details

  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

5,505 sq. ft.

1st Floor

3,624 sq. ft.

Porch, Front

106 sq. ft.

Covered Patio

278 sq. ft.

Apartment

1,280 sq. ft.

Porch, Rear

277 sq. ft.

Detached Offices

601 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

117' 0"

Depth

185' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached, Carport

Area

1016 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Dining Room

14' 0''

Great Room

18' 0''

Kitchen

12' 0''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Courtyard

Flex Room

Home Office

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Kitchen Islands

Two Master Suites

Walk-in Pantry

Wet Bar

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area
