Plan 20112GA

4 Bedroom Craftsman Gem

Heated S.F.
3,021
Beds
3 - 4
Baths
4
Stories
2
Cars
3

Floor Plan

Plan 20112GA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 20112GA

M-F 9am-5pm EST |

1-203-761-8500

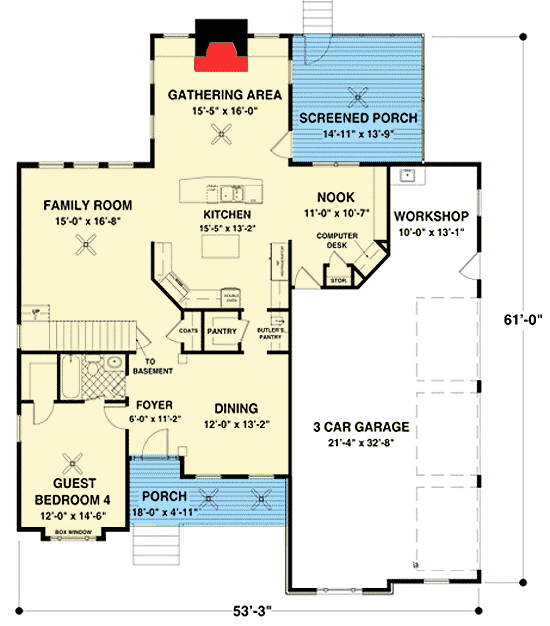

Main Level

Plan 20112GA: 4 Bedroom Craftsman Gem - Floor Plan - Main Level - Craftsman, Northwest

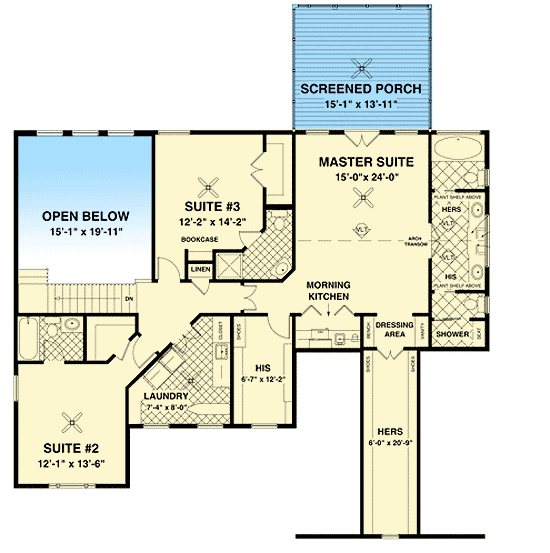

2nd Floor

Plan 20112GA: 4 Bedroom Craftsman Gem - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • A spacious front porch bids you welcome to this 4 bedroom craftsman gem that offers a remarkable collection of features.
  • The foyer provides direct access to an exquisite dining area and a sizable guest suite.
  • The grand two-story family room is open to the gourmet kitchen/breakfast area as well as the spacious gathering room.
  • With a walk-in pantry plus a butler's pantry and two islands, this kitchen is well-designed to handle every day family life plus entertaining.
  • The nearby screened porch lets you dine or relax outdoors in comfort.
  • Upstairs, an fabulous master suite gives you a morning kitchen, dressing area and a private screened porch.
  • The his and hers closets are huge but "hers" is almost double the size.
  • A second floor laundry room is an added plus.

What's Included

  • Digital exterior rendering cover page
  • Exterior elevation page
  • Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  • Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  • Cross sections and interior elevation page
  • Roof framing plan with 3-D roof framing schematic
  • IRC code specifications and methodologies
  • General construction details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,021 sq. ft.

1st Floor

1,517 sq. ft.

2nd Floor

1,504 sq. ft.

Workshop

131 sq. ft.

Screened Porch

415 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 3"

Depth

61' 0"

Max Ridge Height

30' 10"

Garage

Type

Attached

Area

865 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Master Suite - Upstairs

Two Kitchen Islands

Two Story Great Room

Walk-in Pantry
