4 Bedroom House Plan with Steeply Pitched Gables and an Upstairs Bonus Room - 3651 Sq Ft

Name: Plan 710388BTZ: 4 Bedroom House Plan with Steeply Pitched Gables and an Upstairs Bonus Room - 3651 Sq Ft
Brand: Architectural Designs
SKU: 710388BTZ
Price: 3145.0 USD
Availability: InStock

Heated S.F.

3,651

Beds

4 - 5

Baths

Stories

Cars

Floor Plan

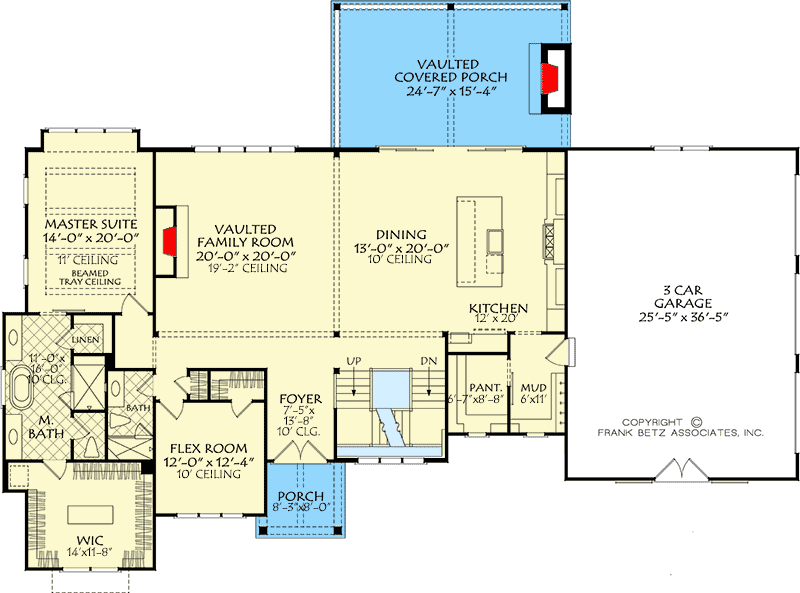

Main Level

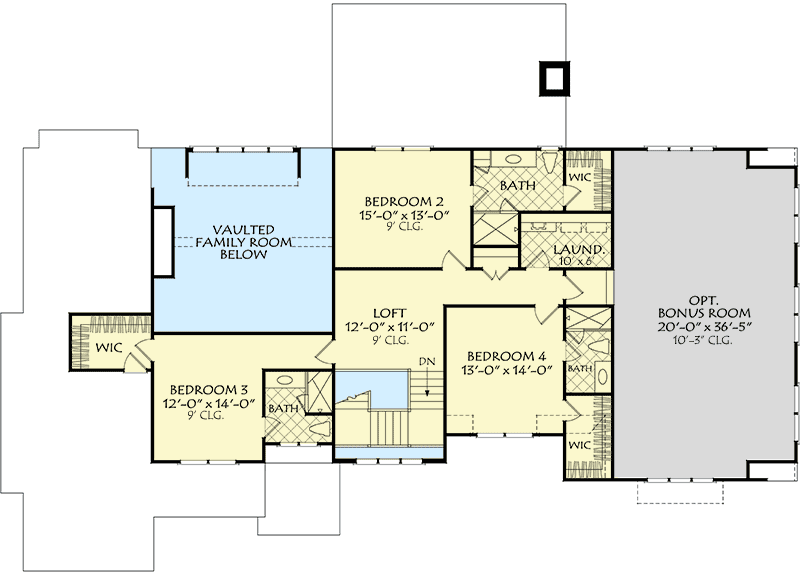

2nd Floor

Plan Details

Stately in stature with a regal presence, this 4 bedroom house plan has large window groupings board and batten siding and steeply pitched gables
The main level clearly defines "open concept" with bright, airy spaces that interact effortlessly. The kitchen, dining and living room is great for family gatherings and entertaining friends.
The mudroom and pantry are family sized and provide convenience and organization.
The master suite is fully appointed with a spa-like bath and fantastic walk-in-closet. The flex room has many uses such as a home office or nursery with close proximity to the master suite.
The covered rear porch with a warming fireplace is sure to be a favorite place to dine or just enjoy the outdoors.
The upper level provides a growing, active family with three additional bedrooms and baths along with a common area loft. The optional bonus room is enormous and can be utilized in an assortment of ways.

What's Included

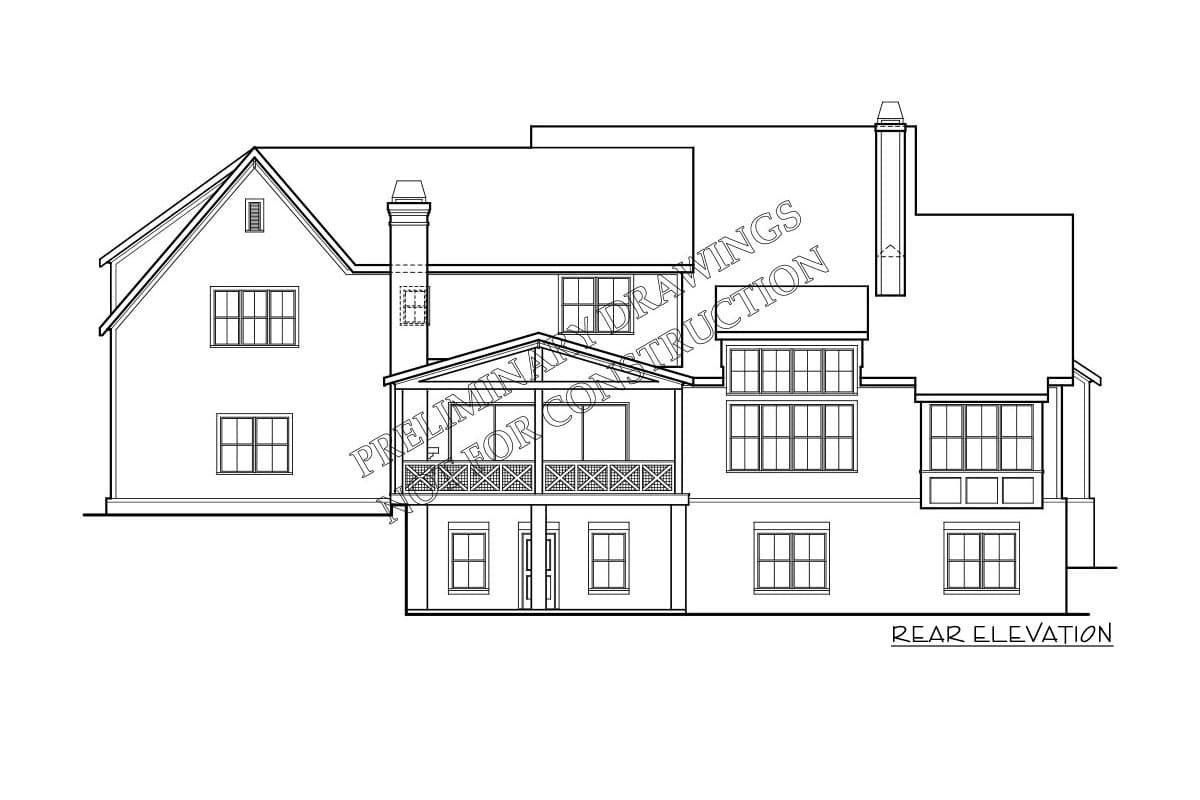

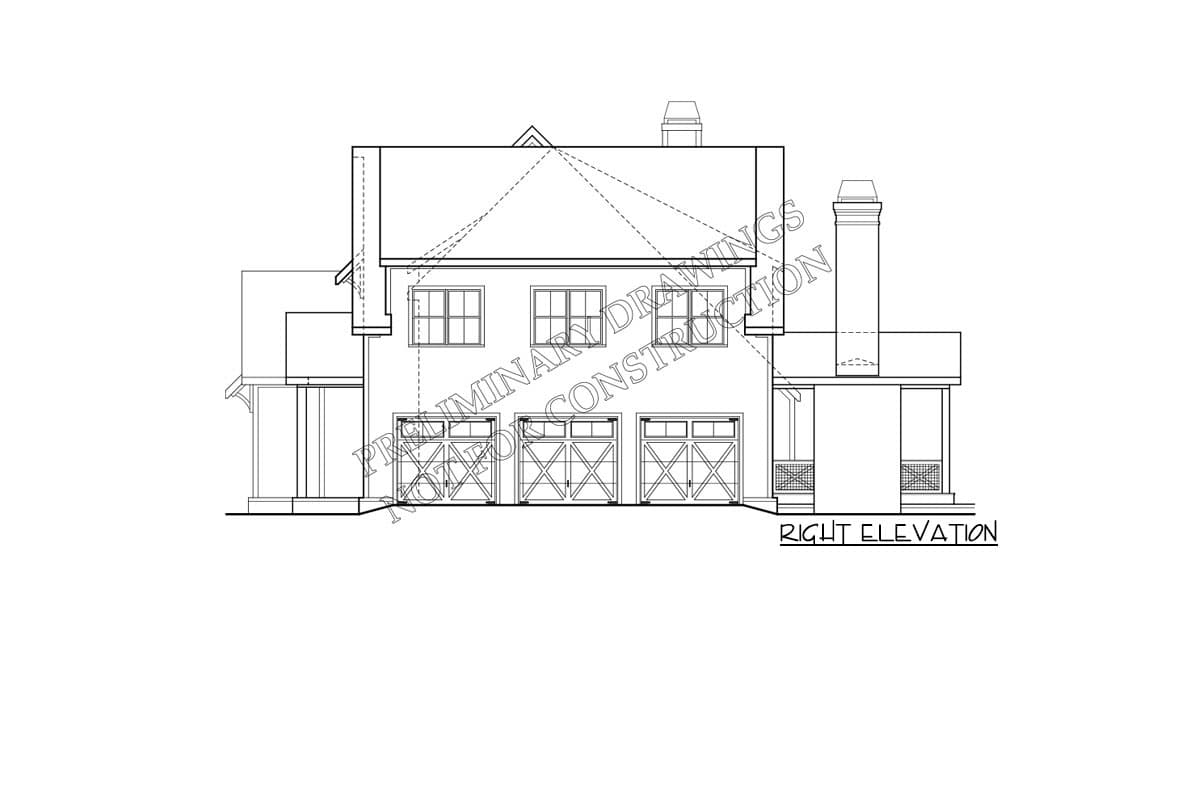

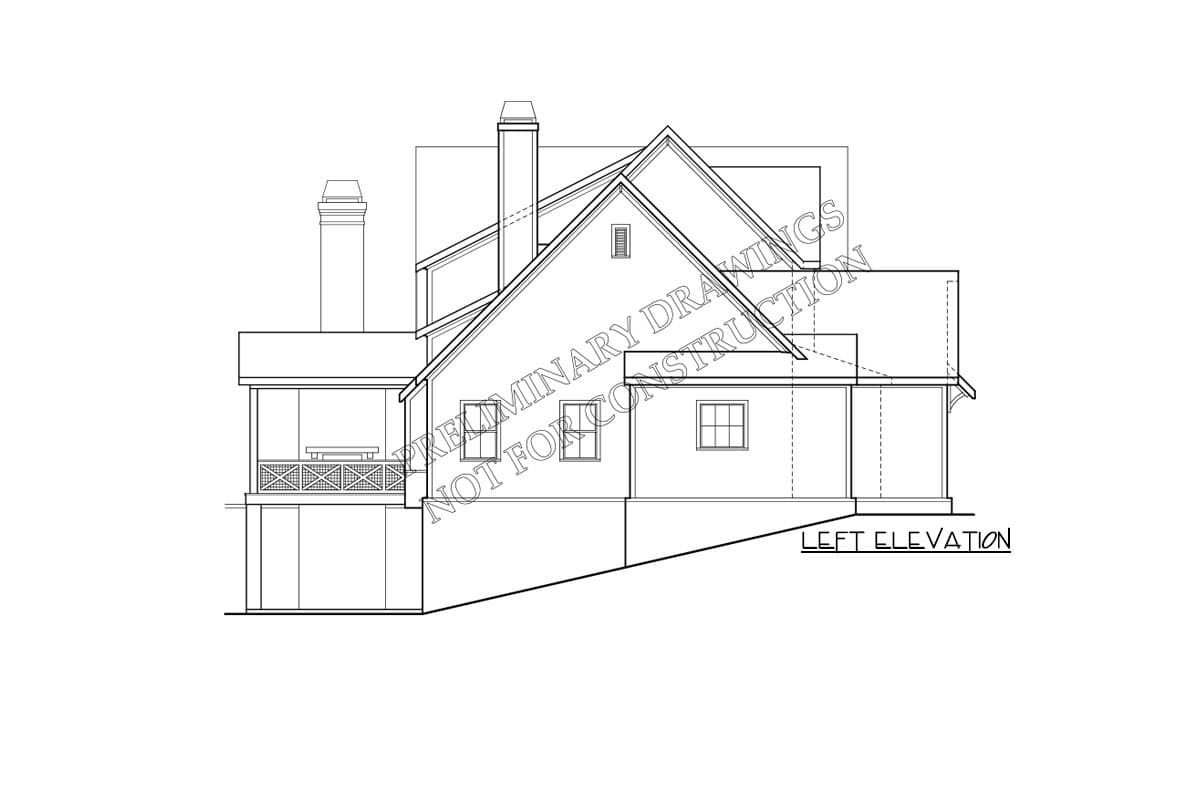

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
