4-Bedroom Modern Mountain House Plan with Optional Lower Level - 3,159 Sq Ft
Heated S.F.
3,159
Beds
4-5
Baths
3.5 - 4.5
Stories
2
Cars
3
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan
4-Bedroom Modern Mountain House Plan with Optional Lower Level - 3,159 Sq Ft - 520006RKY floor plan - Main Level
2nd Floor
Reverse Floor Plan
4-Bedroom Modern Mountain House Plan with Optional Lower Level - 3,159 Sq Ft - 520006RKY floor plan - 2nd Floor
Optionally Finished Lower Level
Reverse Floor Plan

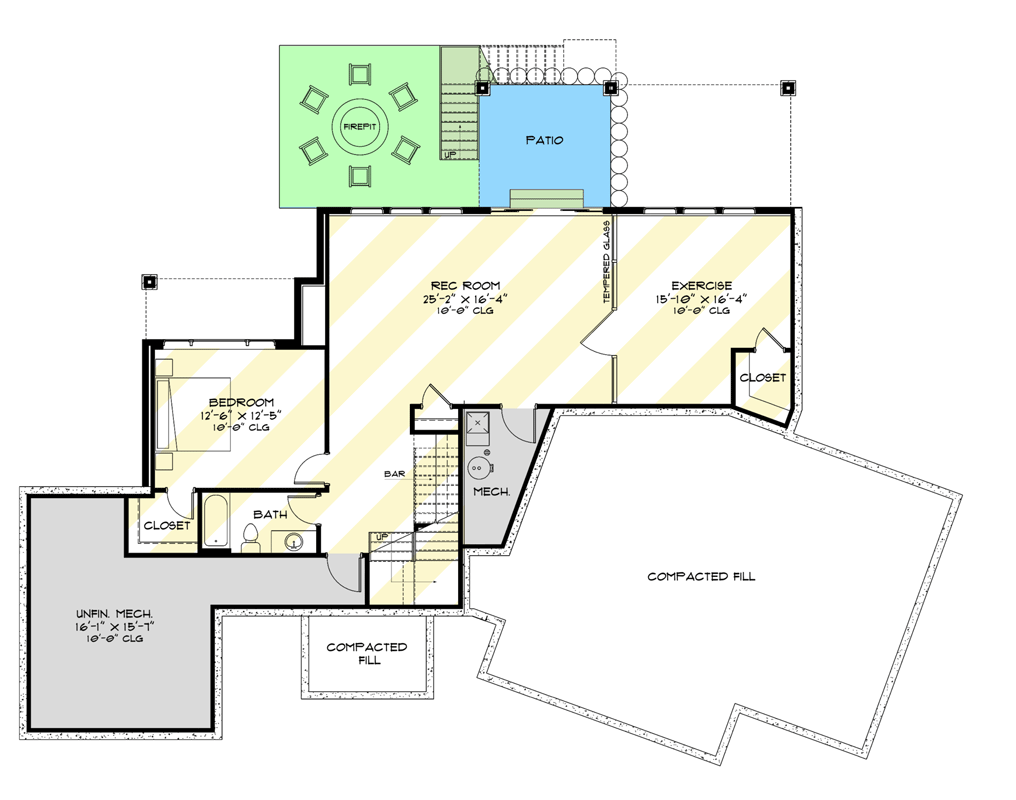

4-Bedroom Modern Mountain House Plan with Optional Lower Level - 3,159 Sq Ft - 520006RKY floor plan - Optionally Finished Lower Level
Plan Details
  • This modern mountain house plan gives you a 4 beds, 3.5 baths and 3,159 square feet of heated living area. An angled 3-car garage has 986 square feet of parking between the offset double and single-bays. A large covered porch on the rear of the home provides shaded fresh-air living space to enjoy.
  • The optionally finished lower level offers 1,305 square feet of additional living space if finished. The included floor plan layout for the walkout basement includes space for a large rec room, an oversized home-gym or office with walk-in closet, a 5th bedroom, and a full bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet
  • Specifications
  • Foundation Layout Plan
  • Floor Plans
  • Sections
  • Elevations
  • Roof Ridge Plan
  • Details sheet(s)
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bedroom Modern Mountain House Plan with Optional Lower Level - 3,159 Sq Ft

  • 3,159

    Heated s.f.

  • 4-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,159 sq. ft.
  • 1st Floor: 1,824 sq. ft.
  • 2nd Floor: 1,335 sq. ft.
  • Covered Deck: 323 sq. ft.

Dimensions

  • Width: 84' 0"
  • Depth: 50' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 986 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard, Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 1" Second Floor / 9' 1"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 7 on 12
