Plan 340142STR

4-Bedroom Southern Traditional Ranch House Plan with Two Kitchen Islands

Heated S.F.
2,823
Beds
4
Baths
3
Stories
1
Cars
2

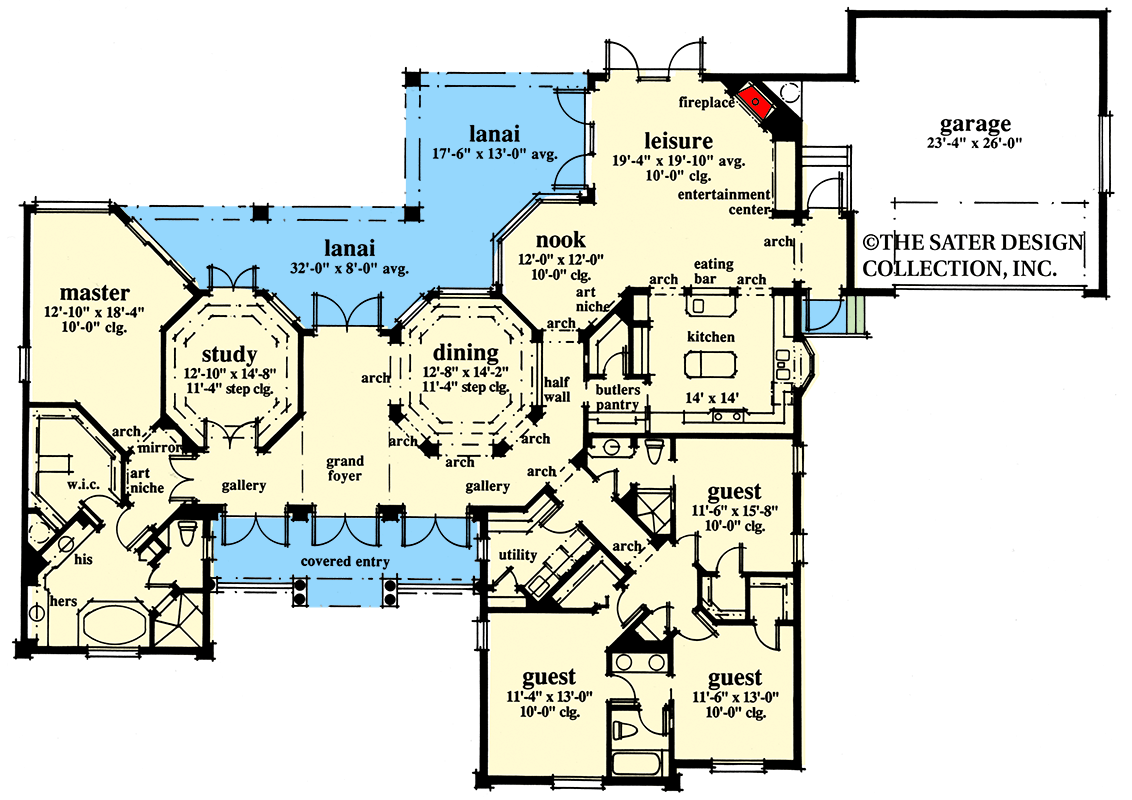

Floor Plan

Plan 340142STR

Main Level
Main Level

Plan 340142STR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 340142STR: 4-Bedroom Southern Traditional Ranch House Plan with Two Kitchen Islands - Floor Plan - Main Level - Ranch, Southern, Southern Traditional, Traditional

Plan Details

  • This 2,823 square foot Southern Traditional Ranch house plan features 4 bedrooms, 3 full bathrooms, and an attached 548-square-foot, 2-car garage.

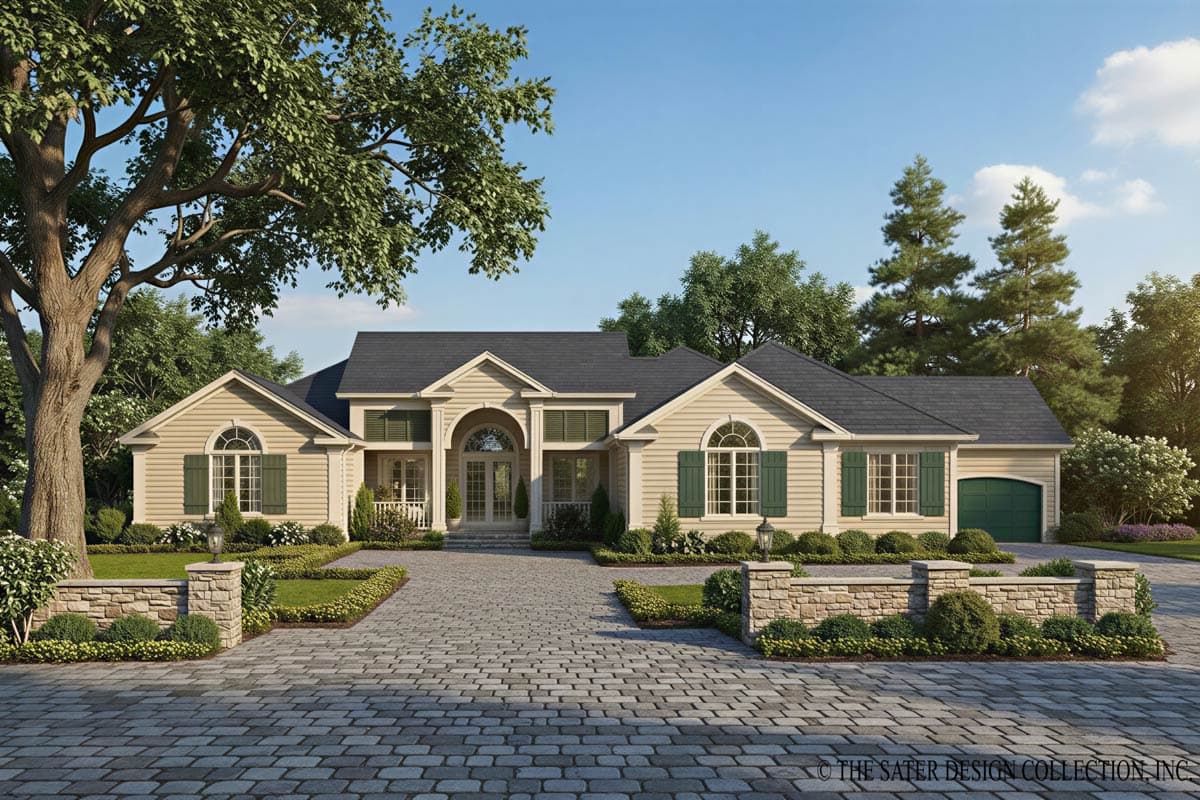

  • Beyond the grand arched entry and 192-square-foot porch, the foyer opens to a sophisticated formal dining room and a private study, both elevated by elegant 11'4" step ceilings.
  • The expansive main living area is defined by a chef-inspired kitchen boasting two islands and a walk-in butler’s pantry, connecting the great room to a sun-drenched breakfast nook and a cozy keeping room for relaxed gatherings.
  • Designed with a split-bedroom layout for maximum privacy, the luxurious master suite is tucked away on one side of the home, while three additional bedrooms—including two that share a Jack and Jill bath—occupy the opposite wing.
  • Practicality meets high-end design with a dedicated mudroom and a main-level laundry room situated near the garage entrance, while the dual-island kitchen provides an exceptional workspace for culinary enthusiasts.

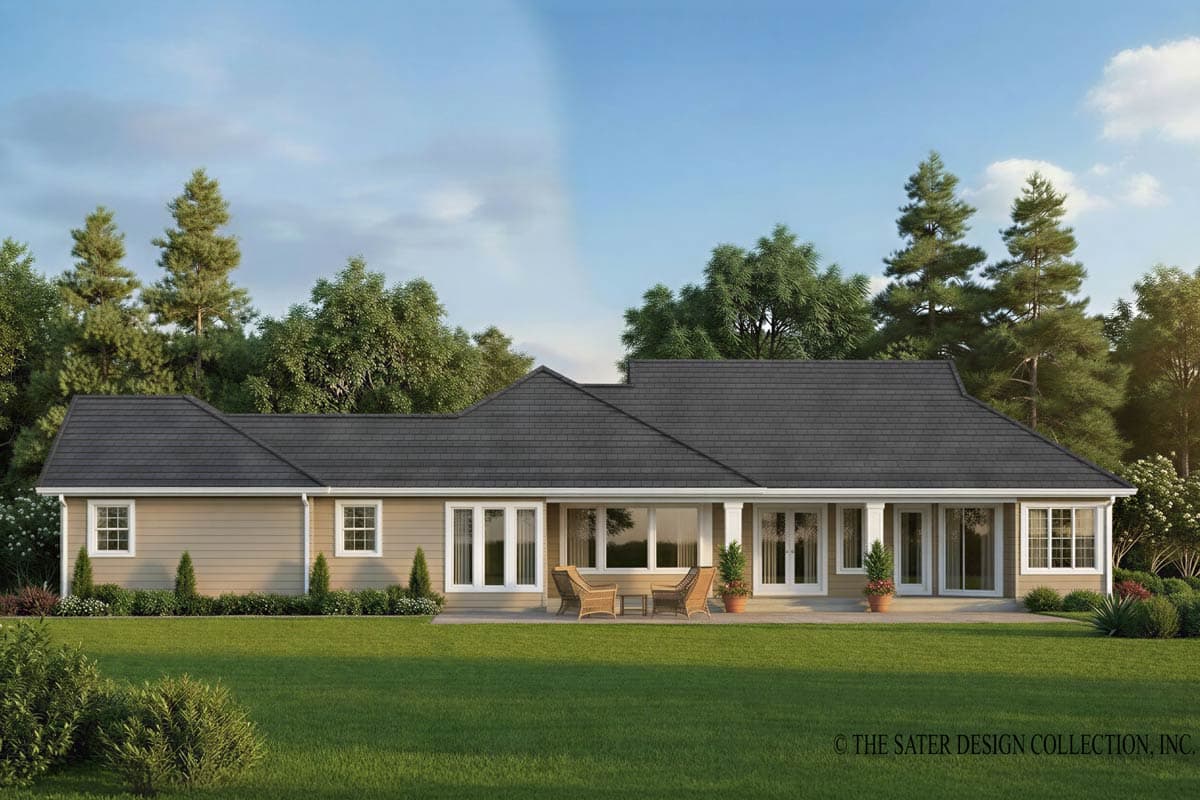

  • Large glass doors lead to a generous 482-square-foot rear lanai, creating an inviting outdoor transition for morning coffee or evening relaxation in the open air.

What's Included

  • Cover Sheet, Index
  • Wall Sections & Notes
  • Typical Detail & Notes
  • Foundation Plan
  • Floor Plans
  • Reflected Ceiling Plan showing ceiling heights and treatments
  • Floor Framing Plan (basement, crawlspace or 2-story homes only)
  • Birds Eye Roof Plan
  • All Elevations
  • Building Section & Details
  • Interior Elevations (Details may vary based on the design)
  • Suggested Electrical Layout

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,823 sq. ft.

1st Floor

2,823 sq. ft.

Entry

192 sq. ft.

Lanai

482 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

104' 4"

Depth

74' 6"

Garage

Type

Standard, Attached

Area

548 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Study

Step

11' 4''

Dining Room

Step

11' 4''

Roof Details

Framing Type

Architectural Style

Ranch

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Home Office

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Kitchen Islands

Walk-in Pantry
