Plan 680017VR 4-Car 969 Square Foot Garage Apartment with RV Parking

969 2 1 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

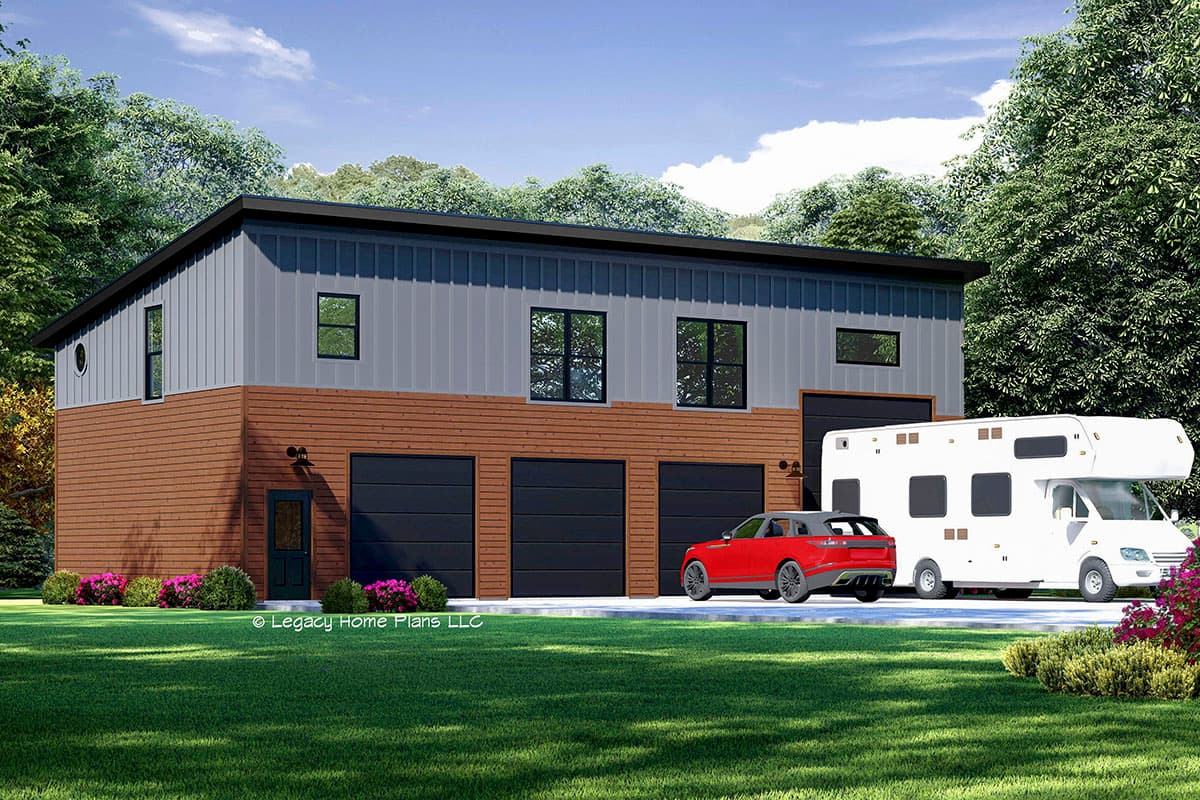

4-Car 969 Square Foot Garage Apartment with RV Parking

Plan 680017VR

  • 969

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Stories

  • 4

    Cars

  • The main floor of this 4-car garage apartment gives you 1,673 square feet dedicated to your wheeled vehicles and 969 square feet of heated living space. Three single bays with 9' by 9' garage doors and a fourth bay with a 12' by 14' garage door for your RV give you loads of vehicle storage.
  • In back of the back of the 3-car bays there is a storage  area with 10' ceilings. The RV bay is lift-friendly and has a 2-story ceiling.
  • A man-door on the left opens to a small entry area with stairs taking you to the upstairs living level where you'll find two bedrooms sharing a bath and a large open living area with a kitchen and eating area.
  • Related Plan: Get 1,251 square feet of living space with plan 68688VR (1,251 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

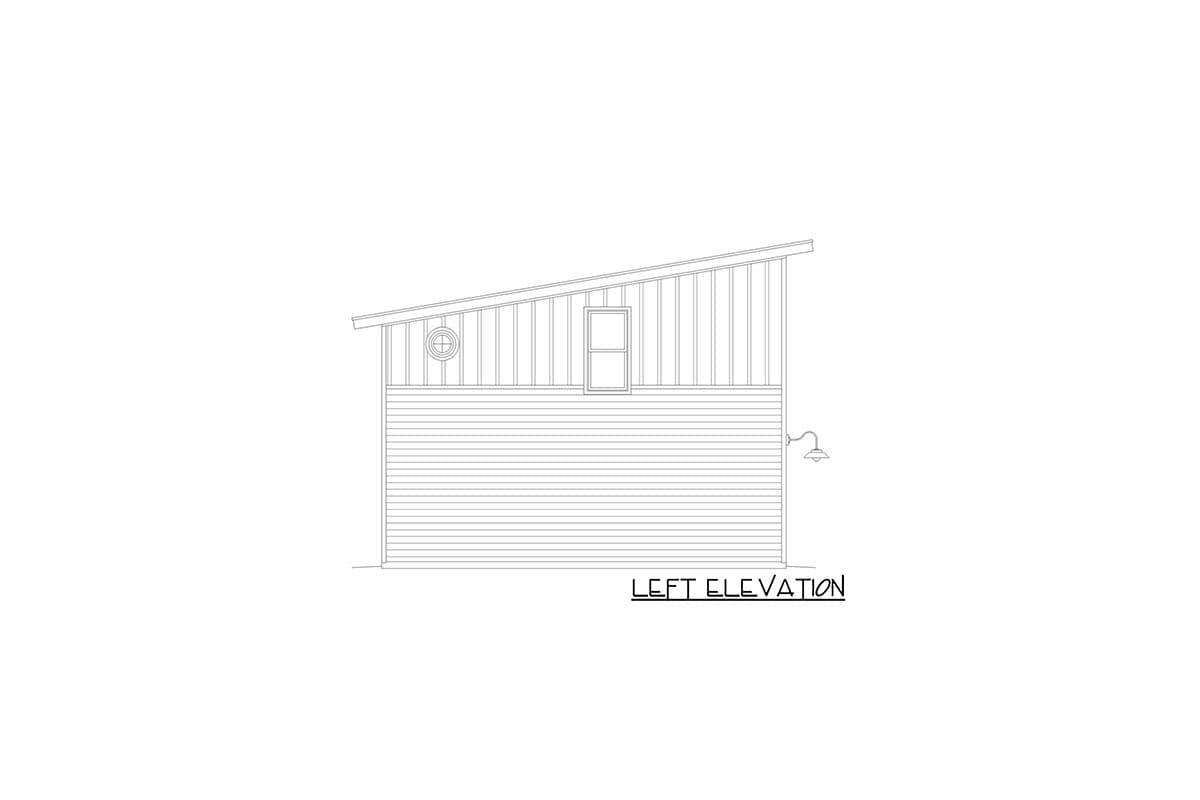

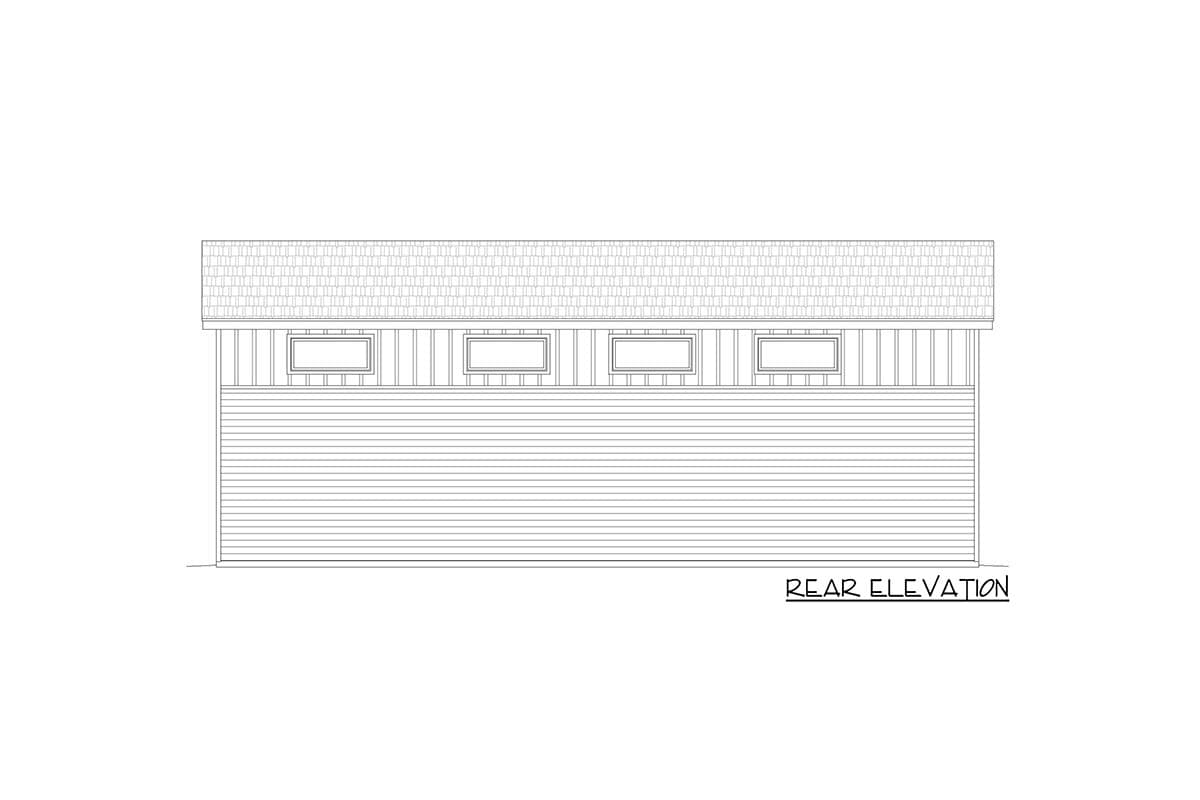

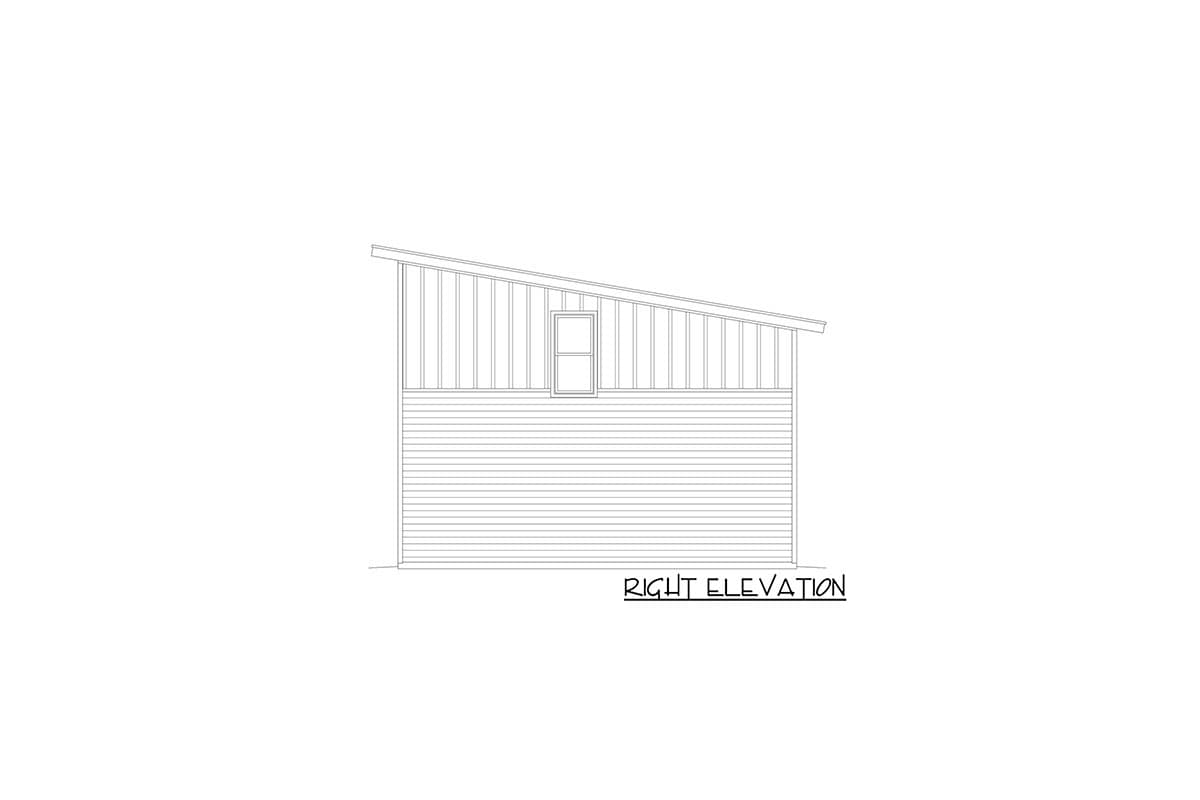

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

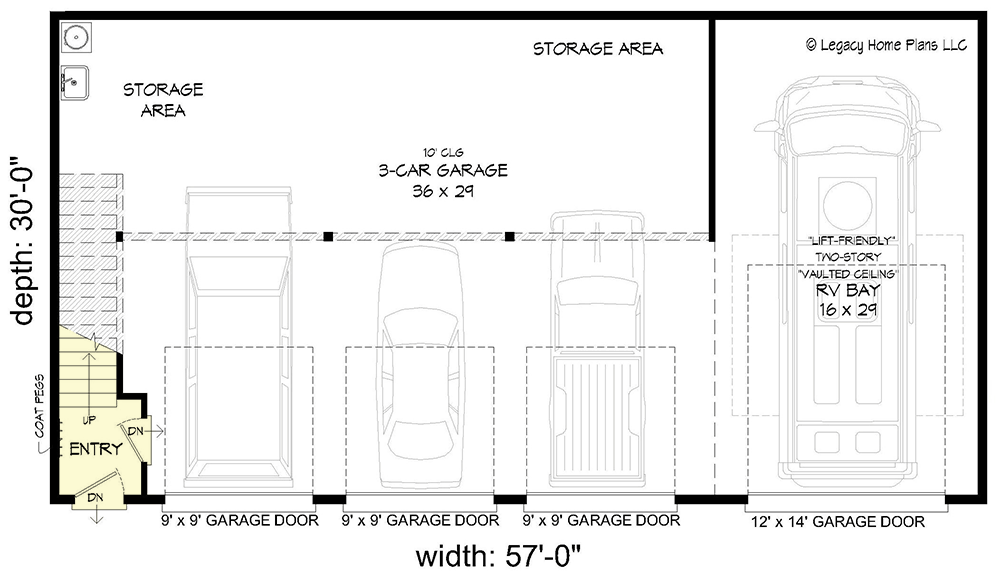

4-Car 969 Square Foot Garage Apartment with RV Parking - 680017VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

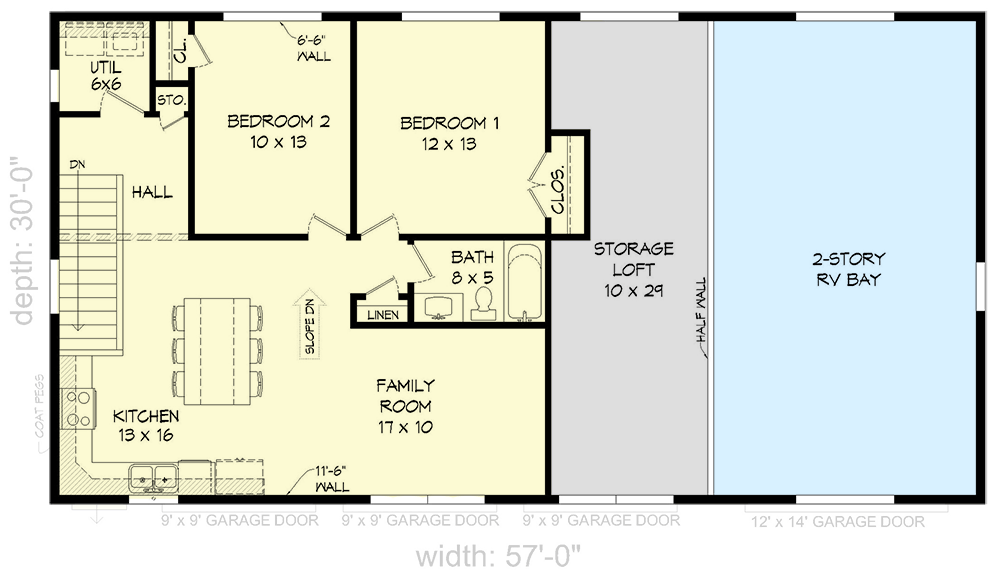

4-Car 969 Square Foot Garage Apartment with RV Parking - 680017VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 969 sq. ft.
  • 1st Floor: 37 sq. ft.
  • 2nd Floor: 923 sq. ft.
  • Loft: 281 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 30' 0"
  • Max ridge height: 23' 11"

Garage

  • Type: RV Garage, Attached
  • Area: 1673 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Architectural Style

Special features

4-Car 969 Square Foot Garage Apartment with RV Parking

  • 969

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $875
  • 5 Sets $960
  • 5 Sets + PDF $1,079
  • CAD + PDF - Single-Build $1,175
  • View all purchase option online

About This Plan

  • The main floor of this 4-car garage apartment gives you 1,673 square feet dedicated to your wheeled vehicles and 969 square feet of heated living space. Three single bays with 9' by 9' garage doors and a fourth bay with a 12' by 14' garage door for your RV give you loads of vehicle storage.
  • In back of the back of the 3-car bays there is a storage  area with 10' ceilings. The RV bay is lift-friendly and has a 2-story ceiling.
  • A man-door on the left opens to a small entry area with stairs taking you to the upstairs living level where you'll find two bedrooms sharing a bath and a large open living area with a kitchen and eating area.
  • Related Plan: Get 1,251 square feet of living space with plan 68688VR (1,251 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 969 sq. ft.
  • 1st Floor: 37 sq. ft.
  • 2nd Floor: 923 sq. ft.
  • Loft: 281 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 0"
  • Depth: 30' 0"
  • Max ridge height: 23' 11"

Garage

  • Type: RV Garage, Attached
  • Area: 1673 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Plan 680017VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680017VR
|
