4-Family House Plan with Upstairs Bedrooms

Plan 42570DB

  • 8,260

    Heated s.f.

  • 4

    Units

  • 111' 8"

    Width

  • 50' 0"

    Depth

  • This four-family house plan gives you units in three different sizes.
  • The outside units give you 2,065 square feet of heated living space (809 square feet on the main floor and 1,256 square feet on the upper floor).
  • The second unit from the left gives you 2,058 square feet of heated living space (804 square feet on the main floor and 1,264 square feet on the upper floor).
  • The third unit from the left gives you 2,054 square feet of heated living space (804 square feet on the main floor and 1,250 square feet on the upper floor).
  • Related Plan: Get a 2-family version with house plan 42569DB.

This house plan set has the following details:

  • General Notes

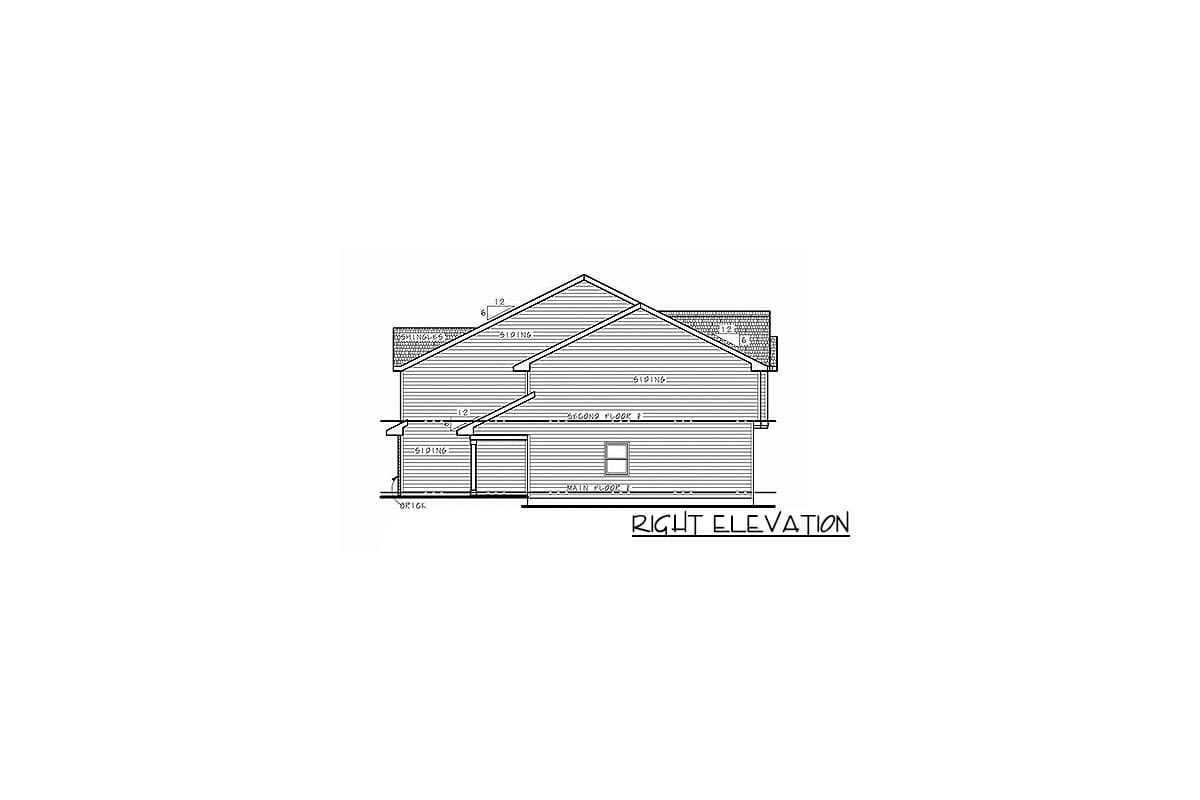

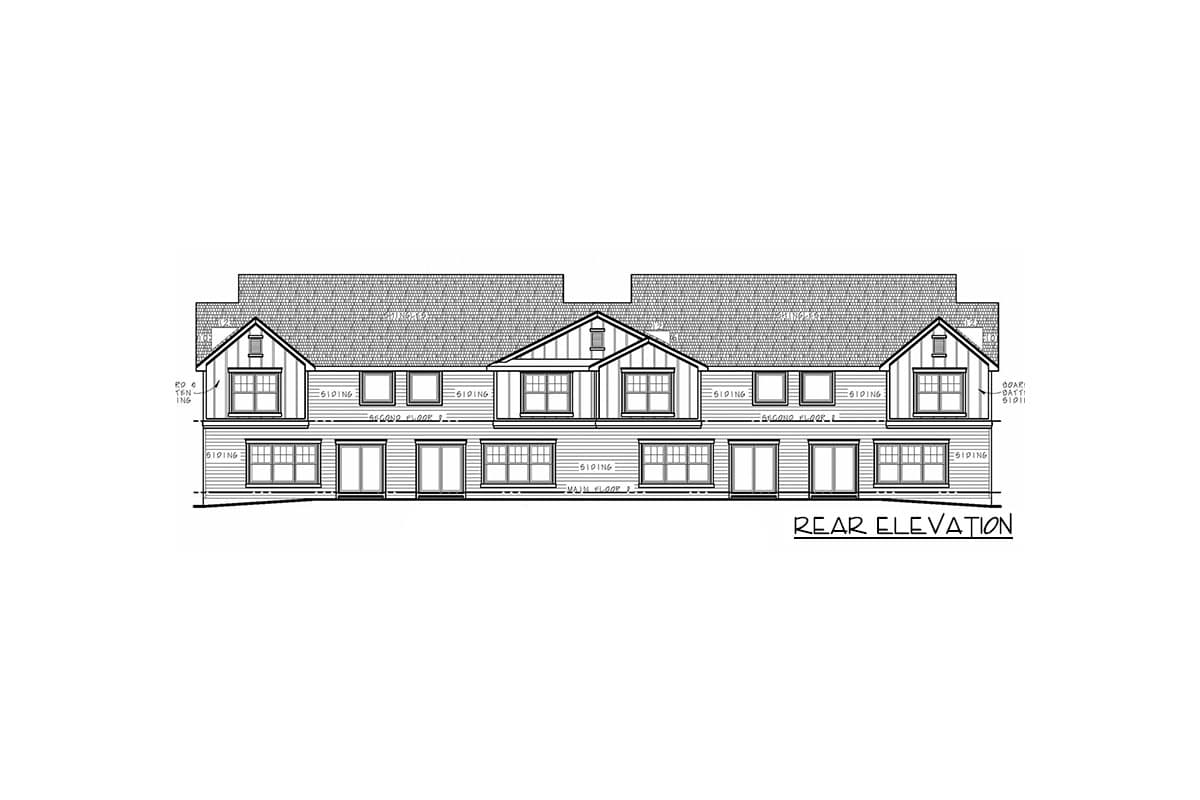

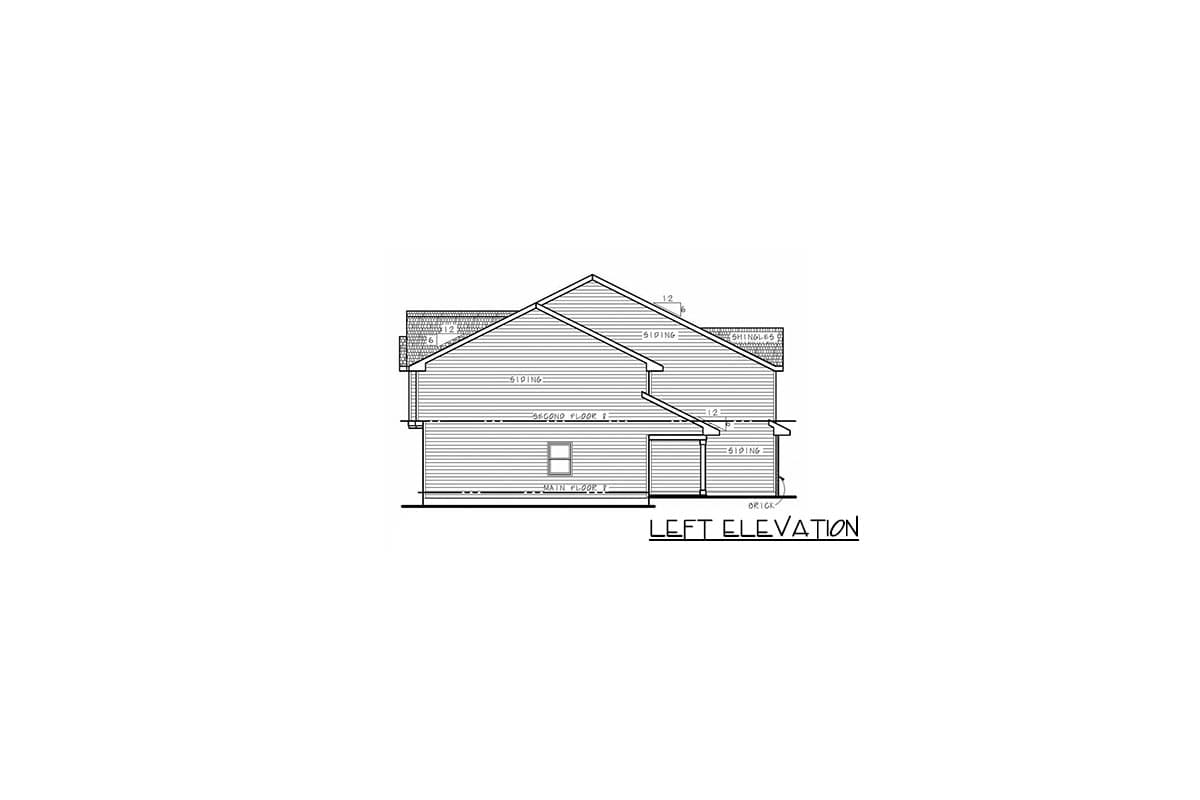

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

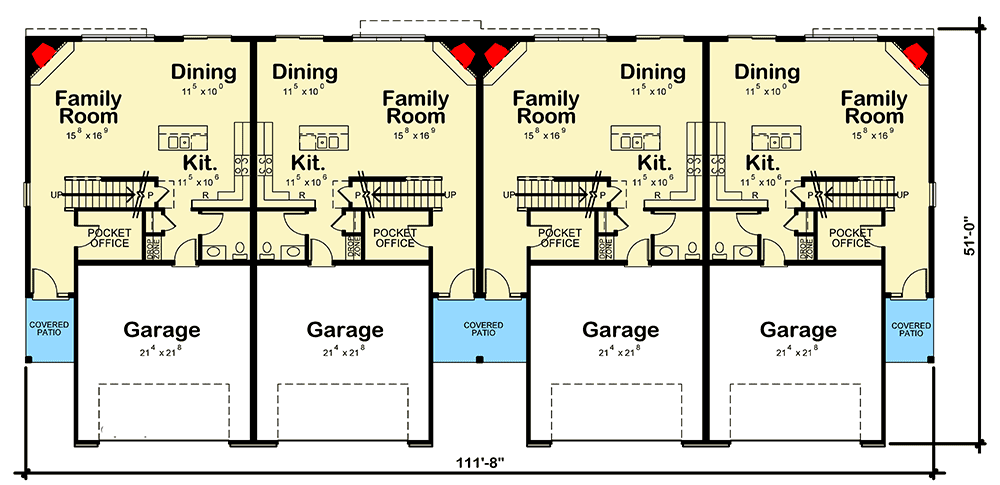

4-Family House Plan with Upstairs Bedrooms - 42570DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

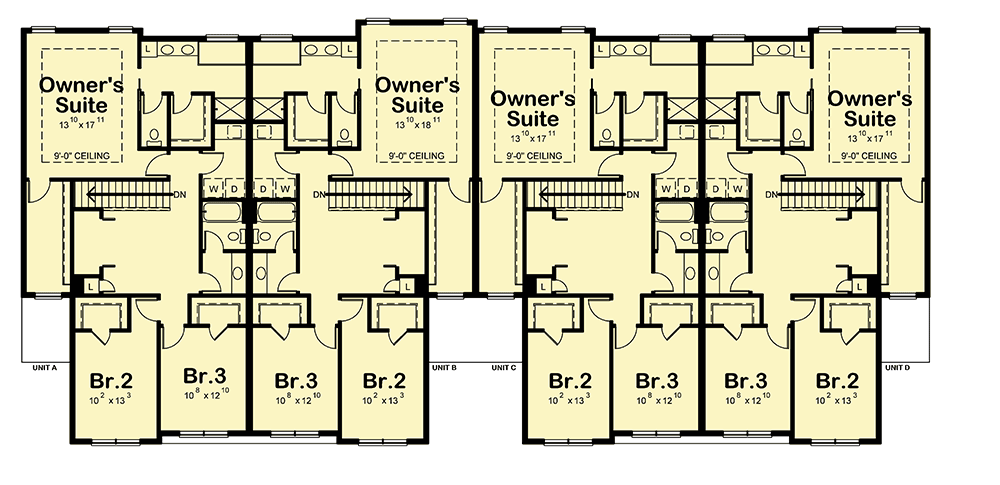

4-Family House Plan with Upstairs Bedrooms - 42570DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 8,260 sq. ft.
  • 1st Floor: 3,236 sq. ft.
  • 2nd Floor: 5,024 sq. ft.

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 111' 8"
  • Depth: 50' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1932 sq. ft.
  • Count: 8 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

4-Family House Plan with Upstairs Bedrooms

  • 8,260

    Heated s.f.

  • 4

    Units

  • 111' 8"

    Width

  • 50' 0"

    Depth

Buy This Plan
  • Study Set - Digital $1,970
  • PDF - Single-Build $3,080
  • PDF - Unlimited Build $3,580
  • CAD + PDF - Single-Build $5,095
  • CAD - Unlimited Build $5,595
  • View all purchase option online

About This Plan

  • This four-family house plan gives you units in three different sizes.
  • The outside units give you 2,065 square feet of heated living space (809 square feet on the main floor and 1,256 square feet on the upper floor).
  • The second unit from the left gives you 2,058 square feet of heated living space (804 square feet on the main floor and 1,264 square feet on the upper floor).
  • The third unit from the left gives you 2,054 square feet of heated living space (804 square feet on the main floor and 1,250 square feet on the upper floor).
  • Related Plan: Get a 2-family version with house plan 42569DB.
