Plan 420160WNT
EXCLUSIVE
4 or 5 Bed Modern Ranch House Plan with Outdoor Fireplace - 3011 Sq Ft
Heated S.F.
3,011
Beds
4-5
Baths
2.5+
Stories
1
Cars
2
Plan Details
  • This modern ranch house plan has a semi-open floor plan with 4 or 5 bedrooms, 2 full baths and 2 half baths gives you 3,011 square feet of heated living space, and a side-entry 2-car side garage (552 sq. ft.) at the rear of the home.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get a smaller version with house plan 420154WNT (2,600 sq. ft.).
  • NOTE: Please allow 3 to 5 business days for delivery.
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details and notes - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4 or 5 Bed Modern Ranch House Plan with Outdoor Fireplace - 3011 Sq Ft

  • 3,011

    Heated s.f.

  • 4-5

    Beds

  • 2.5+

    Baths

  • 1

    Floors

  • 2

    Car garage

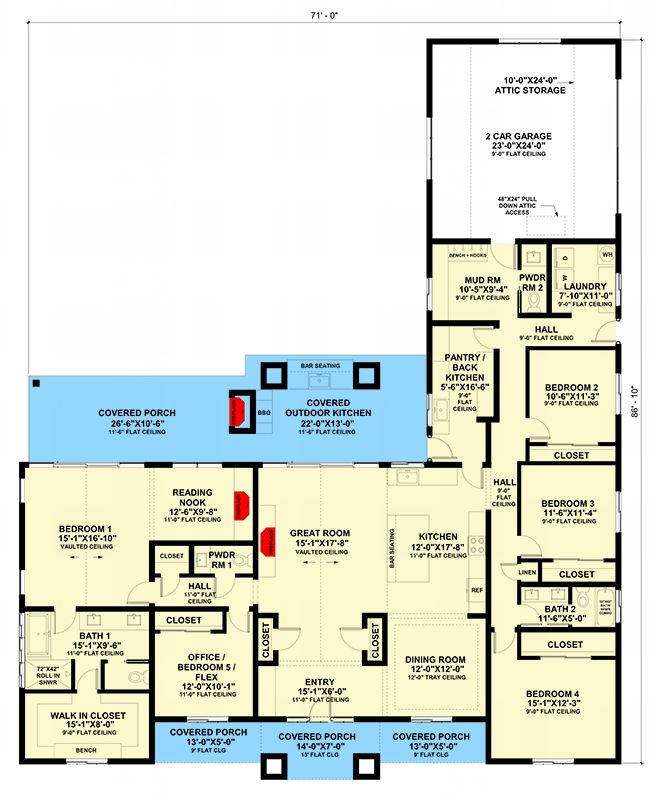

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,011 sq. ft.
  • 1st Floor: 3,011 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 86' 10"
  • Max ridge height: 20' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 11 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

4 or 5 Bed Modern Ranch House Plan with Outdoor Fireplace - 3011 Sq Ft

  • 3,011

    Heated s.f.

  • 4-5

    Beds

  • 2.5+

    Baths

  • 1

    Floors

  • 2

    Car garage

4 or 5 Bed Modern Ranch House Plan with Outdoor Fireplace - 3011 Sq Ft

  • 3,011

    Heated s.f.

  • 4-5

    Beds

  • 2.5+

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,011 sq. ft.
  • 1st Floor: 3,011 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 86' 10"
  • Max ridge height: 20' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 2
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 552 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Monolithic Slab, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 11 on 12
  • Framing Type: Stick And Truss

    Main Level
