Plan 22524DR 4-Unit Modern Rustic Multi-Family House Plan

5,446 4 84' 0" 27' 0"
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Unit Modern Rustic Multi-Family House Plan

Plan 22524DR

  • 5,446

    Heated s.f.

  • 4

    Units

  • 84' 0"

    Width

  • 27' 0"

    Depth

  • This 4-unit modern rustic house plan has a modern rustic exterior with stone, clapboards, timber supports for the entryways, two shed dormers and two gables on the ends.
  • The units on the ends give you 1,375 sq. ft. of heated living space (550 sq. ft. on the main and lower floor each and 257 sq. ft. on the upper floor).
  • The middle units give you 1,354 sq. ft. of heated living space (553 sq. ft. on the main and lower floor each and 248 sq. ft. on the upper floor).
  • A 2-sided fireplace helps divide the main floor while keeping the space open at the same time. Double doors open to the patio in back.
  • Upstairs gives you a single bedroom with bath. Two more bedrooms and laundry are in the lower level.
  • Note: Please allow 12 days for delivery

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

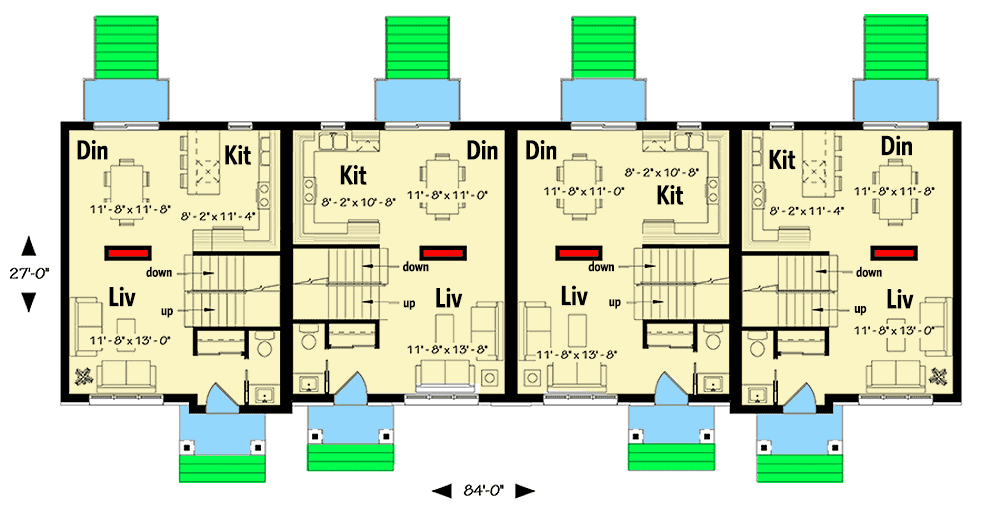

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Unit Modern Rustic Multi-Family House Plan - 22524DR floor plan - Main Level

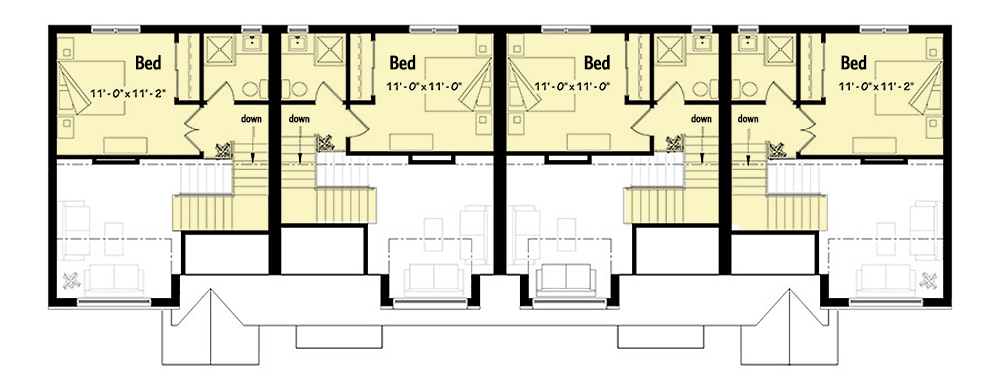

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Unit Modern Rustic Multi-Family House Plan - 22524DR floor plan - Second Level

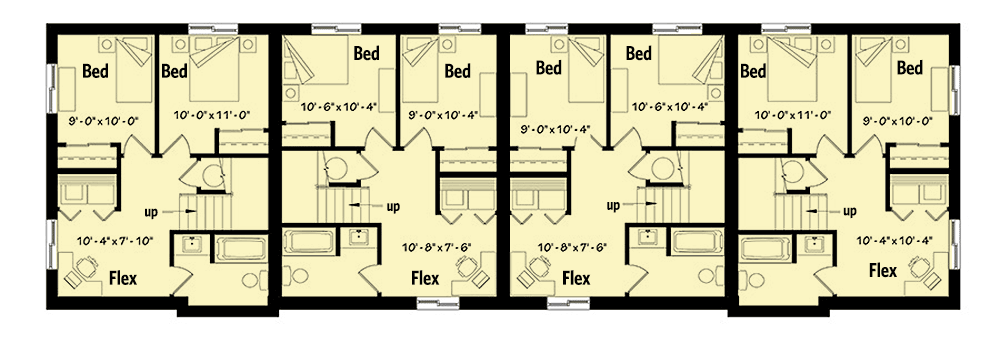

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Unit Modern Rustic Multi-Family House Plan - 22524DR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,446 sq. ft.
  • Lower Level: 2,224 sq. ft.
  • 1st Floor: 2,224 sq. ft.
  • 2nd Floor: 998 sq. ft.

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 27' 0"
  • Max ridge height: 25' 2"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 10
  • Secondary Pitch: 6 on 12

Architectural Style

Plan Collections

4-Unit Modern Rustic Multi-Family House Plan

  • 5,446

    Heated s.f.

  • 4

    Units

  • 84' 0"

    Width

  • 27' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $2,715
  • 3 Sets + PDF $2,840
  • CAD + PDF - Single-Build $3,315
  • View all purchase option online

About This Plan

  • This 4-unit modern rustic house plan has a modern rustic exterior with stone, clapboards, timber supports for the entryways, two shed dormers and two gables on the ends.
  • The units on the ends give you 1,375 sq. ft. of heated living space (550 sq. ft. on the main and lower floor each and 257 sq. ft. on the upper floor).
  • The middle units give you 1,354 sq. ft. of heated living space (553 sq. ft. on the main and lower floor each and 248 sq. ft. on the upper floor).
  • A 2-sided fireplace helps divide the main floor while keeping the space open at the same time. Double doors open to the patio in back.
  • Upstairs gives you a single bedroom with bath. Two more bedrooms and laundry are in the lower level.
  • Note: Please allow 12 days for delivery
