Plan 93187EL 4000 Square Foot Transitional Tudor Home Plan with Main-Level Owner's Suite

4,073 5 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4000 Square Foot Transitional Tudor Home Plan with Main-Level Owner's Suite

Plan 93187EL

  • 4,073

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Swooping roof lines, flared eaves, and arched accents add to the curb appeal offered by this Transitional Tudor home plan that gives you over 4,000 square feet of living space.
  • A sizable foyer with a coat closet and staircase greet you upon entering and leads into the great room with exposed beams overhead.
  • Discover a large hidden pantry with natural light in the heart of the home, while the adjacent dining room features a retractable glass wall that opens to the lanai.
  • The secluded owner's suite enjoys a main-level location, complete with patio access, a 5-fixture bathroom, and dresser island in the wardrobe. A second bedroom suite or home office occupies the opposite side of the first floor.
  • Three bedroom suites share the second level with an office and bonus room that includes a wet bar.
  • RELATED: Get a smaller version with house plan 93054EL (3,939 sq. ft.)
  • NOTE: Please allow 7 to 10 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

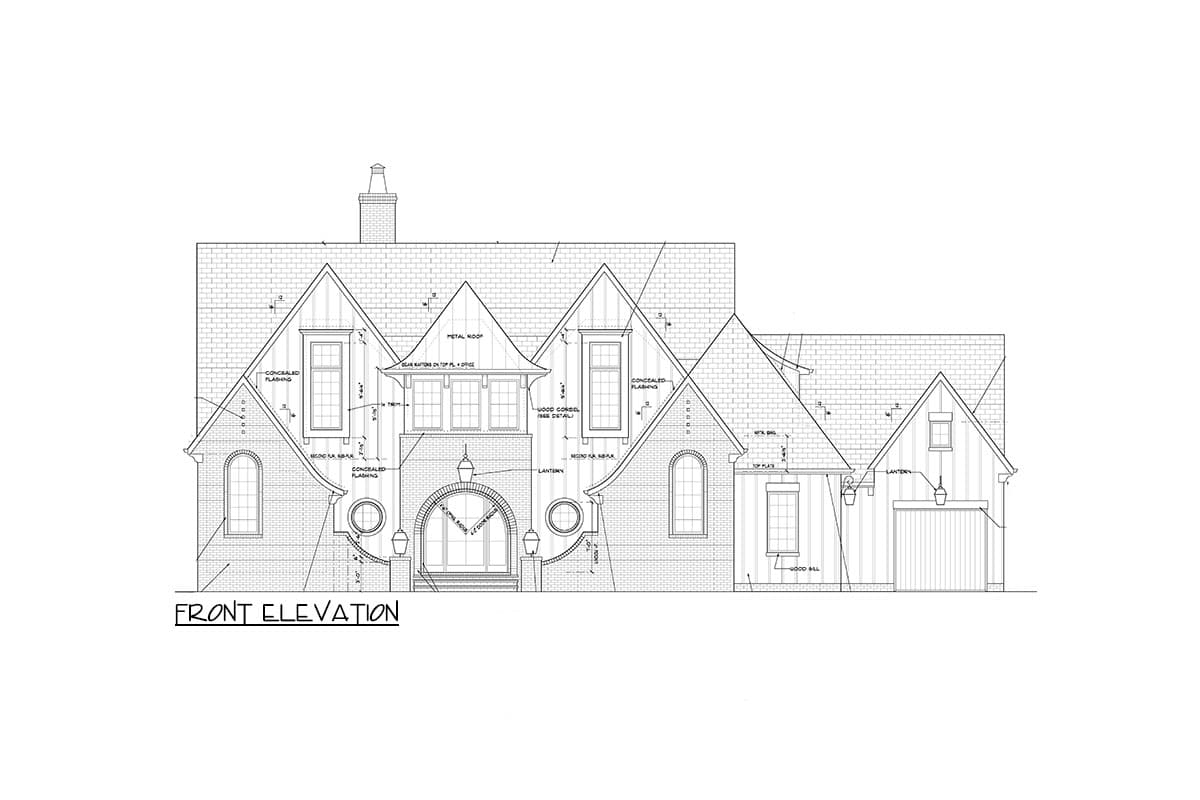

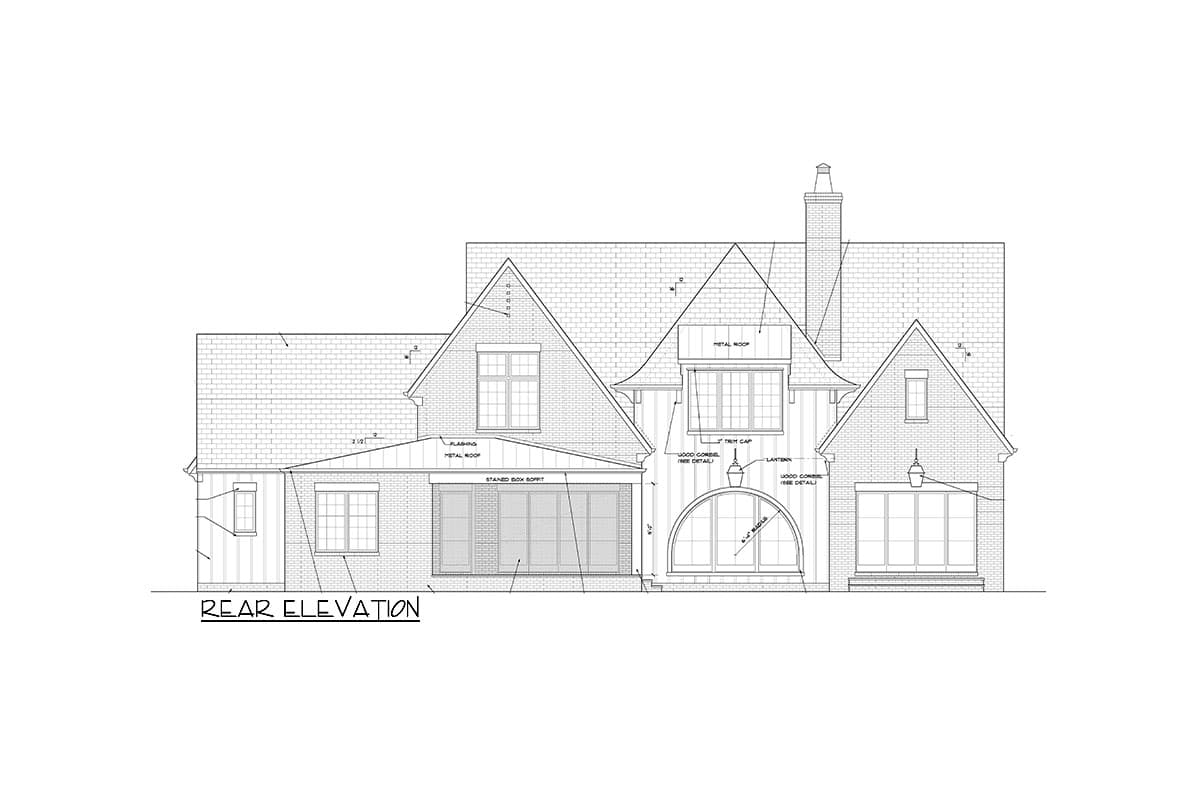

  • Front & Rear Elevation

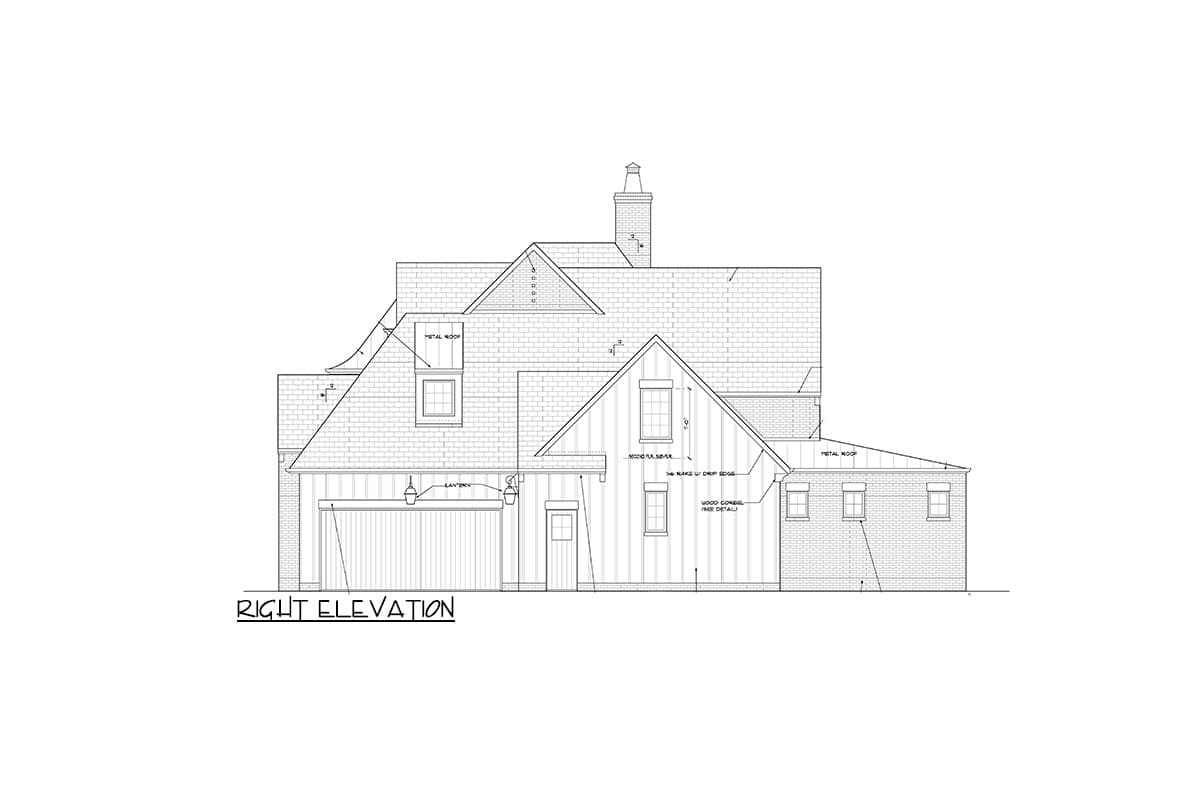

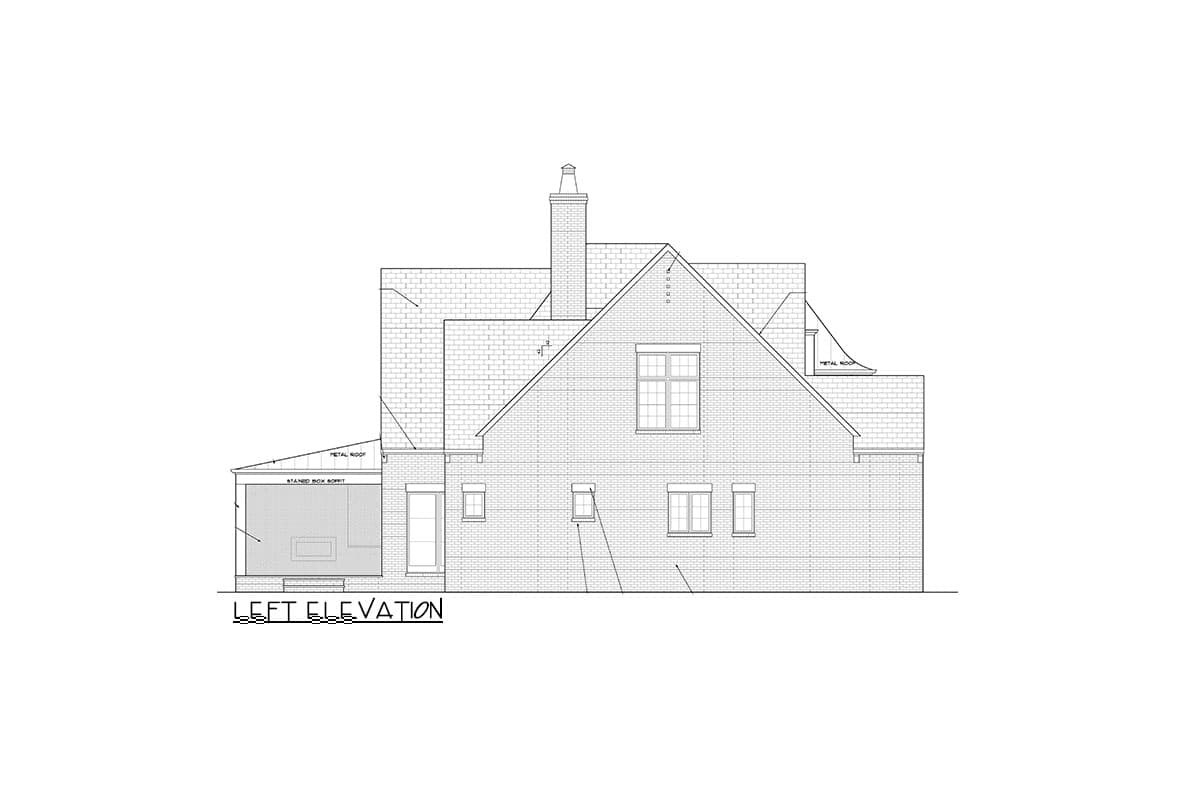

  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

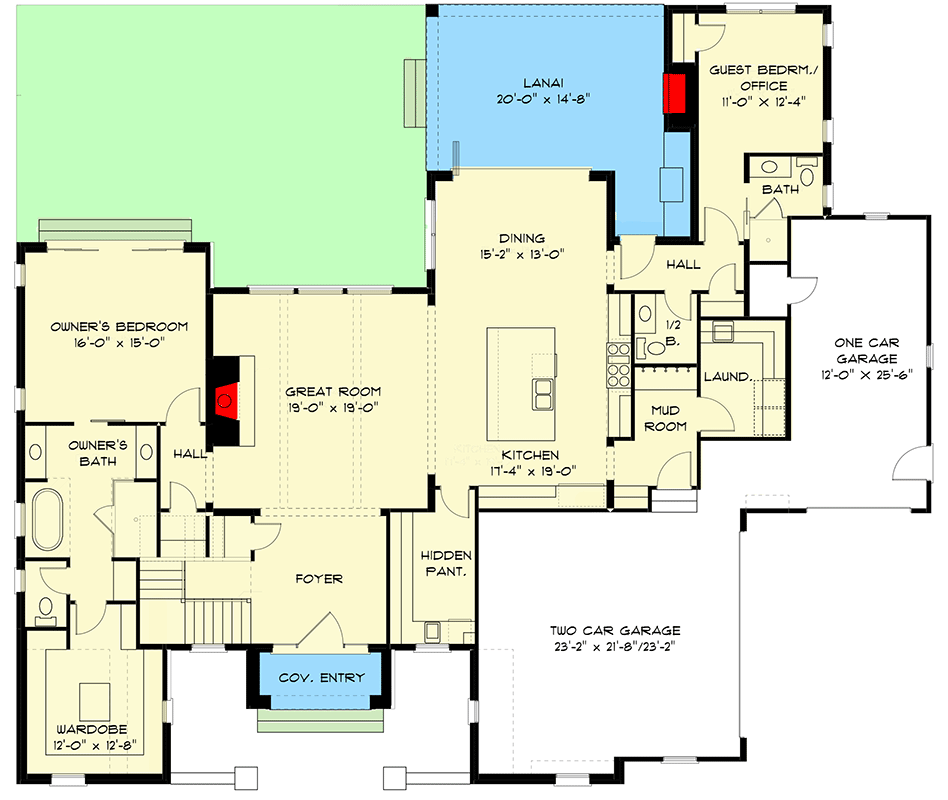

4000 Square Foot Transitional Tudor Home Plan with Main-Level Owner's Suite - 93187EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

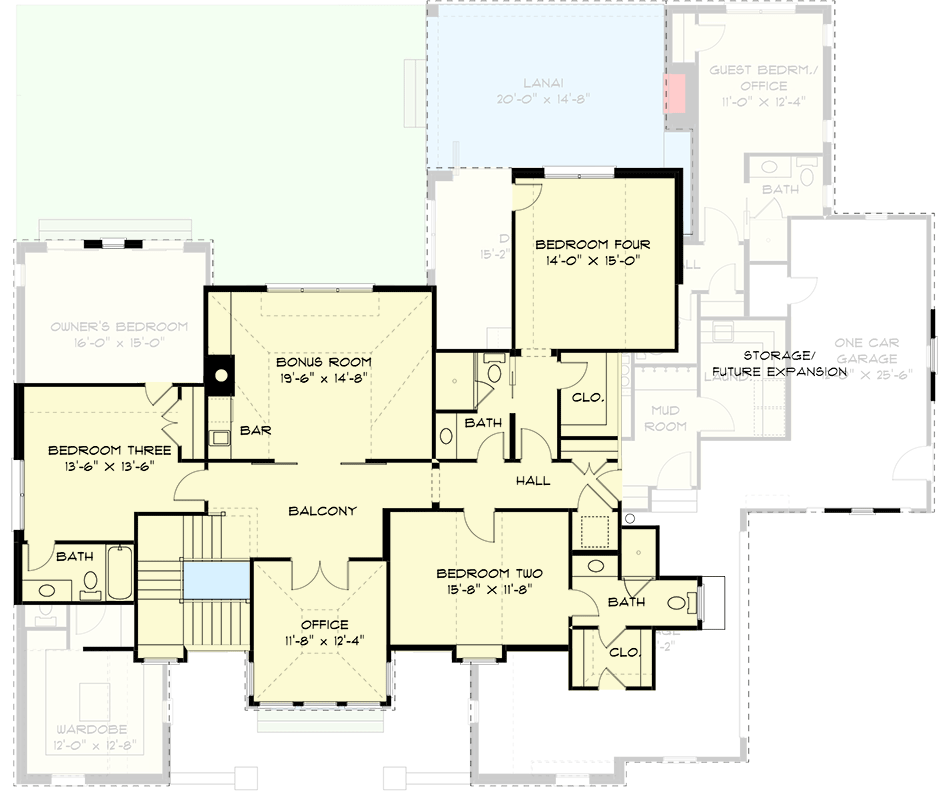

4000 Square Foot Transitional Tudor Home Plan with Main-Level Owner's Suite - 93187EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,073 sq. ft.
  • 1st Floor: 2,418 sq. ft.
  • 2nd Floor: 1,655 sq. ft.
  • Porch, Rear: 369 sq. ft.
  • Porch, Front: 58 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 69' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 972 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

4000 Square Foot Transitional Tudor Home Plan with Main-Level Owner's Suite

  • 4,073

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,295
  • CAD+PDF - Single-Build $2,920
  • PDF - Unlimited Build $3,145
  • CAD - Unlimited Build $3,770
  • View all purchase option online

About This Plan

  • Swooping roof lines, flared eaves, and arched accents add to the curb appeal offered by this Transitional Tudor home plan that gives you over 4,000 square feet of living space.
  • A sizable foyer with a coat closet and staircase greet you upon entering and leads into the great room with exposed beams overhead.
  • Discover a large hidden pantry with natural light in the heart of the home, while the adjacent dining room features a retractable glass wall that opens to the lanai.
  • The secluded owner's suite enjoys a main-level location, complete with patio access, a 5-fixture bathroom, and dresser island in the wardrobe. A second bedroom suite or home office occupies the opposite side of the first floor.
  • Three bedroom suites share the second level with an office and bonus room that includes a wet bar.
  • RELATED: Get a smaller version with house plan 93054EL (3,939 sq. ft.)
  • NOTE: Please allow 7 to 10 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,073 sq. ft.
  • 1st Floor: 2,418 sq. ft.
  • 2nd Floor: 1,655 sq. ft.
  • Porch, Rear: 369 sq. ft.
  • Porch, Front: 58 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 69' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 972 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 93187EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93187EL
|
