Plan 93054EL Transitional Tudor Home Plan with Main-level Owner's Suite and Pool Concept

3,939 5 5.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional Tudor Home Plan with Main-level Owner's Suite and Pool Concept

Plan 93054EL

  • 3,939

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

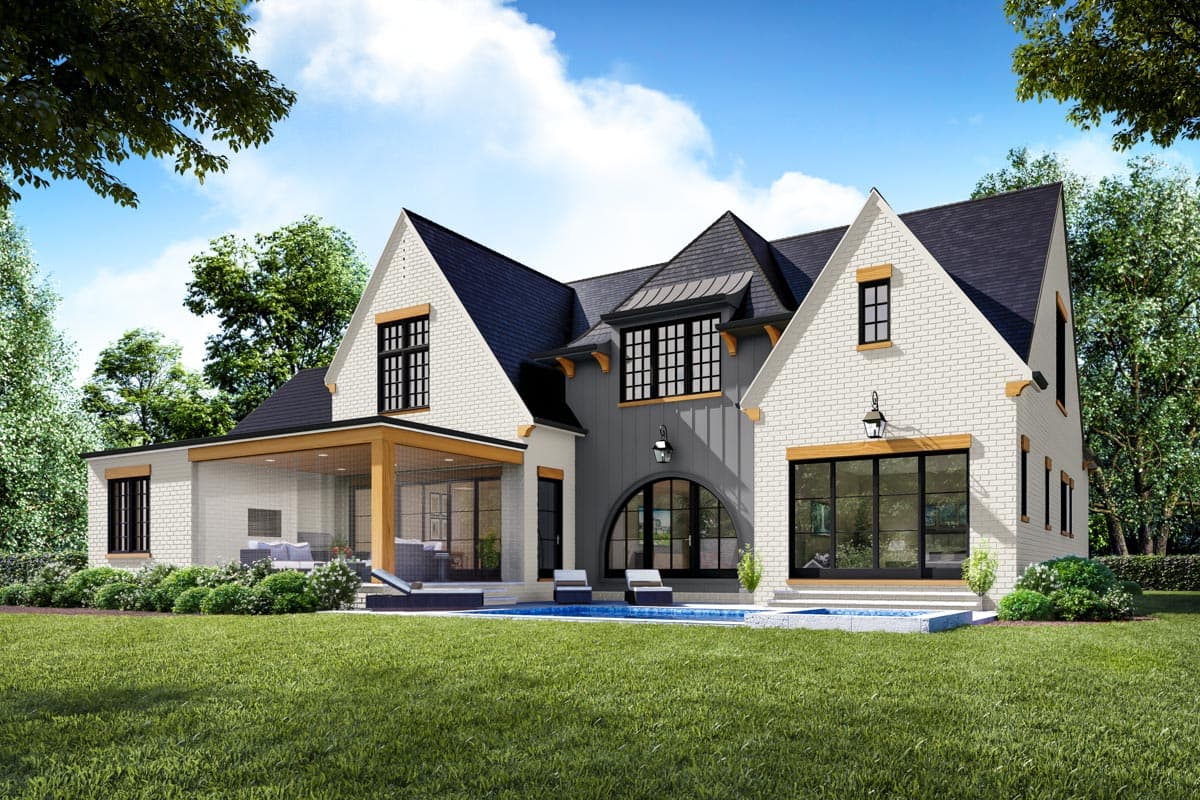

  • Swooping roof lines, flared eaves, and arched accents add to the curb appeal offered by this Transitional Tudor home plan that gives you over 3,900 square feet of living space.
  • A sizable foyer with a coat closet and staircase greet you upon entering and leads into the great room with exposed beams overhead.
  • Discover a large hidden pantry with natural light in the heart of the home, while the adjacent dining room features a retractable glass wall that opens to the lanai.
  • The secluded owner's suite enjoys a main-level location, complete with patio access, a 5-fixture bathroom, and dresser island in the wardrobe. A second bedroom suite or home office occupies the opposite side of the first floor.
  • Three bedroom suites share the second level with an office and bonus room that includes a wet bar.
  • Related Plan: Get a larger version with house plan 93187EL (4,073 sq. ft.).

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

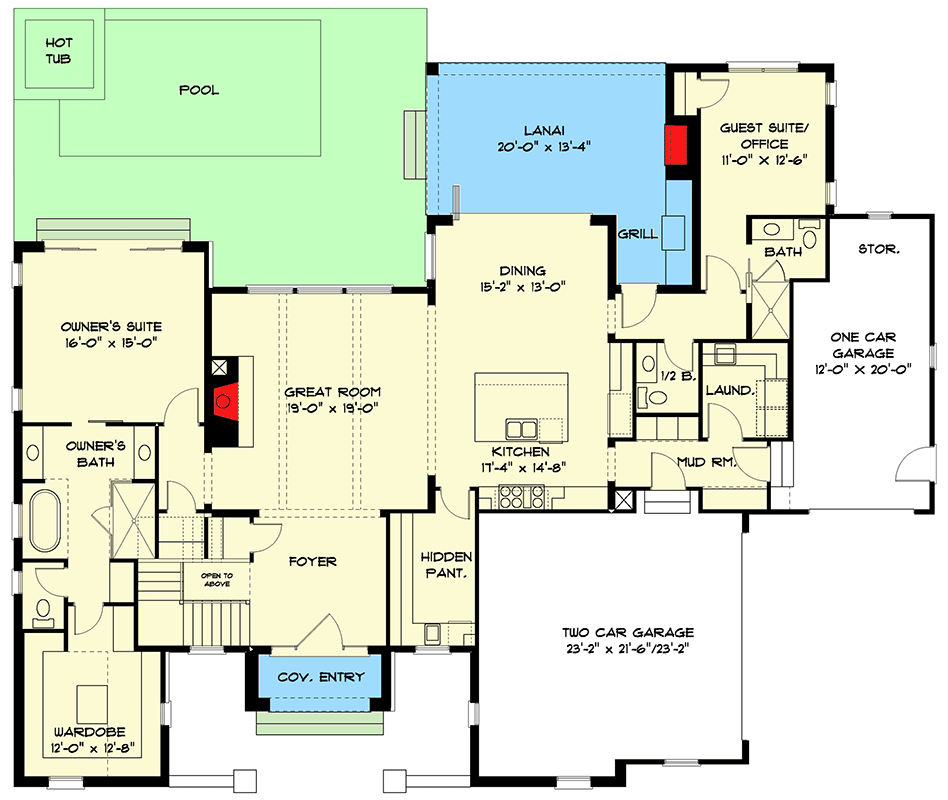

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Tudor Home Plan with Main-level Owner's Suite and Pool Concept - 93054EL floor plan - Main Level

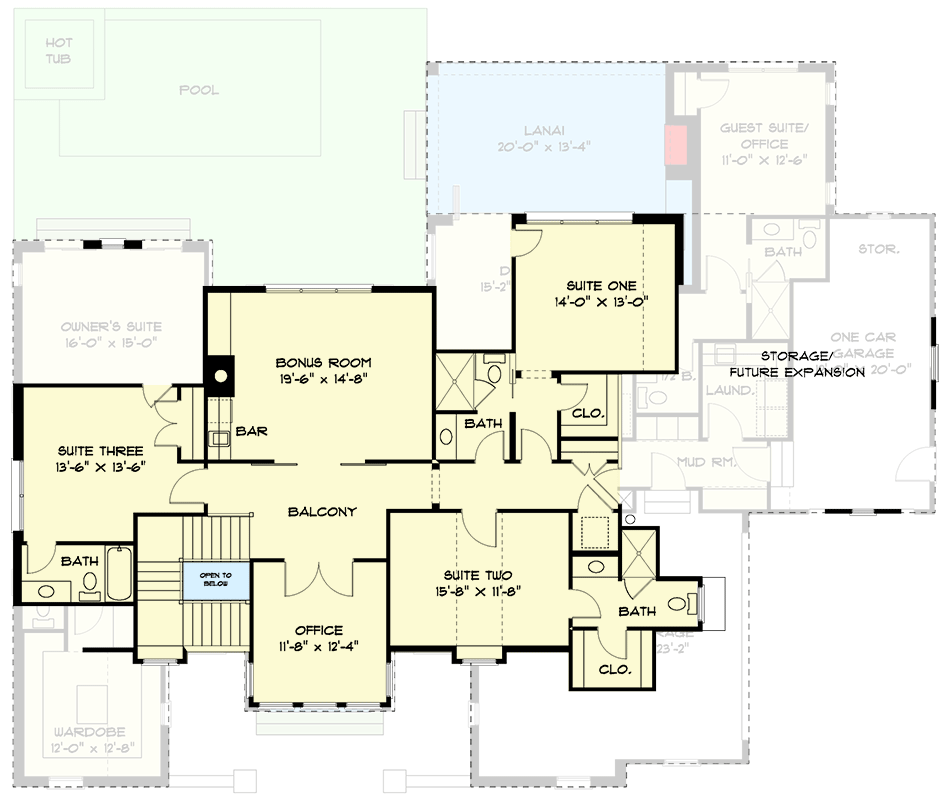

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Tudor Home Plan with Main-level Owner's Suite and Pool Concept - 93054EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,939 sq. ft.
  • 1st Floor: 2,335 sq. ft.
  • 2nd Floor: 1,604 sq. ft.
  • Porch, Rear: 342 sq. ft.
  • Porch, Front: 60 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Daylight, Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 63' 8"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 908 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Transitional Tudor Home Plan with Main-level Owner's Suite and Pool Concept

  • 3,939

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,003
  • CAD+PDF - Single-Build $2,303
  • PDF - Unlimited Build $2,853
  • CAD - Unlimited Build $3,153
  • View all purchase option online

About This Plan

  • Swooping roof lines, flared eaves, and arched accents add to the curb appeal offered by this Transitional Tudor home plan that gives you over 3,900 square feet of living space.
  • A sizable foyer with a coat closet and staircase greet you upon entering and leads into the great room with exposed beams overhead.
  • Discover a large hidden pantry with natural light in the heart of the home, while the adjacent dining room features a retractable glass wall that opens to the lanai.
  • The secluded owner's suite enjoys a main-level location, complete with patio access, a 5-fixture bathroom, and dresser island in the wardrobe. A second bedroom suite or home office occupies the opposite side of the first floor.
  • Three bedroom suites share the second level with an office and bonus room that includes a wet bar.
  • Related Plan: Get a larger version with house plan 93187EL (4,073 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,939 sq. ft.
  • 1st Floor: 2,335 sq. ft.
  • 2nd Floor: 1,604 sq. ft.
  • Porch, Rear: 342 sq. ft.
  • Porch, Front: 60 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 0"
  • Depth: 63' 8"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 908 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 93054EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93054EL
|
