Plan 420094WNT 476 Square Foot ADU with 6-Foot-Deep Porch

476 1 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

476 Square Foot ADU with 6-Foot-Deep Porch

Plan 420094WNT

  • 476

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • Enjoy the simple life in this 476 square foot ADU with 6'-deep front porch.
  • Just 17' wide, this can fit virtually any lot.
  • The bedroom is located in back along with the bathroom with stackable laundry.
  • The front of the home is vaulted and gives you a kitchen lining the left side and space for lounging on the right.
  • NOTE: Please allow 3 to 5 business days for delivery.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

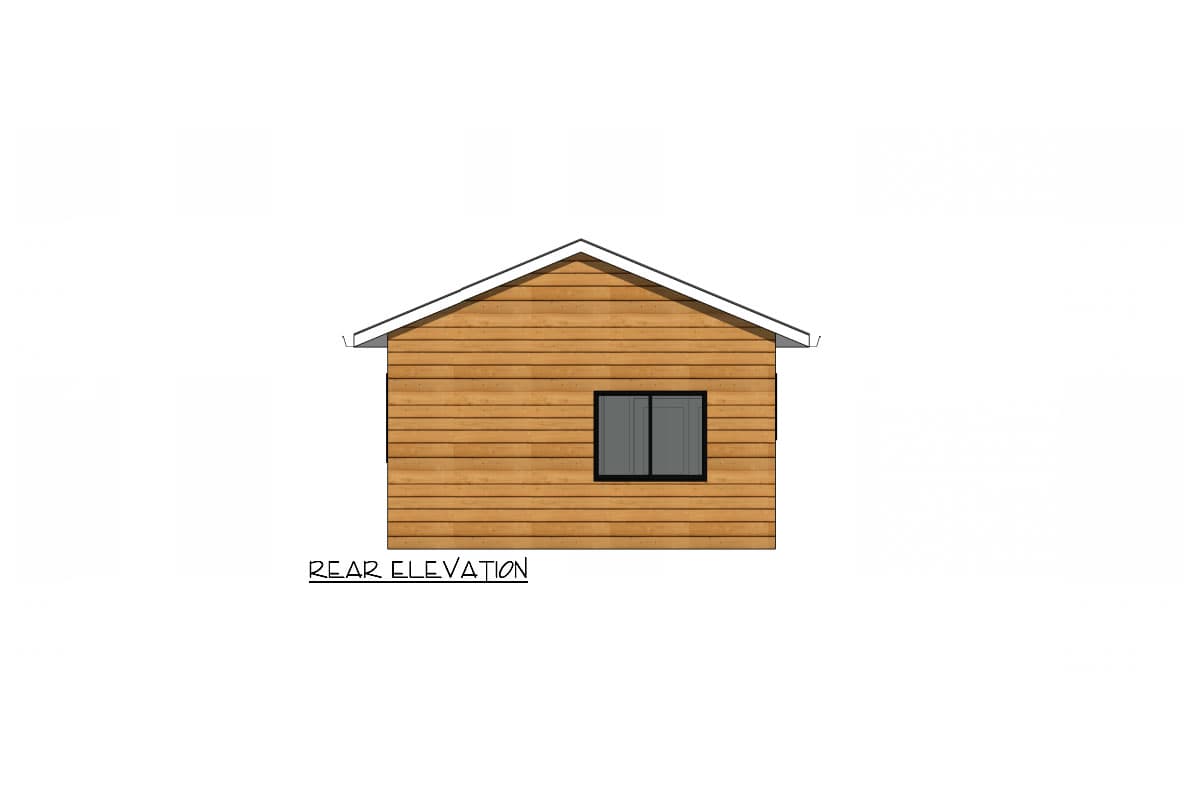

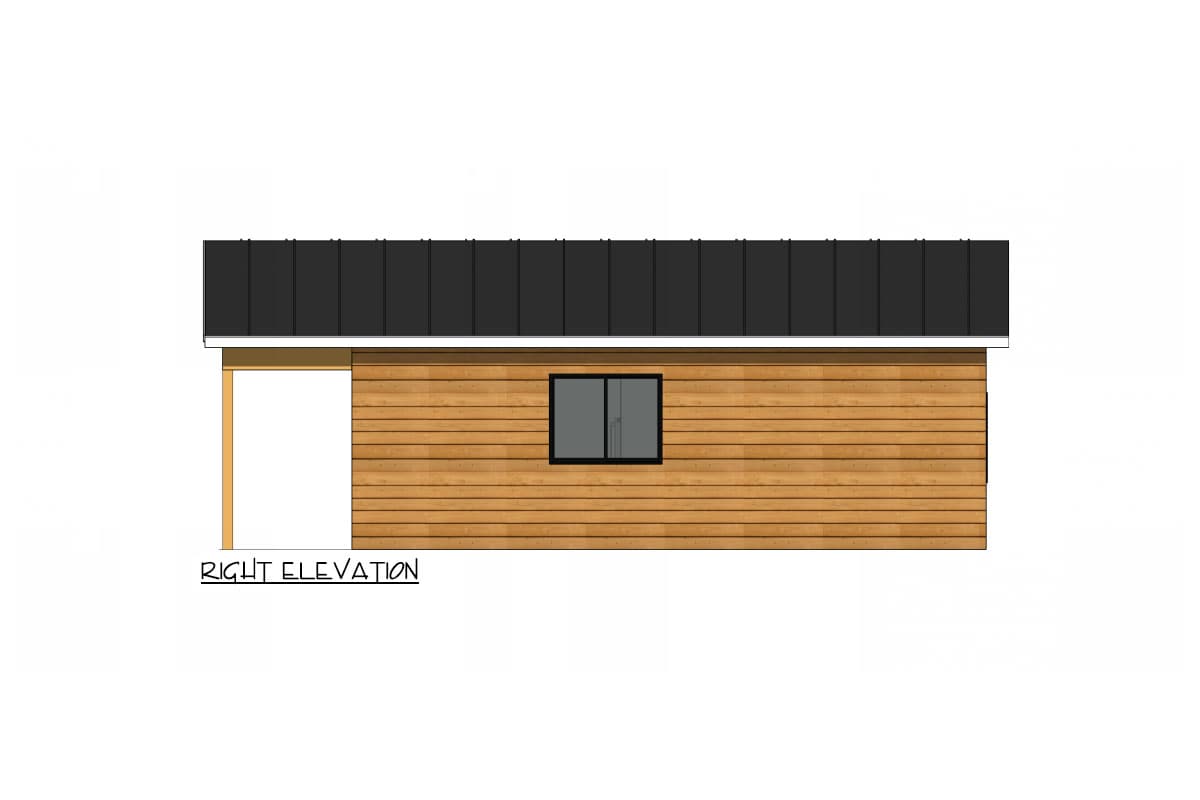

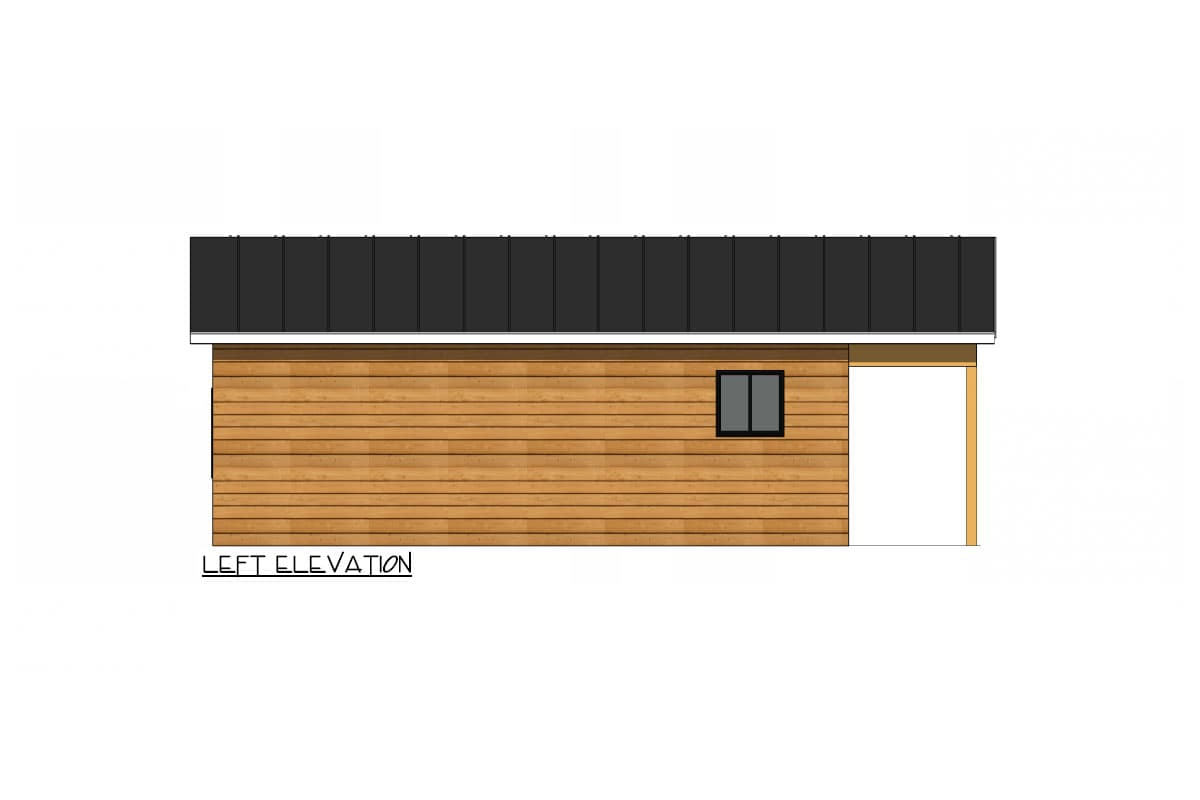

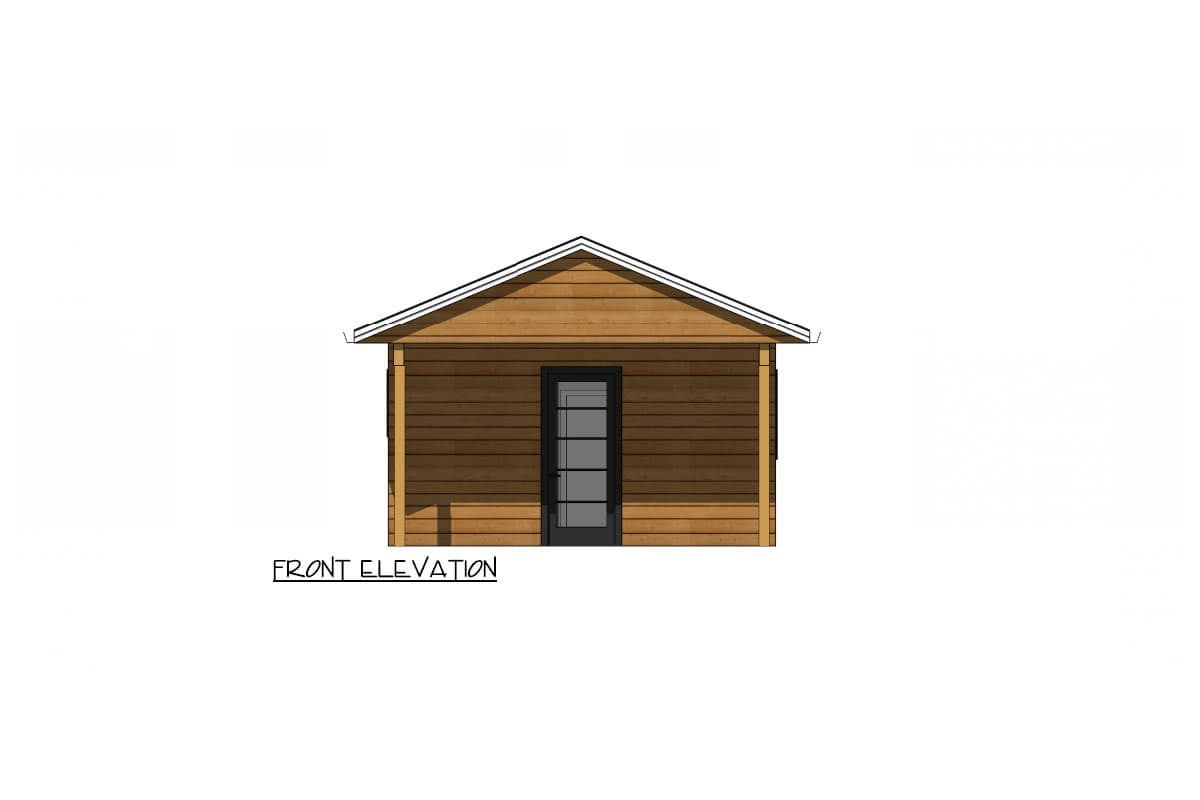

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Site Plan (Available as an upgrade option)
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

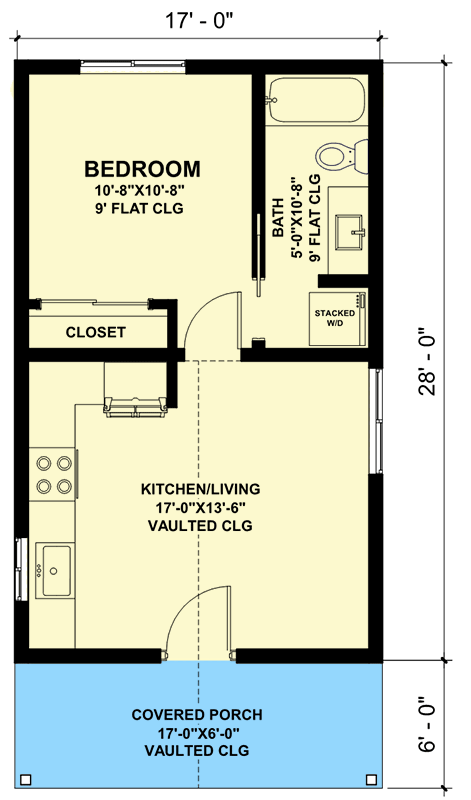

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
476 Square Foot ADU with 6-Foot-Deep Porch - 420094WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 476 sq. ft.
  • 1st Floor: 476 sq. ft.
  • Covered Patio: 102 sq. ft.
  • Porch, Combined: 102 sq. ft.
  • Porch, Front: 102 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Monolithic Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 17' 0"
  • Depth: 34' 0"
  • Max ridge height: 13' 9"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Front Porch Vaulted 9' 0" to 12' 0"
Living Room Vaulted 9' 0" to 12' 0"

Roof Details

  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

476 Square Foot ADU with 6-Foot-Deep Porch

  • 476

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $895
  • 5 Sets $1,045
  • 5 Sets + PDF $1,245
  • PDF - Unlimited Build $1,295
  • CAD Unlimited + PDF $1,795
  • View all purchase option online

About This Plan

  • Enjoy the simple life in this 476 square foot ADU with 6'-deep front porch.
  • Just 17' wide, this can fit virtually any lot.
  • The bedroom is located in back along with the bathroom with stackable laundry.
  • The front of the home is vaulted and gives you a kitchen lining the left side and space for lounging on the right.
  • NOTE: Please allow 3 to 5 business days for delivery.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 476 sq. ft.
  • 1st Floor: 476 sq. ft.
  • Covered Patio: 102 sq. ft.
  • Porch, Combined: 102 sq. ft.
  • Porch, Front: 102 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Monolithic Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 17' 0"
  • Depth: 34' 0"
  • Max ridge height: 13' 9"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick And Truss
Plan 420094WNT
View this and more for this plan by visiting www.architechtecturaldesigns.com/420094WNT
|
