Plan 83935JW 5-Bed Acadian Home Plan with Split-Bed Layout and Bonus Level

2,841 3 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

5-Bed Acadian Home Plan with Split-Bed Layout and Bonus Level

Plan 83935JW

  • 2,841

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This warm and inviting Acadian home plan delivers 5 bedrooms with an open living space offering additional separation between the master and secondary bedrooms.
  • The family room expands onto a sizable rear porch / patio for grilling or dining outdoors, and the island kitchen hosts plenty of workspace and a walk-in pantry.
  • A quiet study rests behind french doors, next to the hallway that leads to two bedroom suites.
  • Retreat to the secluded master bedroom at the end of the day and discover a 5-fixture bathroom and two closets, one of which offers pocket-door access to the laundry room.
  • Two storage rooms in the 3-car garage help your organize lawn supplies and a 626 sq ft bonus room above provides flexibility to the design.

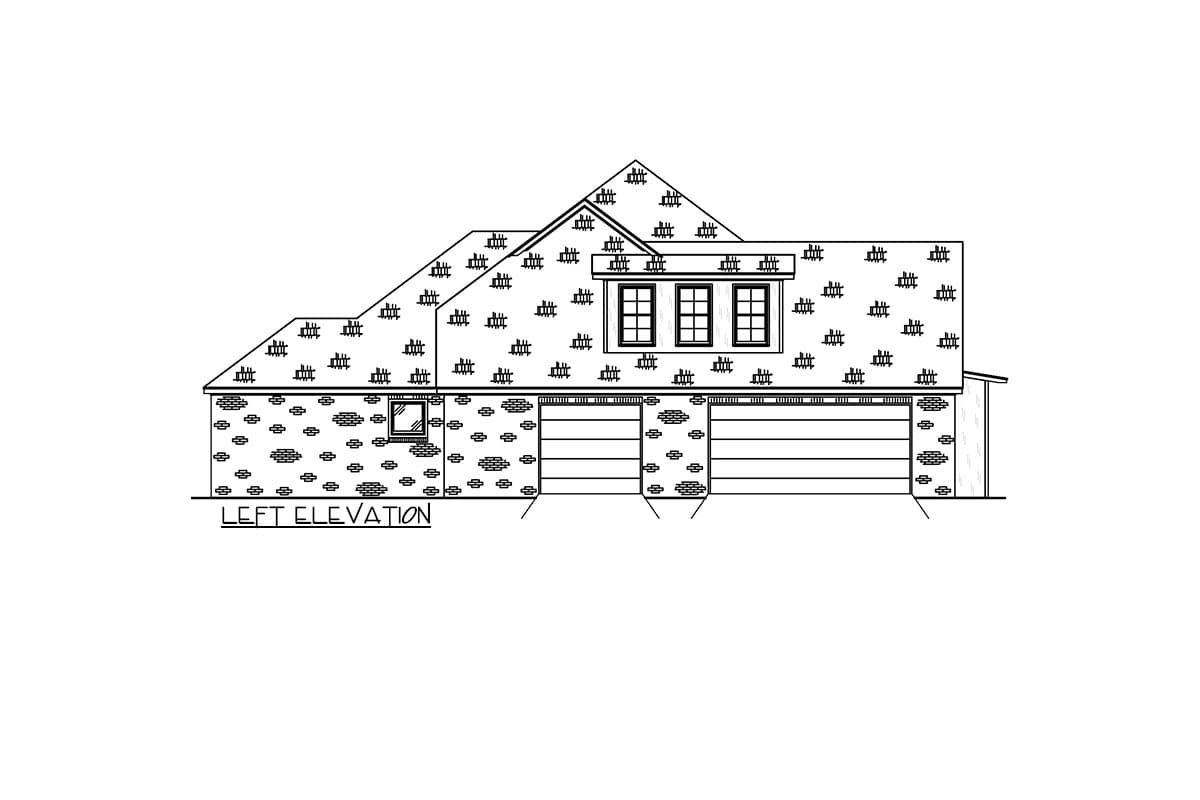

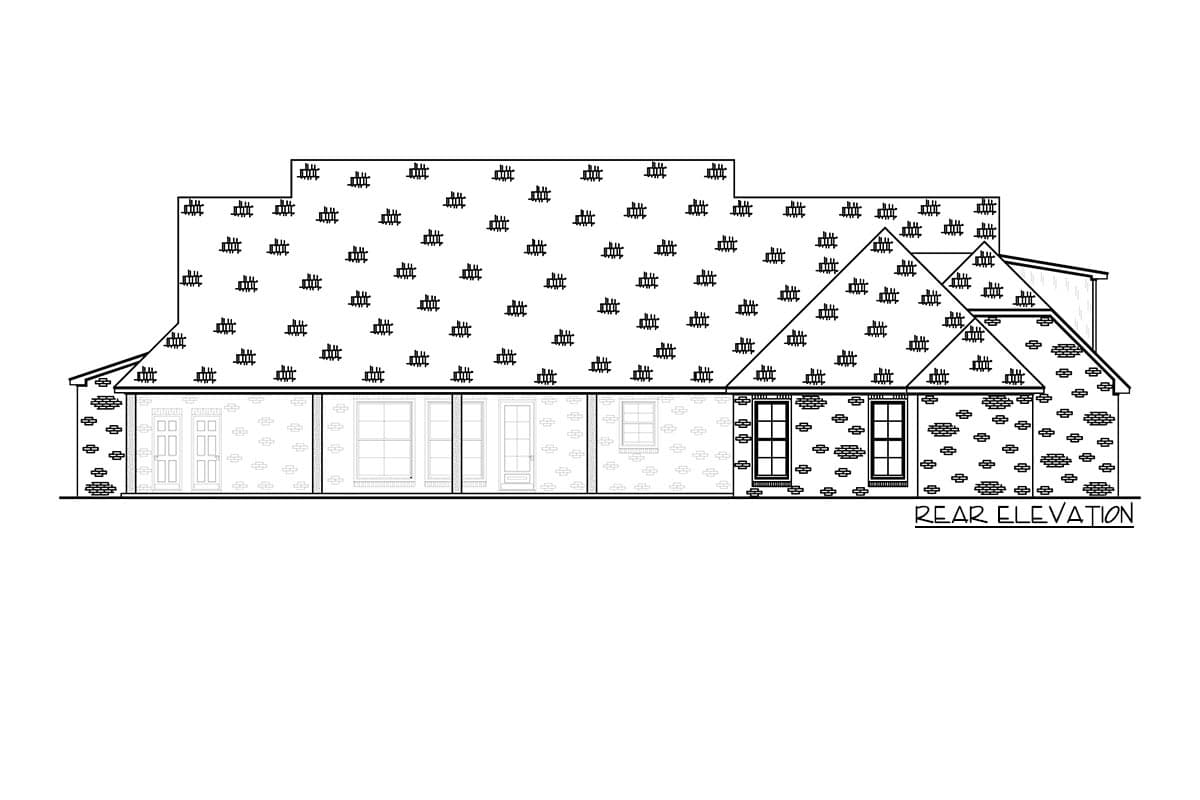

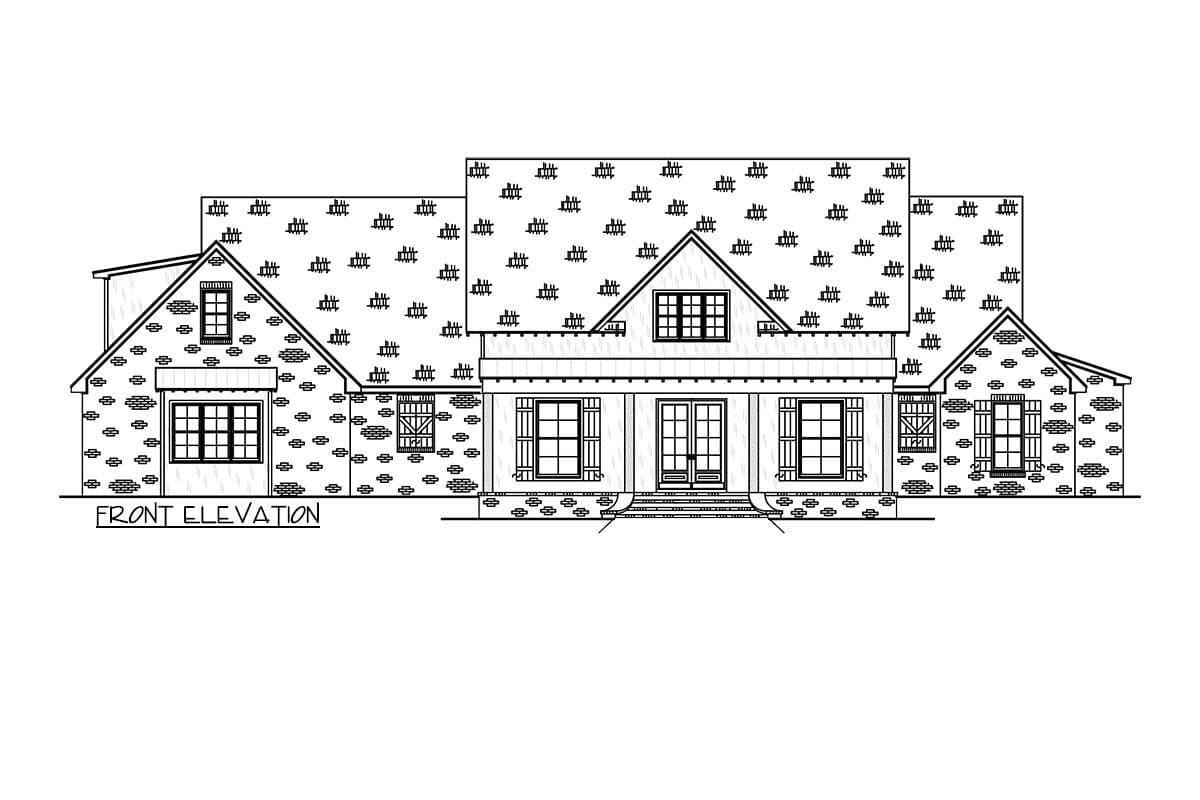

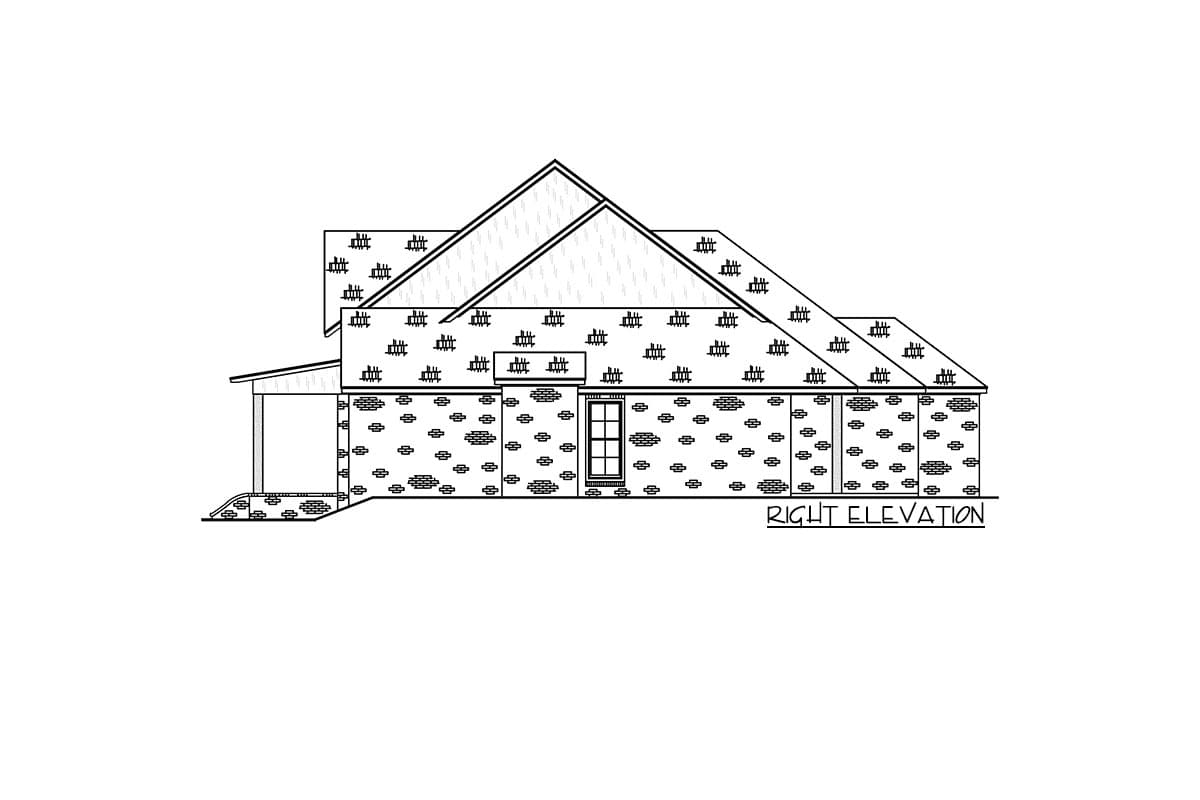

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

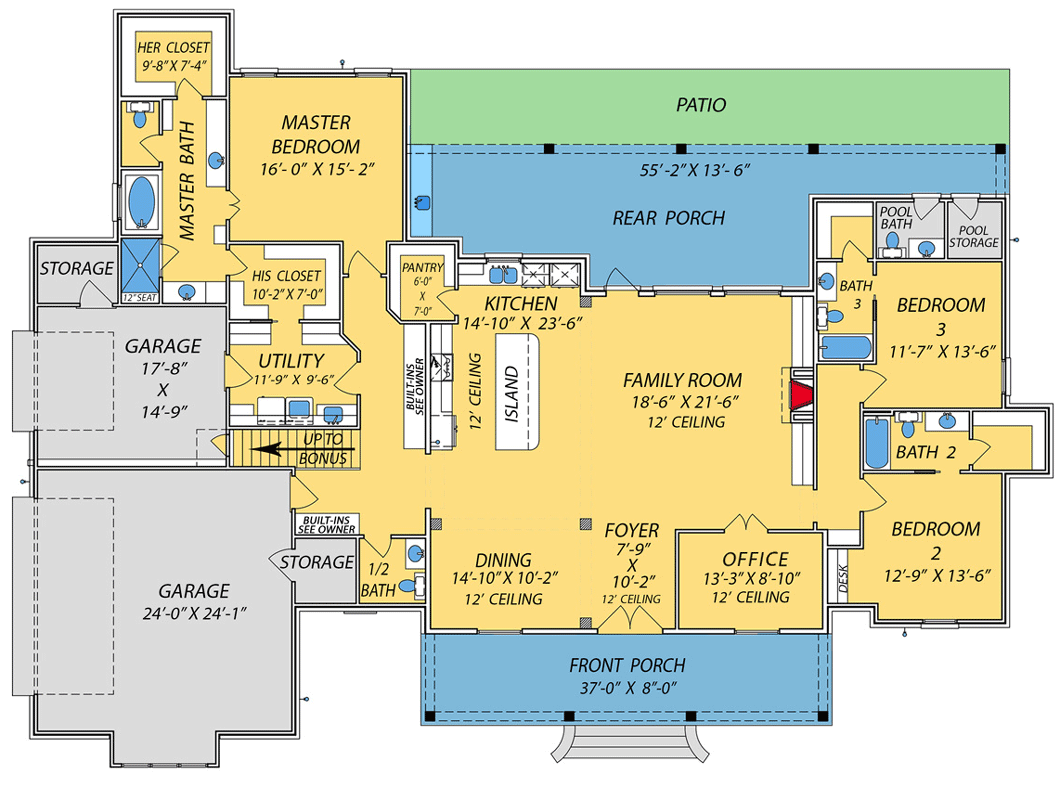

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
5-Bed Acadian Home Plan with Split-Bed Layout and Bonus Level - 83935JW floor plan - Main Level

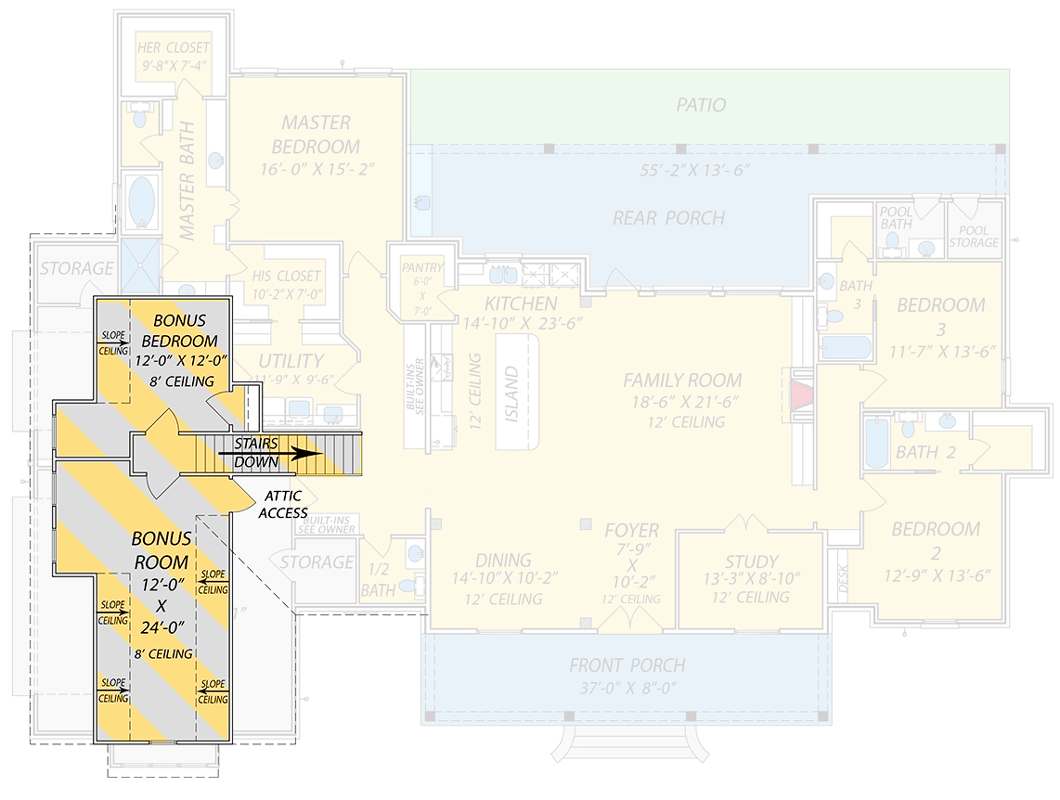

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
5-Bed Acadian Home Plan with Split-Bed Layout and Bonus Level - 83935JW floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,841 sq. ft.
  • 1st Floor: 2,841 sq. ft.
  • Porch, Combined: 833 sq. ft.
  • Bonus: 626 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl, Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 94' 2"
  • Depth: 69' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 957 sq. ft.
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Kitchen 12' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

5-Bed Acadian Home Plan with Split-Bed Layout and Bonus Level

  • 2,841

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $995
  • 5 Sets $1,045
  • 5 Sets + PDF $1,145
  • 8 Sets $1,145
  • PDF - Unlimited Build $1,645
  • CAD - Single-Build $1,845
  • CAD Unlimited + PDF $2,345
  • View all purchase option online

About This Plan

  • This warm and inviting Acadian home plan delivers 5 bedrooms with an open living space offering additional separation between the master and secondary bedrooms.
  • The family room expands onto a sizable rear porch / patio for grilling or dining outdoors, and the island kitchen hosts plenty of workspace and a walk-in pantry.
  • A quiet study rests behind french doors, next to the hallway that leads to two bedroom suites.
  • Retreat to the secluded master bedroom at the end of the day and discover a 5-fixture bathroom and two closets, one of which offers pocket-door access to the laundry room.
  • Two storage rooms in the 3-car garage help your organize lawn supplies and a 626 sq ft bonus room above provides flexibility to the design.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,841 sq. ft.
  • 1st Floor: 2,841 sq. ft.
  • Porch, Combined: 833 sq. ft.
  • Bonus: 626 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl, Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 94' 2"
  • Depth: 69' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 957 sq. ft.
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
Plan 83935JW
View this and more for this plan by visiting www.architechtecturaldesigns.com/83935JW
|
