5-Bed Contemporary House Plan with Outdoor Kitchen - 4233 Sq Ft

Heated S.F.
4,233
Beds
5
Baths
5
Stories
2
Cars
2

Floor Plan

Plan 780009KYD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 780009KYD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

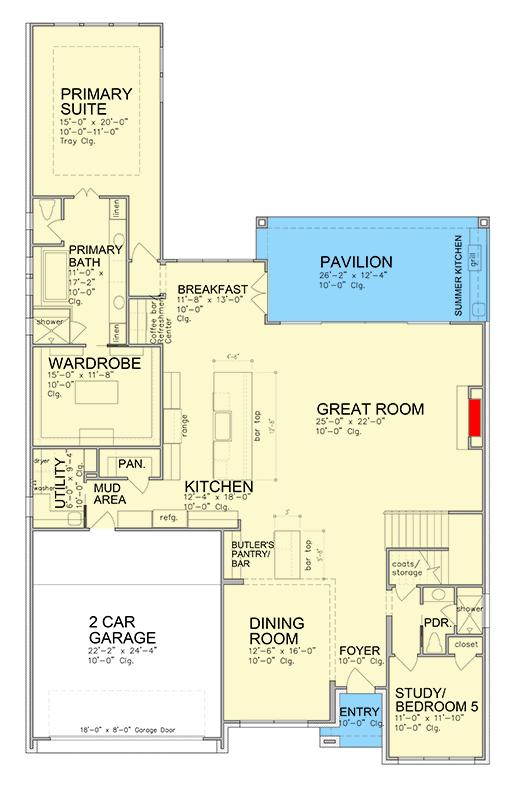

Plan 780009KYD: 5-Bed Contemporary House Plan with Outdoor Kitchen - 4233 Sq Ft - Floor Plan - Main Level - Contemporary, European, Modern, New American, Southern, Transitional

2nd Floor

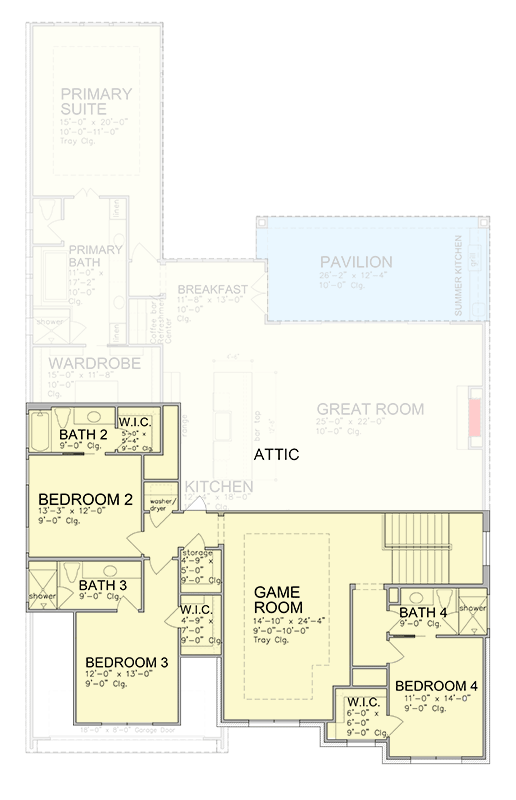

Plan 780009KYD: 5-Bed Contemporary House Plan with Outdoor Kitchen - 4233 Sq Ft - Floor Plan - 2nd Floor - Contemporary, European, Modern, New American, Southern, Transitional

Plan Details

  • This contemporary house plan gives you 4,233 square feet of heated living space, 5 beds, 5 full baths and a 604 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Floor Plan (s)
  • Exterior Elevations
  • Electrical Plan and Interior Elevations
  • Cross Section and Ceiling Framing Plan
  • Roof Plan and Foundation plan
  • Detail

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,233 sq. ft.

1st Floor

2,776 sq. ft.

2nd Floor

1,457 sq. ft.

Porch, Front

37 sq. ft.

Porch, Rear

329 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 8"

Depth

87' 4"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

604 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Primary Bedroom

Tray

11' 0''

Game Room

Tray

11' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Modern

New American

Southern

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Playroom

Wet Bar

Square Footage Breakdown

Total Heated Area

4,233 sq. ft.

1st Floor

2,776 sq. ft.

2nd Floor

1,457 sq. ft.

Porch, Front

37 sq. ft.

Porch, Rear

329 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 8"

Depth

87' 4"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

604 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Primary Bedroom

Tray

11' 0''

Game Room

Tray

11' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Modern

New American

Southern

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Playroom

Wet Bar
