5-Bed Contemporary House Plan with Two-Story Great Room and Rooftop Deck
Heated S.F.
4,483
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • This modern house plan gives you 4,483 square feet of heated living space with 5 beds, 4.5 baths and a 726 square foot 3-car garage.
  • A den to the left of the foyer makes a great work-from-home space. A powder room is across the way.
  • The 2-story great room has outdoor access through sliding doors and is open to the kitchen island.
  • Down the hall, find a guest suite with patio access and a fitness room. Opposite the mud room, a large walk-in pantry makes unloading groceries a breeze.
  • Upstairs, you'll find your master suite, complete with private bath and walk-in closet, as well as three additional bedrooms. A bonus room - factored into the total living area - has access to the covered deck with spiraling stairs leading up to the rooftop deck above.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

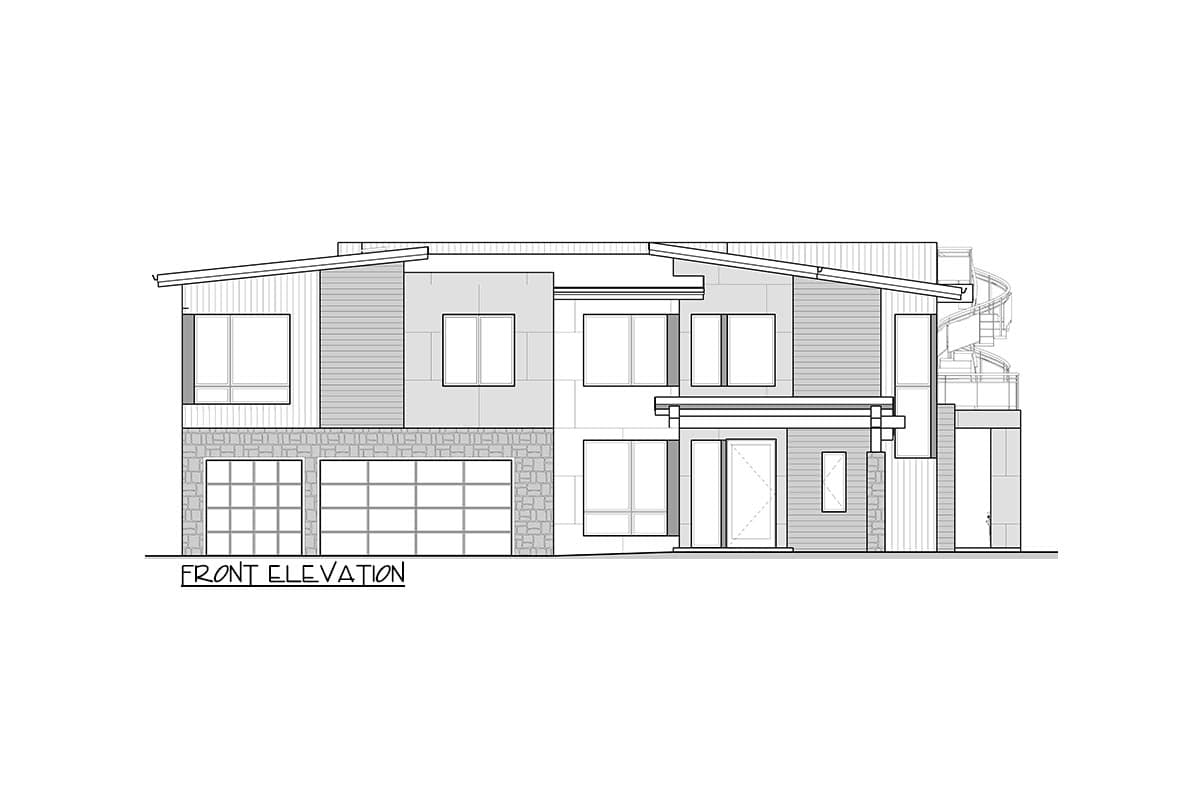

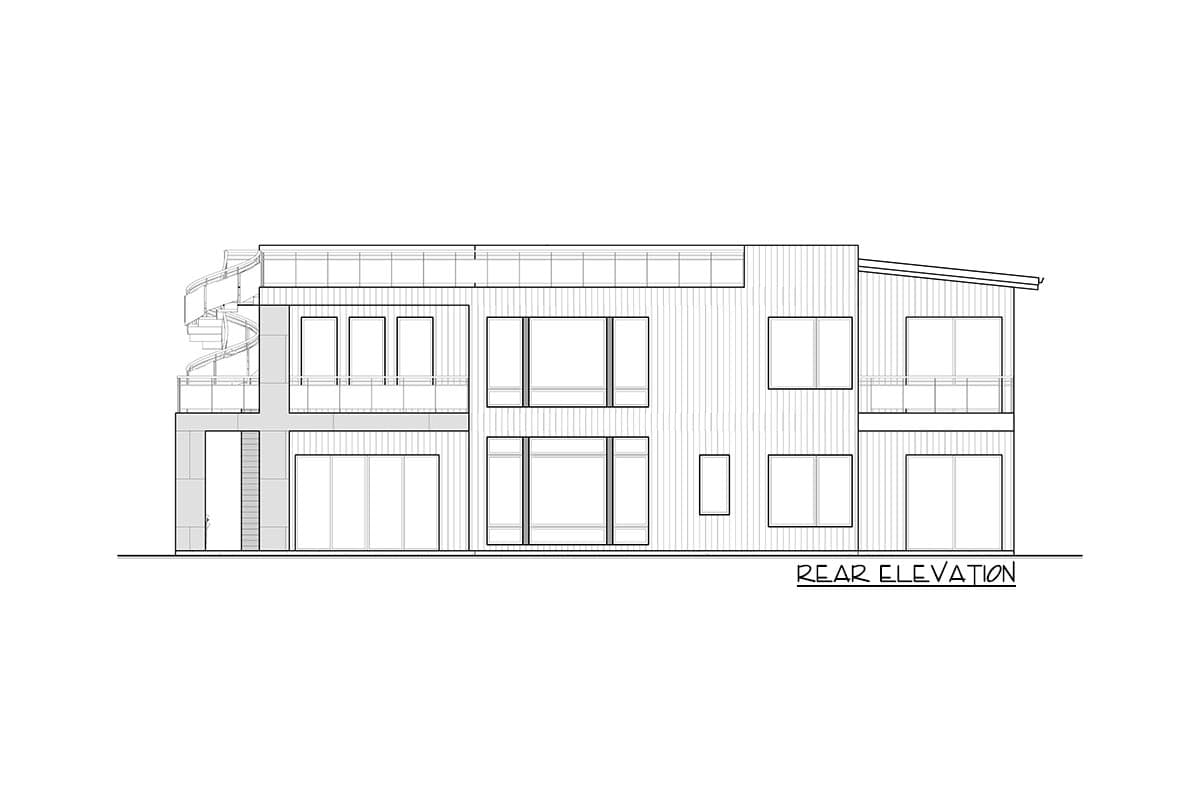

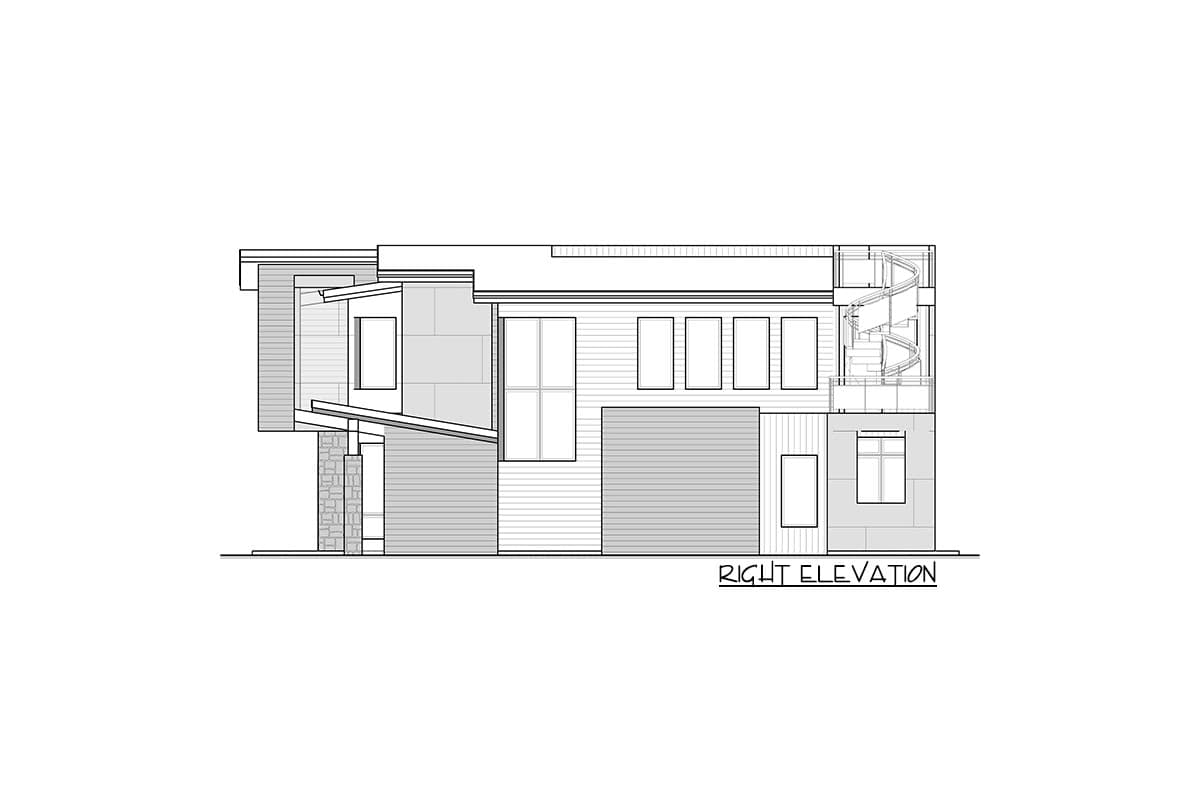

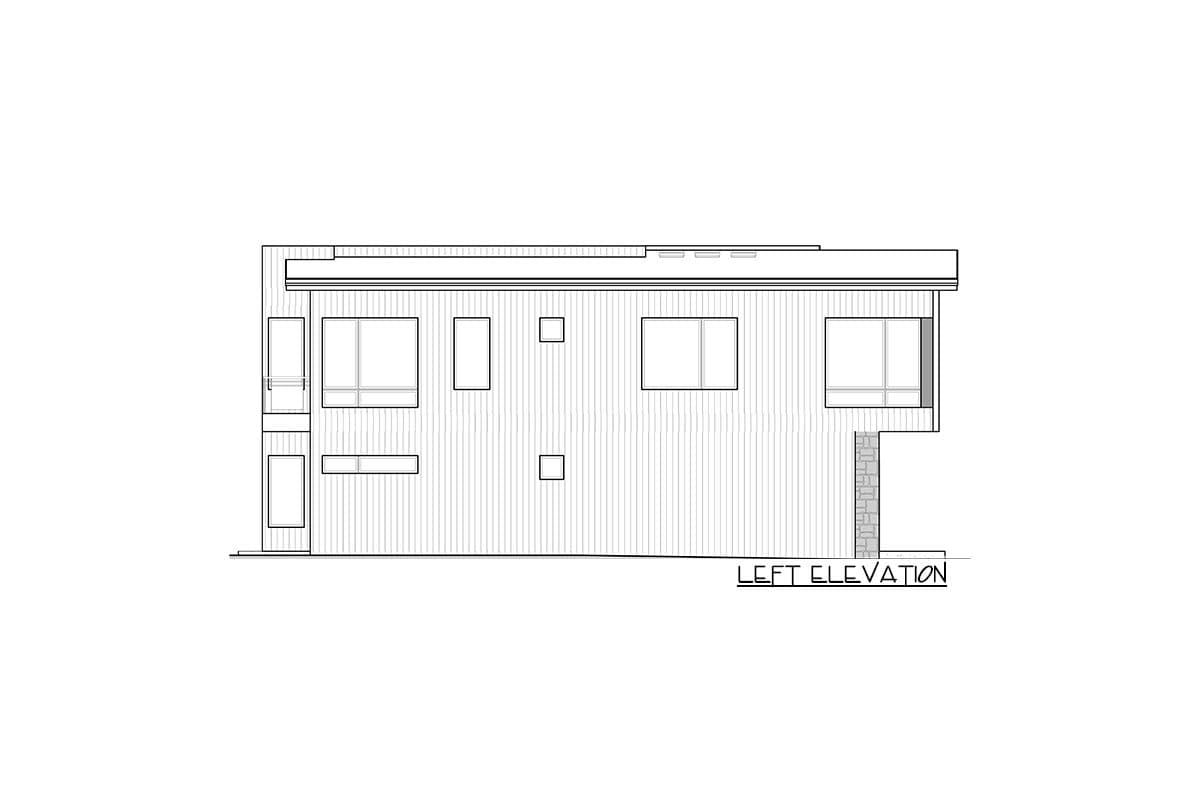

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5-Bed Contemporary House Plan with Two-Story Great Room and Rooftop Deck

  • 4,483

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

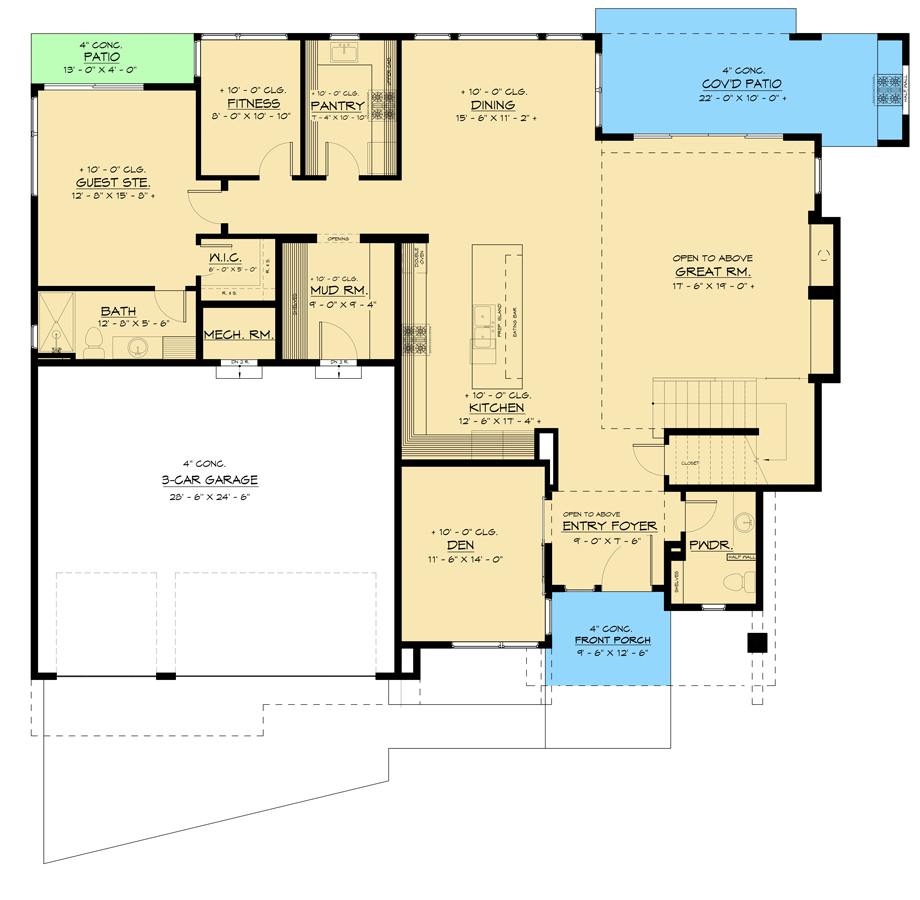

  • Main Level

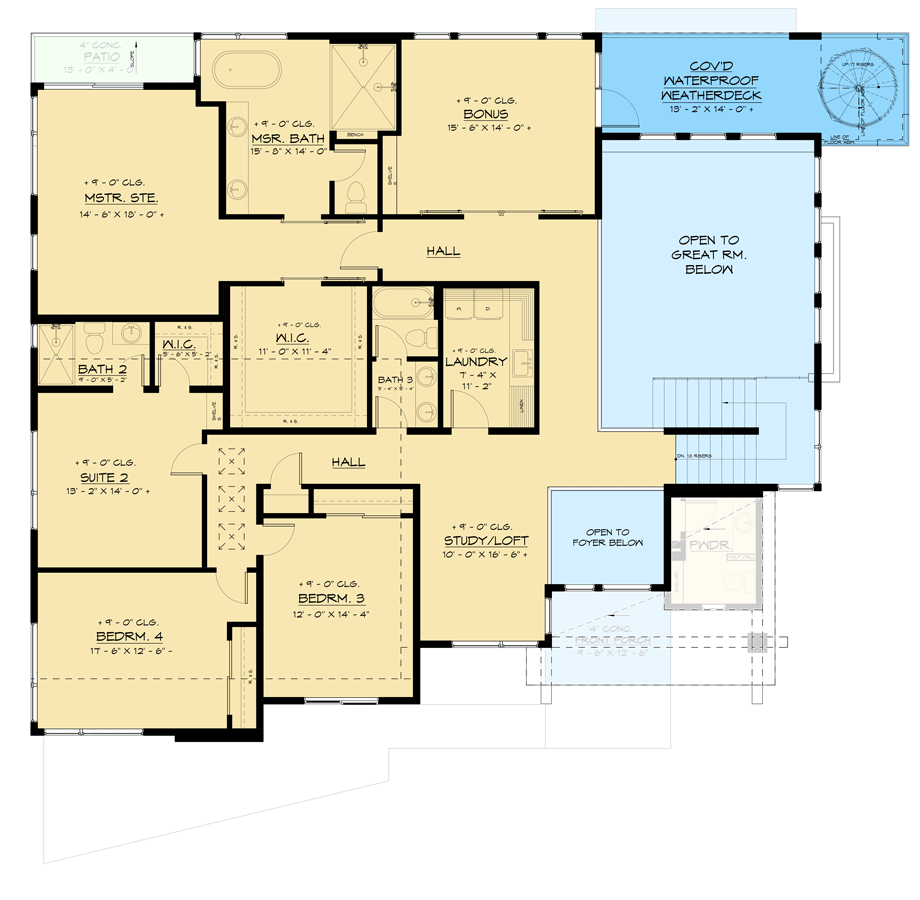

  • 2nd Floor

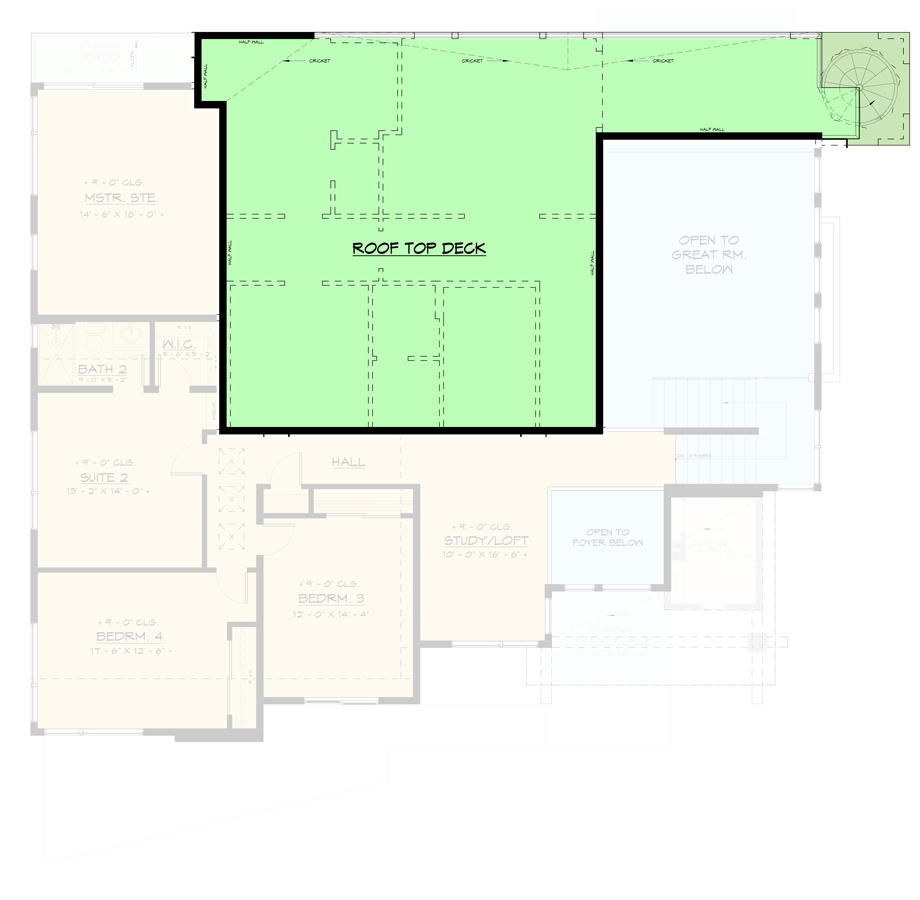

  • Rooftop Deck

Plan Details

Square Footage Breakdown

  • Total: 4,483 sq. ft.
  • 1st Floor: 2,140 sq. ft.
  • 2nd Floor: 2,343 sq. ft.
  • Rooftop Deck: 1,149 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 51' 6"
  • Max ridge height: 25' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 726 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 1.25 on 12
  • Secondary Pitch: 1.75 on 12
  • Framing Type: Truss
