5-Bed Craftsman Home Plan with Finished Lower Level

Plan 42610DB

  • 2,776

    Heated s.f.

  • 5

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • The rustic exterior of this Craftsman house plan will warm your heart as you pull in the driveway.
  • Designed as a three bedroom house plan with a bedroom on the second floor, it has three other versions that give you more space and different exteriors.
  • All enjoy an open floor plan and a big walk-in pantry in the kitchen.
  • The owner's suite has a lovely tray ceiling plus a big bathroom and walk-in closet.
  • The finished lower level gives you two beds and a family room plus lots of storage.
  • Related Plans: Eliminate the basement with house plan 42341DB. Get an alternate stucco exterior with house plan 42343DB. Remove the second floor with house plans 42340DB (1,596 sq.ft.) and 42359DB (1,452 sq. ft.).

This house plan set has the following details:

  • General Notes

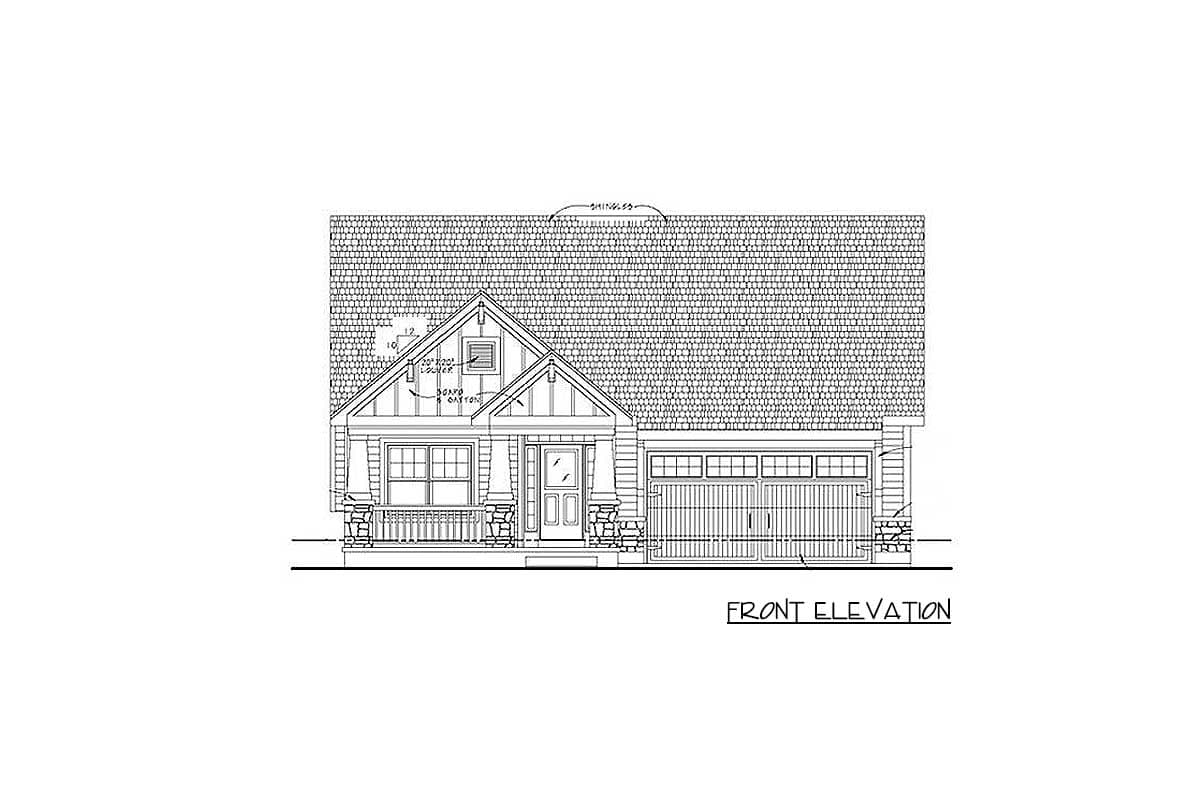

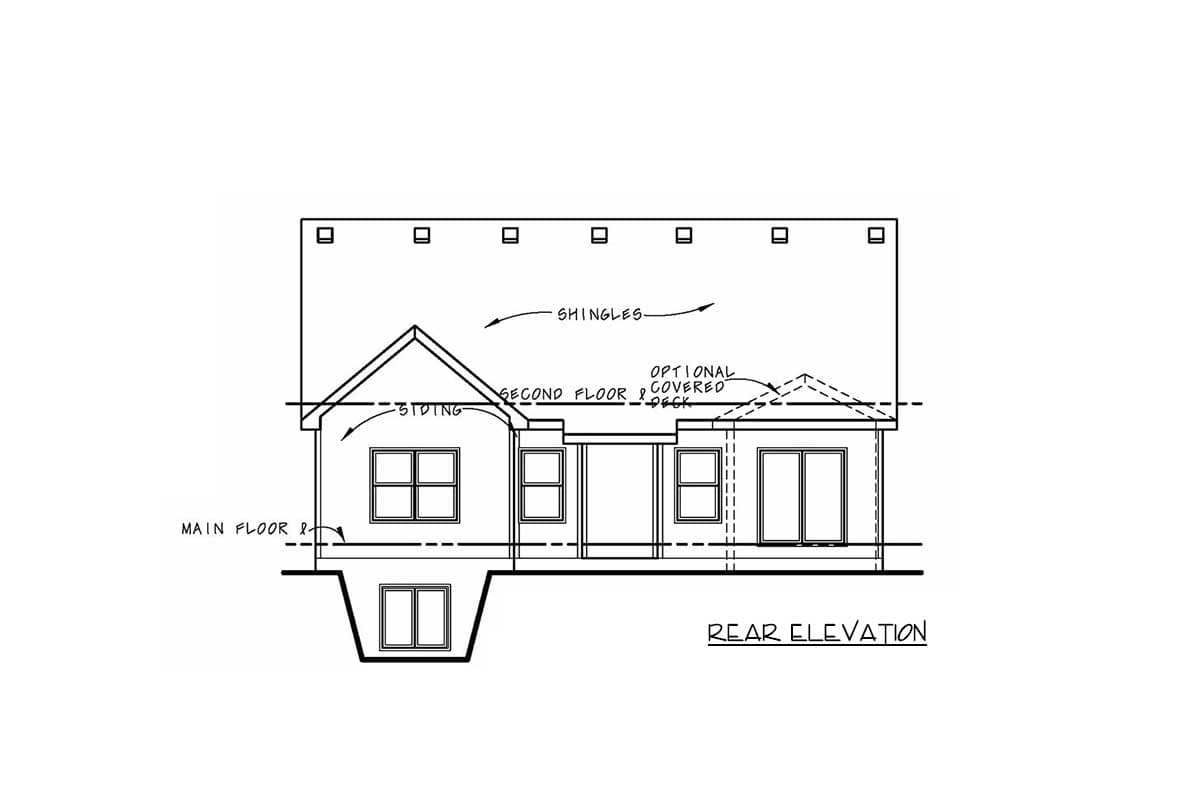

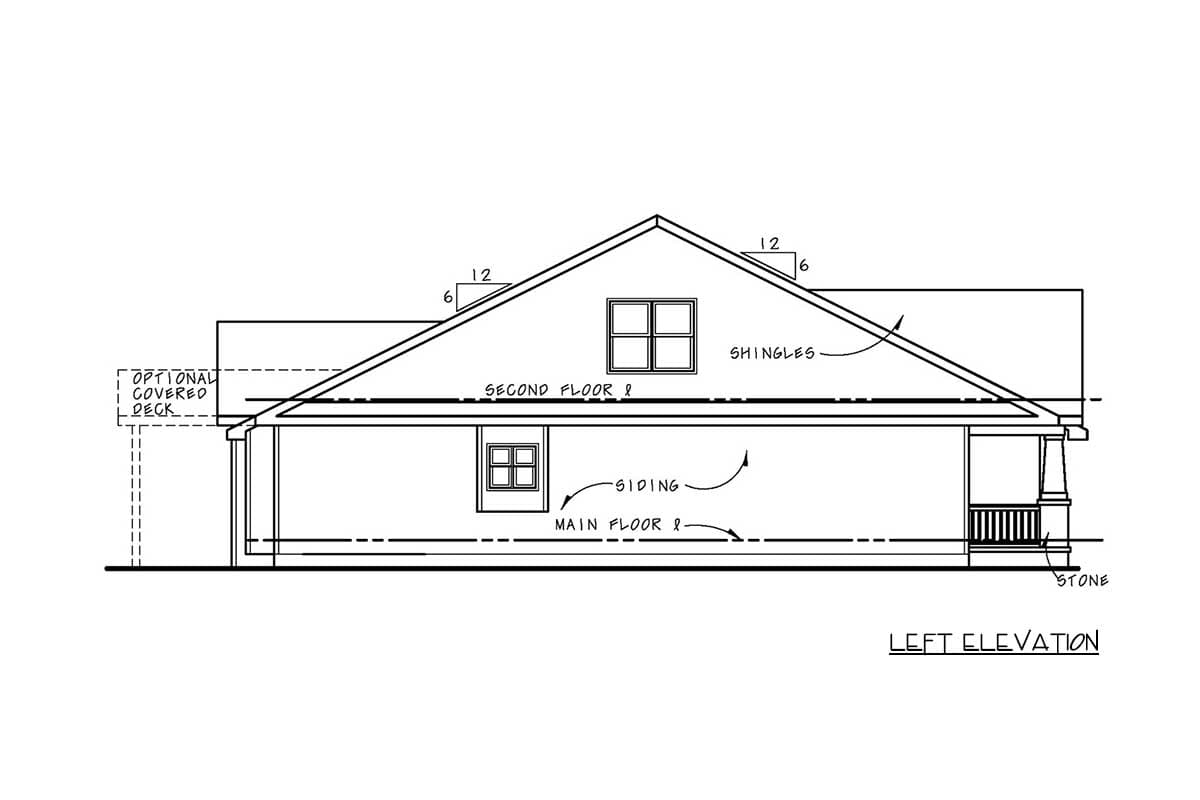

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

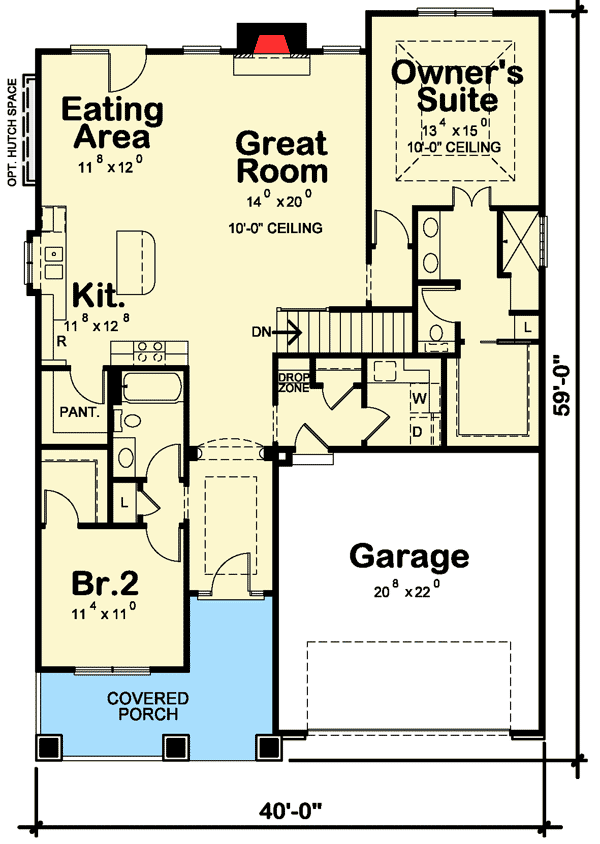

5-Bed Craftsman Home Plan with Finished Lower Level - 42610DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
5-Bed Craftsman Home Plan with Finished Lower Level - 42610DB floor plan - 2nd Floor

Opional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
5-Bed Craftsman Home Plan with Finished Lower Level - 42610DB floor plan - Opional

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

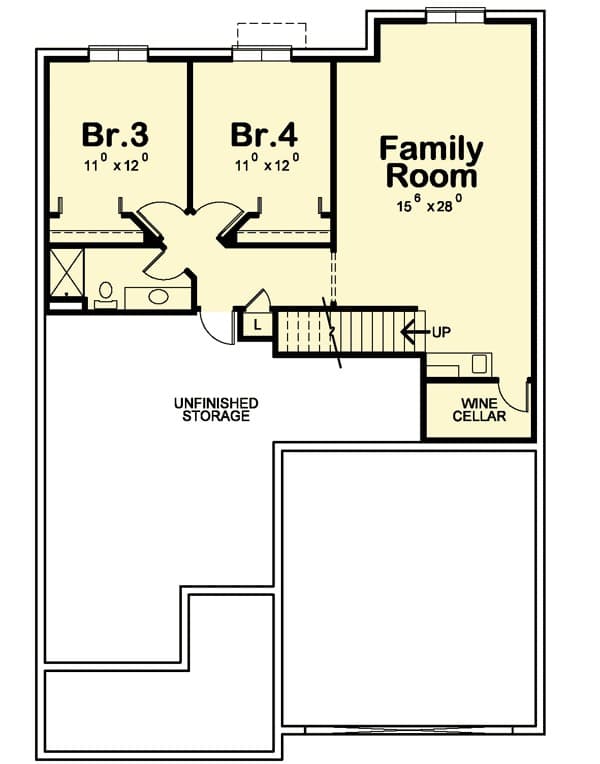

5-Bed Craftsman Home Plan with Finished Lower Level - 42610DB floor plan - Lower Level
