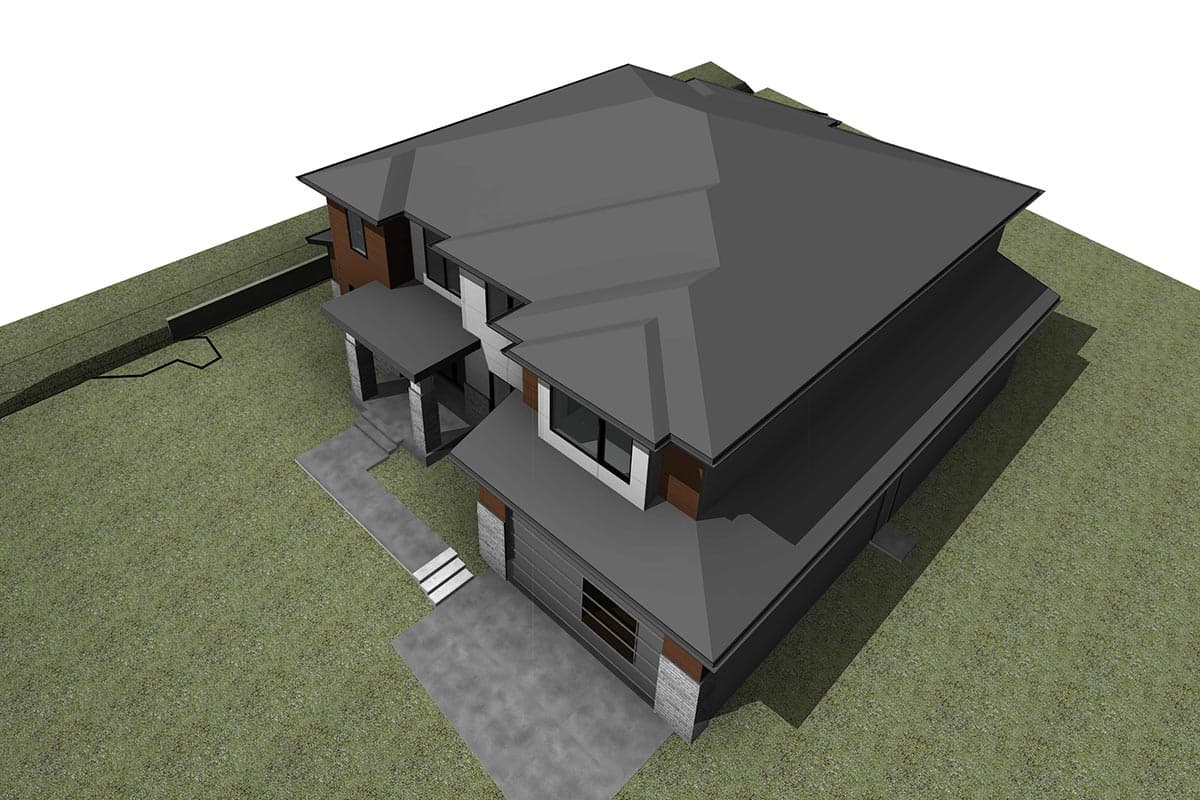

5-Bed Modern Home Plan with 4-Car Tandem Garage

Plan 666179RAF

This plan plants 3 trees

4,111
Heated s.f.
4-5
Beds
4.5
Baths
2
Stories
4
Cars

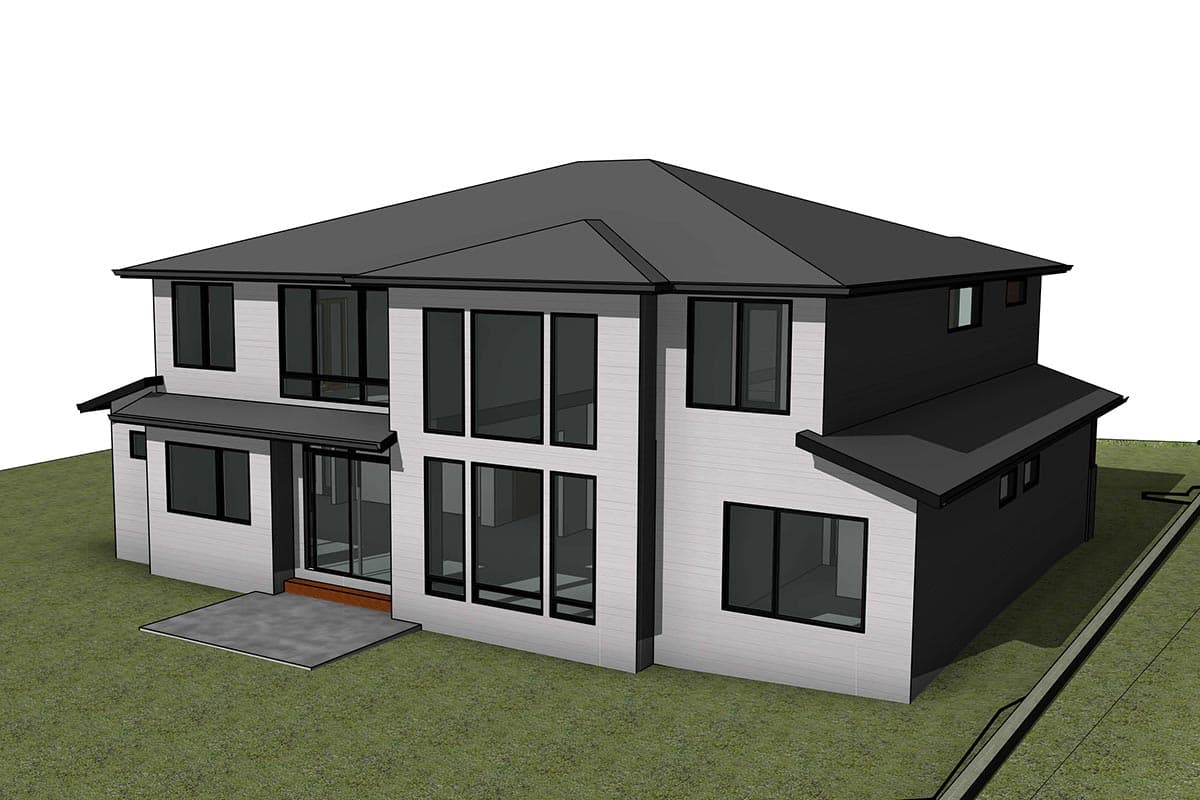

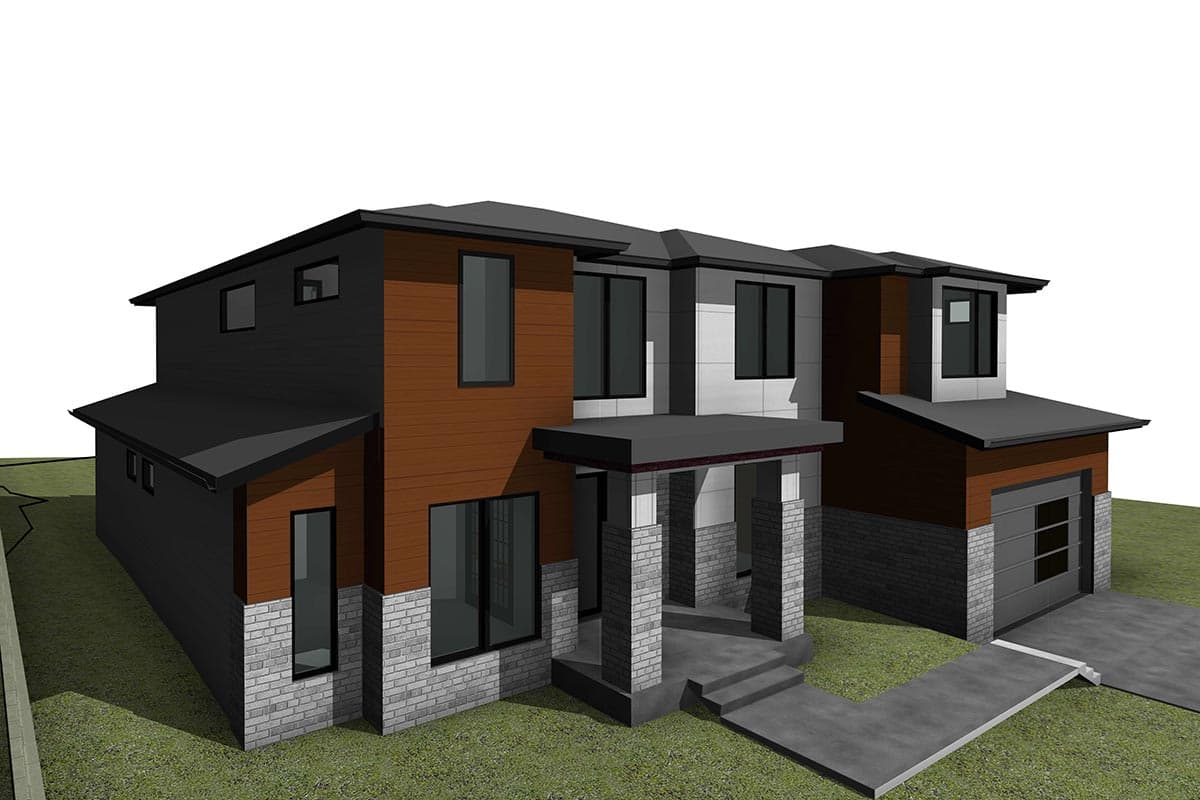

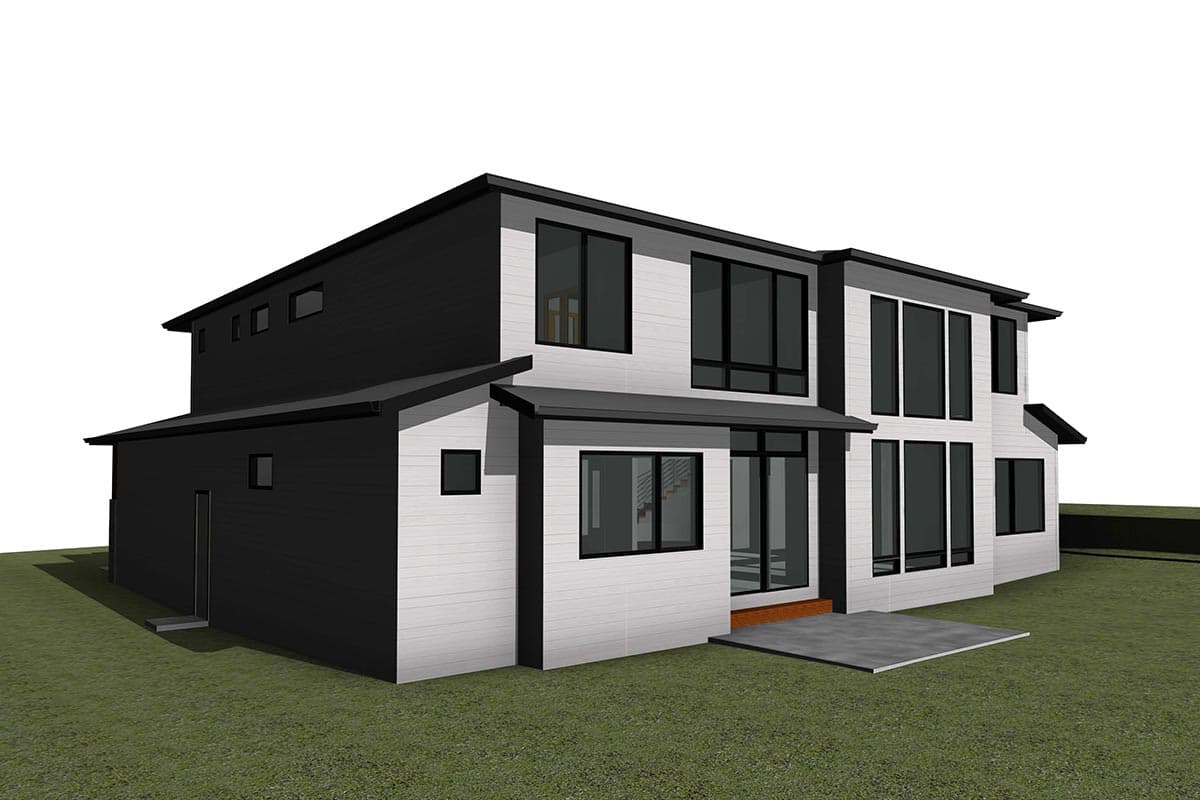

Tall coffered ceilings, a curved staircase, art niches, and custom builtins add to the elegance offered by this 5-bedroom Modern home plan.
A flex room is located to the left of the foyer, across from the formal dining room. Tall ceilings expand the great room vertically and an oversized opening leads into the kitchen and breakfast nook.
The kitchen's prep island includes an eating bar and the elongated pantry offers natural light and maximizes storage space.
A guest suite is located on the main level, while the remaining bedrooms and laundry room reside upstairs. The master suite is filled with natural light and features a 5-fixture bathroom and a roomy closet.

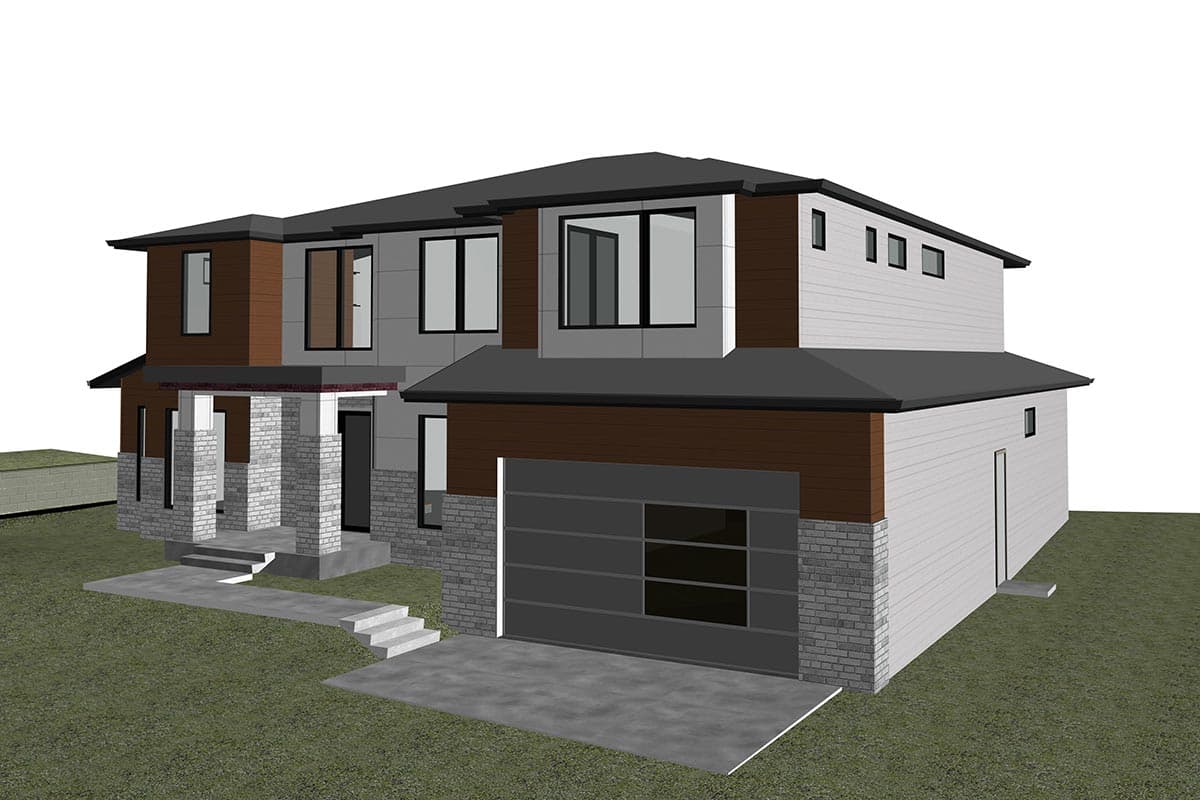

The tandem garage provides space for 4 cars and opens into a mudroom with a built-in bench.

Plans include:

Cover Sheet
General notes
Foundation Plan
Fully dimensioned floor plans

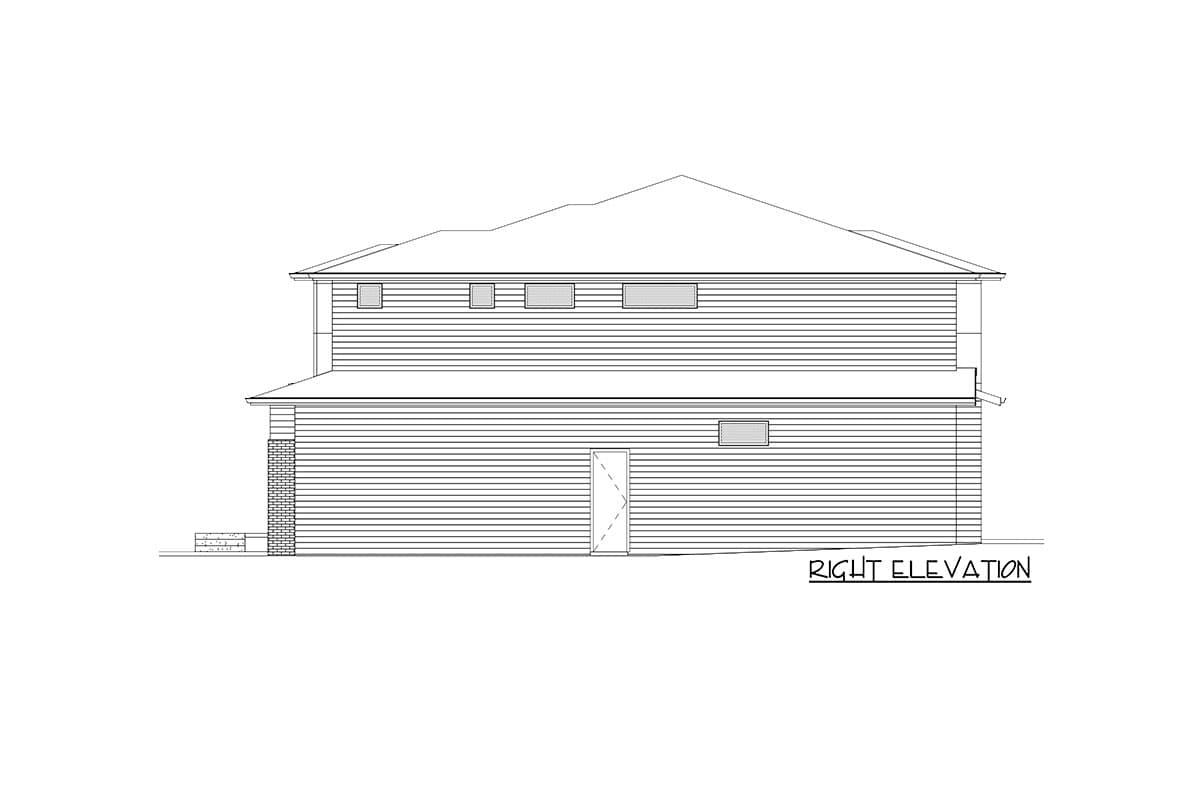

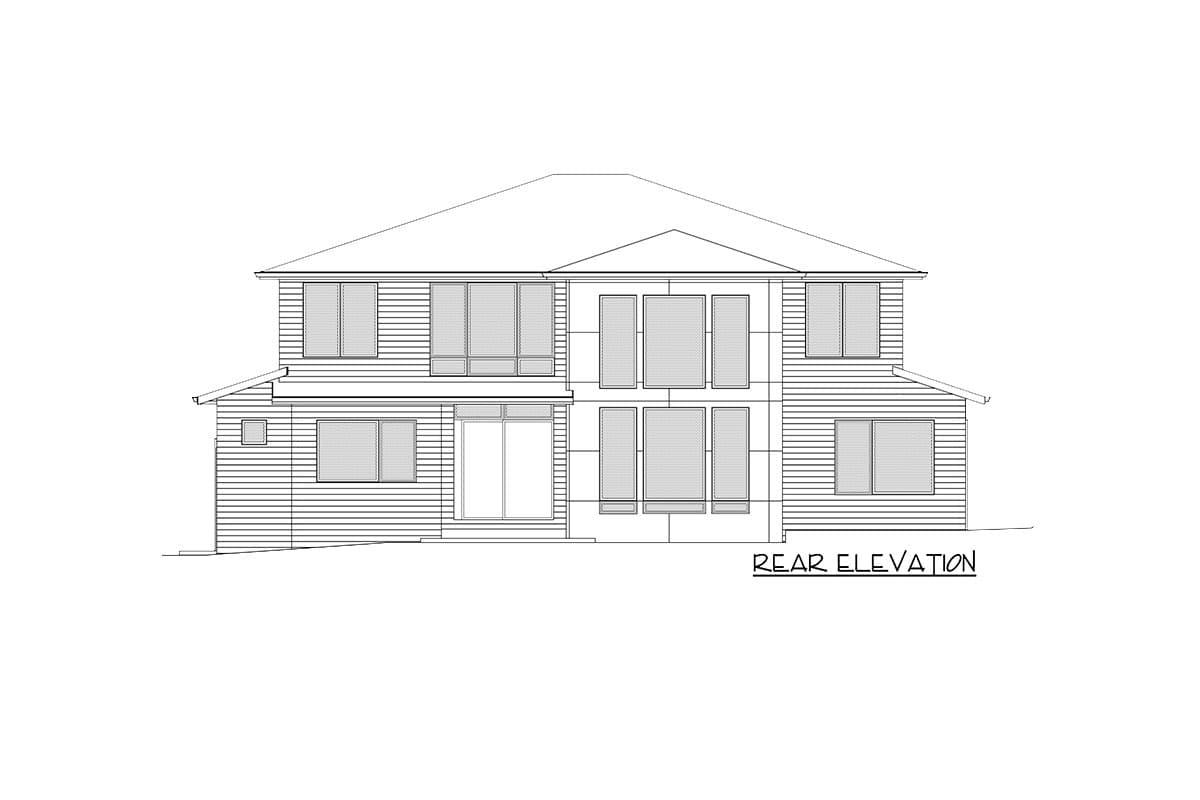

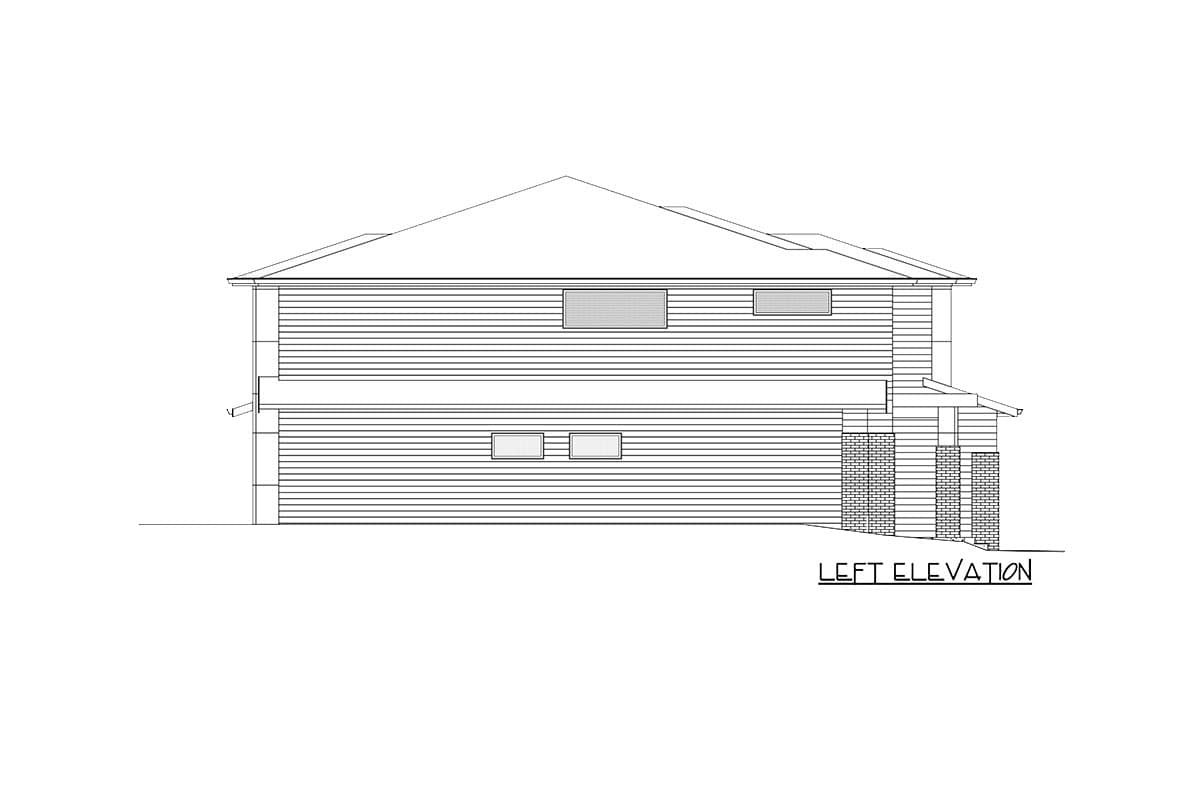

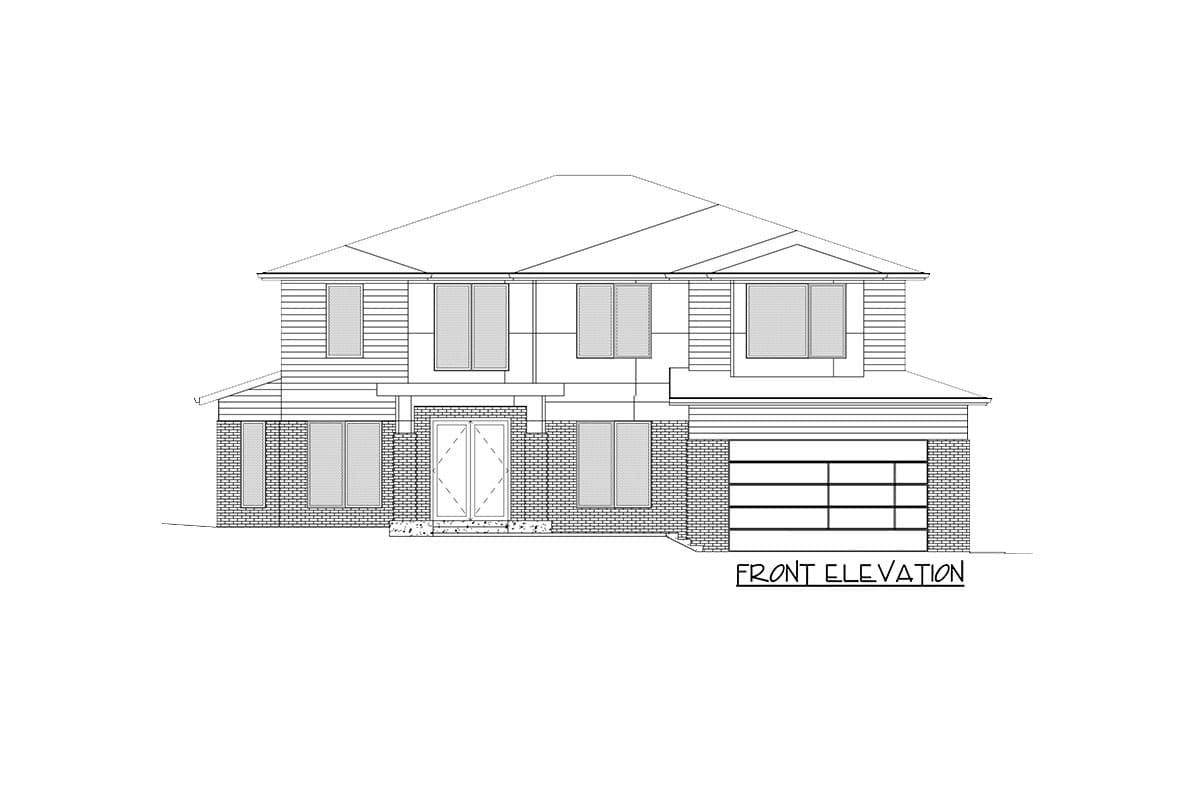

Elevations
Building cross sections
Roof Plan

What is NOT included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

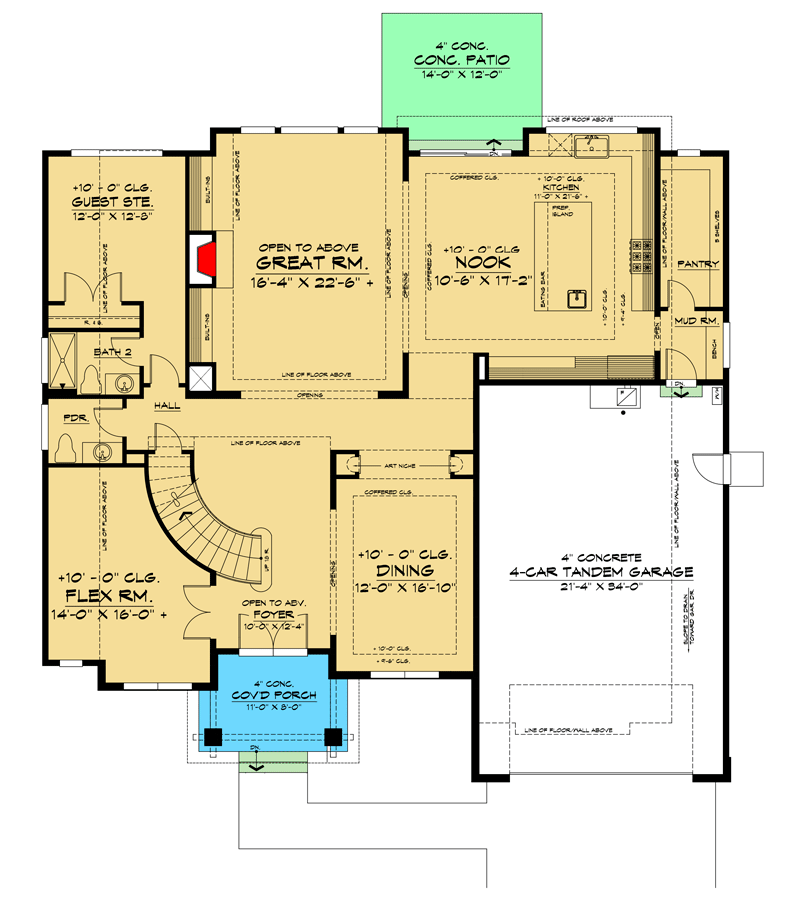

5-Bed Modern Home Plan with 4-Car Tandem Garage - 666179RAF floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

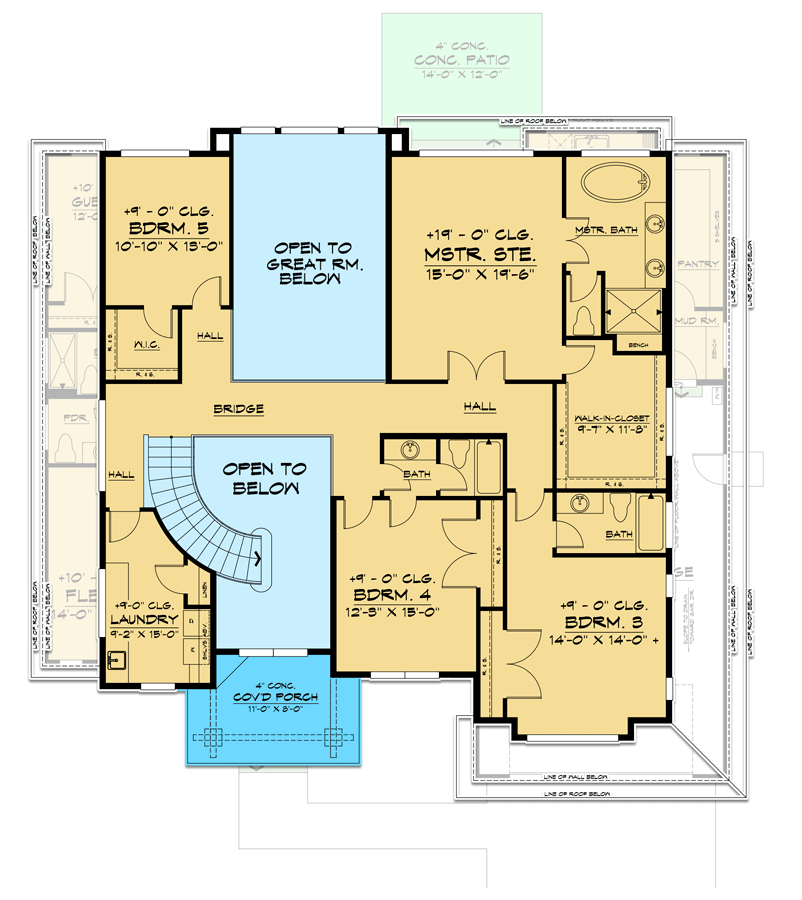

5-Bed Modern Home Plan with 4-Car Tandem Garage - 666179RAF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,111 sq. ft.
1st Floor: 2,247 sq. ft.
2nd Floor: 1,864 sq. ft.

Porch, Front: 103 sq. ft.
Uncovered Patio: 160 sq. ft.

Beds/Baths

Bedrooms: 4 or 5

Full bathrooms: 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 60' 0"
Depth: 57' 0"
Max ridge height: 29' 2"

Garage

Type: Attached
Area: 725 sq. ft.
Count: 4 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 4 on 12

Framing Type: Truss

Architectural Style

Special features
