Plan 506023BRY
5-Bed New American House Plan with Two-Story Great Room - 4582 Sq Ft
Heated S.F.
4,582
Beds
5
Baths
4.5
Stories
2
Cars
3- 4
Floor Plan

Plan 506023BRY

Main Level
slide image 0
2nd Floor
slide image 1

Plan 506023BRY

1-800-854-7852

1-262-521-4596

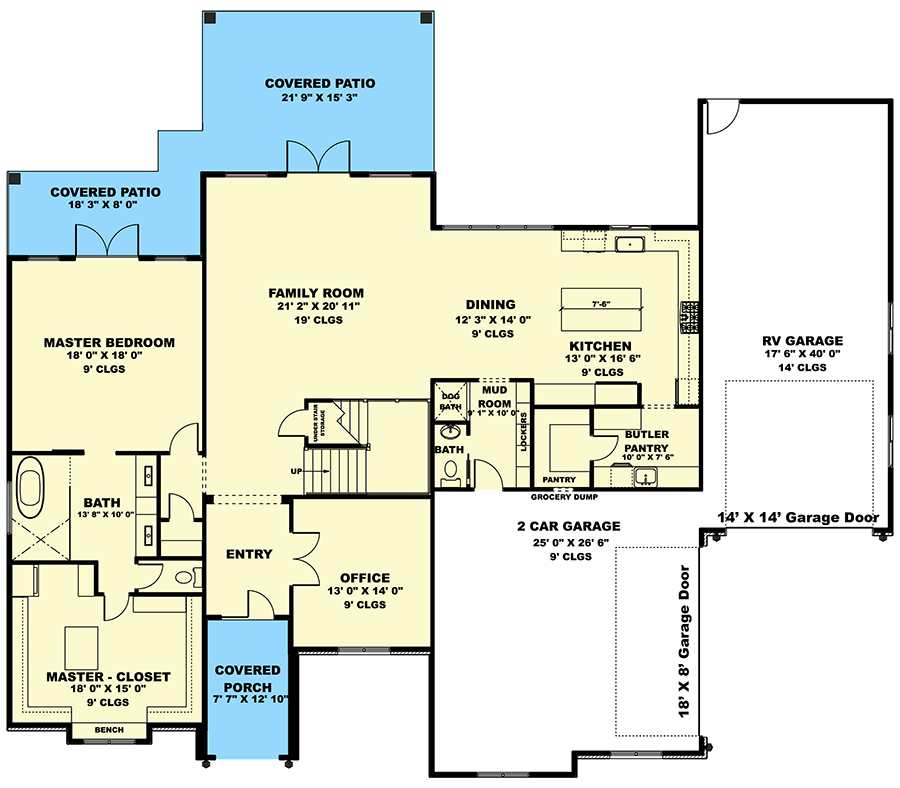

Main Level
floor plan image Main Level

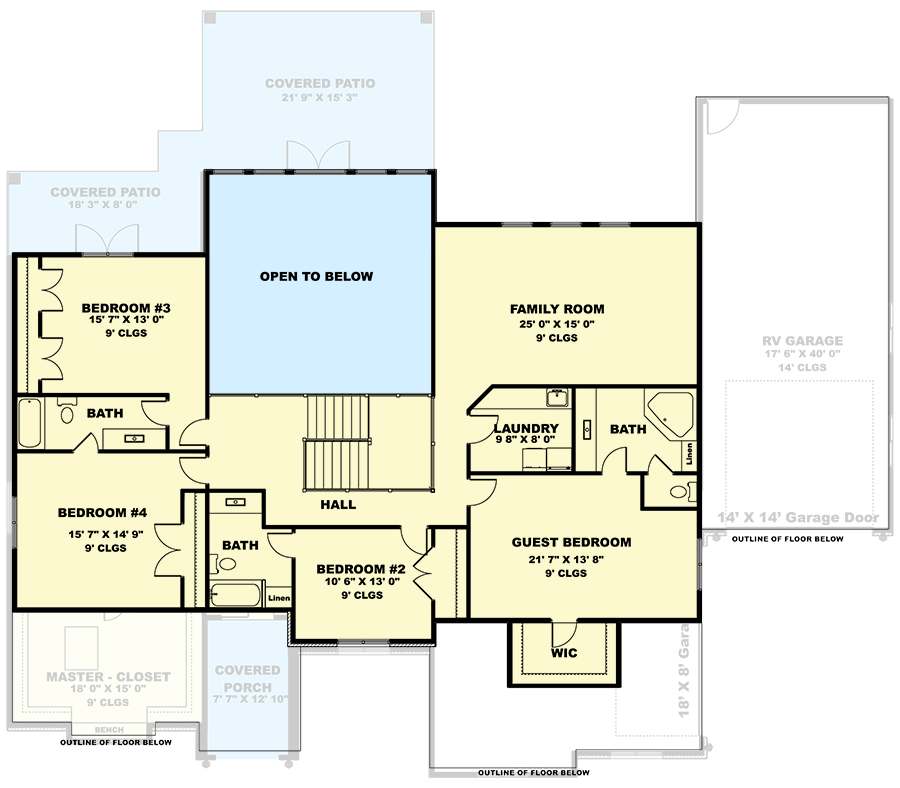

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This New American house plan offers you 4,582 square feet of heated living space with 5 beds, 4.5 baths and a 1,436 square foot 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan
What's Not Included
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,582 sq. ft.

1st Floor

2,416 sq. ft.

2nd Floor

2,166 sq. ft.

Porch, Front

124 sq. ft.

Covered Patio

515 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 11"

Depth

63' 7"

Max Ridge Height

32' 8"

Garage

Type

Attached, RV Garage

Area

1436 sq. ft.

Count

3 or 4 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Family Room

Flat

19' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

Mountain

New American

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Flex Room

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room
