5-Bed Traditional Home Plan with Two Master Suites
Heated S.F.
3,166
Beds
5
Baths
3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

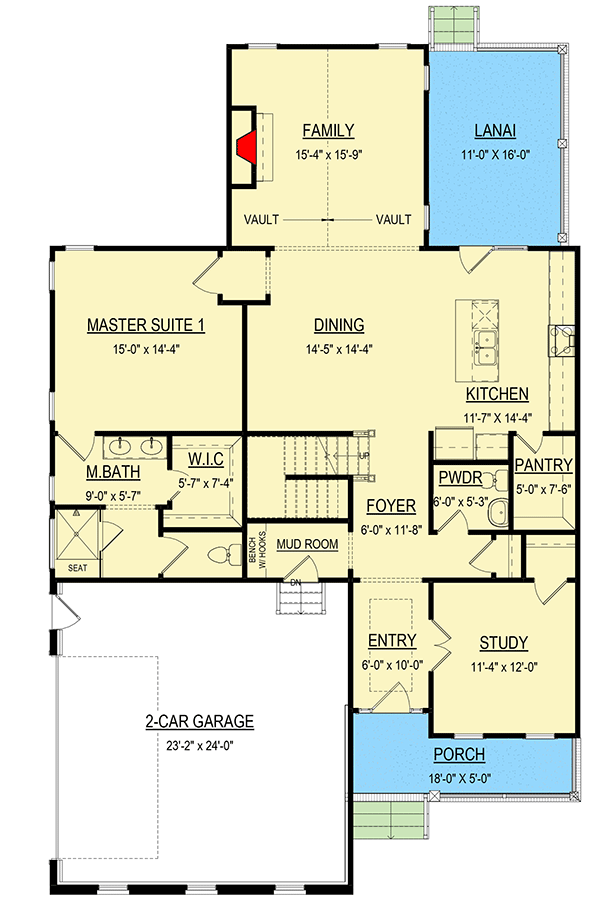

5-Bed Traditional Home Plan with Two Master Suites - 83603CRW floor plan - Main Level
2nd Floor
Reverse Floor Plan

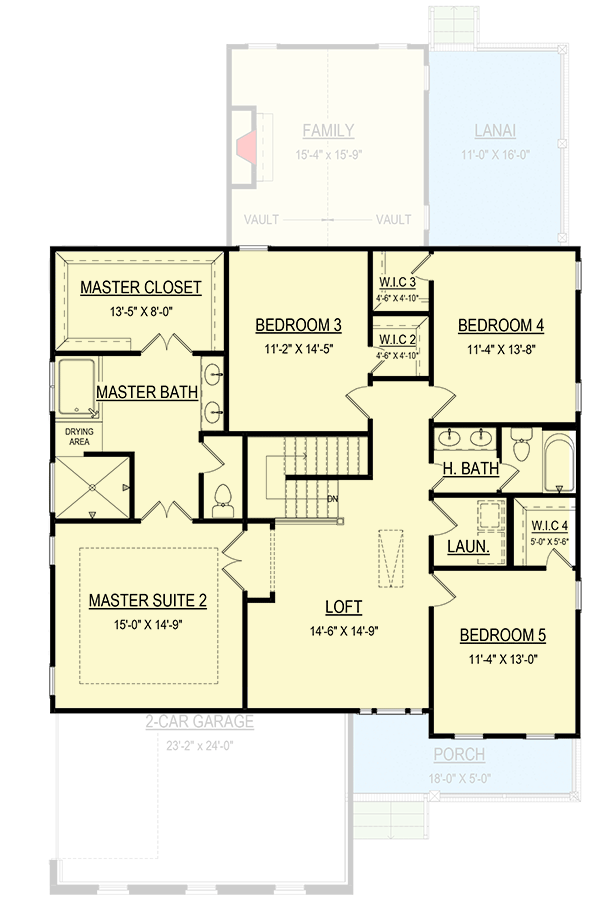

5-Bed Traditional Home Plan with Two Master Suites - 83603CRW floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

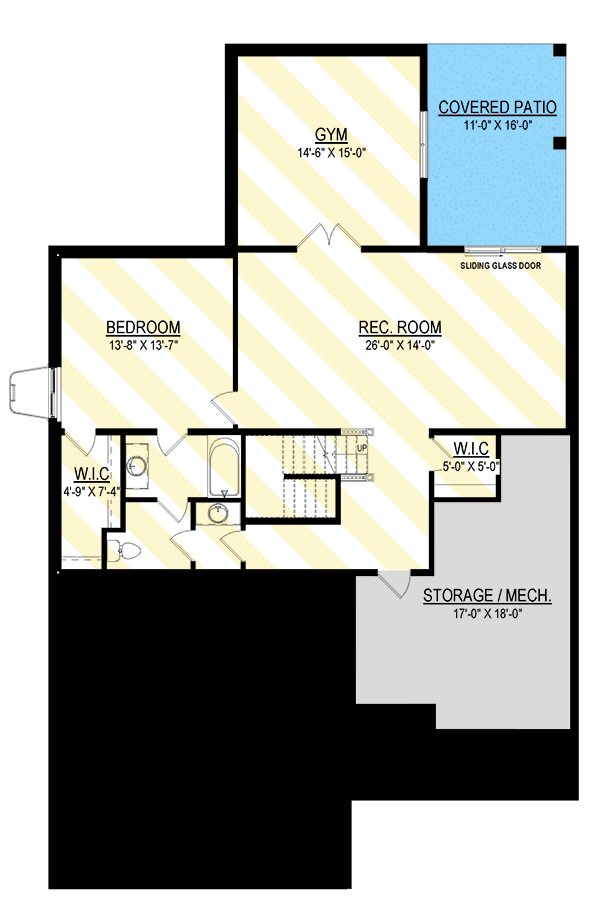

5-Bed Traditional Home Plan with Two Master Suites - 83603CRW floor plan - Optional Lower Level
Plan Details
  • You'll love the versatility of this 5-bedroom home plan, which features a traditional exterior, inviting walk-up front porch, and a 2-car garage.
  • A quiet study in the front of the home offers privacy and convenience. At the center of the home, a spacious vaulted dining room and living area offer clean sightlines, a cozy fireplace, and the freedom to create the perfect spaces for gathering and meals. The well-appointed kitchen boasts a large island with ample seating, access to the covered lanai, and a roomy walk-in pantry.
  • The main-floor master suite includes a walk-in closet and a 4-piece bath with a walk-in shower.
  • A second master suite on the upper level features an elegant tray ceiling, generously sized 5-piece bath with a double shower, and a large walk-in closet.
  • A large loft space on the upper level lends versatility. Three additional bedrooms share a full bath.
What's Included
This plan has 10 pages as follows:
  1. General notes
  2. Foundation plan
  3. First floor plan
  4. Second floor plan
  5. Roof plan

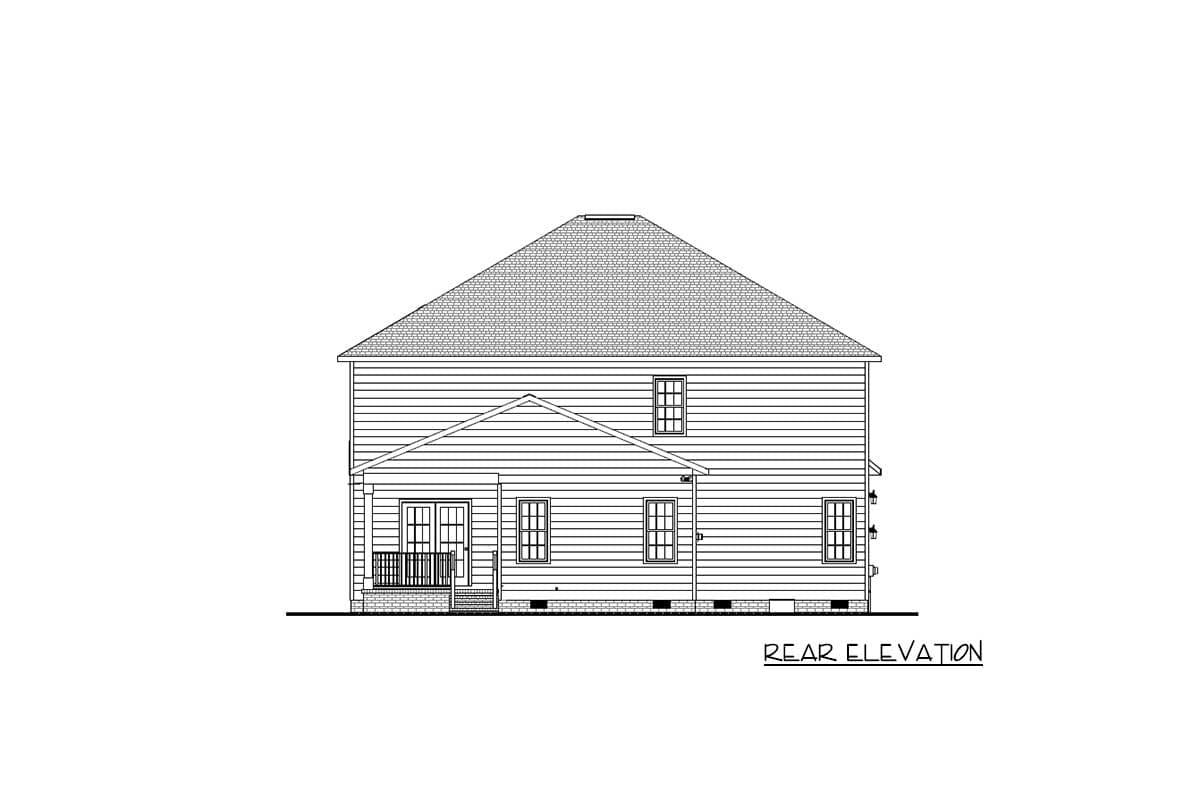

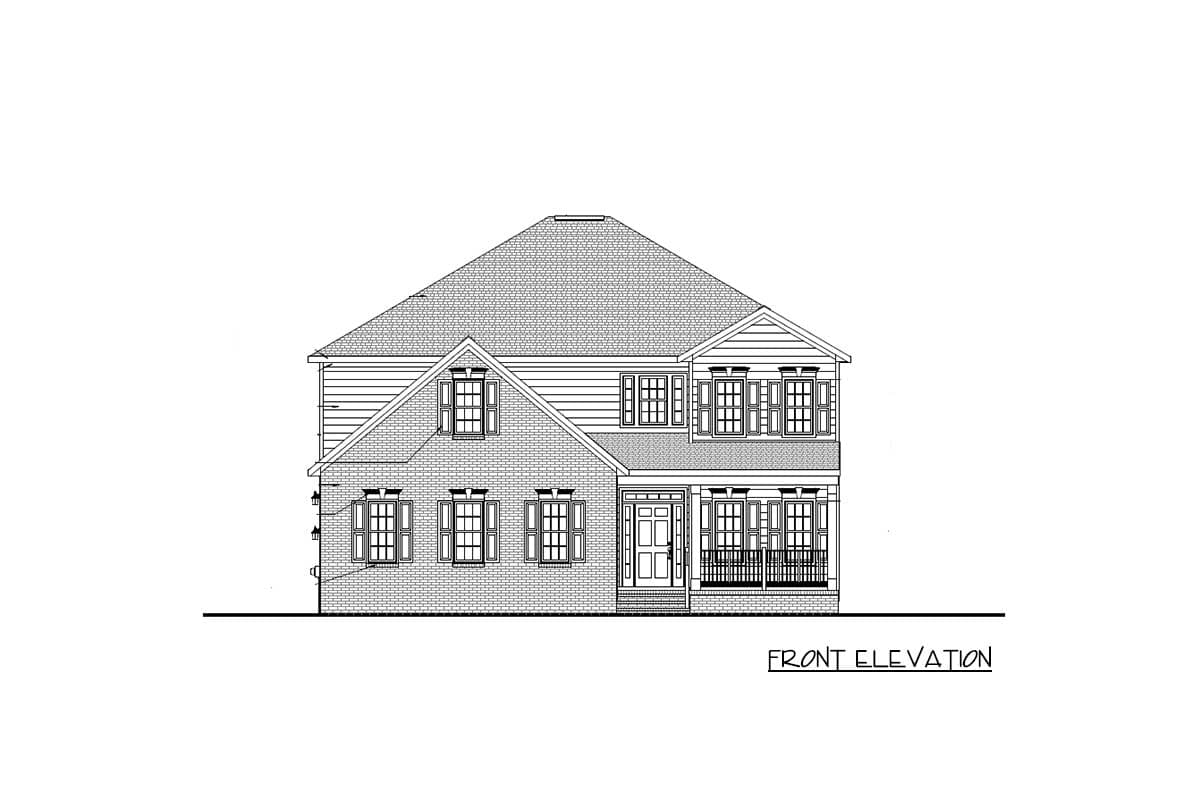

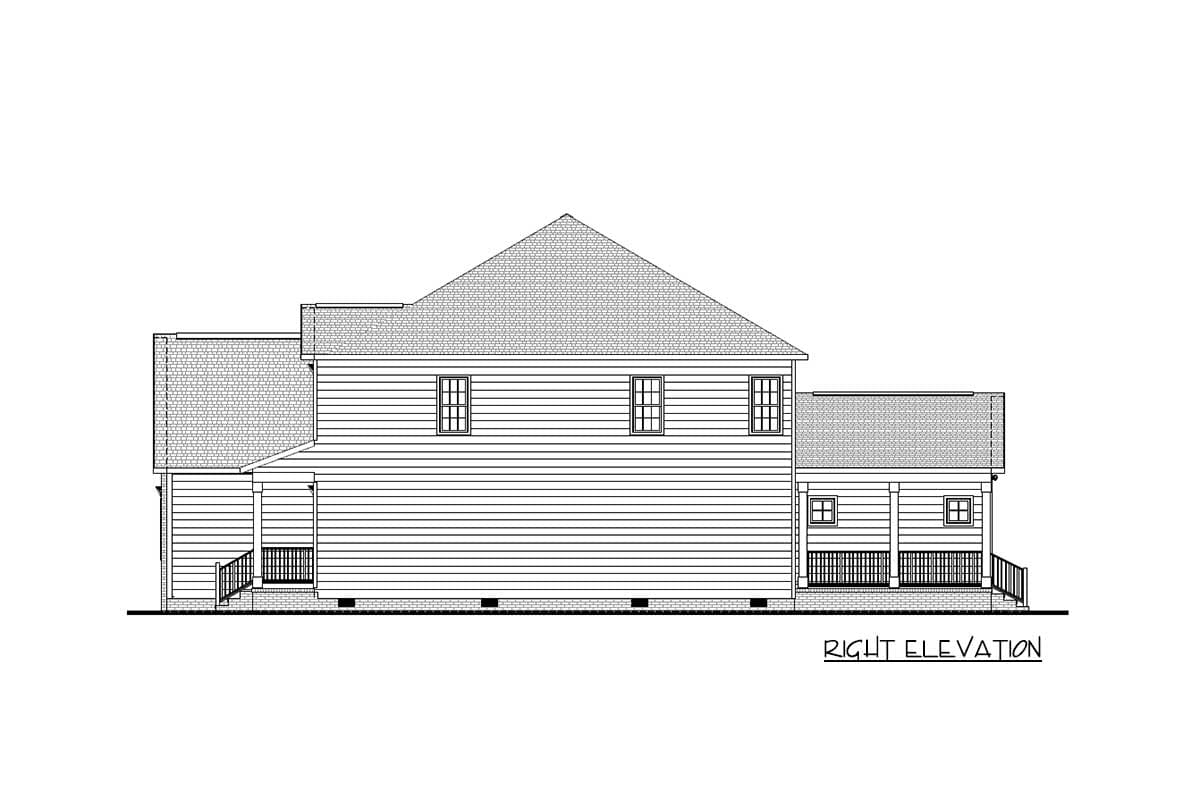

  6. Front and rear elevations

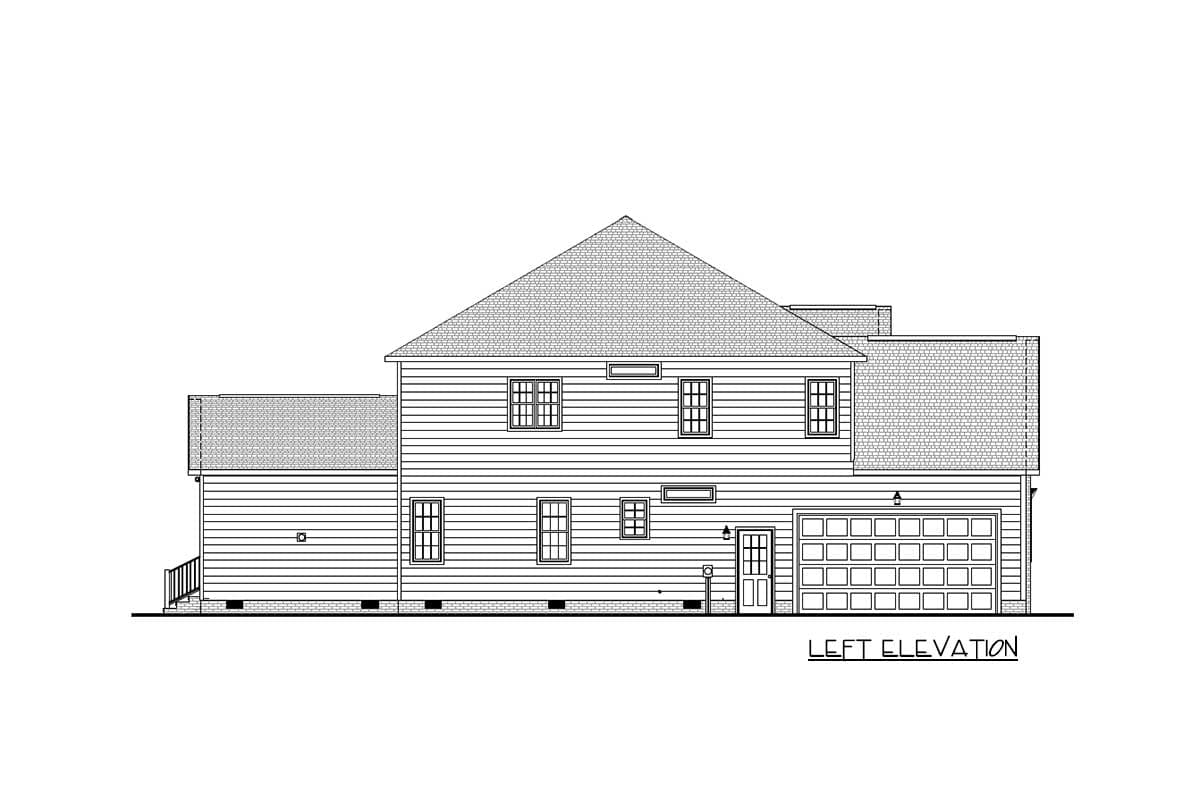

  7. Left and right elevations
  8. Sections
  9. Typical wall sections
  10. First and second floor electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Print
Hide
Compare
Favorite
