Plan 290163IY
5-Bed Transitional House Plan for Sloped Lot
Heated S.F.
4,736
Beds
5
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • Contrasting tones, steeply-pitched gables, and oversized windows blend together to provide a fresh exterior to this 5-bedroom, transitional house plan.

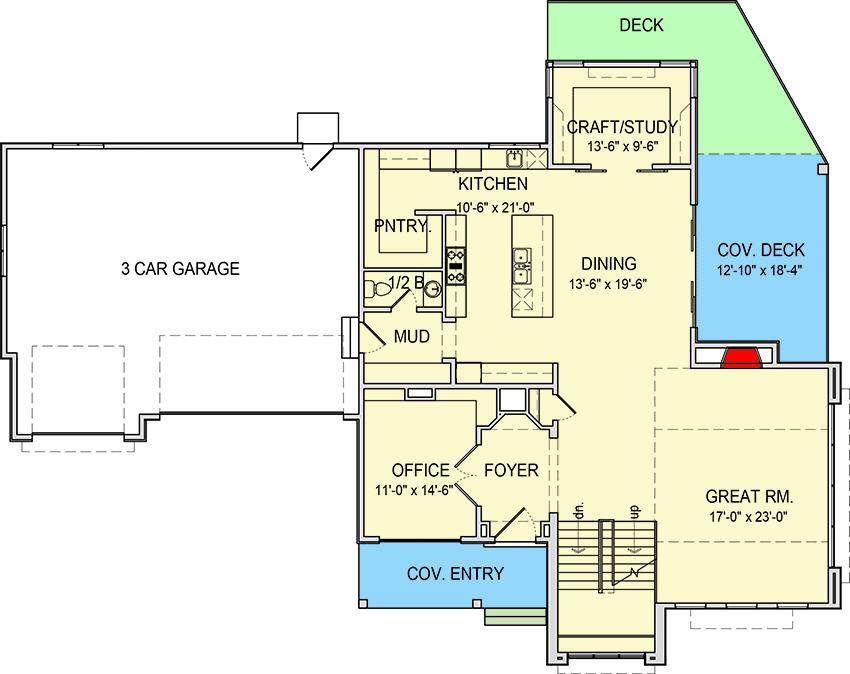

  • A home office is located to the left of the foyer, across from the sizable great room with a cozy fireplace. The kitchen and dining area open to one another and extend onto a covered deck to make grilling and dining outdoors effortless.
  • Barn doors part to reveal a craft room just off the dining area.

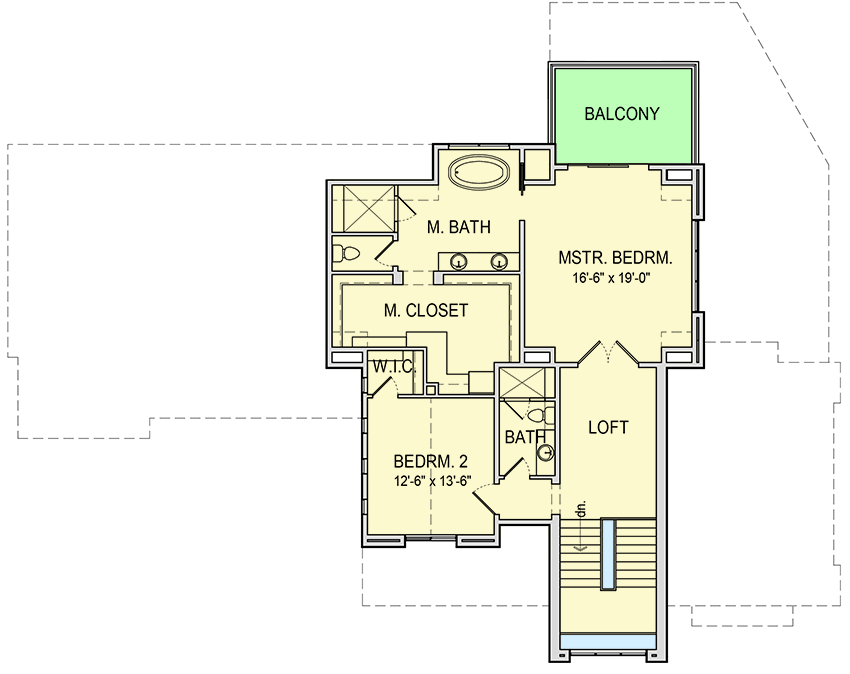

  • The master bedroom can be found upstairs, complete with a private balcony, 5-fixture ensuite, and a walk-in closet. A second bedroom neighbors a full bath.

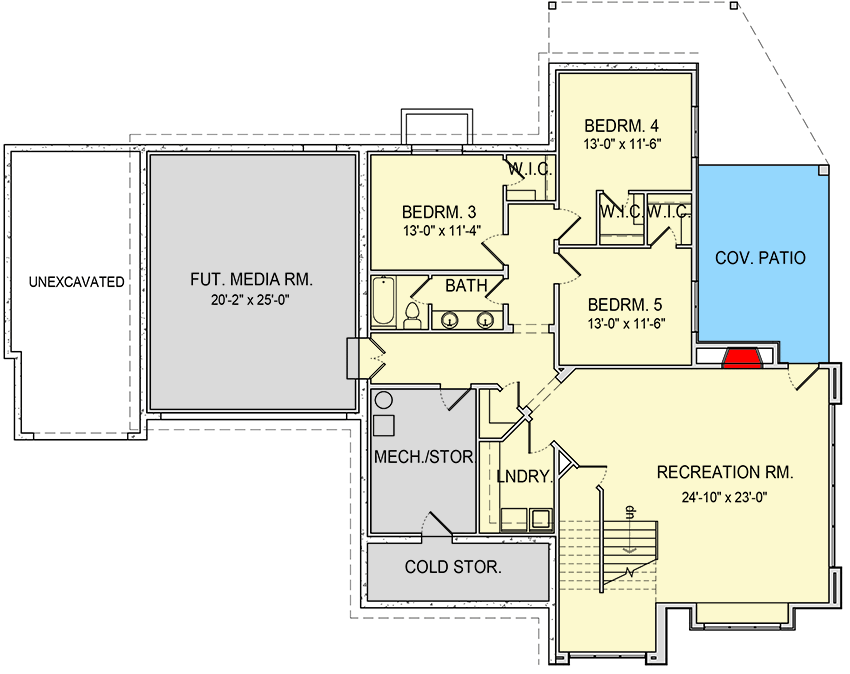

  • The walk-out basement offers additional space for all to enjoy, and features a recreation room, three bedrooms, a compartmentalized bath, and laundry room.
What's Included
This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

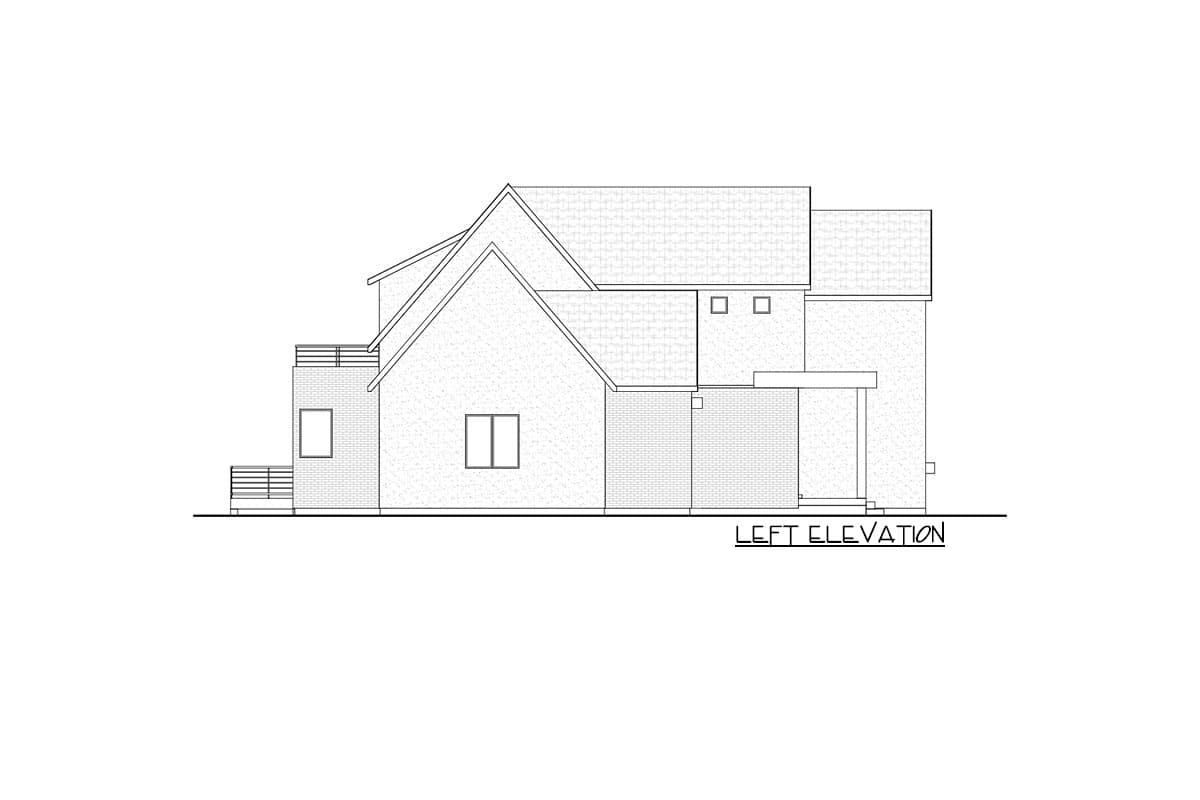

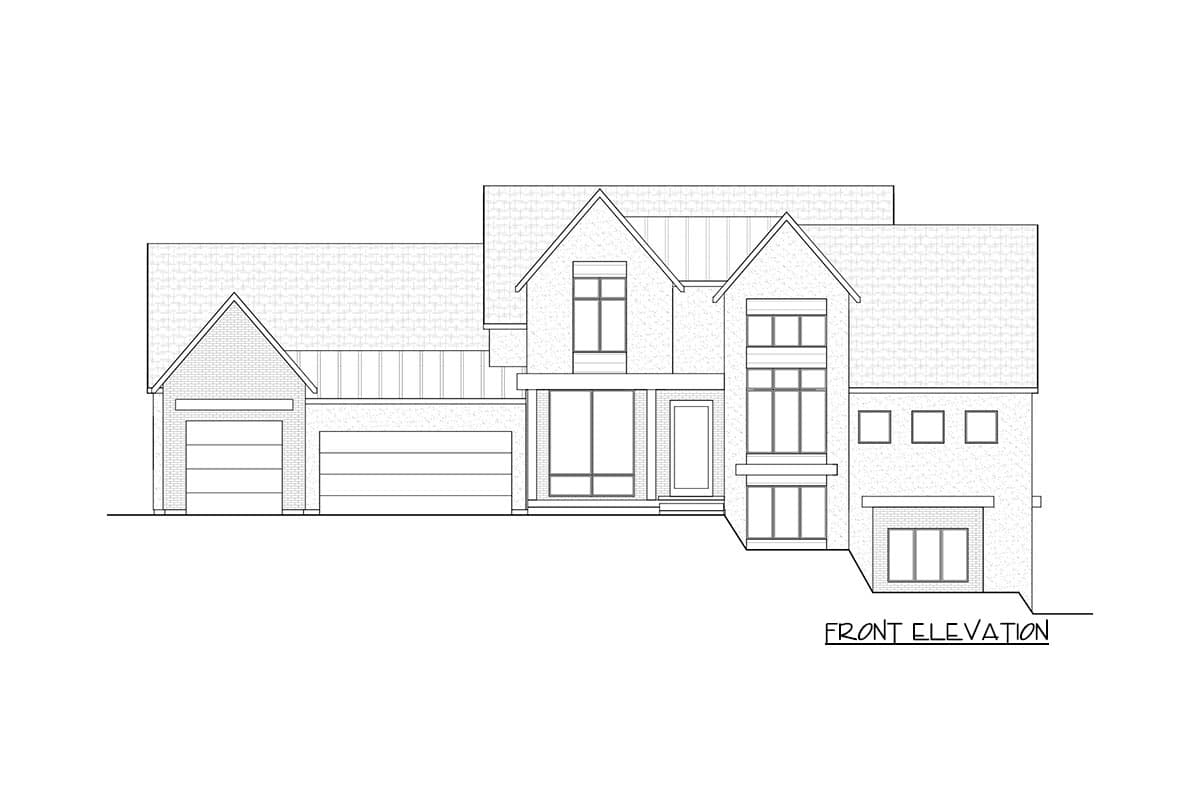

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5-Bed Transitional House Plan for Sloped Lot

  • 4,736

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,736 sq. ft.
  • Lower Level: 1,535 sq. ft.
  • 1st Floor: 1,861 sq. ft.
  • 2nd Floor: 1,340 sq. ft.

Dimensions

  • Width: 82' 2"
  • Depth: 59' 0"
  • Max ridge height: 30' 10"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 965 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
