Plan 506018BRY

5-Bed Transitional House Plan with Home Office and Den - 4119 Sq Ft

Heated S.F.
4,119
Beds
5
Baths
3.5+
Stories
2
Cars
2

Floor Plan

Plan 506018BRY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 506018BRY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

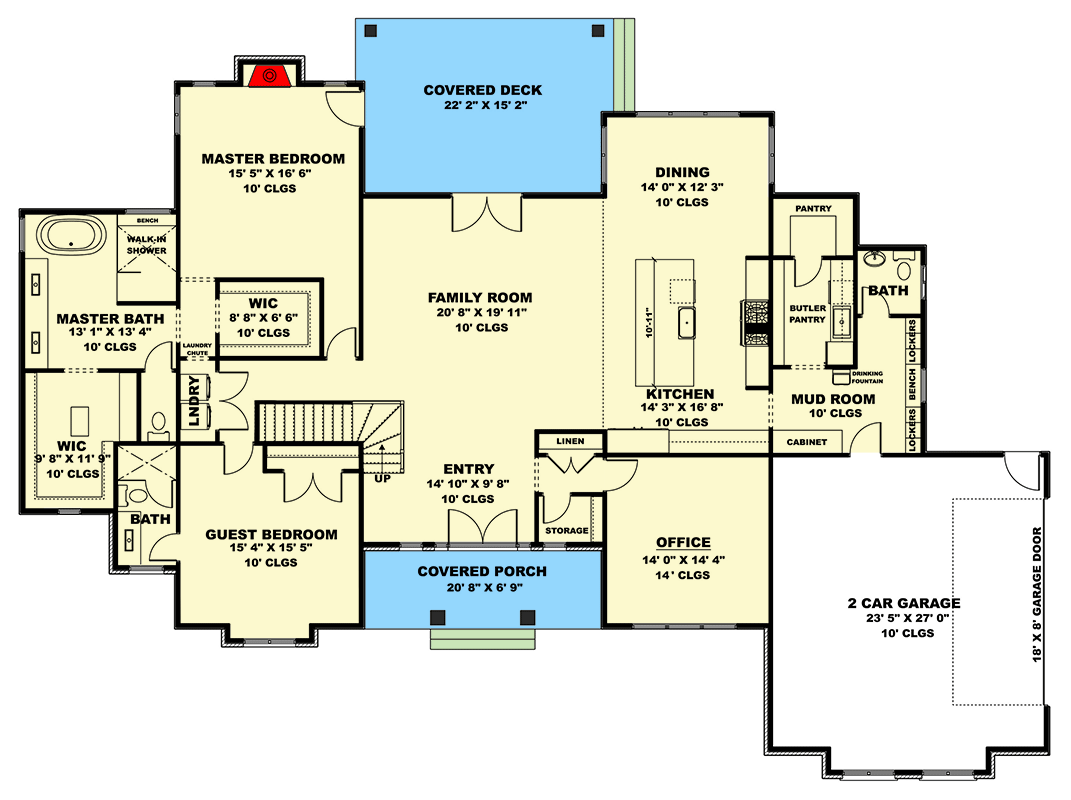

Plan 506018BRY: 5-Bed Transitional House Plan with Home Office and Den - 4119 Sq Ft - Floor Plan - Main Level - New American, Transitional

2nd Floor

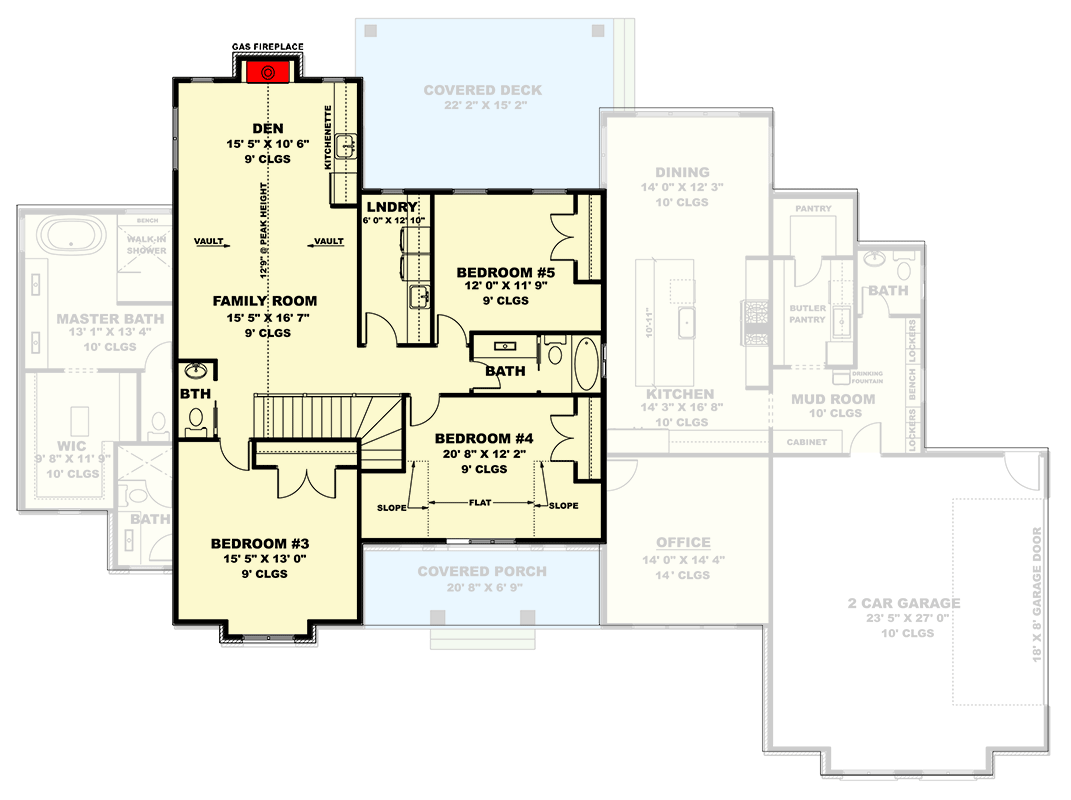

Plan 506018BRY: 5-Bed Transitional House Plan with Home Office and Den - 4119 Sq Ft - Floor Plan - 2nd Floor - New American, Transitional

Plan Details

  • This transitional house plan offers you 4,119 square feet of heated living space with 5 beds, 3+ baths and a 660 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,119 sq. ft.

1st Floor

2,713 sq. ft.

2nd Floor

1,406 sq. ft.

Porch, Front

157 sq. ft.

Deck

325 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 5"

Depth

62' 3"

Max Ridge Height

30' 7"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Home Office

Laundry Access from Master Suite

Laundry Chute

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Wet Bar

Square Footage Breakdown

Total Heated Area

4,119 sq. ft.

1st Floor

2,713 sq. ft.

2nd Floor

1,406 sq. ft.

Porch, Front

157 sq. ft.

Deck

325 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 5"

Depth

62' 3"

Max Ridge Height

30' 7"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

New American

Transitional

Special Features

Bedrooms - Split

Breakfast Nook

Butler Walk-in Pantry

Den

Flex Room

Home Office

Laundry Access from Master Suite

Laundry Chute

Laundry - Main Level

Laundry - Upstairs

Loft

Master Suite - 1st Floor

Mudroom

Wet Bar
