5-Bed Vacation Home Plan with Sun Decks Galore

Heated S.F.
2,252
Beds
5
Baths
3.5
Stories
2

Floor Plan

Plan 72970DA

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 72970DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

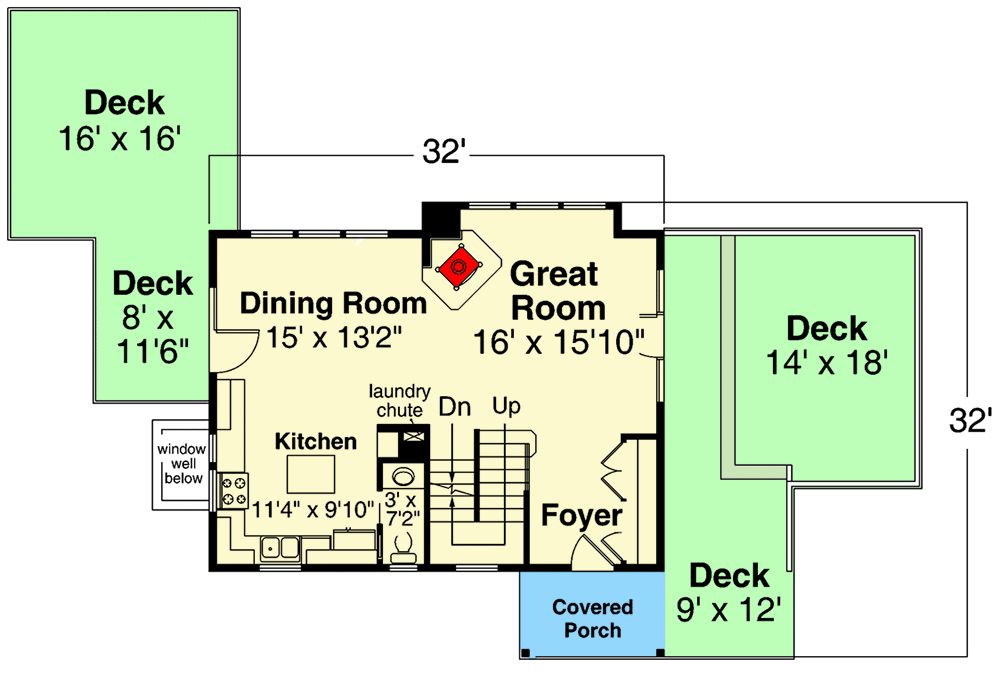

Plan 72970DA: 5-Bed Vacation Home Plan with Sun Decks Galore - Floor Plan - Main Level - Vacation

2nd Floor

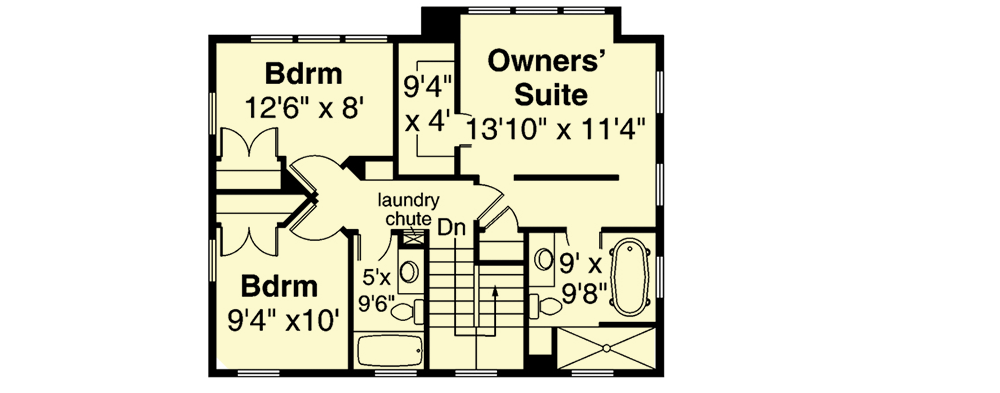

Plan 72970DA: 5-Bed Vacation Home Plan with Sun Decks Galore - Floor Plan - 2nd Floor - Vacation

Lower Level

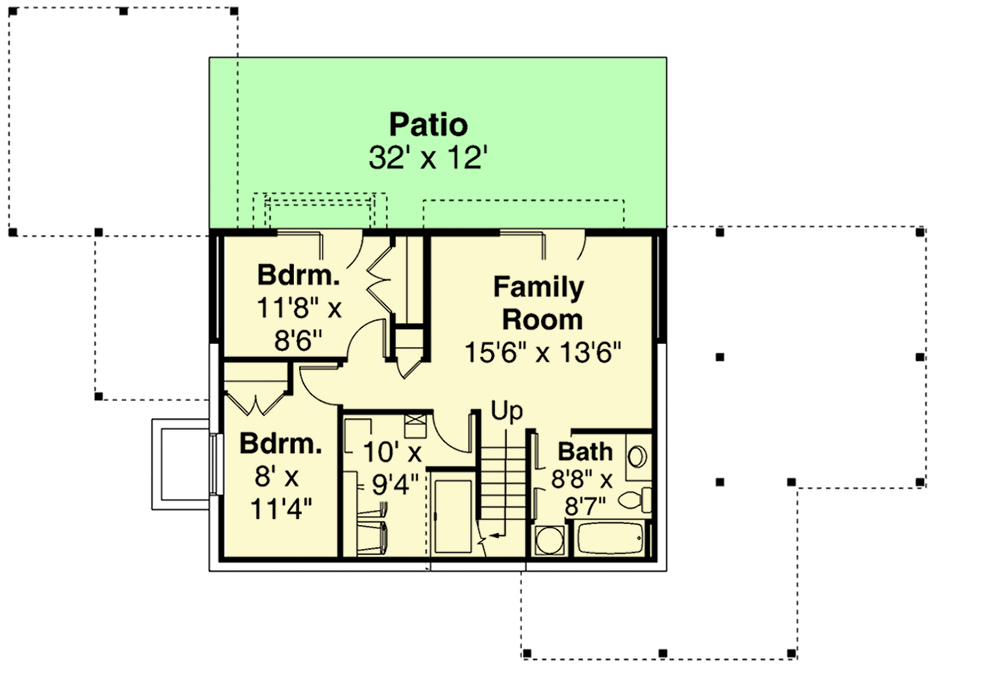

Plan 72970DA: 5-Bed Vacation Home Plan with Sun Decks Galore - Floor Plan - Lower Level - Vacation

Plan Details

  • The simple, rectangular footprint of this 5-bedroom, vacation home provides a budget-friendly floor plan. The cube-like exterior topped with a shed roof adds a contemporary vibe.
  • The main level is comprised of the shared living spaces, along with ample outdoor living spaces on the surrounding sun decks. An angled fireplace juts out from the great room in order to share its warmth throughout the first floor.
  • An island in the center of the kitchen increases available workspace, and the attached dining room provides access to one of the side decks.
  • The owner's suite occupies the right side of the second level, and features a 4-fixture bath and a walk-in closet. Bedrooms 2 and 3 are located down the hall, across from a full bath. A central laundry shoot reduces time spent collecting clothes on laundry day.
  • A second family room can be found on the lower level, with access to a patio. Also downstairs, discover two additional bathrooms, a full bath, and the laundry room.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

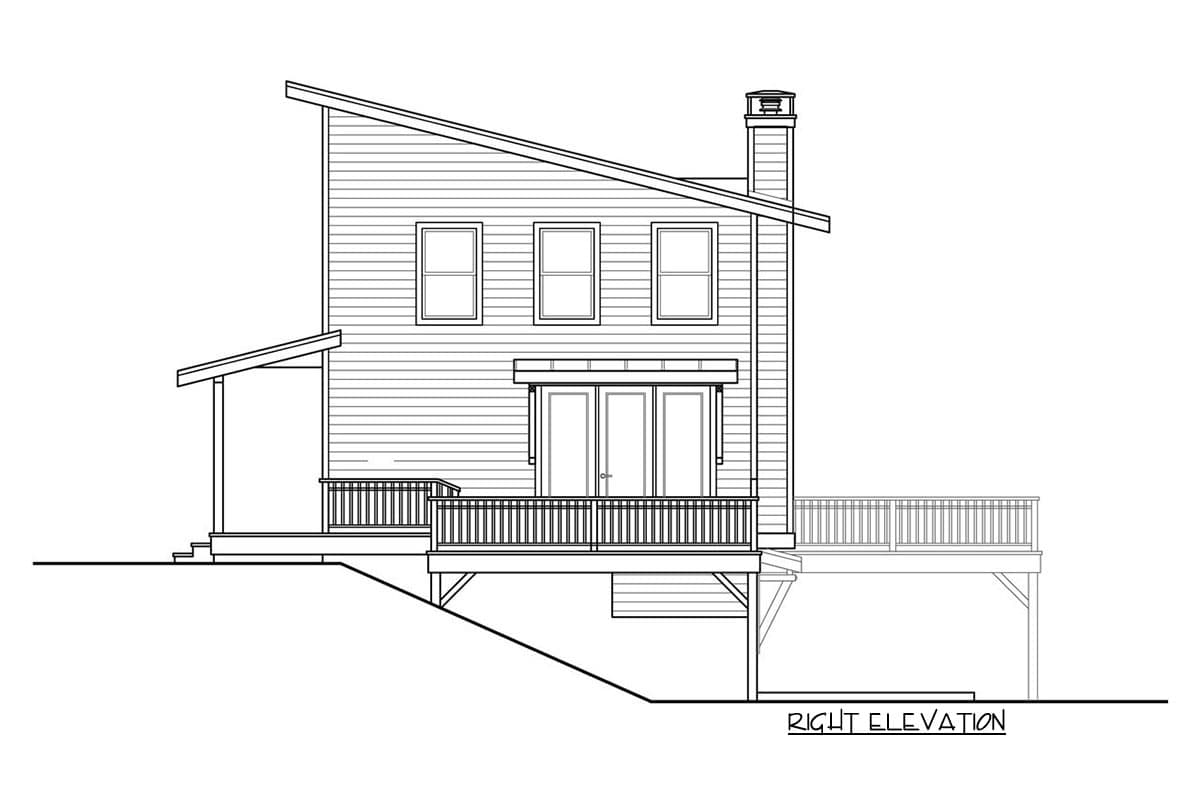

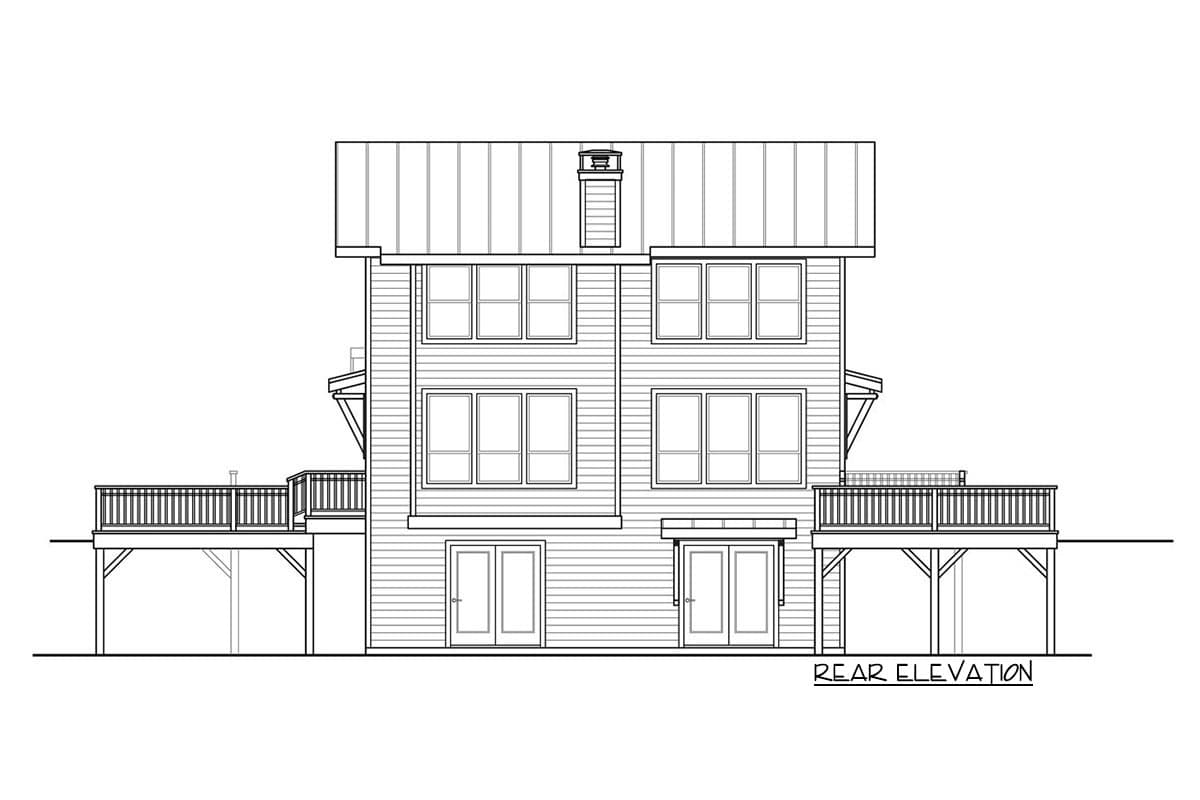

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,252 sq. ft.

Lower Level

716 sq. ft.

1st Floor

796 sq. ft.

2nd Floor

740 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

32' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Vacation

Special Features

Master Suite - Upstairs

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,252 sq. ft.

Lower Level

716 sq. ft.

1st Floor

796 sq. ft.

2nd Floor

740 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

32' 0"

Max Ridge Height

26' 0"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Vacation

Special Features

Master Suite - Upstairs

Plan Collections

Sloping Lot
