5-Bedroom New American House Plan with Home Office and Workshop
Heated S.F.
3,257
Beds
5
Baths
4.5
Stories
2
Cars
2
What's Included
Plan Details
  • Multiple gables and mixed materials give this 5 bed, 4.5 bath New American house plan great curb appeal. It gives you 3,257 square feet of heated living space plus a 2-car side load garage with workshop.

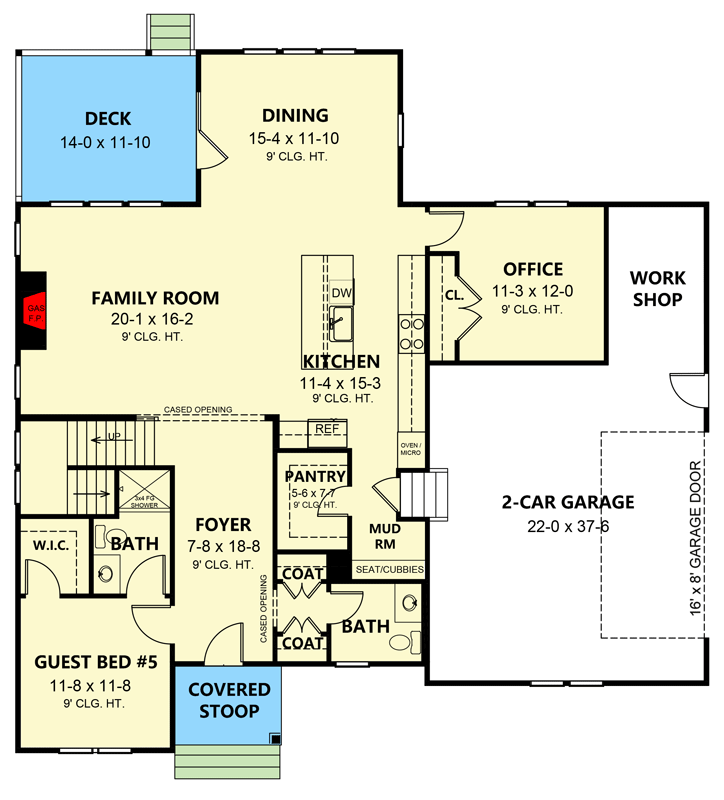

  • A guest bed suite off the foyer has a walk-in closet with its own full bath and sits across the foyer from a cased opening giving you access to not one but two closets and a powder room.
  • Walk past the stairs and find yourself in the family room with fireplace that is open to the kitchen with large island and the dining room with rear deck access.
  • A home office is tucked away in the back and makes a great work-from-home space.

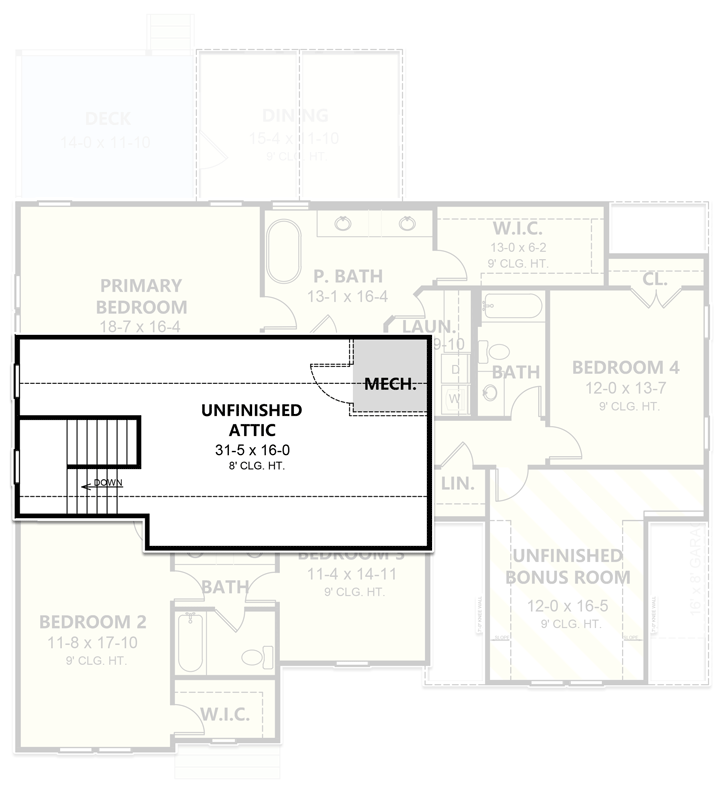

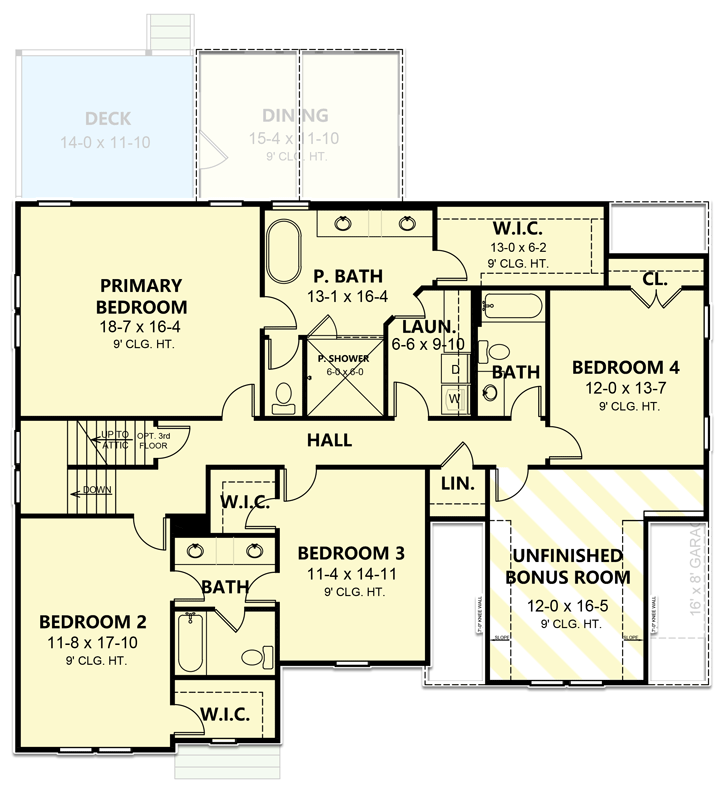

  • All 5 bedrooms are located on the second floor as is the convenient laundry. A bonus room gives you 229 square feet of expansion space and stairs take you to a third floor walk-up attic adding flexibility to this attractive house plan.
What's Included
  • Title sheet with general notes
  • Elevations
  • Foundation plan
  • Detailed floor plans
  • Roof framing plan
  • Cross sections & details
  • Interior trim details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5-Bedroom New American House Plan with Home Office and Workshop

  • 3,257

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,257 sq. ft.
  • 1st Floor: 1,569 sq. ft.
  • 2nd Floor: 1,688 sq. ft.
  • 3rd Floor: 507 sq. ft.

Dimensions

  • Width: 53' 9"
  • Depth: 54' 6"
  • Max ridge height: 36' 1"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 645 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 1" Second Floor / 9' 1"

Roof

  • Primary Pitch: 8` on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick And Truss
