503 Square Foot Craftsman ADU-Friendly Garage Apartment

Plan 330001WLE

  • 503

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This garage apartment give you parking for 2 cars and has a one bedroom apartment which checks off the boxes for this to be a rental property, an ADU or a backyard retreat.
  • The ground level has 442 square feet of parking space and a mechanical room under the stairs.
  • Upstairs, the front is an open space shared by the C-shaped kitchen and the living room leaving the back half dedicated to the bedroom and full bath.
  • Laundry is tucked away behind a pair of French doors.
  • Related Plan: Get an alternate exterior with garage apartment plan 330003WLE.

  • Foundation Plan - Foundation wall and footing locations
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

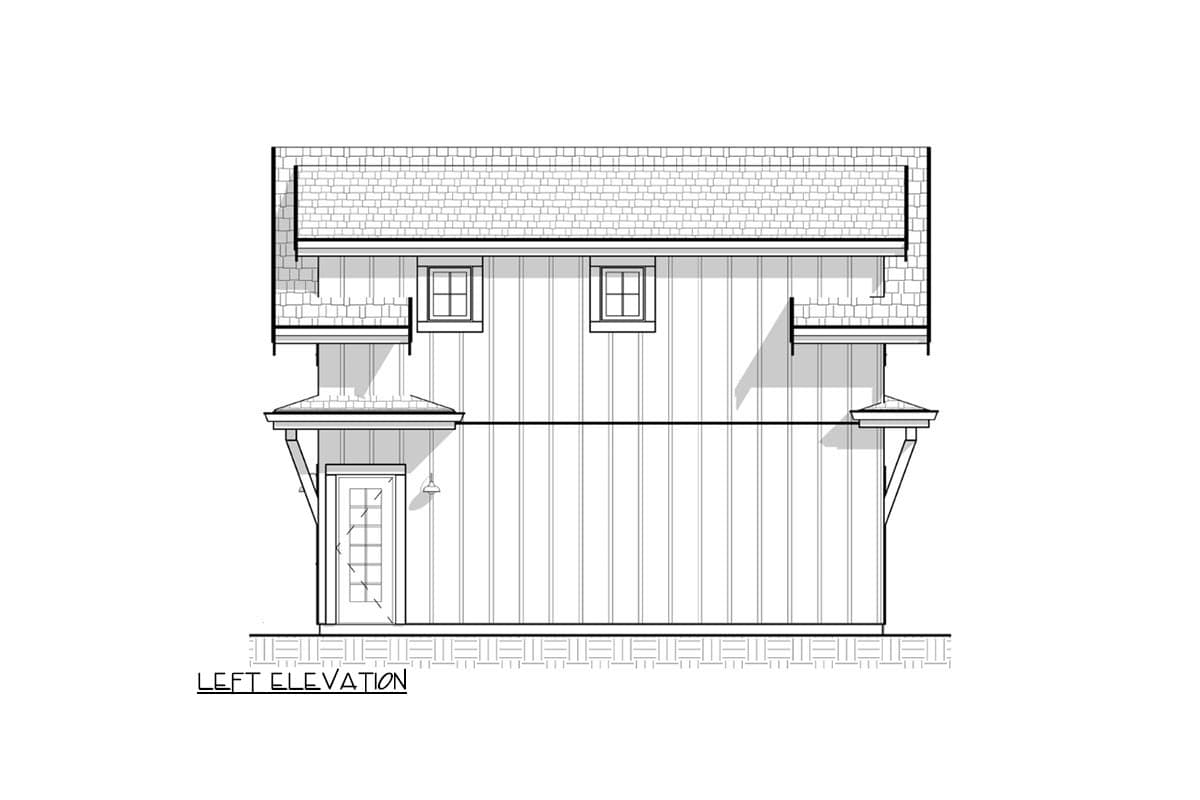

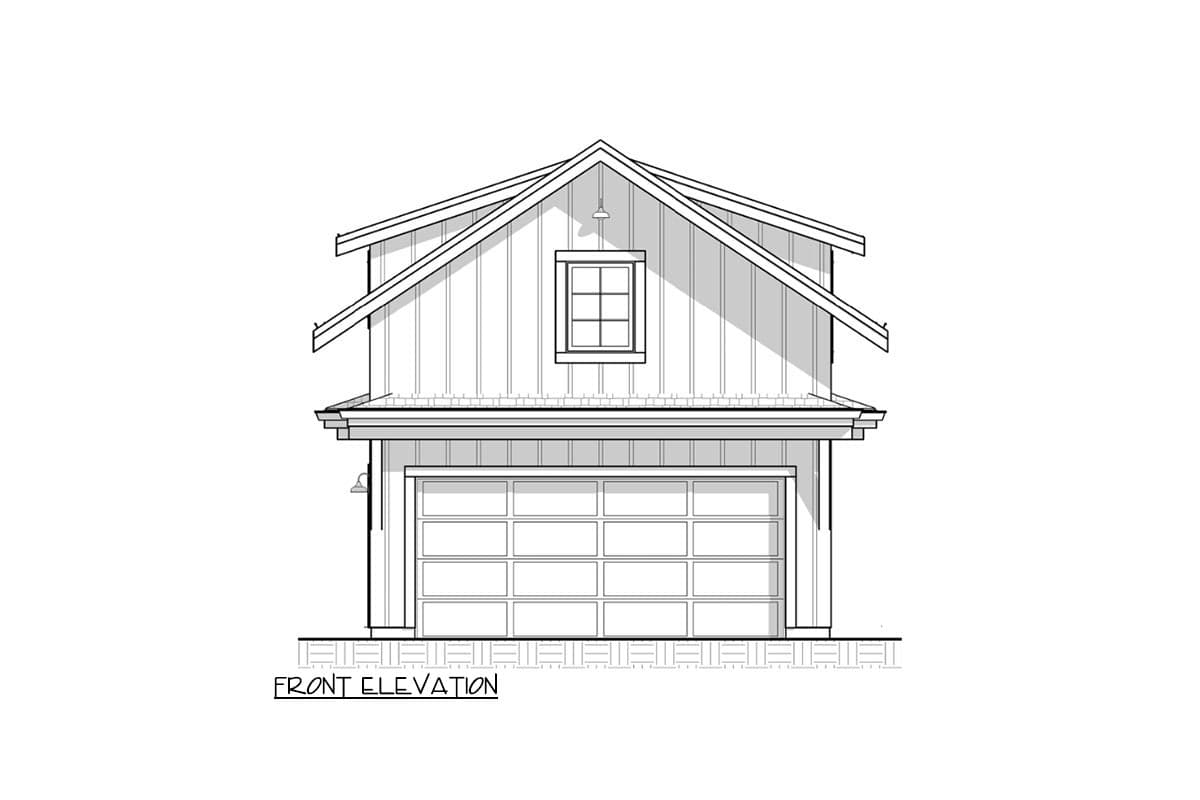

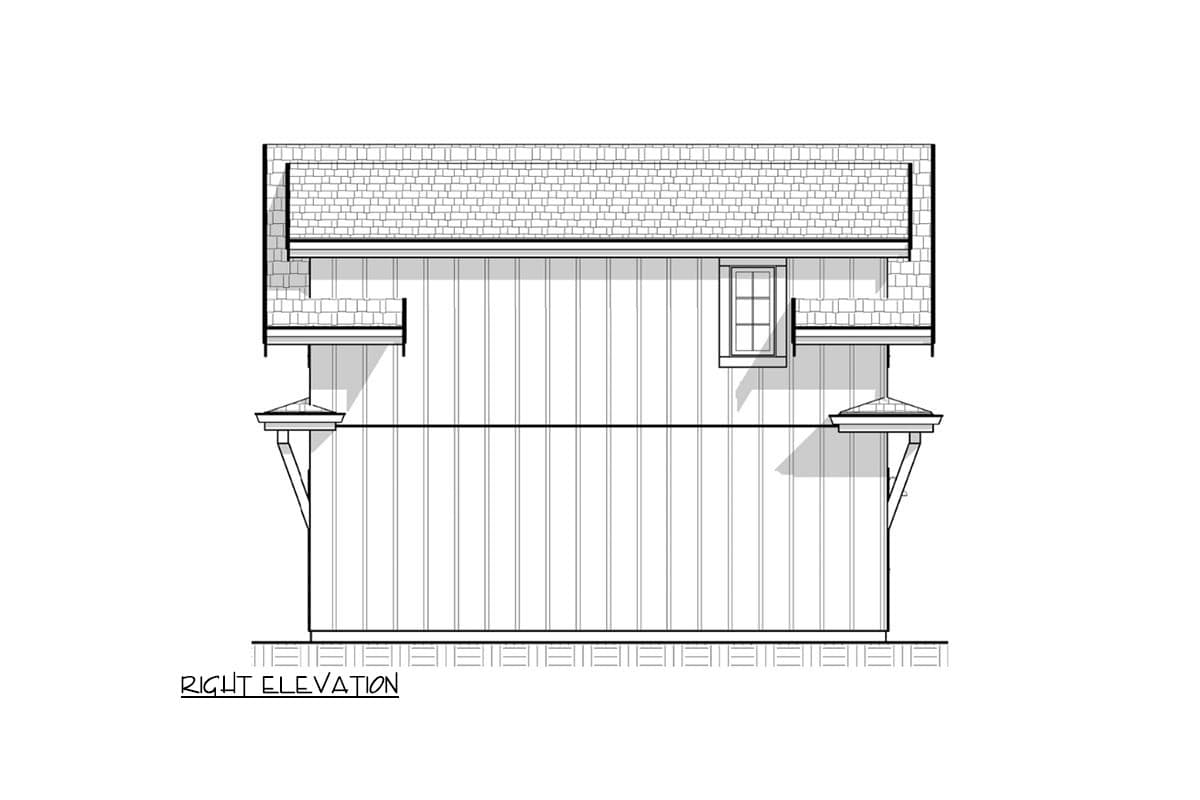

  • Exterior Elevations - Views of the front, rear, and sides of the home. Plus material and color legends that align with the renderings.
  • Sections - Full building cross sections.
  • Details - Typical details for foundation, floor framing, roof and any necessary details for specific Architectural elements.
  • Electrical Plans - Basic locations of lights, outlets, switches, panels and switching diagrams.

What is not included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  • Framing layouts with beam sizes and locations
  • Material lists
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

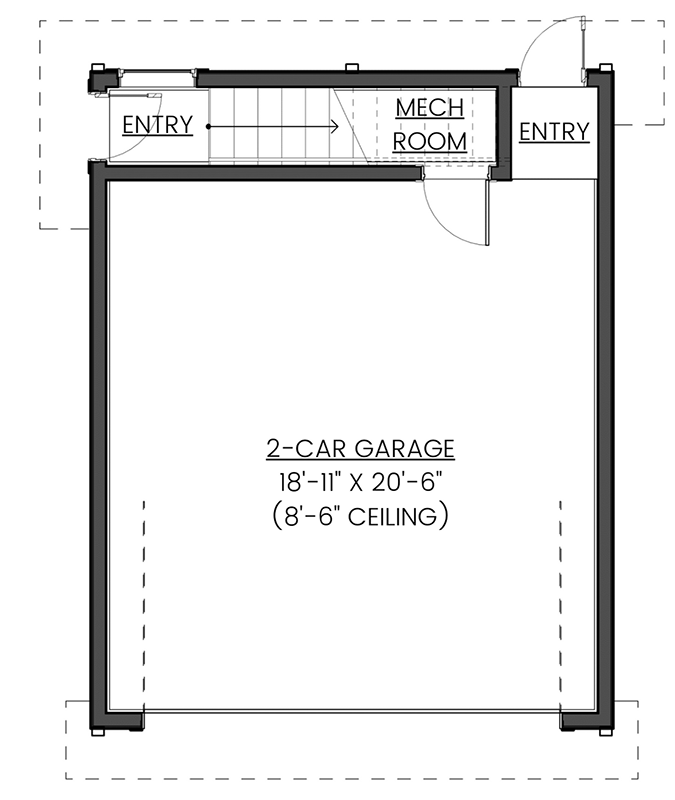

503 Square Foot Craftsman ADU-Friendly Garage Apartment - 330001WLE floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

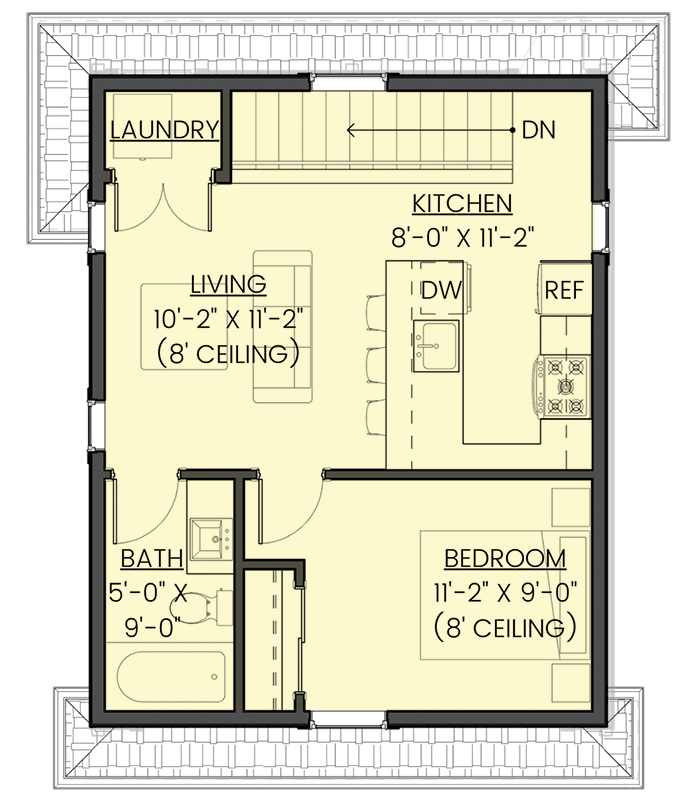

503 Square Foot Craftsman ADU-Friendly Garage Apartment - 330001WLE floor plan - 2nd Floor

Architectural Style

Plan Collections

503 Square Foot Craftsman ADU-Friendly Garage Apartment

  • 503

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 503 sq. ft.
  • 2nd Floor: 503 sq. ft.

Dimensions

  • Width: 20' 0"
  • Depth: 25' 2"
  • Max ridge height: 21' 10"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 442 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 6" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
